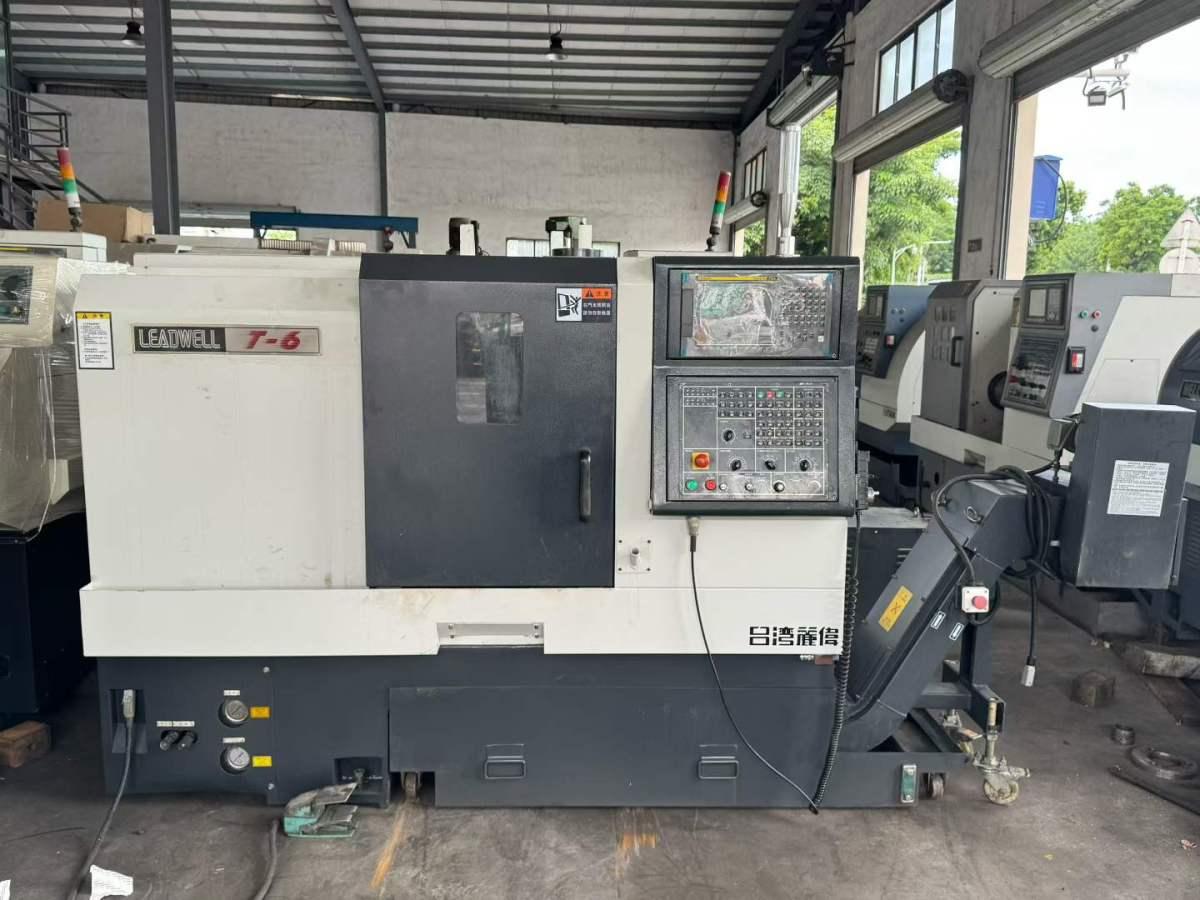

Leadwell T-6 CNC turning lathe

[Product Information]:

Inventory number：469008
Brand：Leadwell
Model：T-6
Origin：Taiwan, China
Location：China
Year：2021
Create Time：2026-10-03

Specifications:

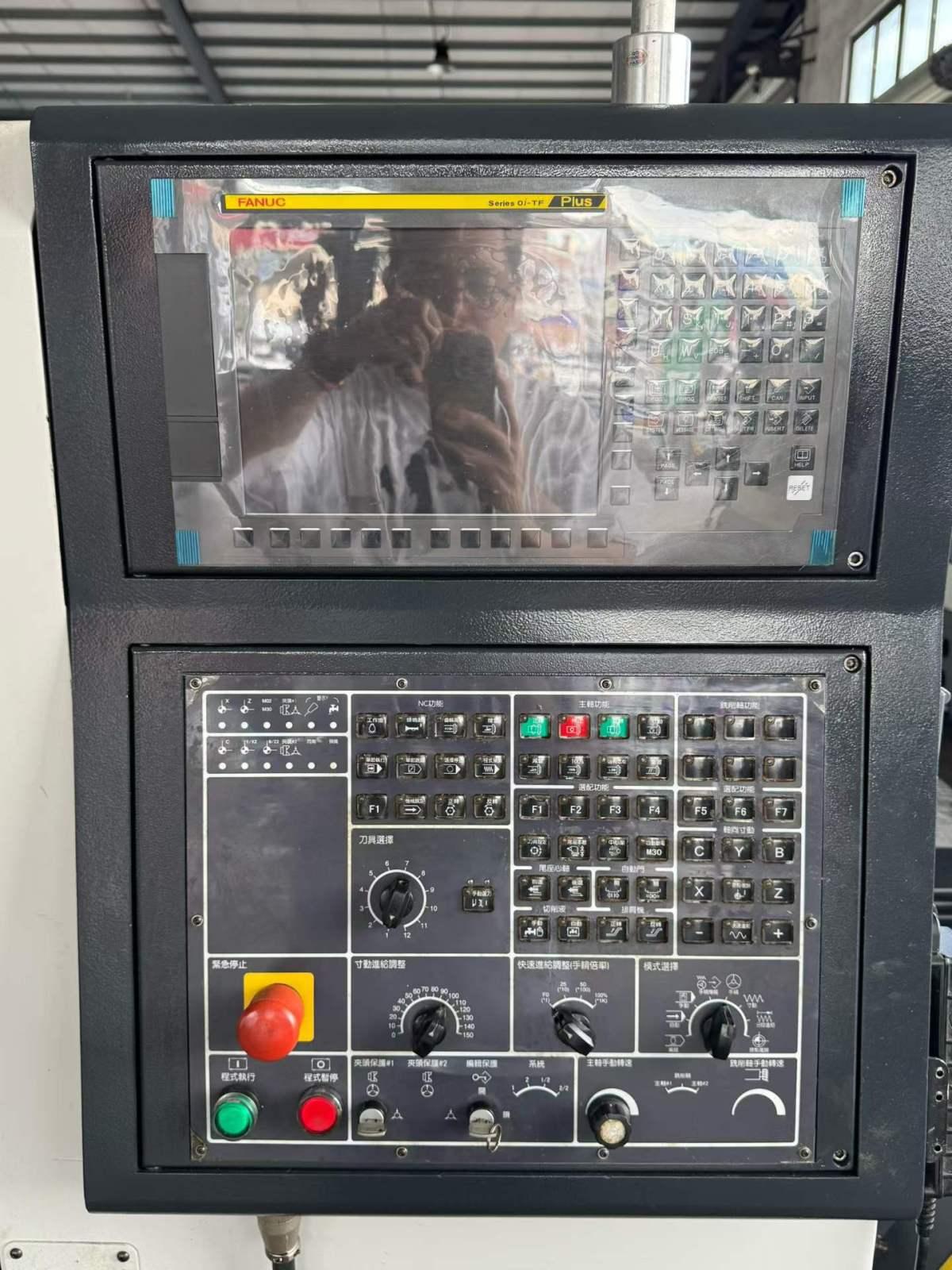

CNC System: FANUC 0i-MD
Maximum machining diameter: Φ300 mm
Maximum swing diameter: Φ450 mm
Maximum machining length: 420 mm
Spindle speed: 4,500 rpm
X/Z-axis travel: 250 × 460 mm
Spindle bore: Φ52 mm

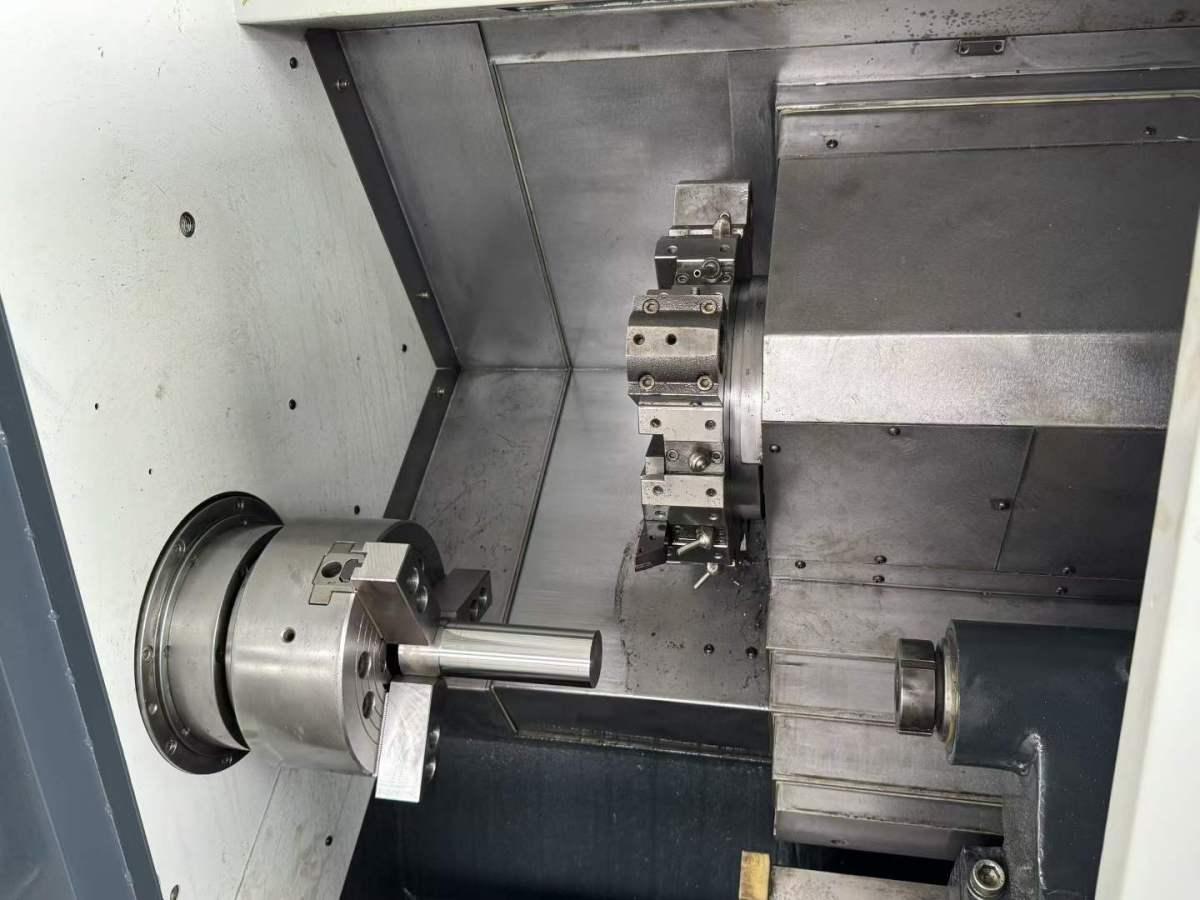

Chuck size: 6-inch hydraulic chuck

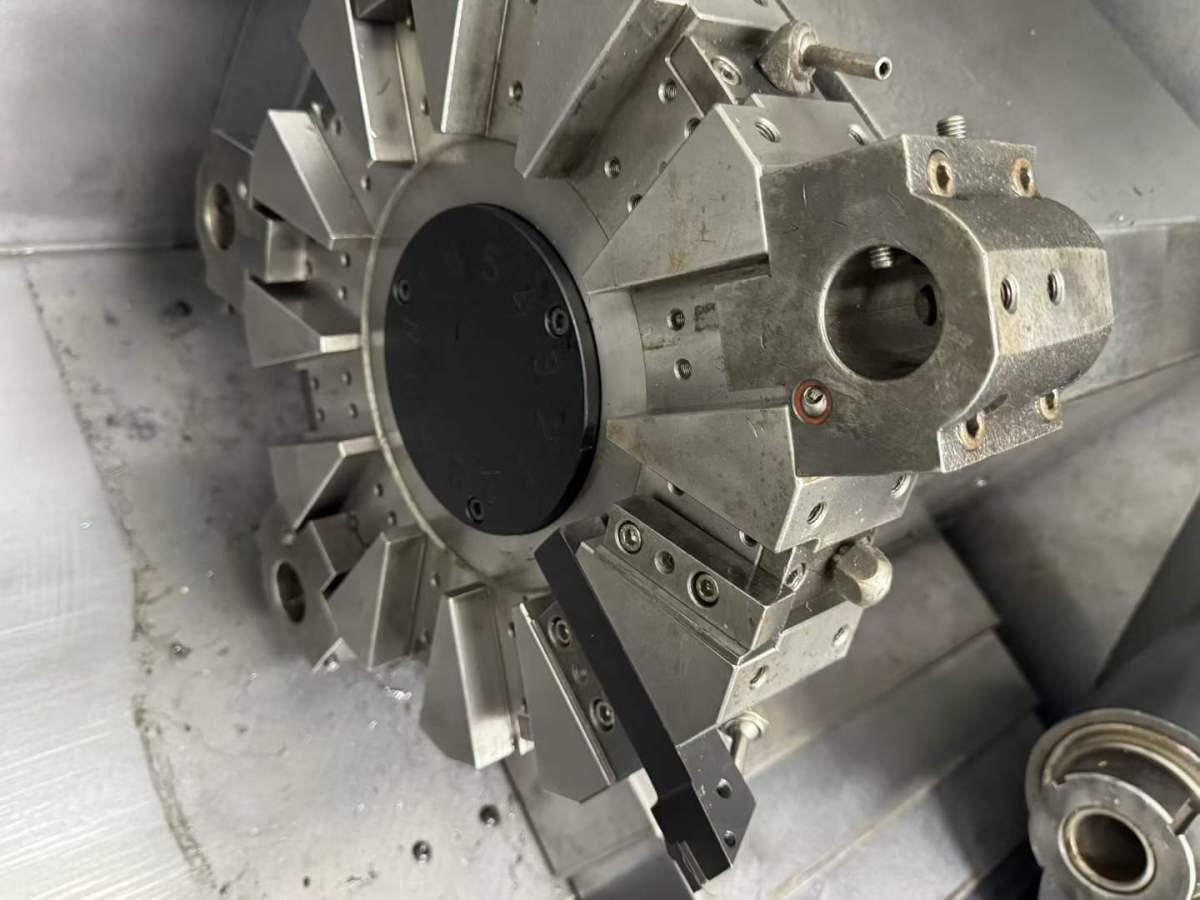

Turret: 12 stations
Configuration:
Hydraulic tailstock
Automatic chip conveyor
