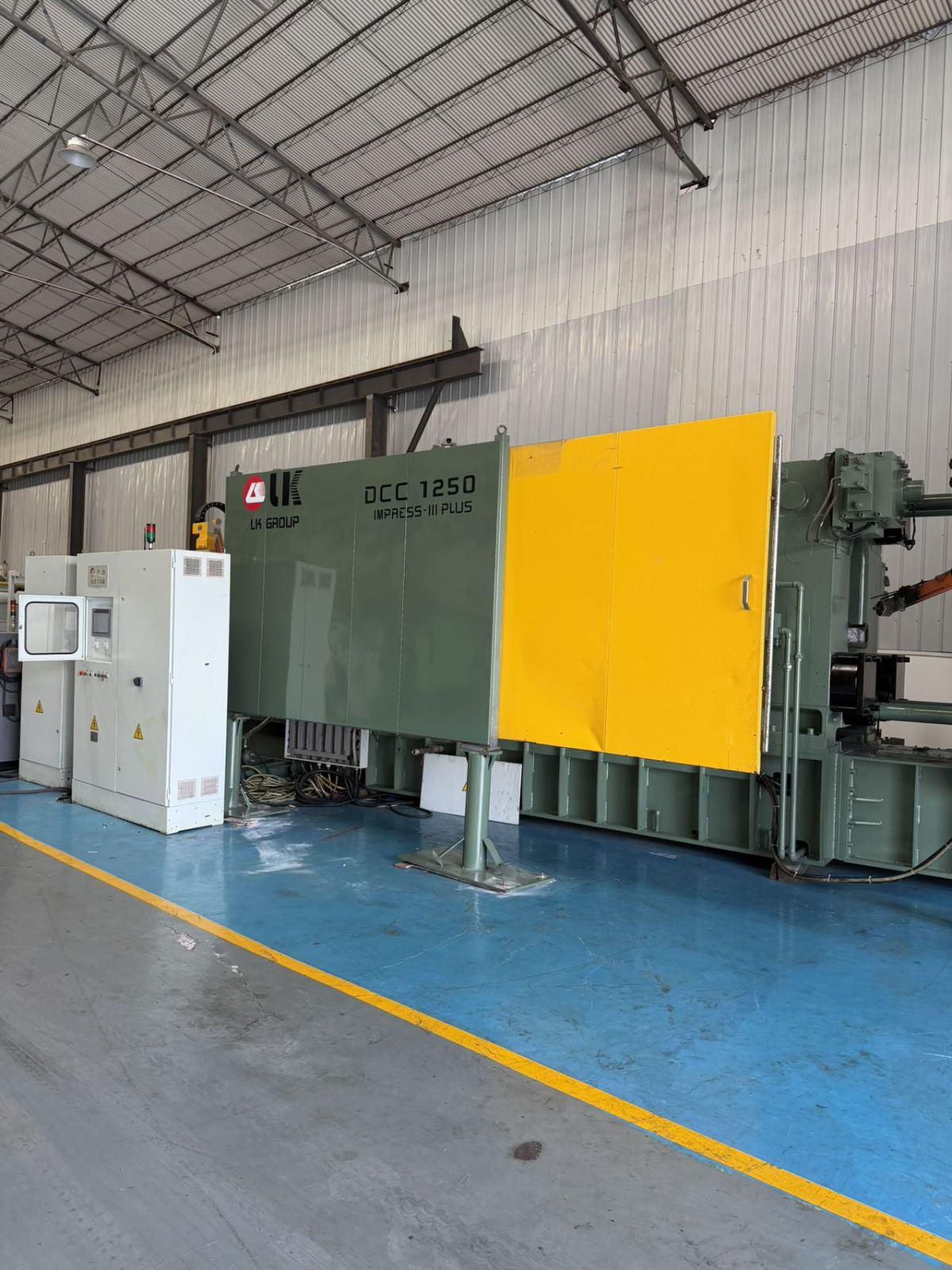

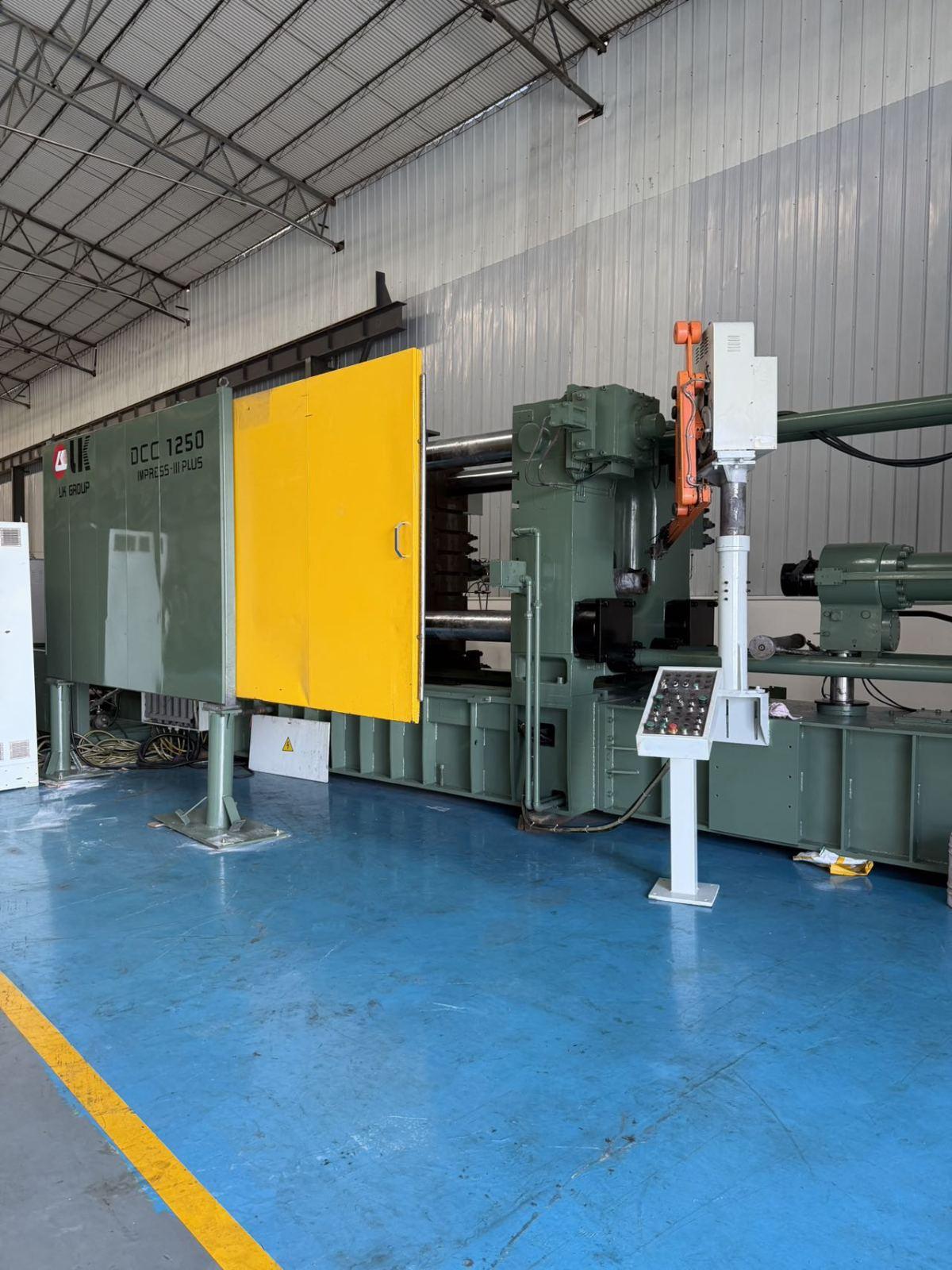

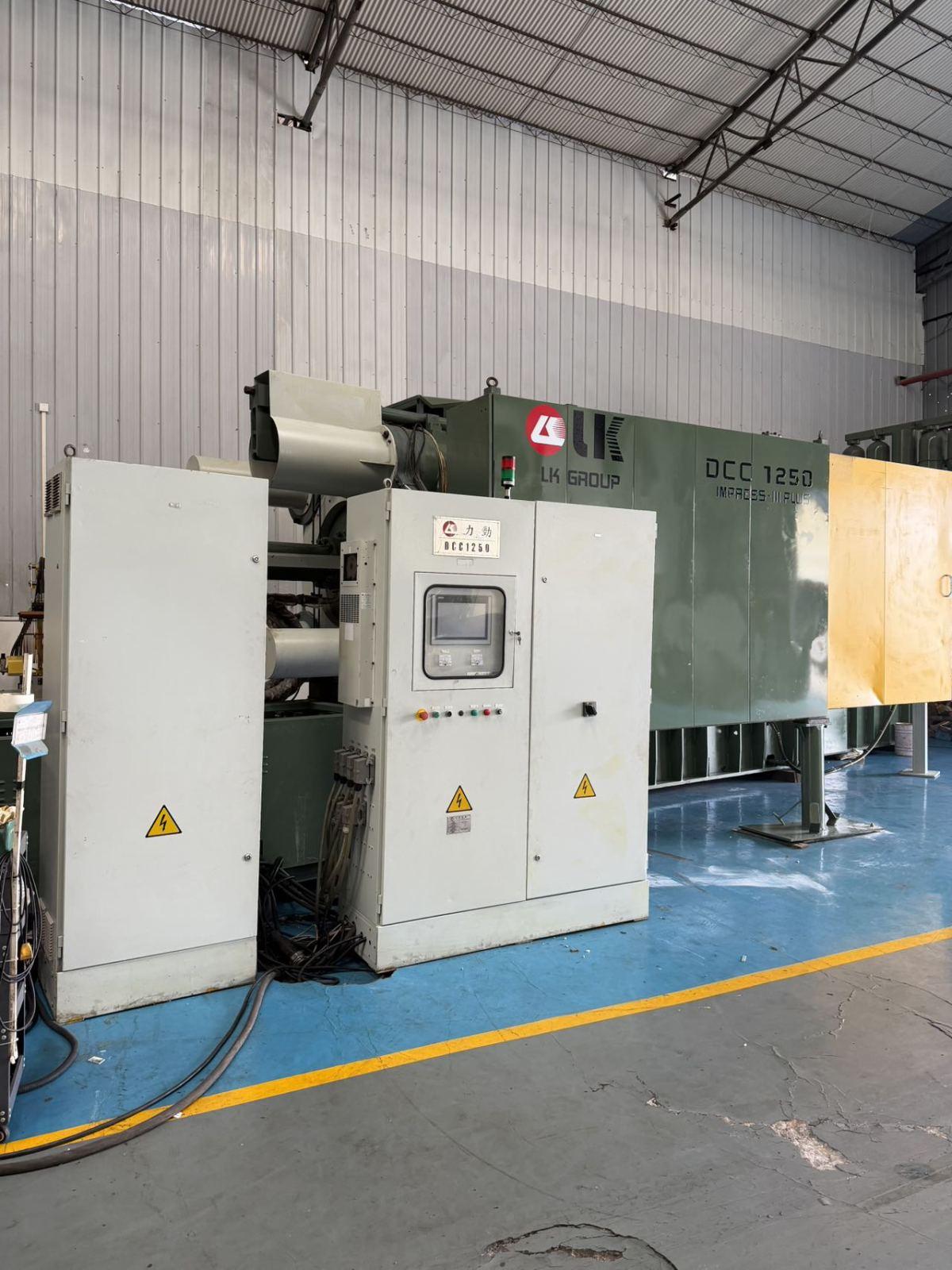

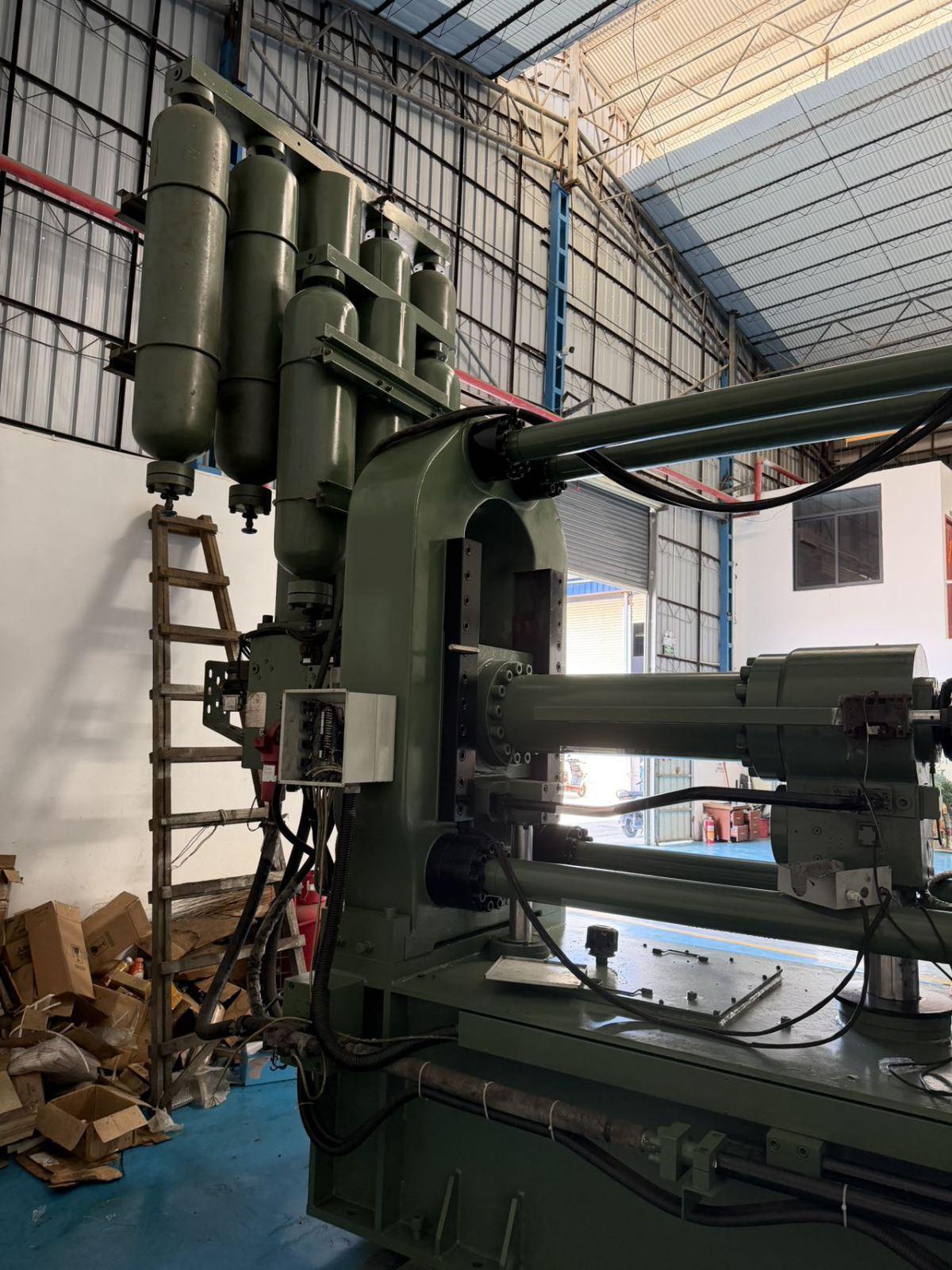

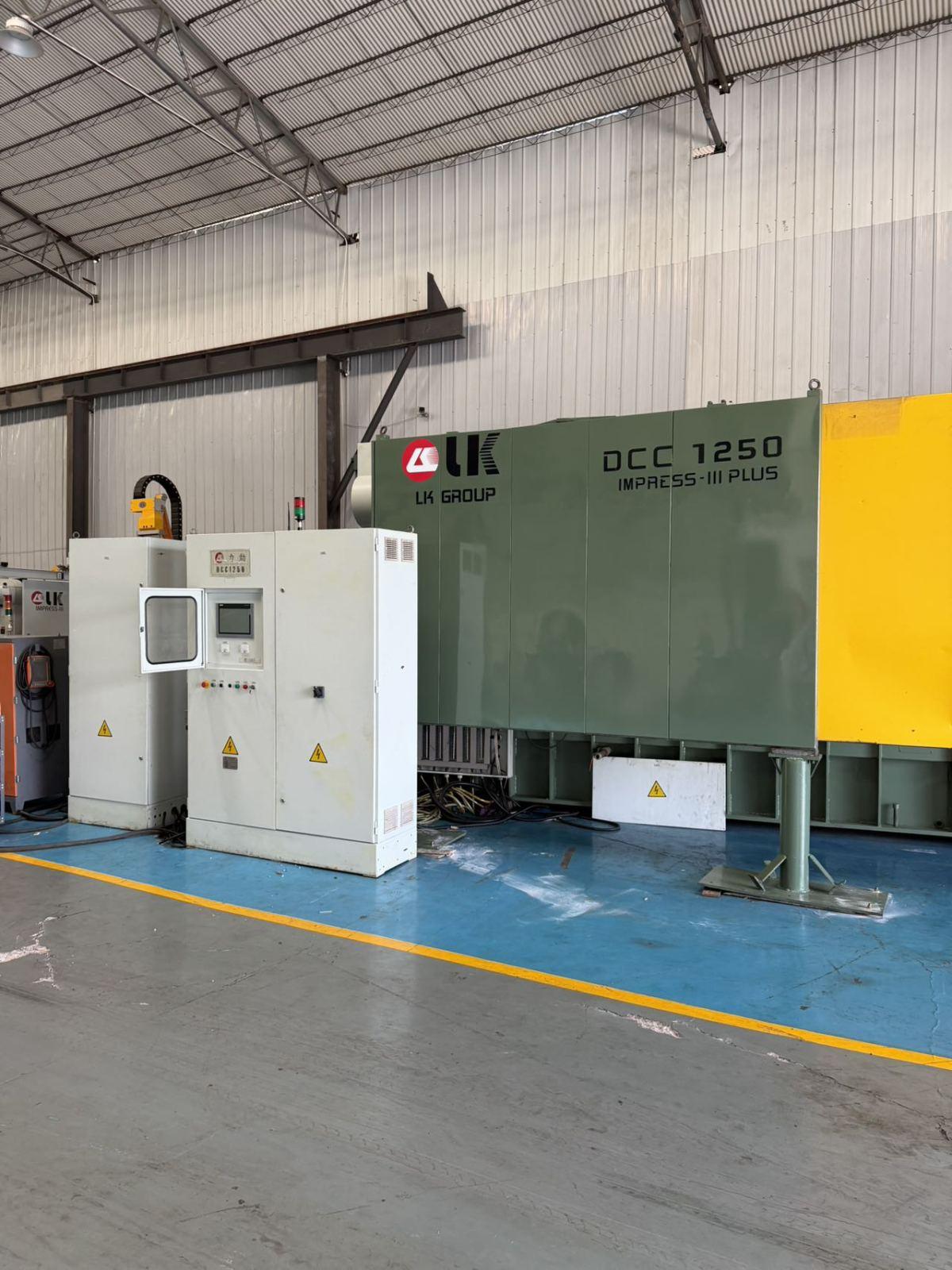

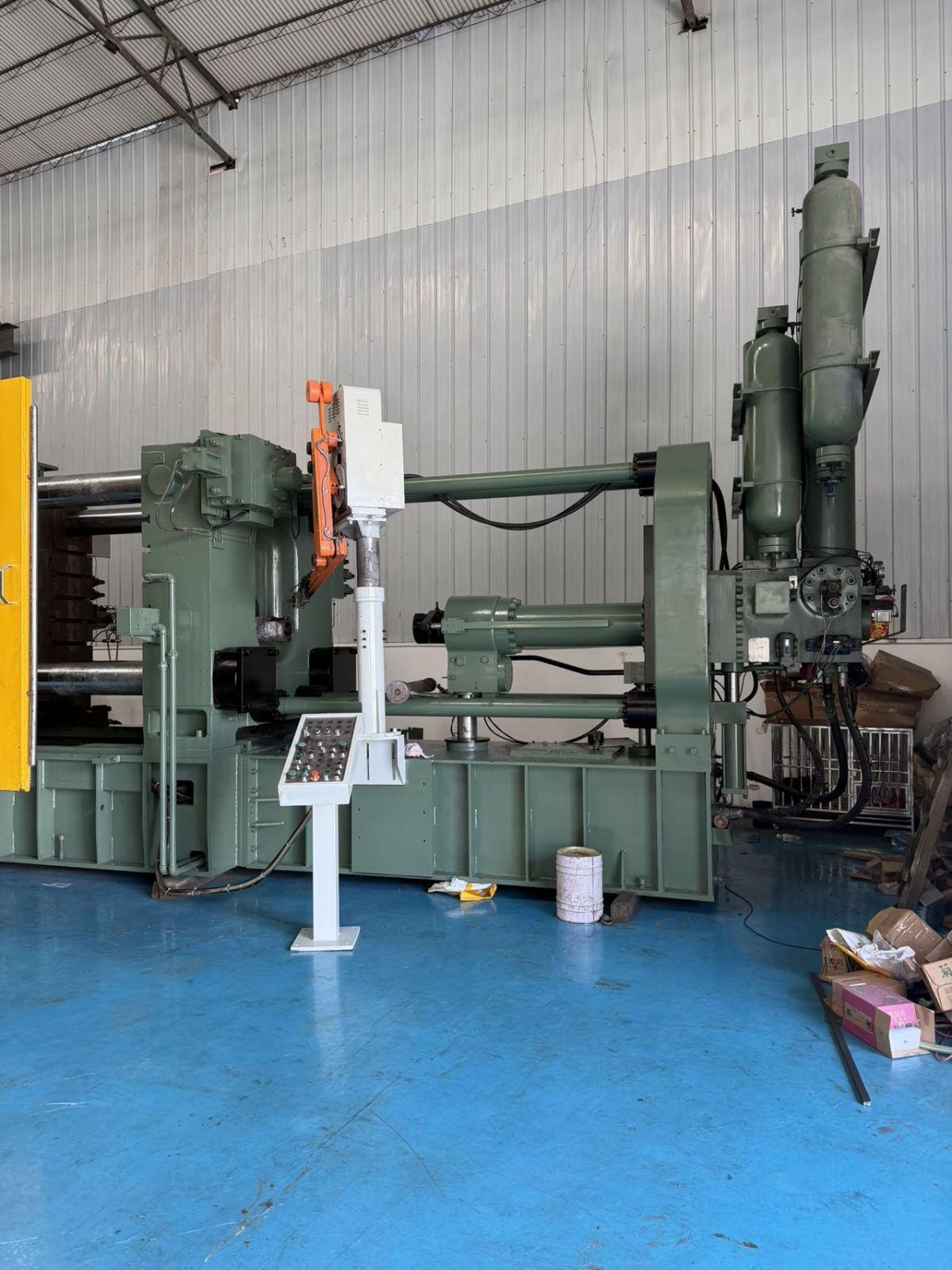

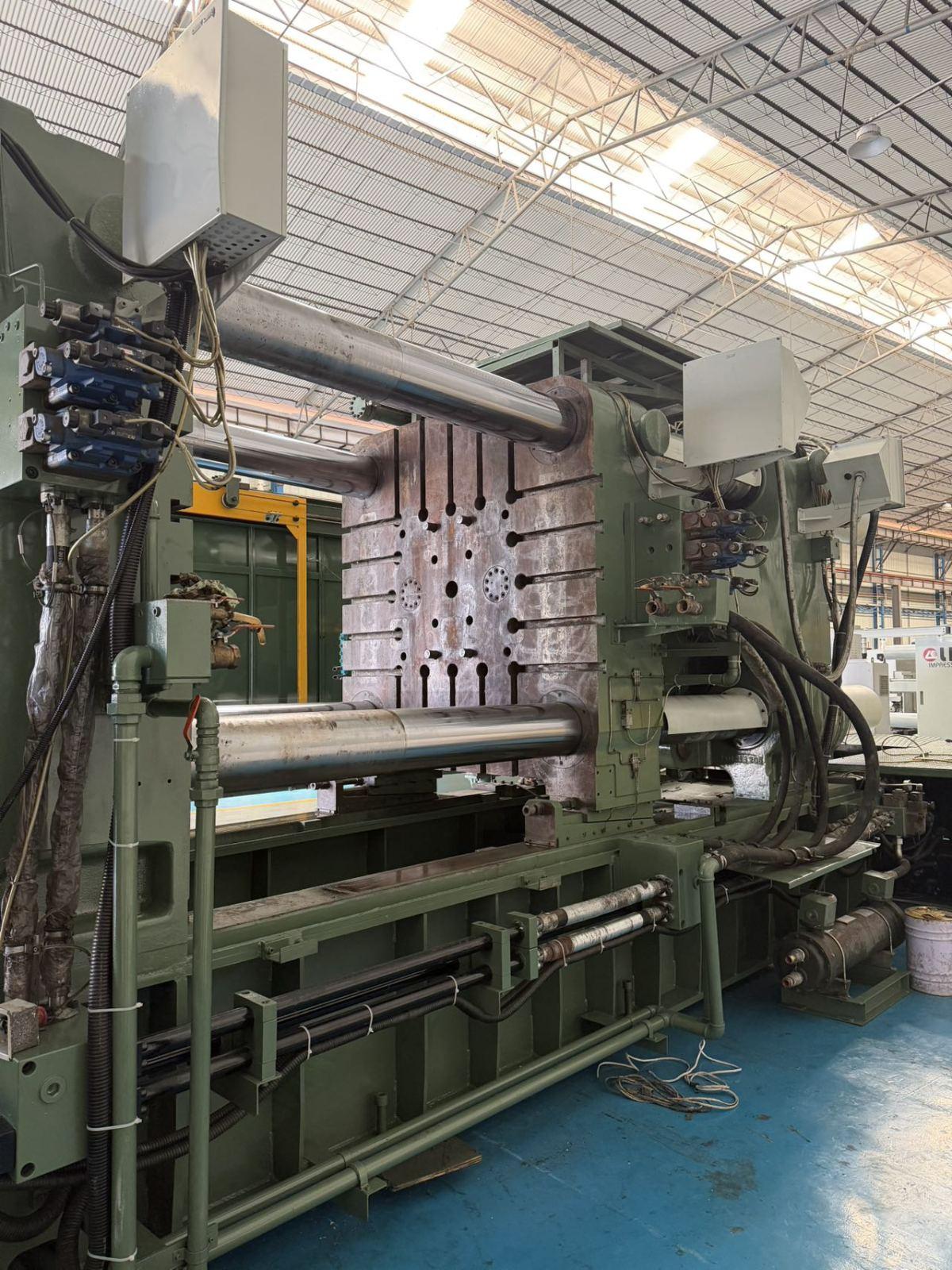

LK GROUP DCC1250 IMPRESS-III PLUS other

Clamping Force: 12,500 kN
Mold Opening Travel: 1,000 mm
Mold Thickness: 450–1,180 mm
Tie Bar Spacing: 1,100 × 1,100 mm
Tie Bar Diameter: 230 mm
Ejection Travel: 200 mm
Ejection Force: 570 kN
Injection Position: -160 / -320 mm
Injection Force: 452 kN
Intensification Injection Force: 1,075 kN
Injection Stroke: 880 mm
Injection Plunger Diameter: 100–140 mm
Aluminum Shot Weight: 13.0–25.4 kg
Intensification Casting Pressure: 70–137 MPa
Casting Area: 910–1,785 cm²
Maximum Casting Area (40 MPa): 3,125 cm²
Injection Piston Penetration: 320 mm
Shot Sleeve Flange Diameter: 240 mm
Shot Sleeve Flange Height: 25 mm
Maximum Working Pressure: 16 MPa
Motor Power: 130 kW
Hydraulic Oil Tank Capacity: 3,100 L
Overall Dimensions (L × W × H): 11,950 × 4,350 × 4,560 mm
