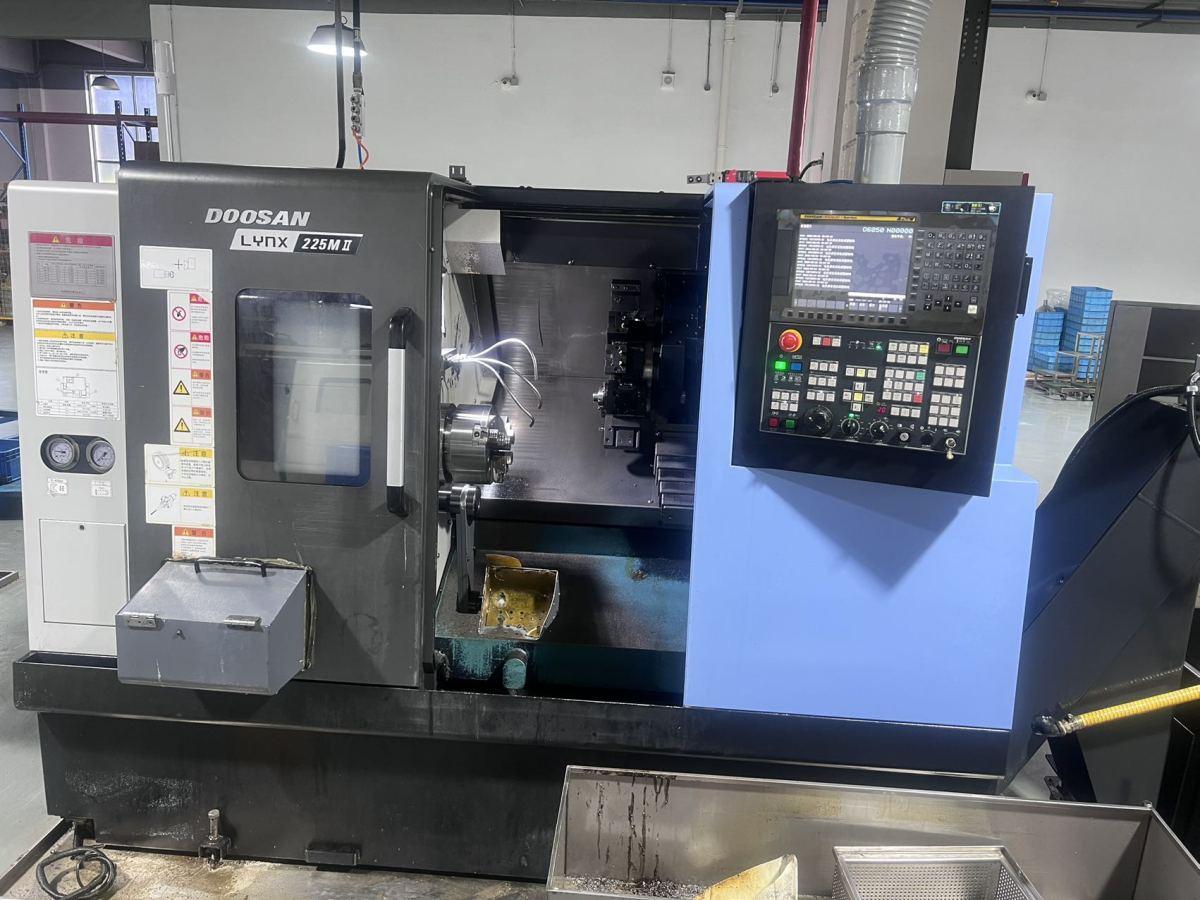

DOOSAN LYNX225MII Turn Mill Machining Centre

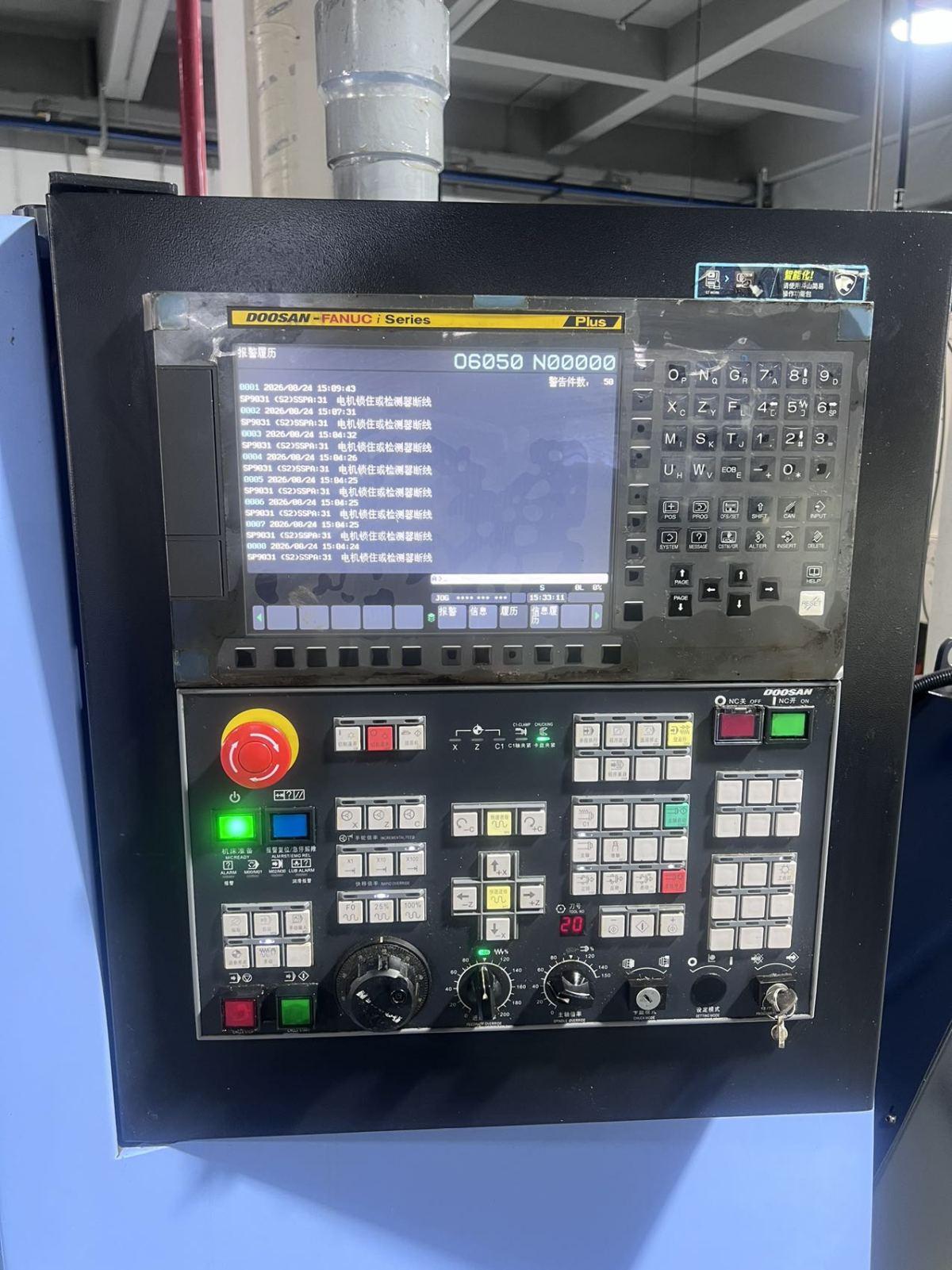

CNC System: FANUC-TF-Plus
Chuck Size: 8 inches
Tool Turret: 12-position servo turret
Guideways: Linear guideways on X and Z axes
Maximum Spindle Speed: 6,000 rpm
Spindle Power: 15 kW
Maximum Turning Diameter: Ø250 mm
Maximum Swing Diameter: Ø400 mm
Spindle Through Hole: Ø52 mm
X-axis Travel: 350 mm
X-axis Rapid Traverse Rate: 30 m/min
Z-axis Travel: 330 mm
Z-axis Rapid Traverse Rate: 36 m/min
C-axis: 360° indexing
Accessories: Chip Conveyor
