DAHLIH DMC-2215 CNC milling machine

[Product Information]:

Inventory number：469030
Brand：DAHLIH
Model：DMC-2215
Origin：Taiwan, China
Location：China
Year：2007
Create Time：2026-10-01

Specifications:

X-axis travel: 2200 mm
Y-axis travel: 1500 mm
Z-axis travel: 800 mm
Worktable size: 2000mm × 1400mm
The gantry is too wide: 1600 mm
Maximum machining height: 1400 mm
The maximum load of Worktable: approximately 10,000 kg
spindle taper: BT40
Maximum spindle speed: 10,000 r/min
Main motor power: 18.5kW - 22kW

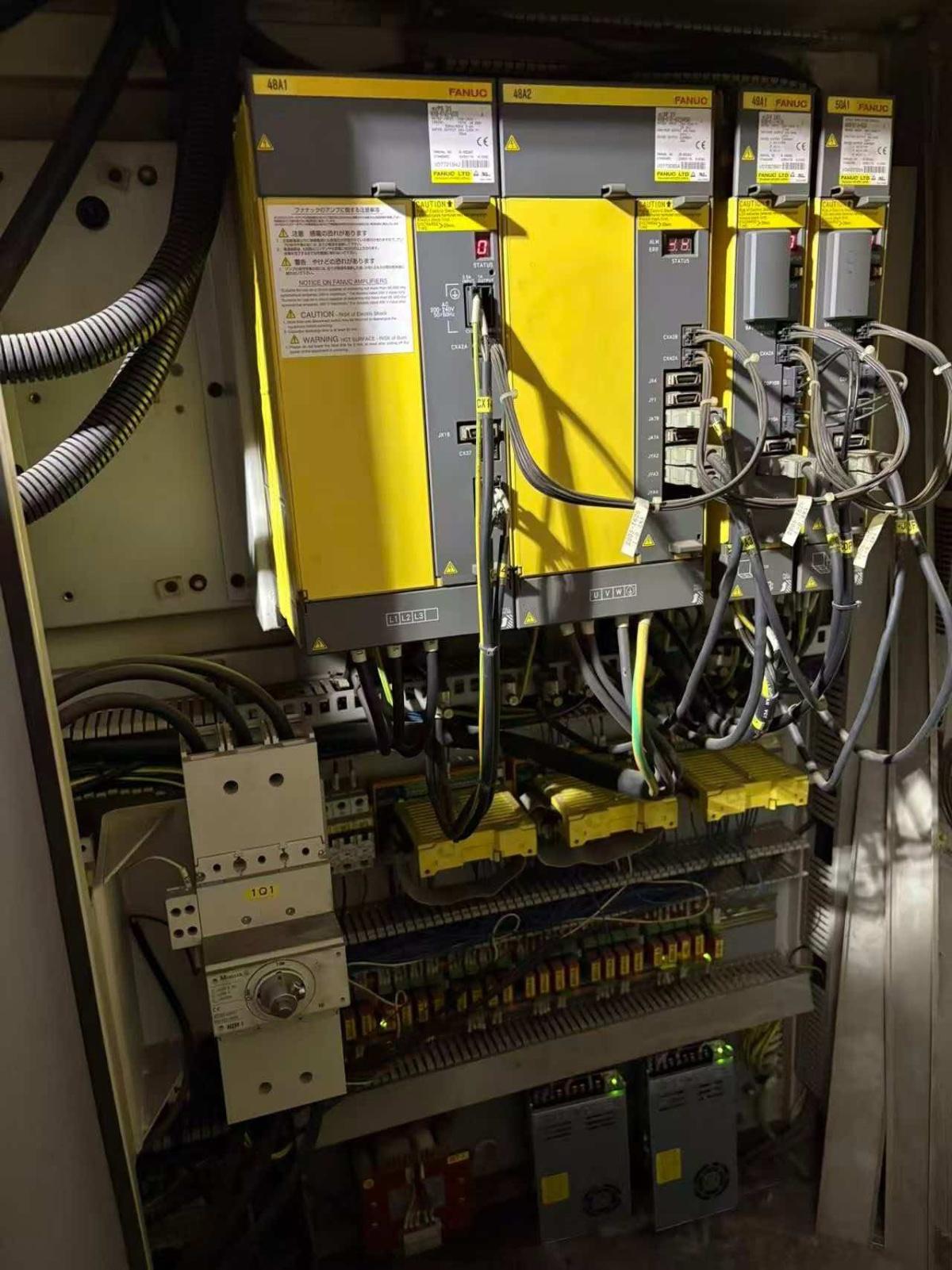

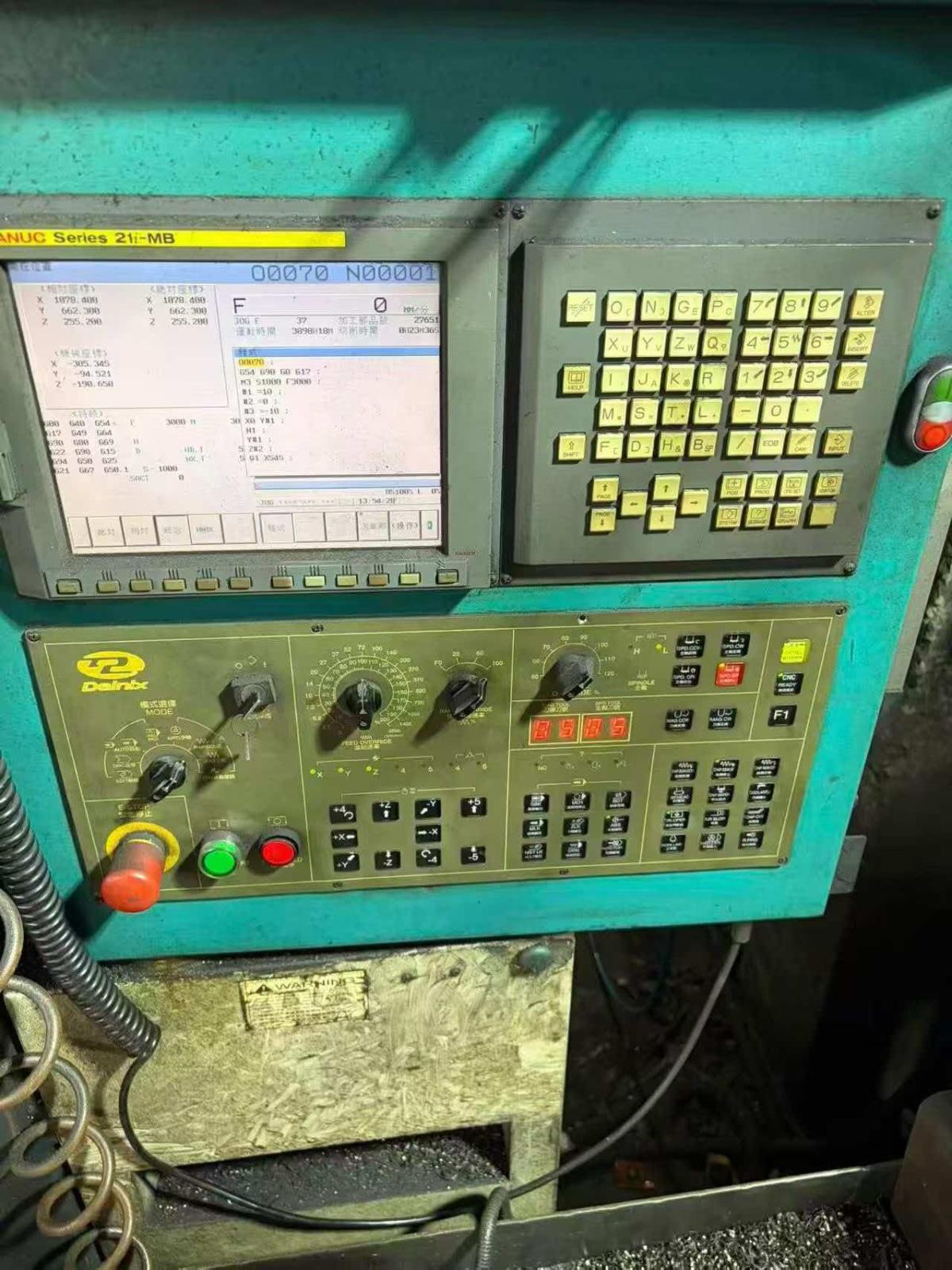

CNC System: FANUC
