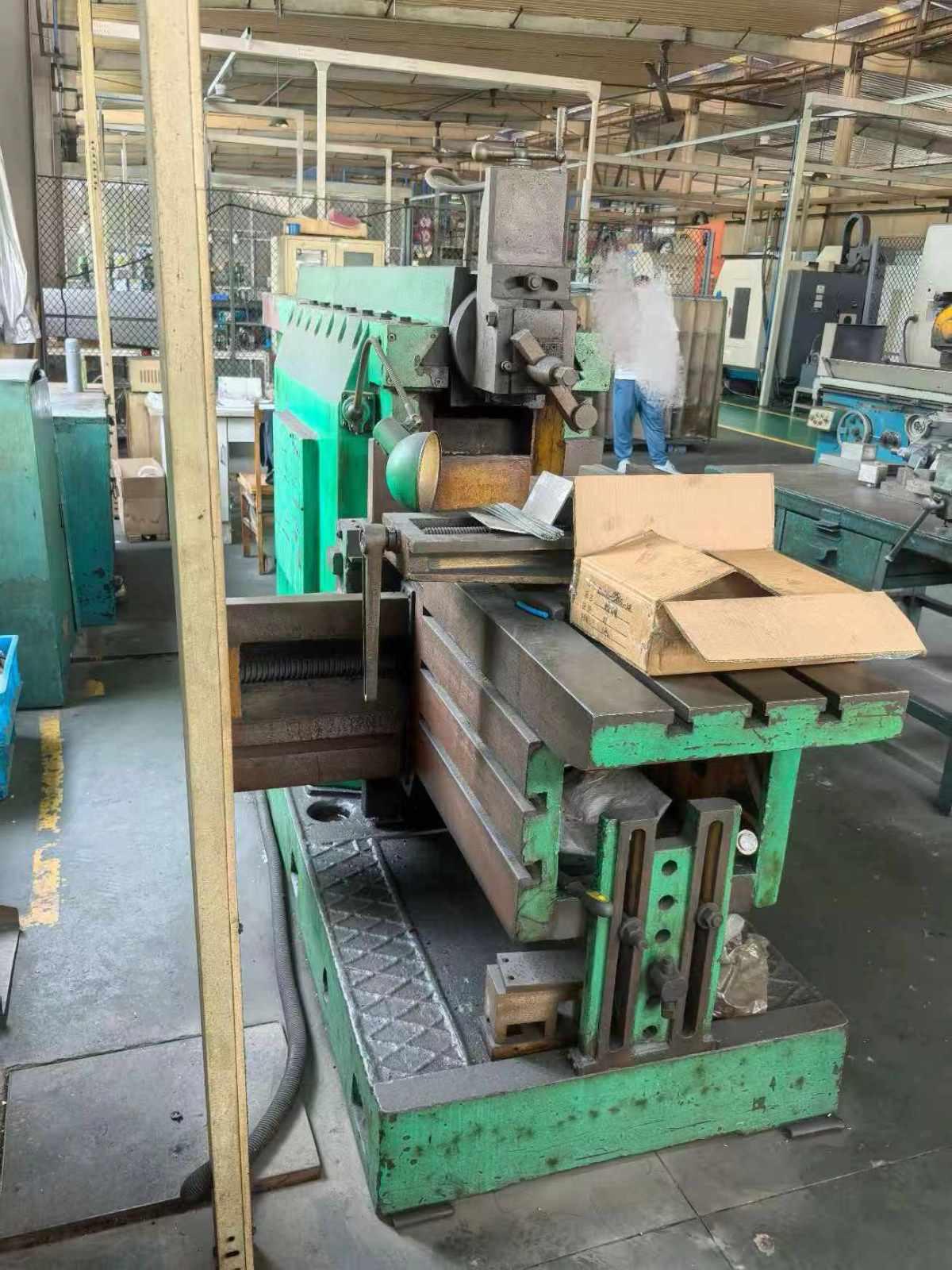

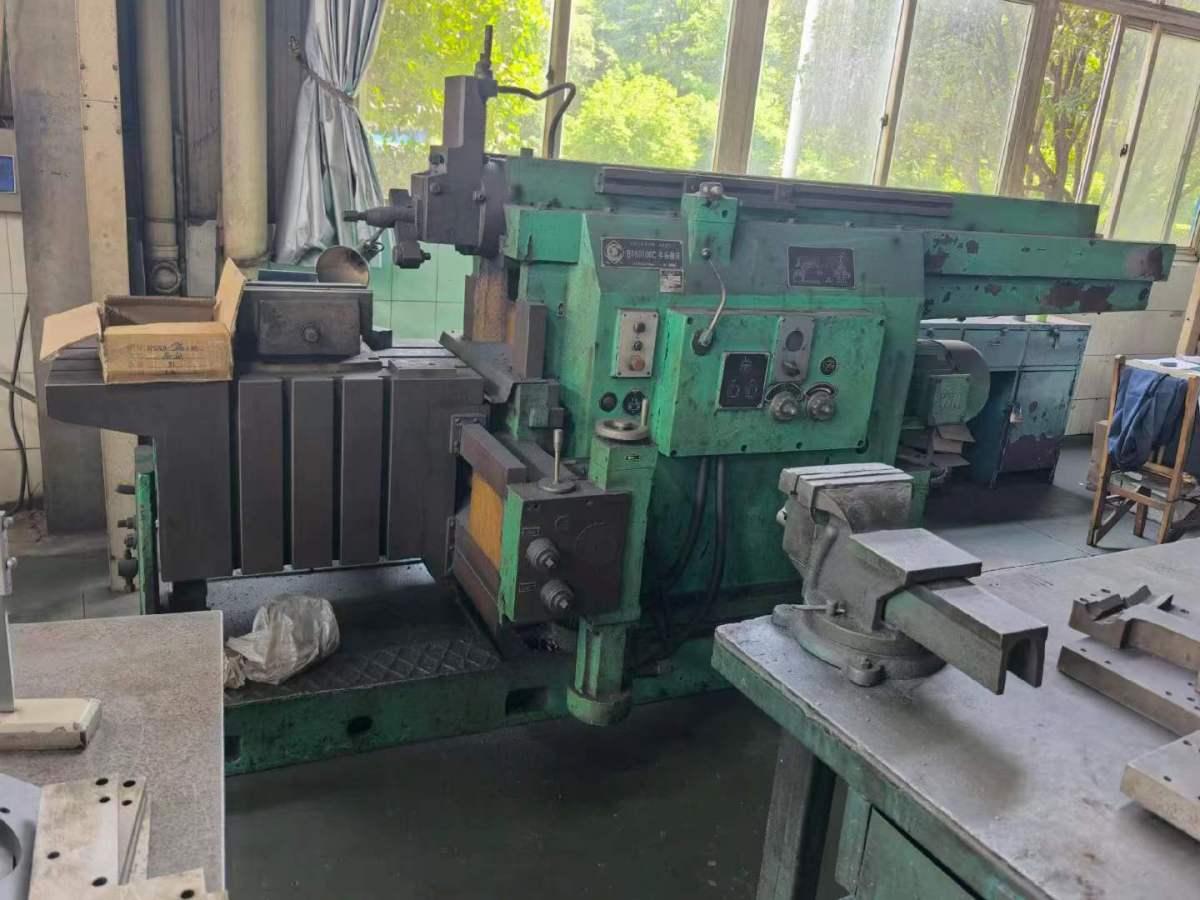

Changsha BY60100C other

Planing Length: 1000 mm
Ram Working Speed (Stepless): 3–44 m/min
Distance from Ram Bottom to Worktable: 400 mm
Cutting Force: 1500 mm
Tool Holder Working Travel: 160 mm
Tool Holder Swivel Angle: 60°
Tool Holder Size (Width × Height): 30 × 45 mm
Horizontal Worktable Feed per Ram Reciprocating Stroke: 0.25–5 mm
Vertical Worktable Feed per Ram Reciprocating Stroke: 0.05–0.25 mm
Rapid Lateral Movement Speed of Worktable: 3 m/min
Rapid Vertical Movement Speed of Worktable: 0.15 m/min

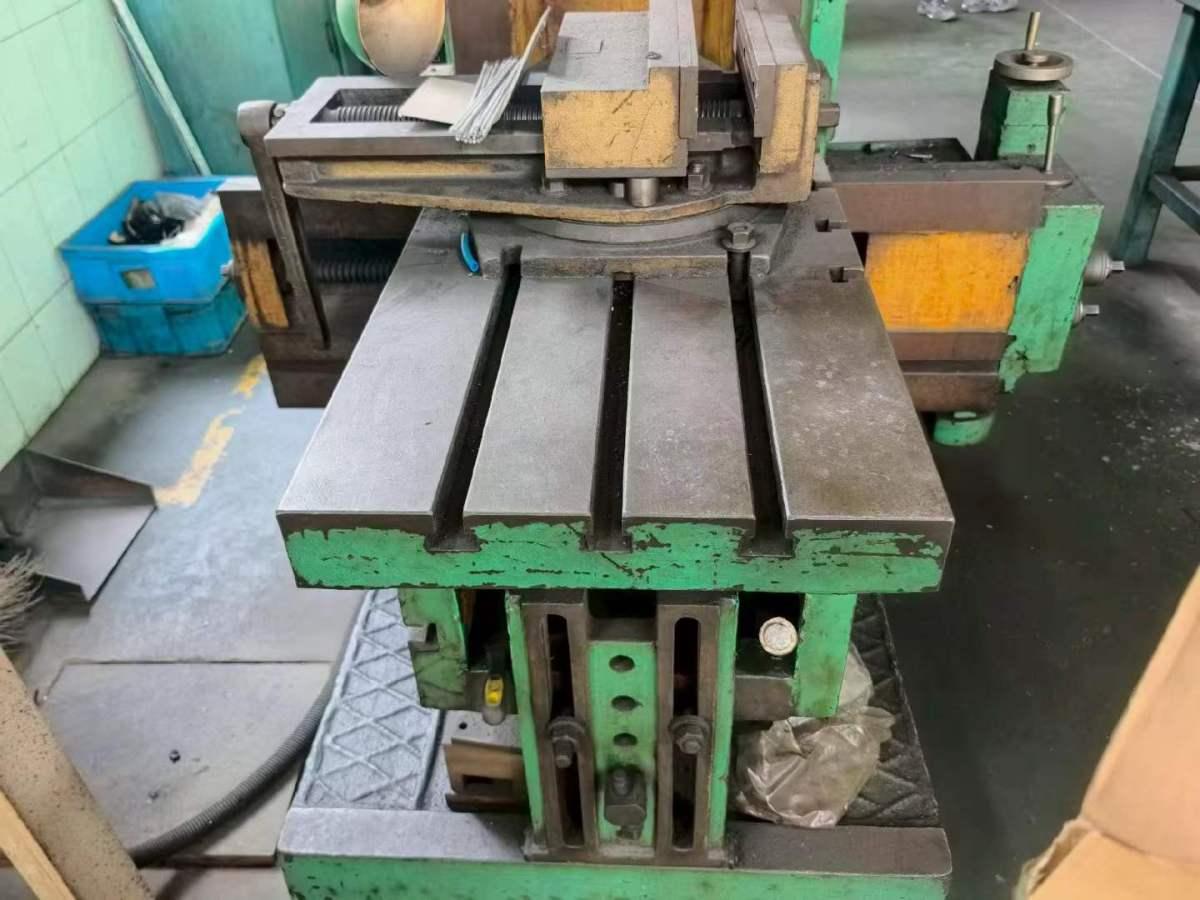

Worktable Surface Size (Length × Width): 1000 × 500 mm
Center T-Slot Width of Worktable: 22 mm
Worktable Load Capacity: 320 kg
Lateral Travel of Worktable: 800 mm
Planing Length at Tool Holder Swivel Angle: 800 mm
Main Motor Power: 7.5 kW
Main Motor Speed: 970 r/min
Worktable Rapid-Movement Motor Power: 1.1 kW
Worktable Rapid-Movement Motor Speed: 1400 r/min
Double Vane Pump: CSYB-63/63
Double Vane Pump Flow Rate: 63 × 63 L/min
Overall Machine Dimensions (Length × Width × Height): 3610 × 1545 × 1827 mm
Machine Weight: 4,600 kg
