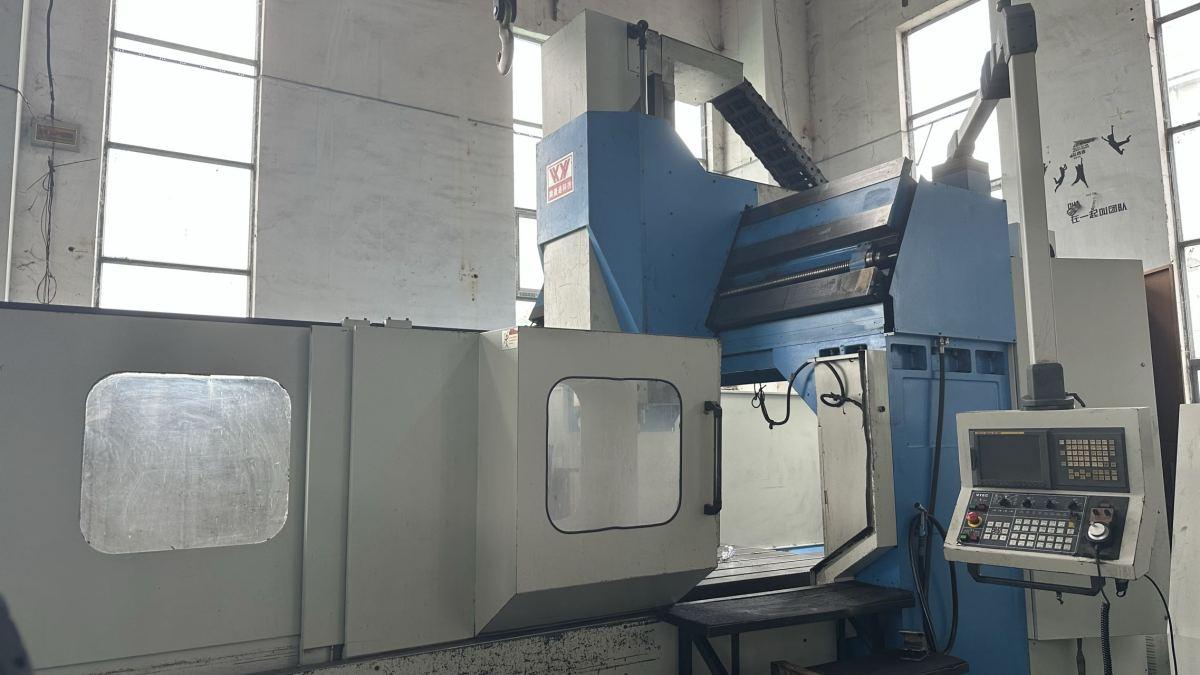

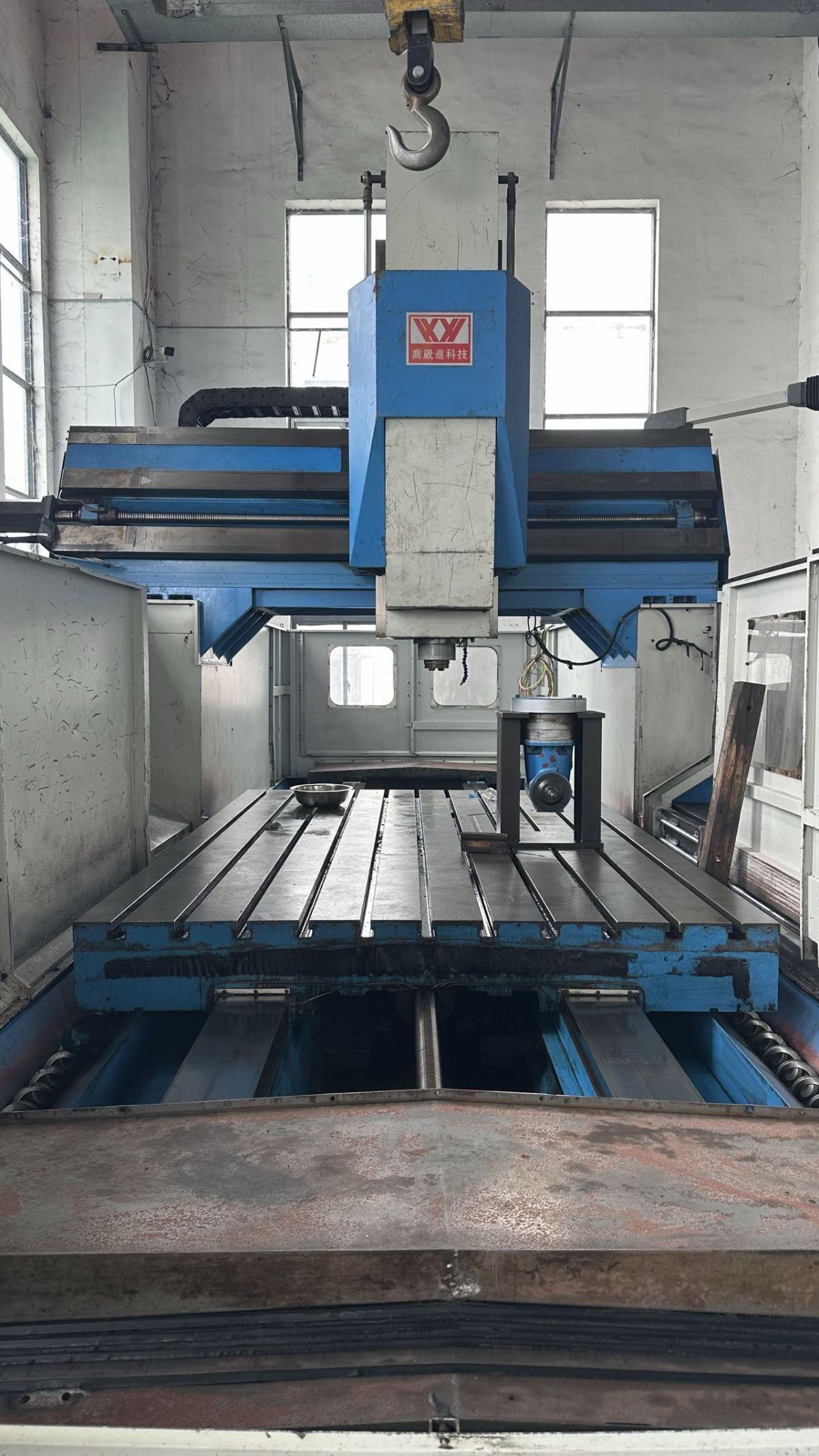

VISION NF-3223 Gantry machining centre

[Product Information]:

Inventory number：4813040
Brand：VISION
Model：NF-3223
Origin：Taiwan, China
Location：China
Year：2008
Create Time：2026-09-29

Specifications:

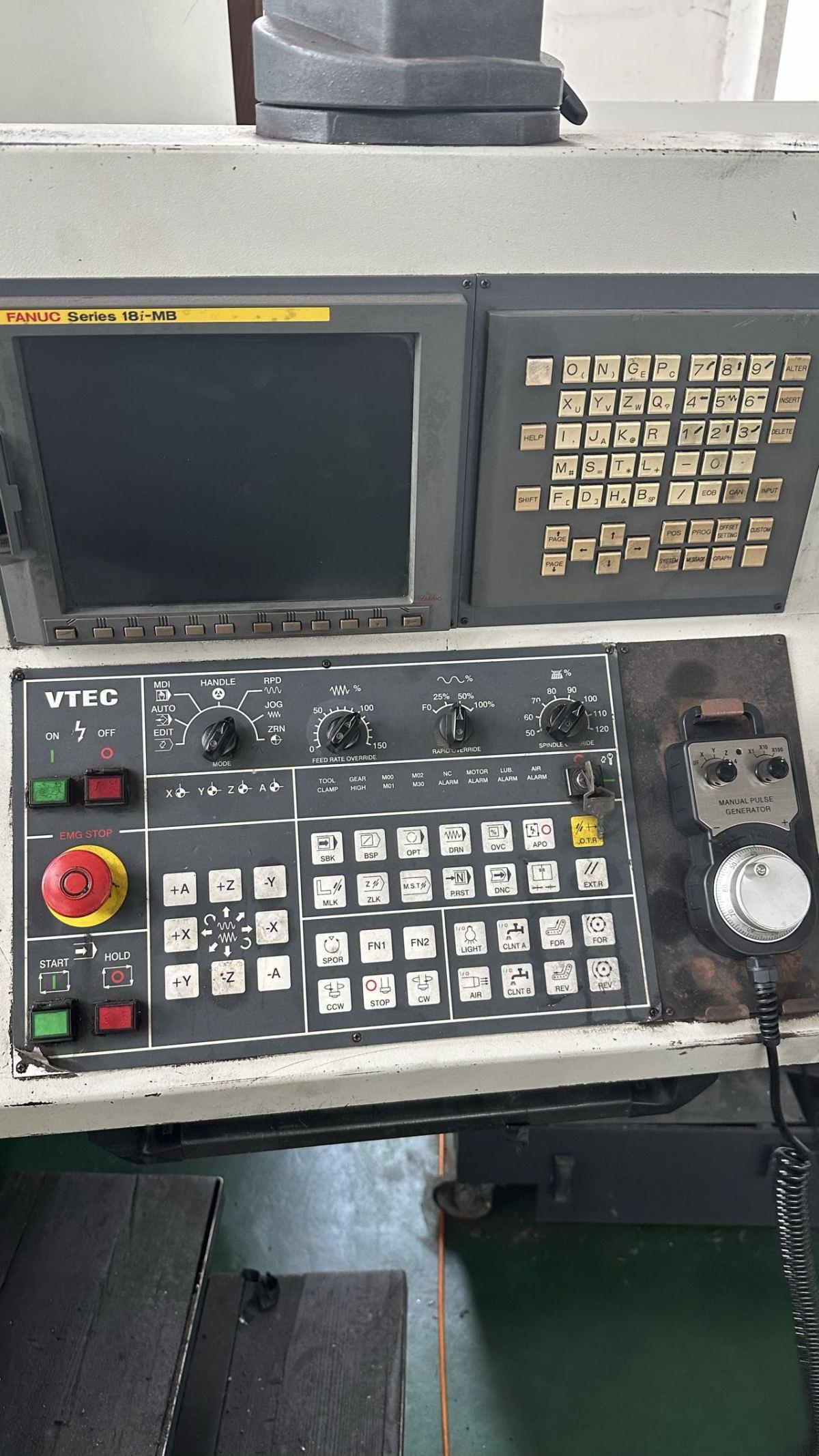

CNC System: FANUC
Three-Axis Travel: 3200 × 2300 × 900 mm
Spindle: BT50, Gear-Driven Spindle
Worktable Size: 3000 × 2050 mm
Gantry Width: 2450 mm
Distance from Crossbeam to Worktable: 1060 mm

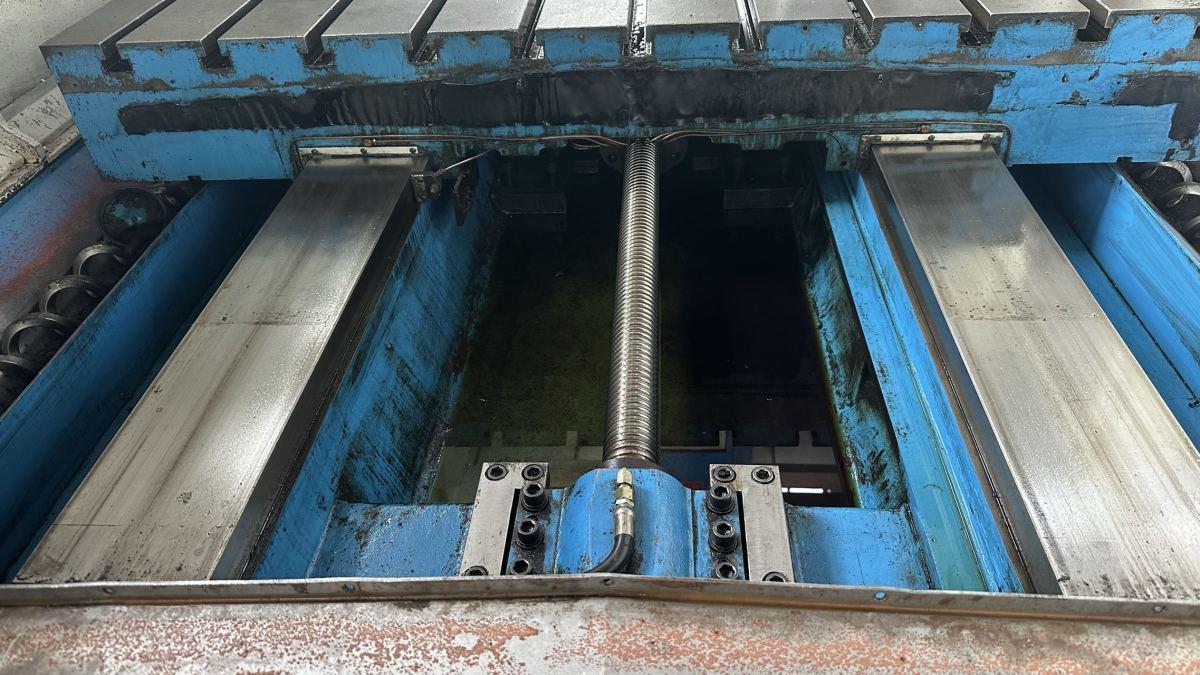

Guideway Type: Three-Axis Box Guideways
Configuration:

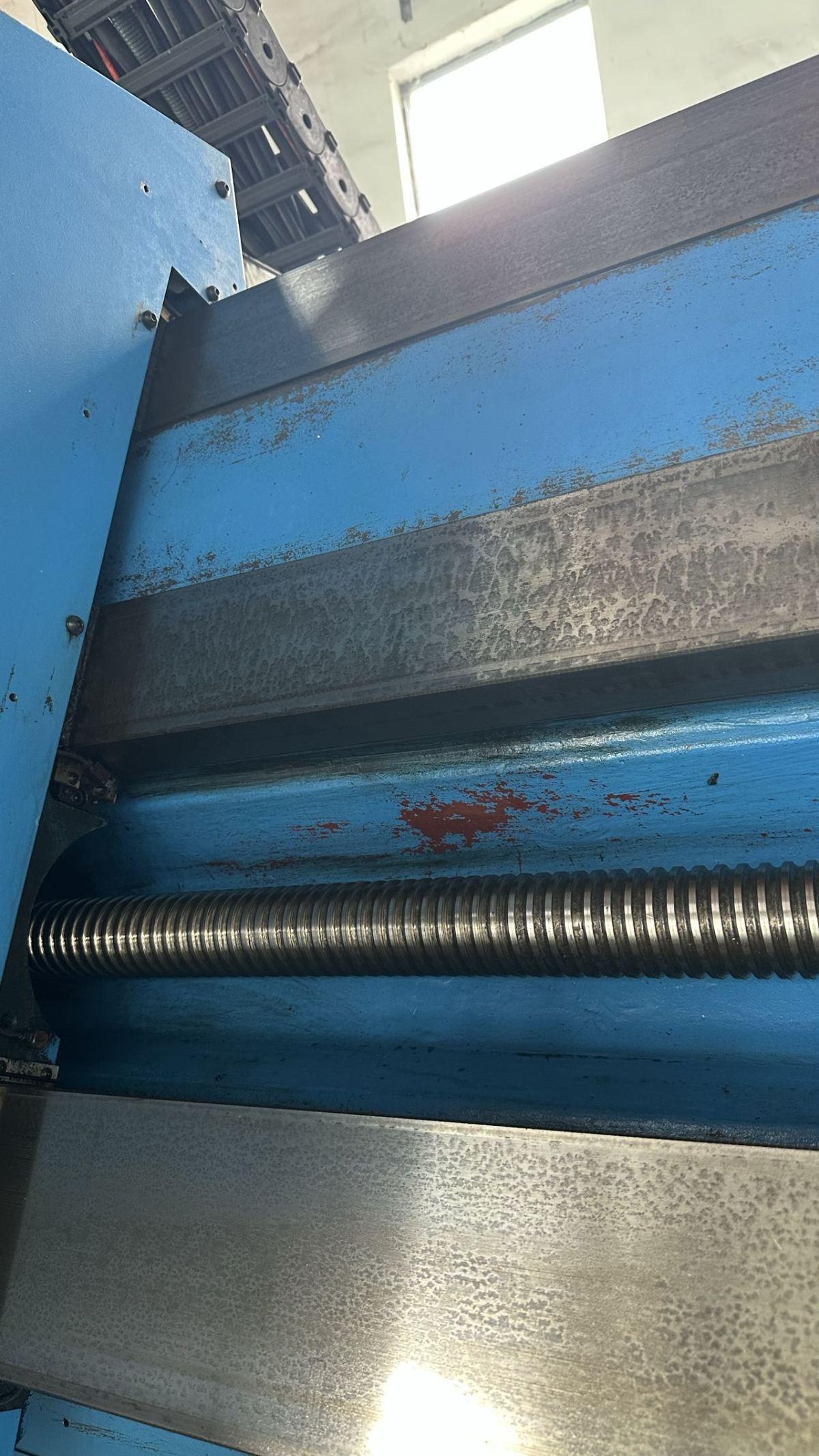

Hollow-Cooled Ball Screws

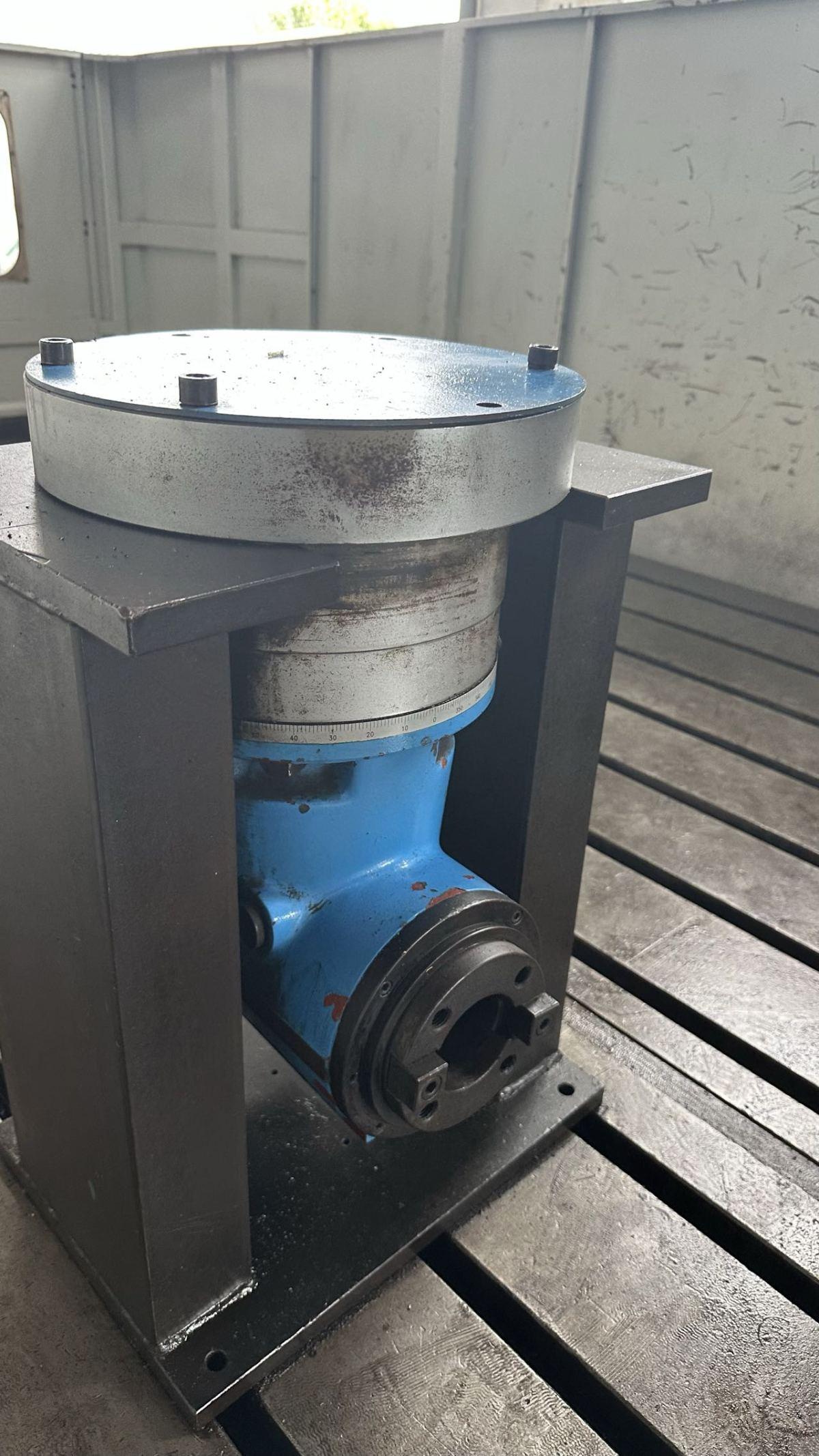

Angle Head × 1

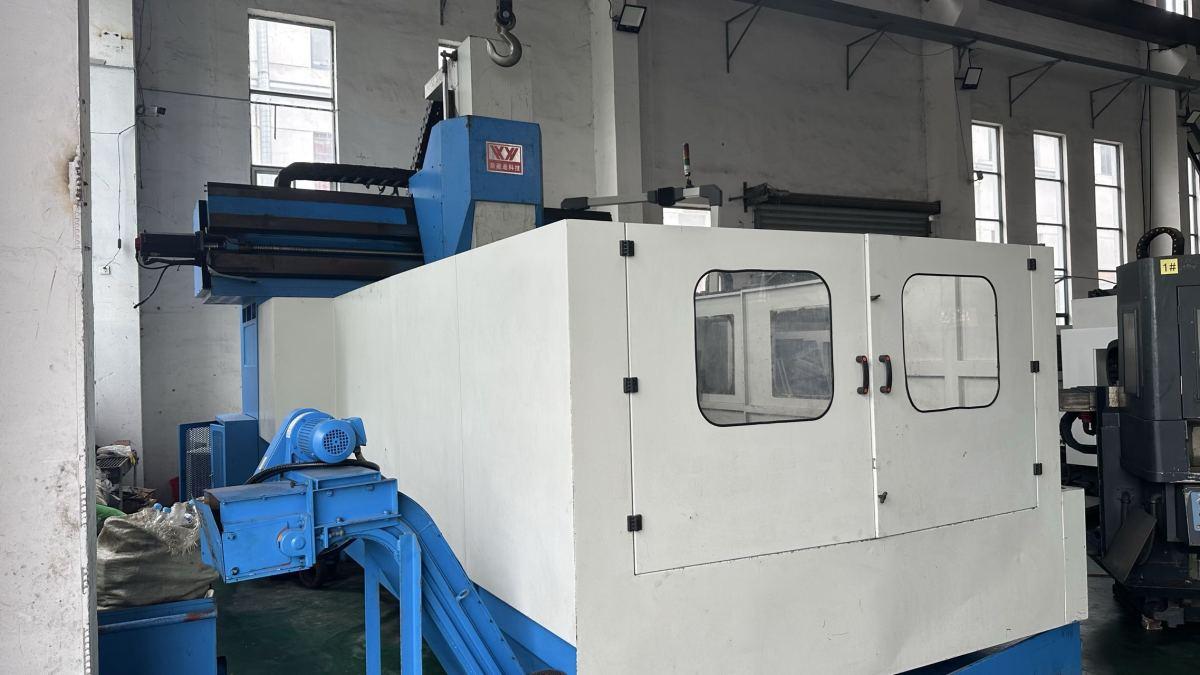

Twin-Screw and Chain-Type Chip Conveyor
