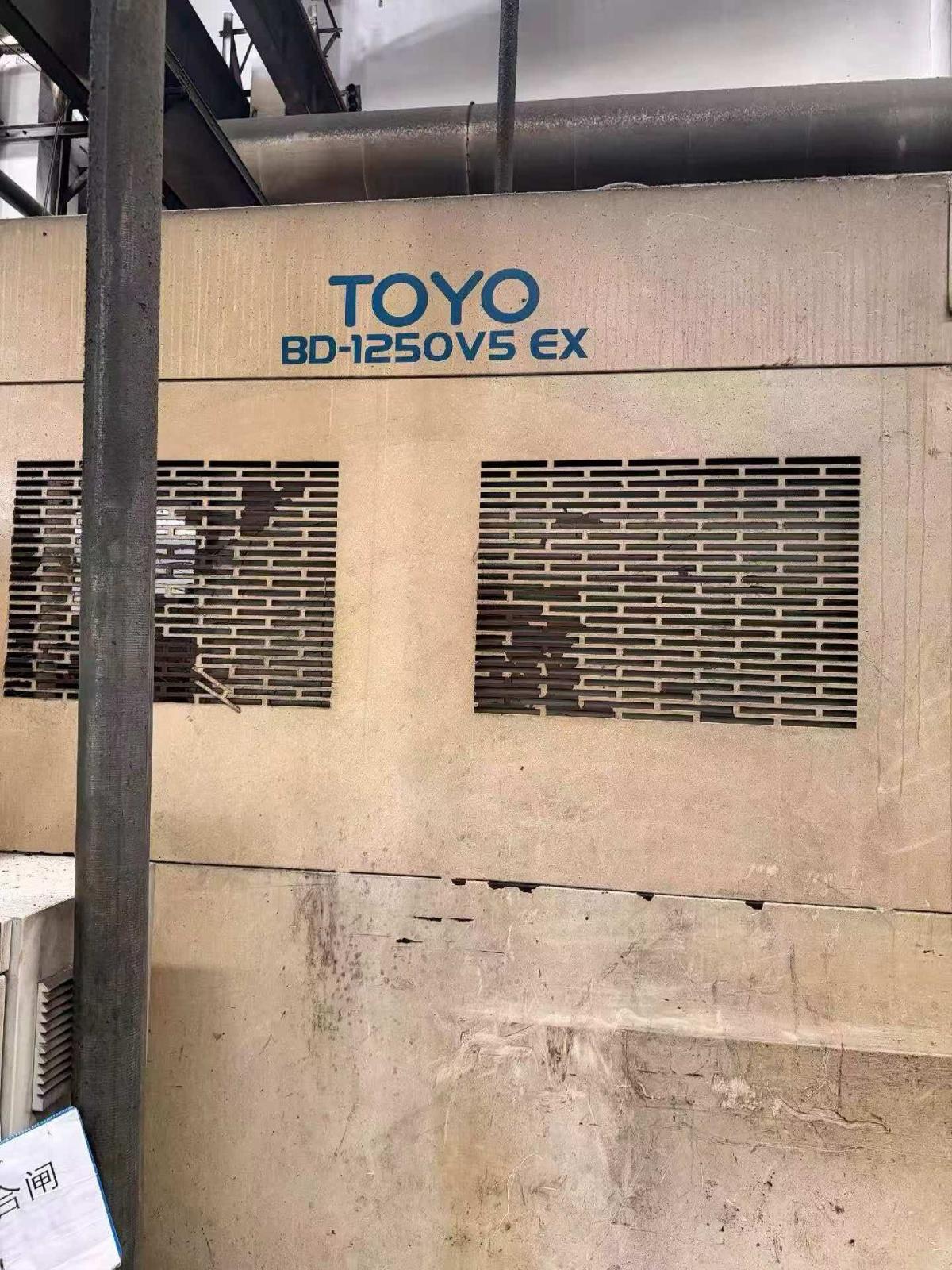

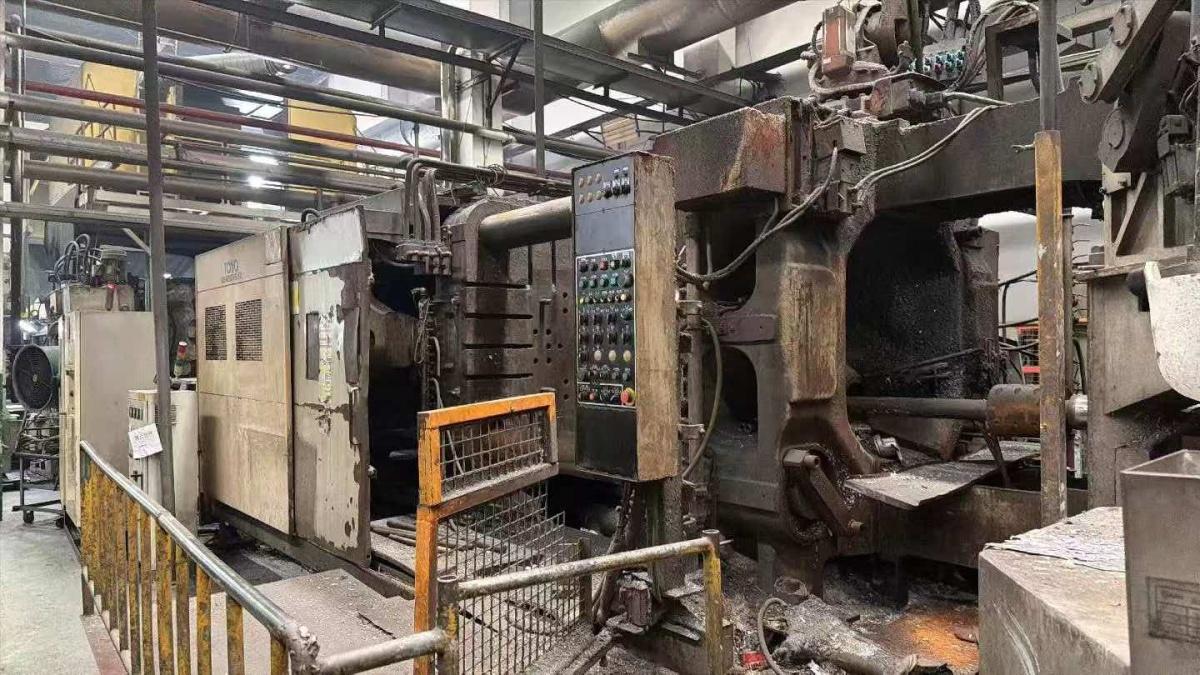

TOYO BD‑1250V5 EX other

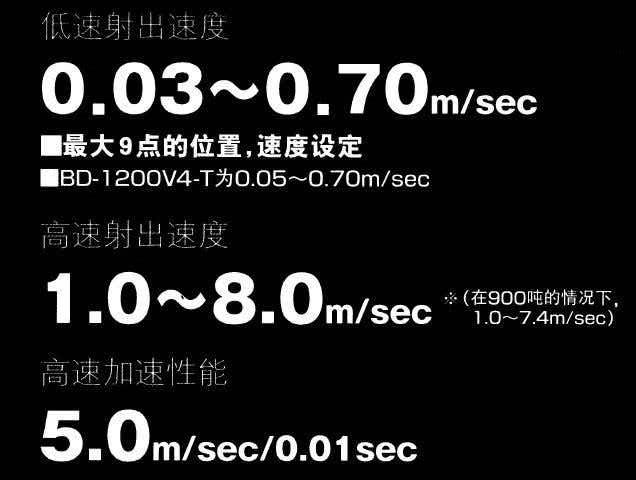

Low-speed injection (one-speed) control:
Speed range: 0.03 to 0.70 m/s.
Multi-segment Settings: Supports up to 9 position and speed Settings. This multi-stage control can precisely control the flow of the aluminum/magnesium alloy molten water in the pressure chamber, smoothly expel the gas before sealing, and effectively reduce the porosity inside the casting.
High-speed injection (two-speed) response
Speed range: 1.0 to 8.0 m/s (approximately 1.0 to 7.4 m/s on a 900-ton model of the same CNC System).
Inner gate speed: The extremely high high-speed punch performance can ensure the complete filling of thin-walled castings, avoiding flow marks and cold laps.
Ultimate acceleration performance
Acceleration index: 5.0m /s / 0.01sec (that is, the speed increases by 5 meters per second for every 0.01 second). This ultra-high-speed acceleration switching performance can instantly switch from low speed to high speed, which is the core guarantee for the production of high-end thin-walled precision parts.
