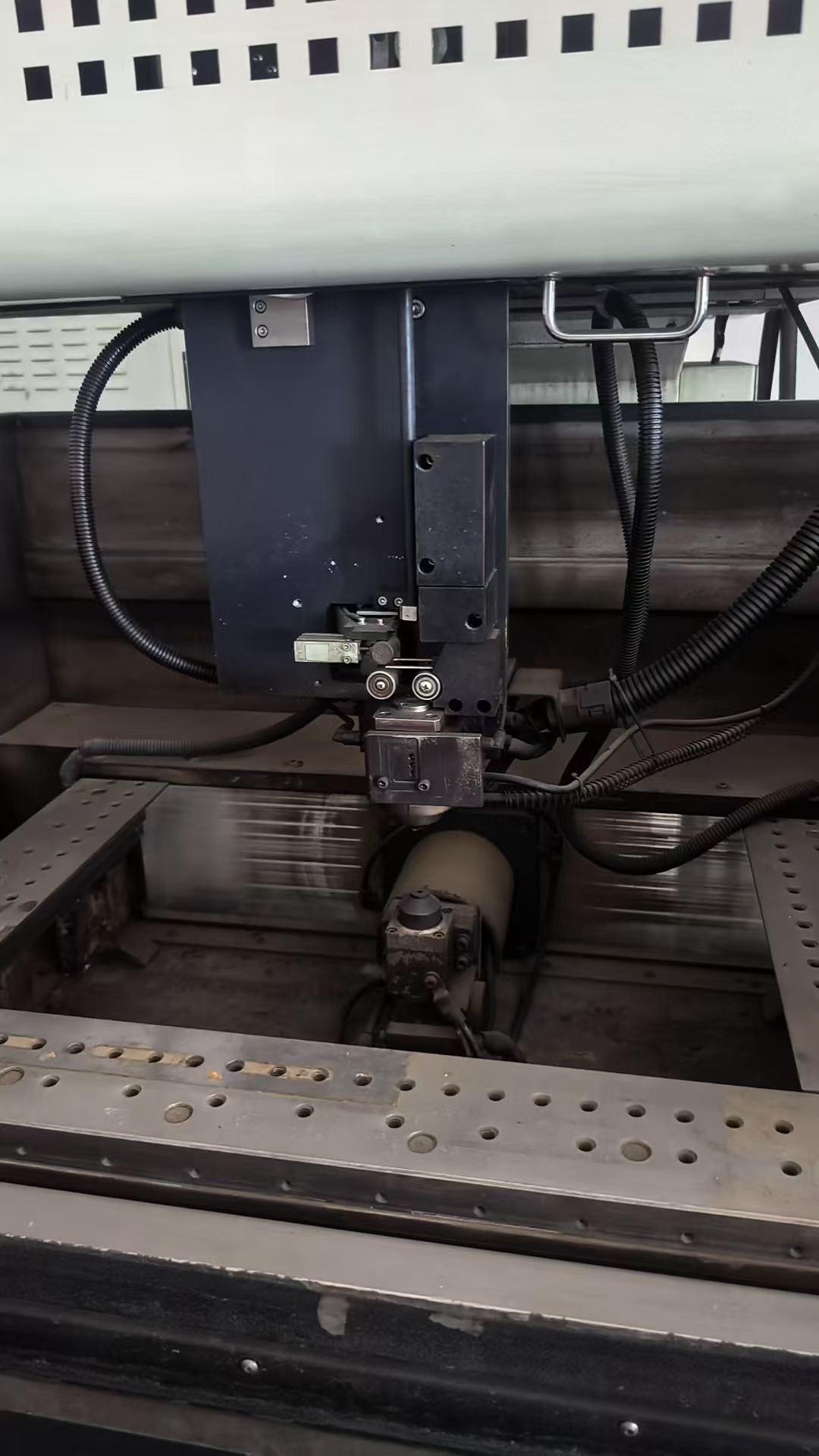

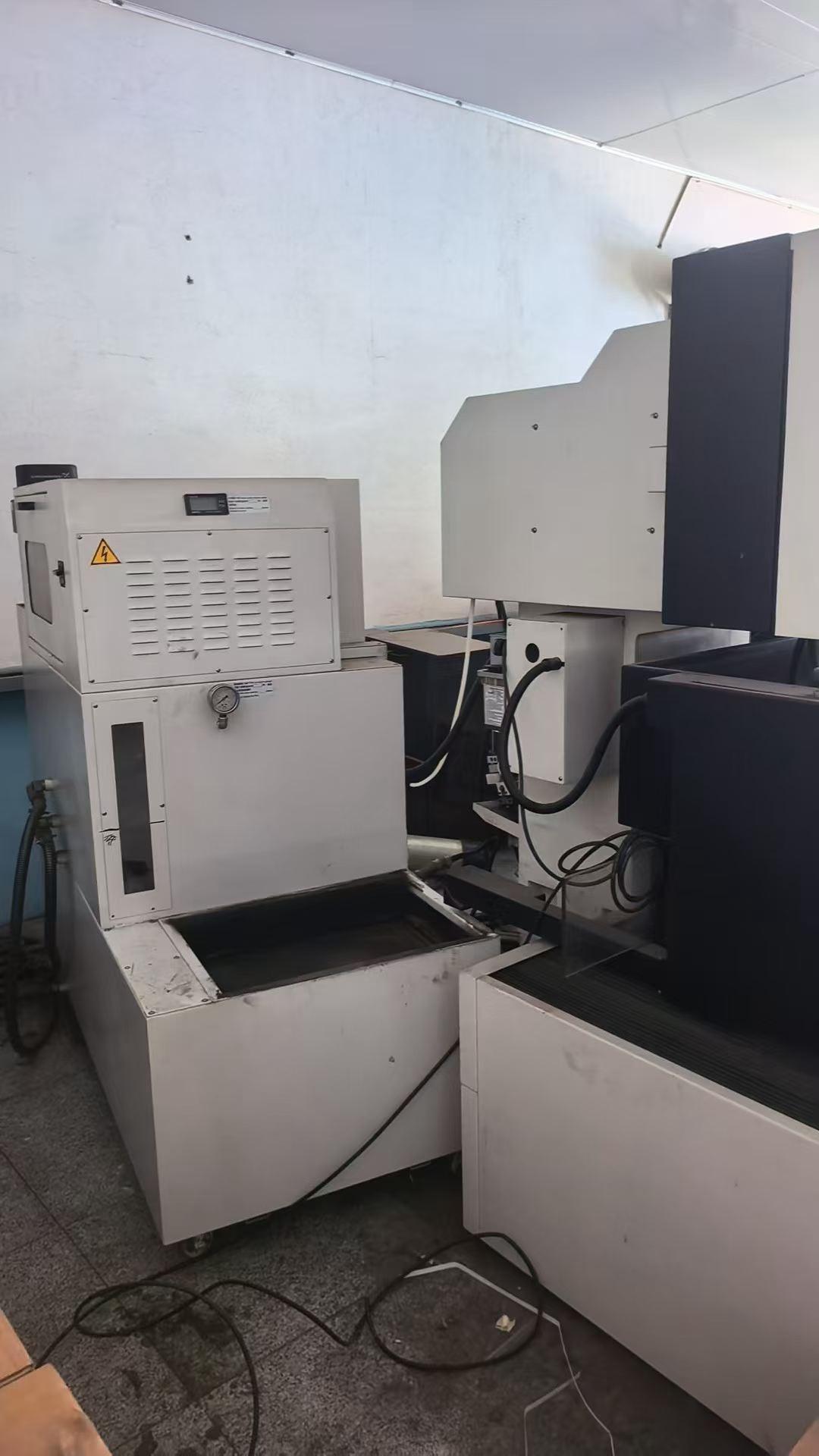

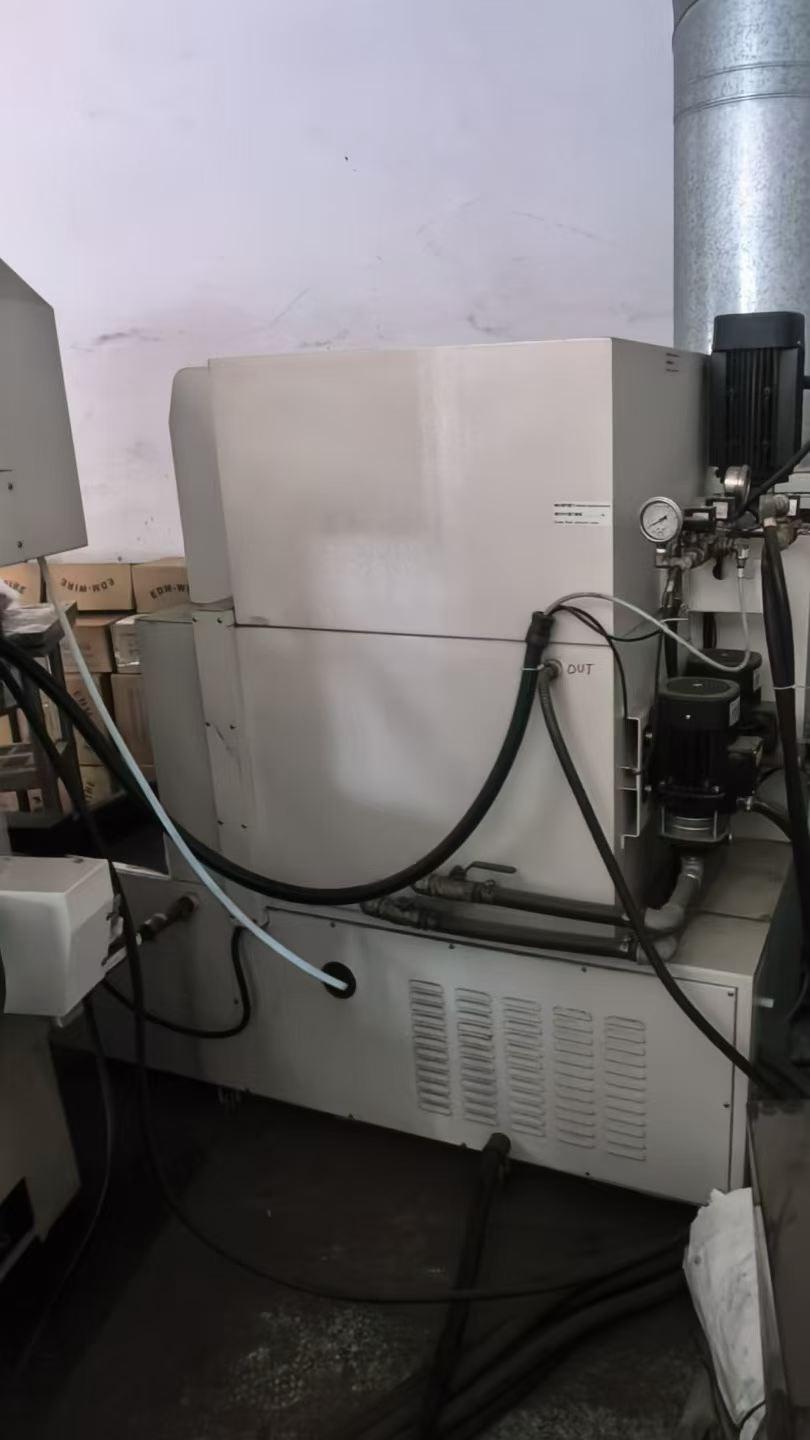

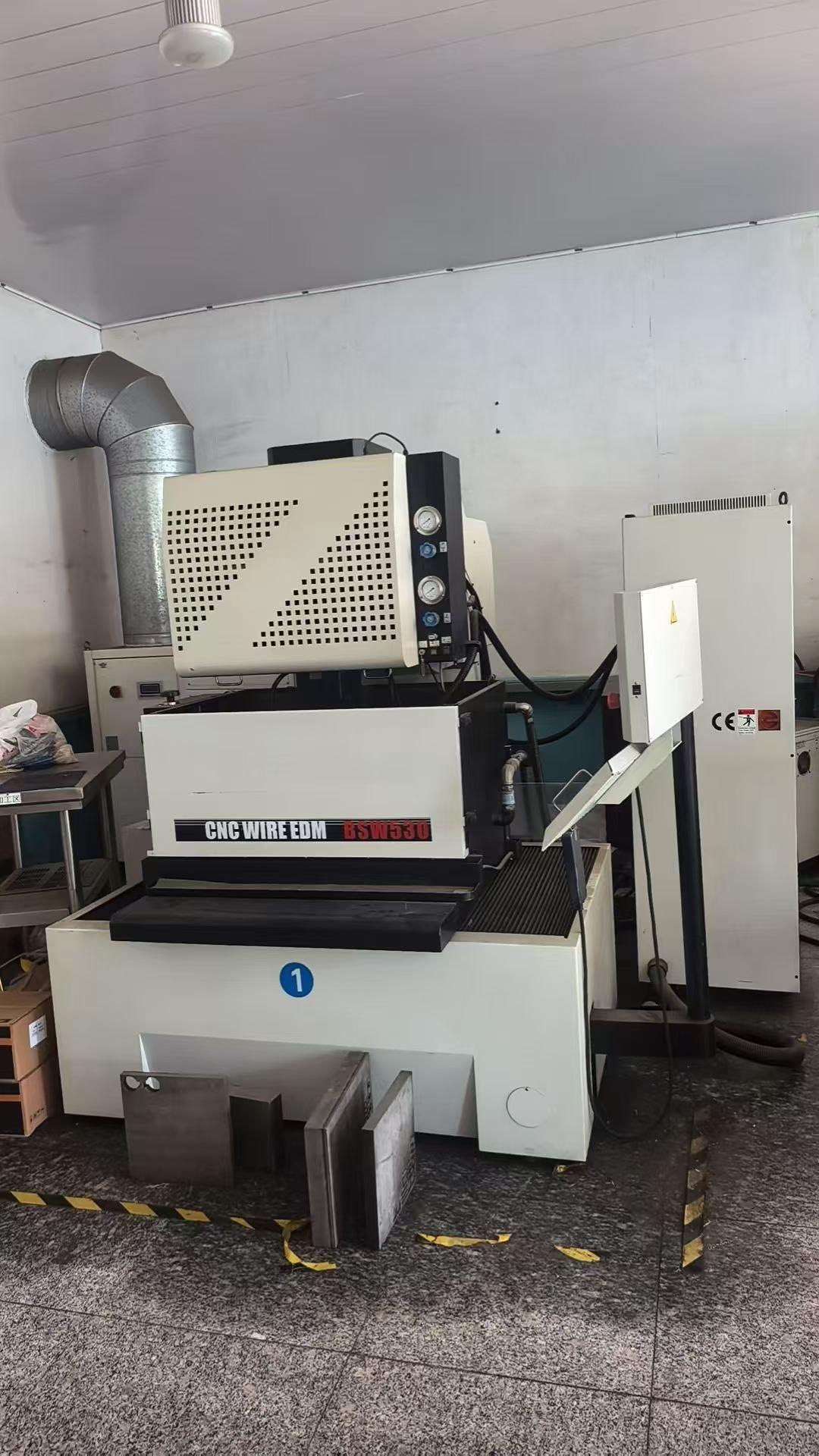

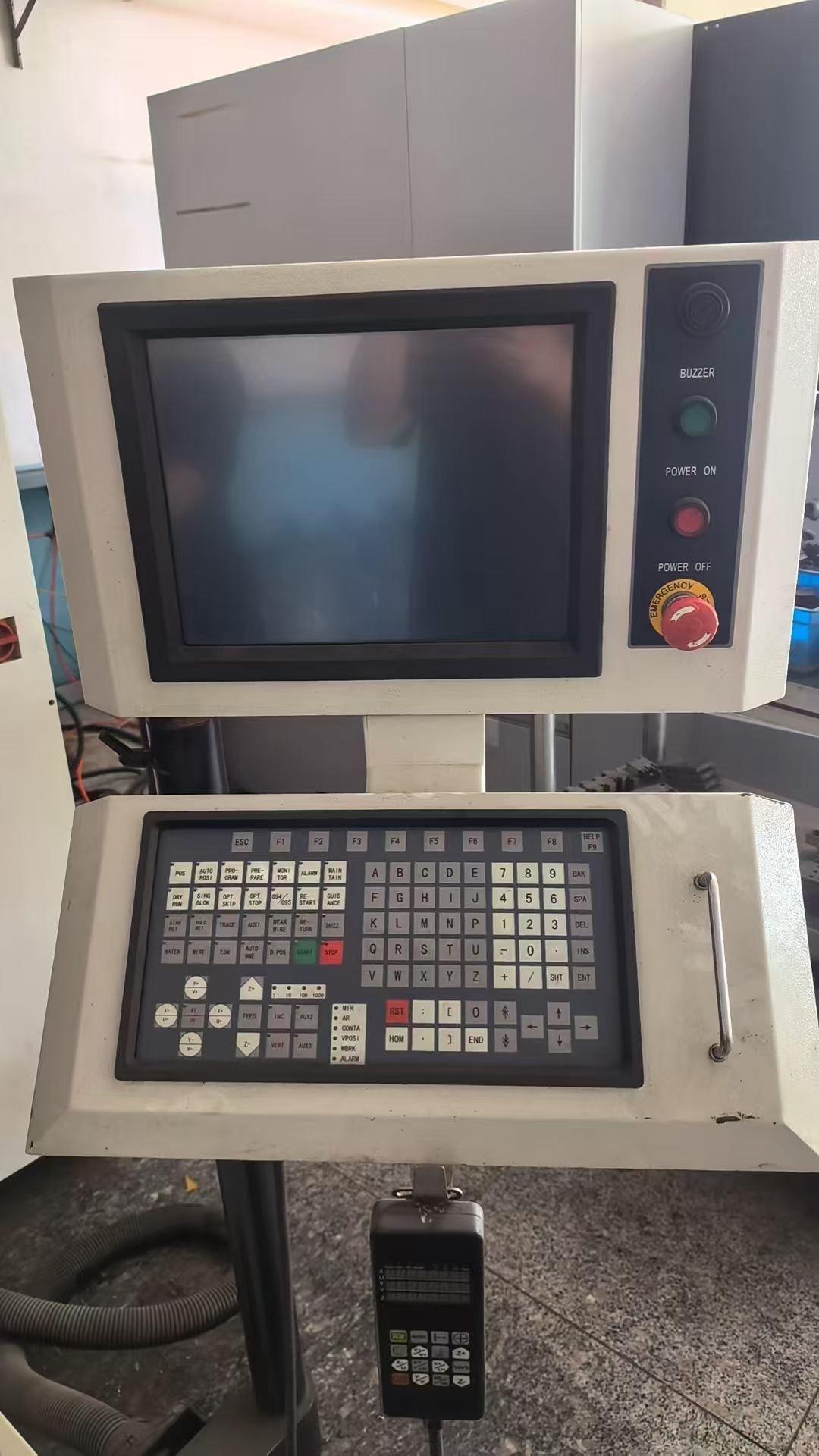

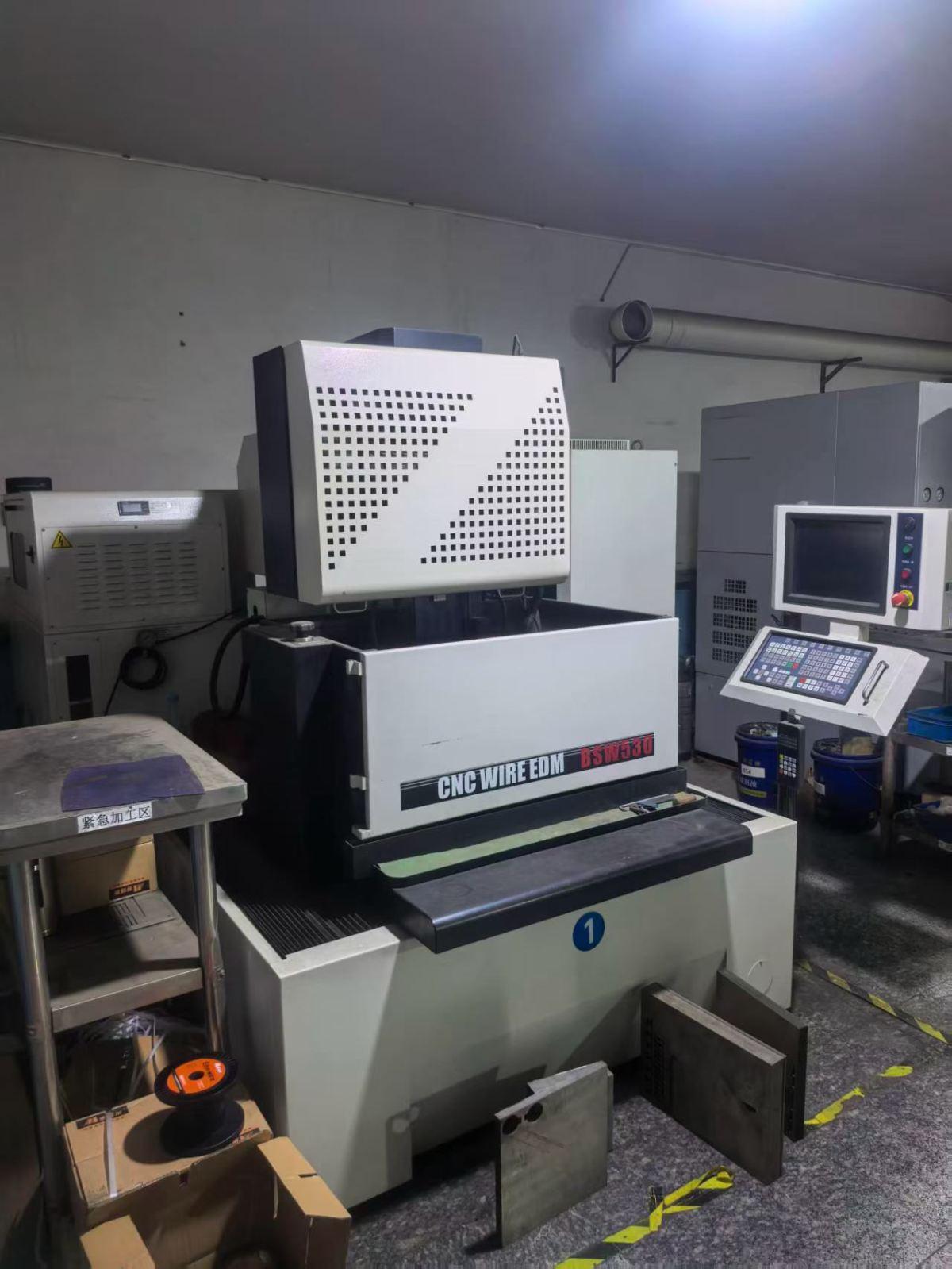

MAXSEE BSW530 Wire cutting machine
[Product Information]:
- Inventory number：69151
- Brand：MAXSEE
- Model：BSW530
- Origin：Taiwan, China
- Location：China
- Year：2016
- Create Time：2026-09-27
Specifications:
Standard X/Y/Z travel: 350 × 250 × 250 mm
Maximum workpiece size: 500 × 350 × 250 mm
Maximum workpiece weight: 200 kg
Worktable size: 400 × 300mm
Maximum cutting thickness: 300mm
Maximum Cutting rate: 150 mm²/min
precision and electrode wire specifications
Positioning precision: ≤ 0.003mm
Repeated Positioning precision: ≤ 0.002mm
Minimum machining unit: 0.1 μm (0.0001 mm)
Electrode wire diameter range: 0.15mm to 0.30mm
