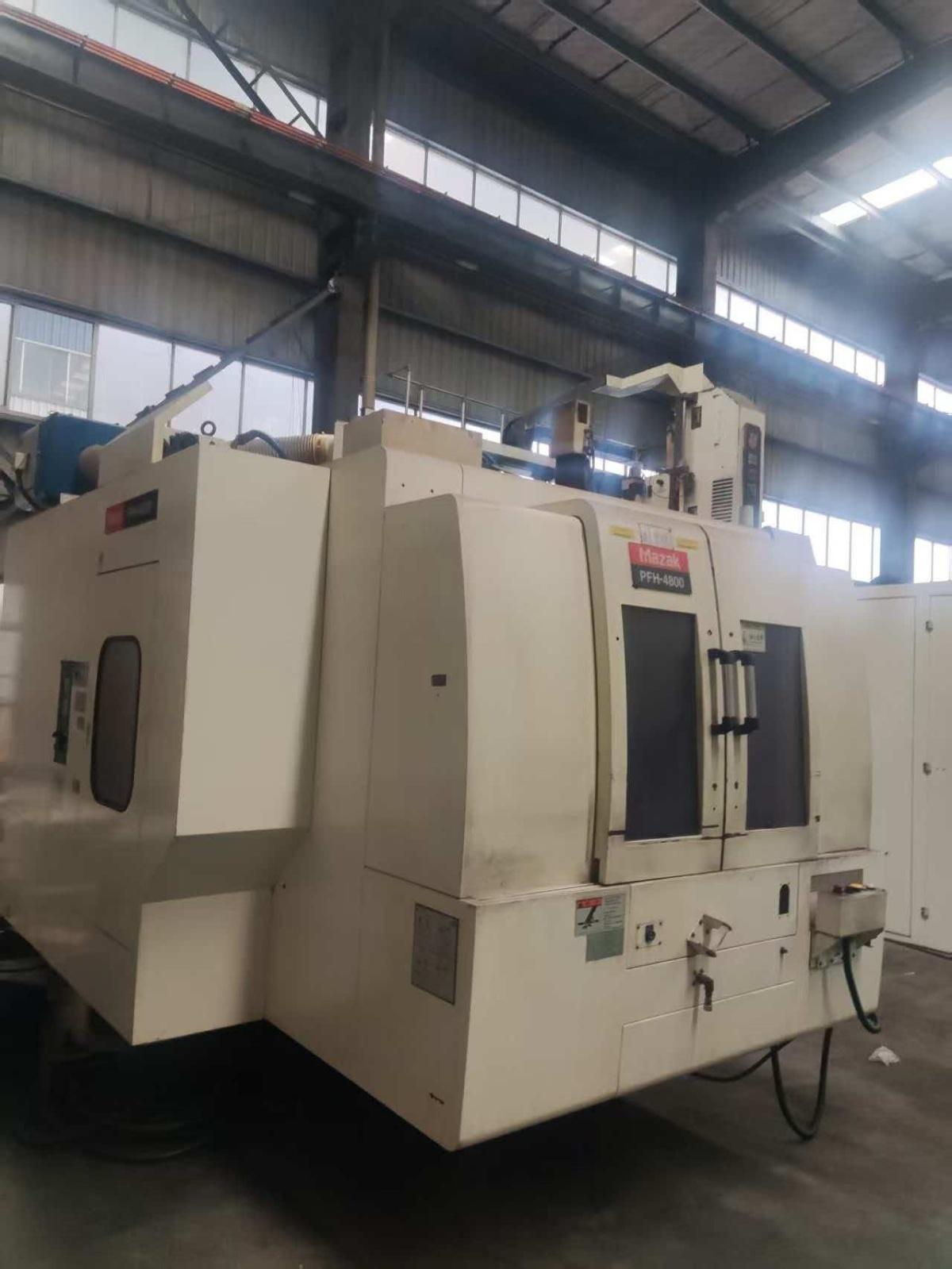

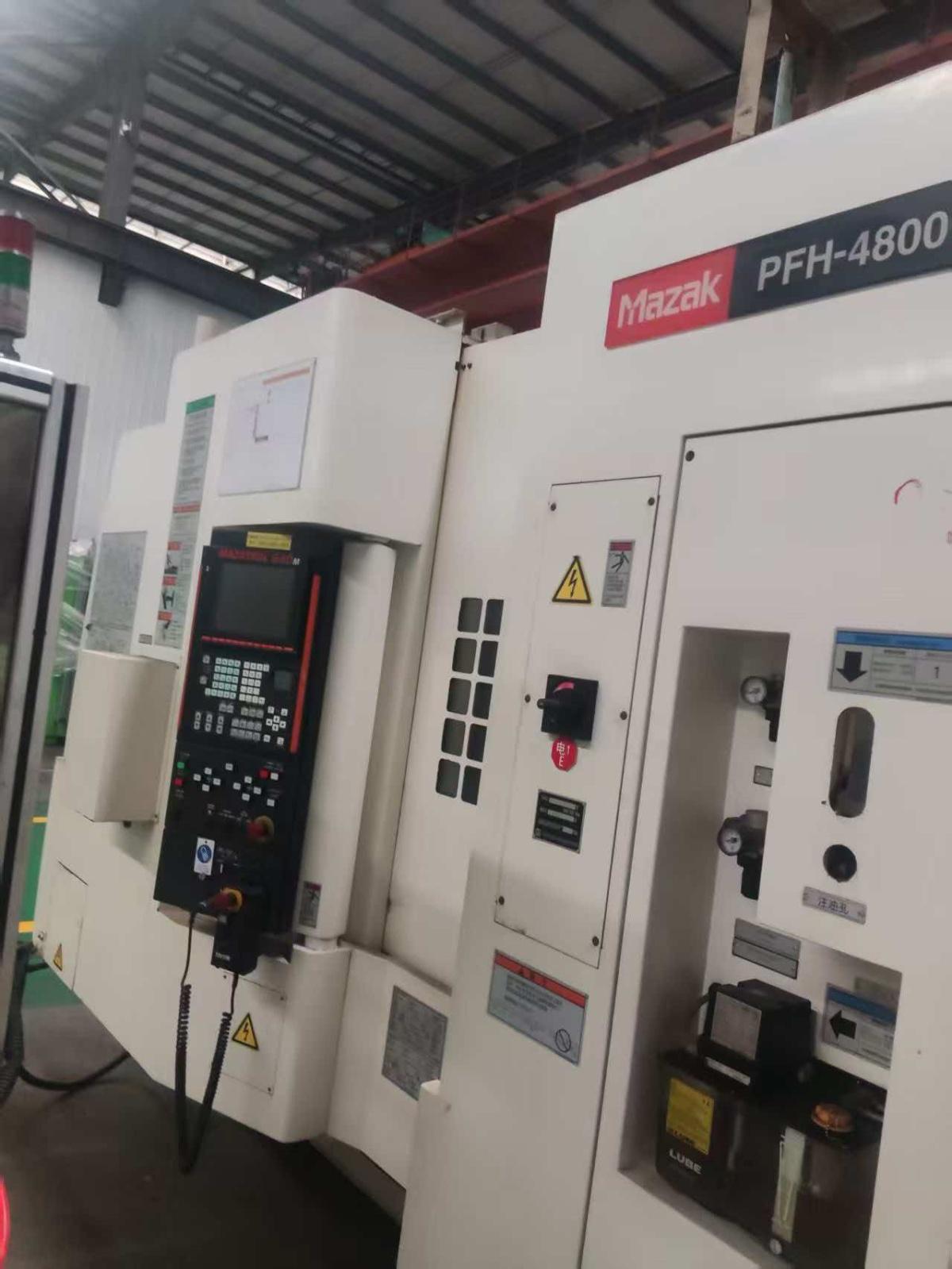

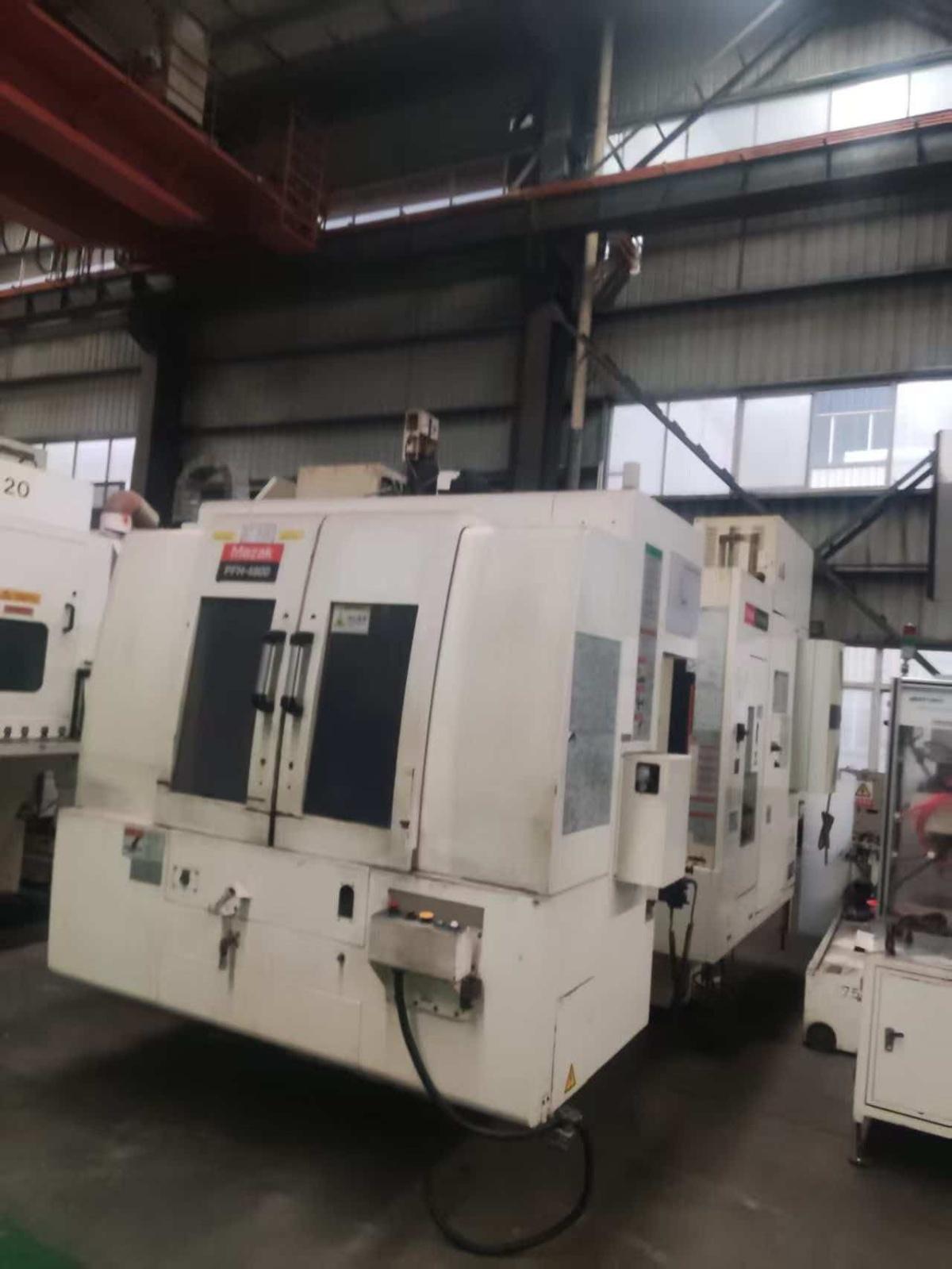

MAZAK PFH-4800 Horizontal Machining centre
[Product Information]:
- Inventory number：69147
- Brand：MAZAK
- Model：PFH-4800
- Origin："Japan
- Location：China
- Year：2006
- Create Time：2026-09-27
Specifications:
3 axes machining travel:
X-axis (left-right) : 560 mm
Y-axis (up and down) : 630 mm
Z-axis (front and back) : 600 mm
B-axis indexing precision: 0.001 degree

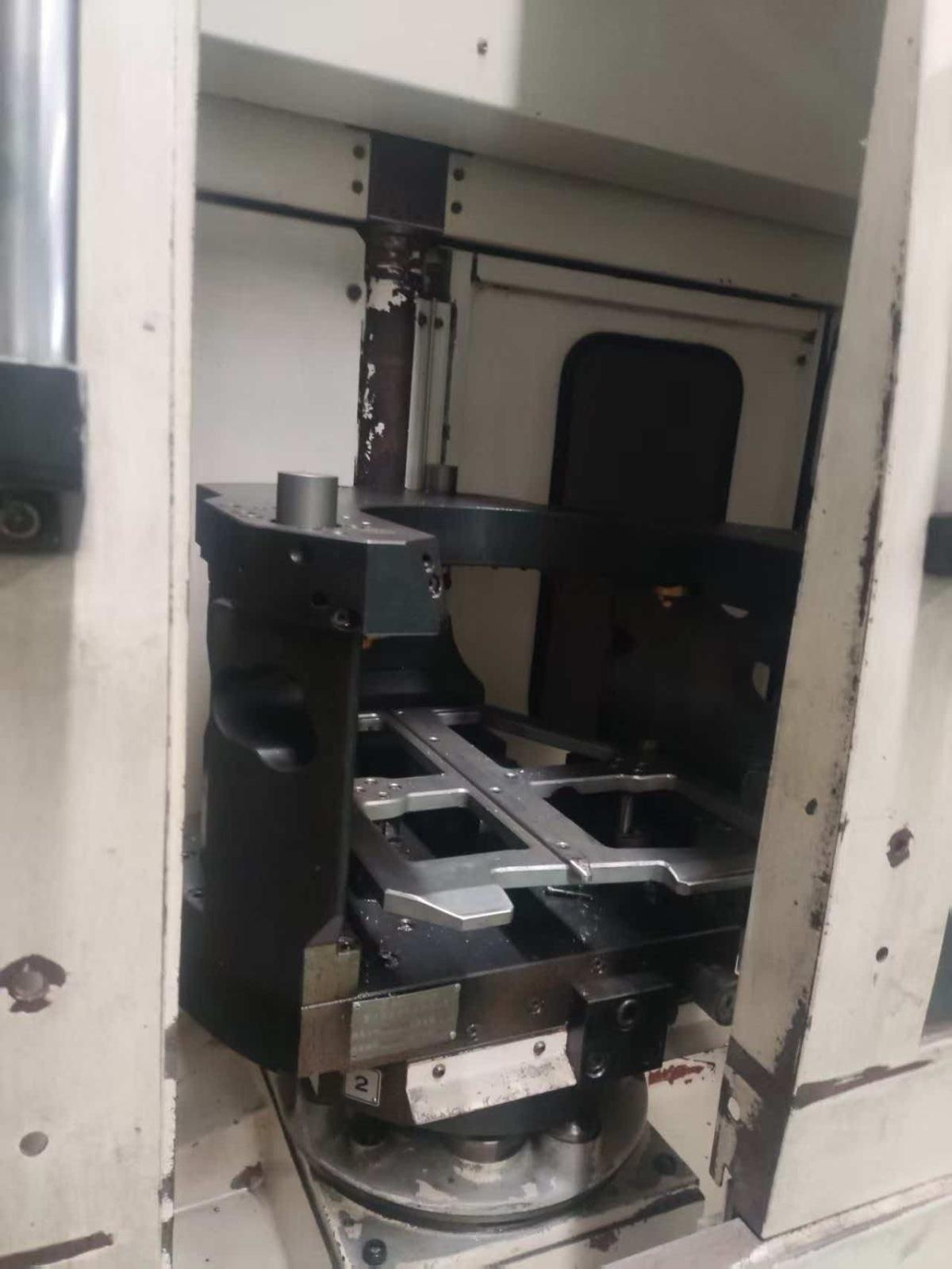

Worktable size: 400mm × 400mm
The maximum load of Worktable: 400 kg
Maximum workpiece rotary diameter: approximately 600 mm

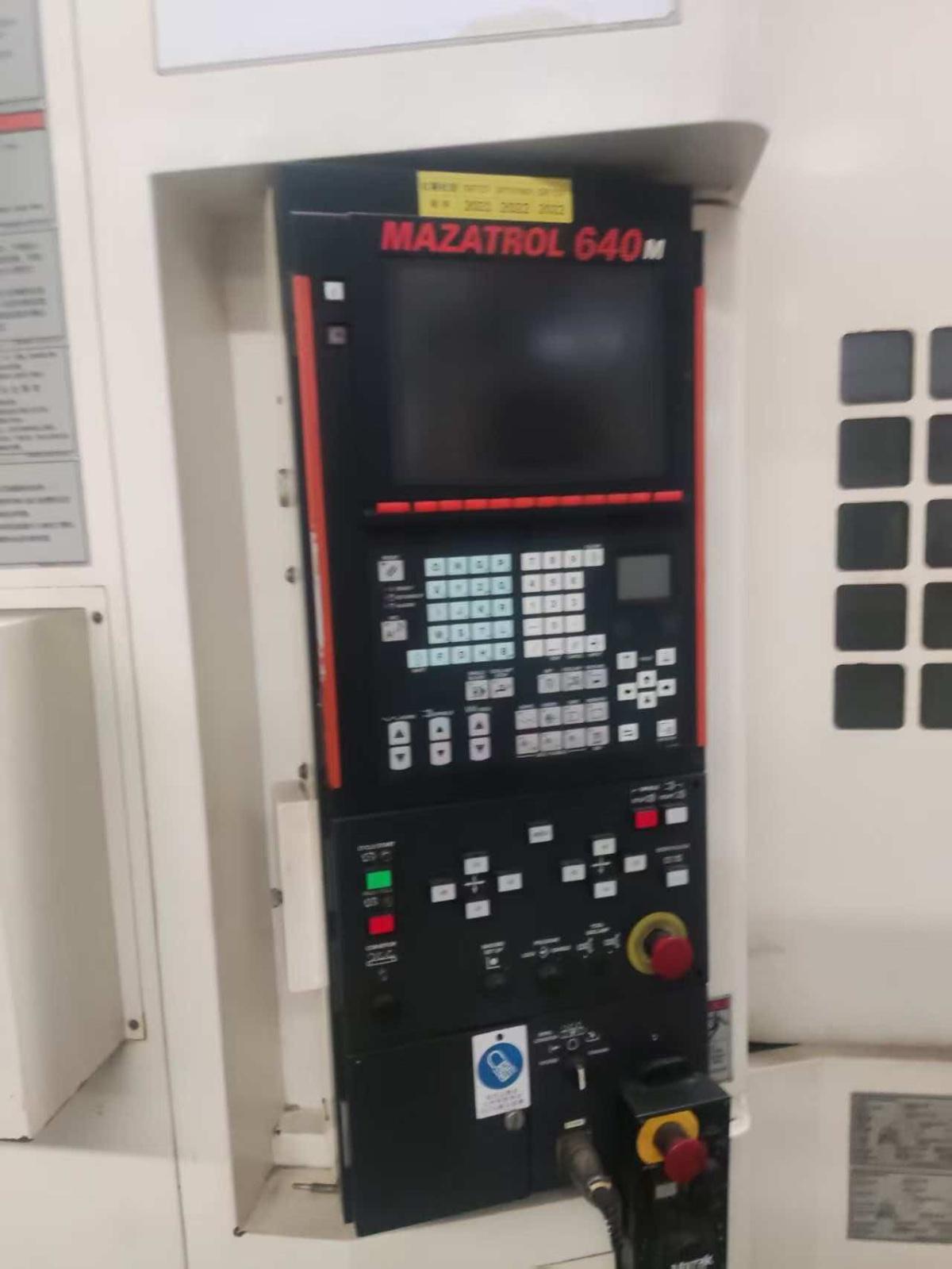

spindle and feed CNC System
spindle taper: HSK-A63 high-speed hollow tool holder interface
Maximum spindle speed: 15,000 r/min
3 axes fast movement rate: 50 m/min
Positioning precision: ± 0.01mm
Standard magazine capacity: 40 pieces
