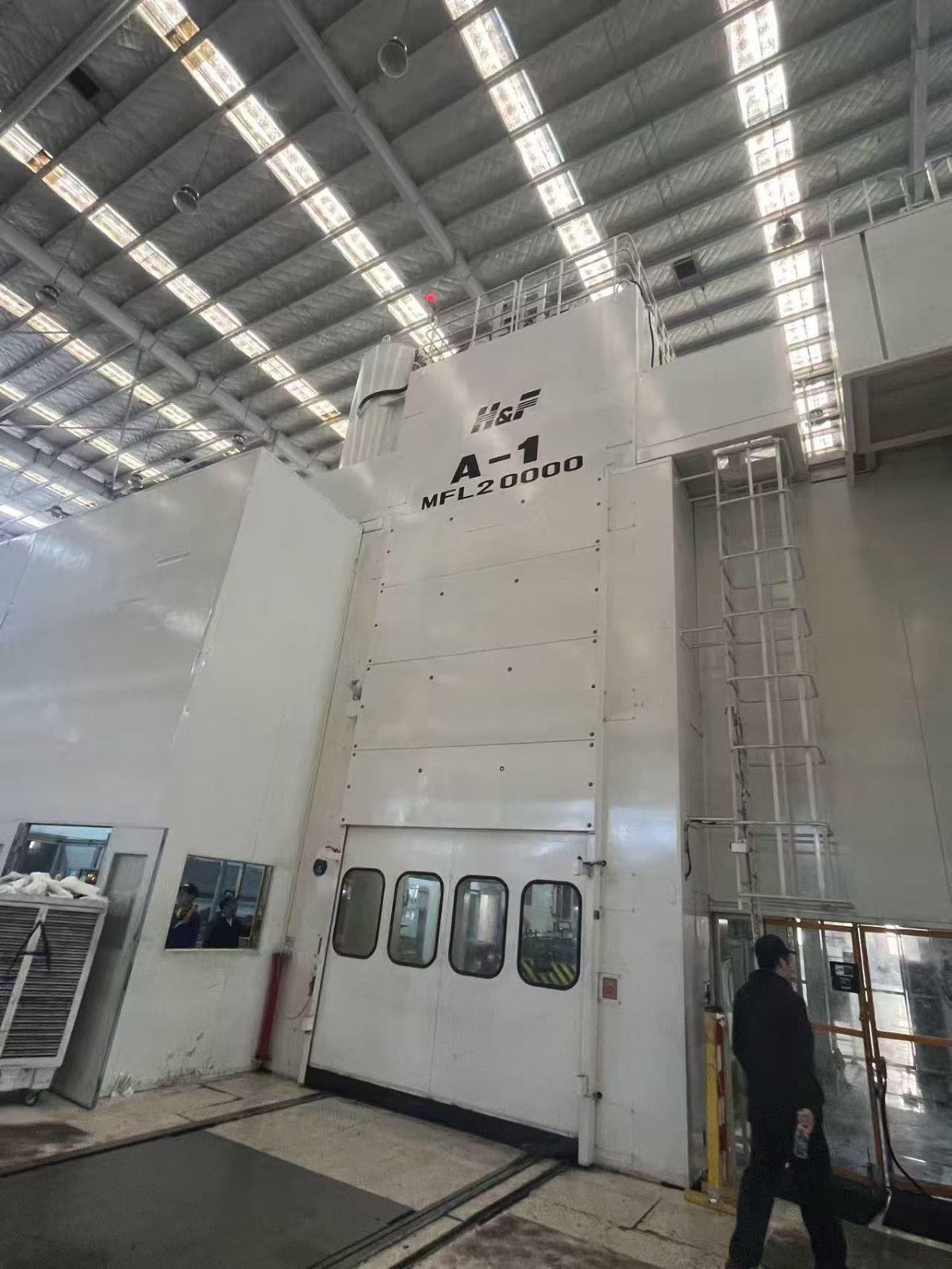

Hitachi Zosen Fukui Corporation MFL20000 Press machine

[Product Information]:

Inventory number：69144
Brand：Hitachi Zosen Fukui Corporation
Model：MFL20000
Origin："Japan
Location：China
Year：2012
Create Time：2026-09-27

Specifications:

Nominal force: 20,000 kN
Capability limit: 13mm from the bottom dead center
Slider travel: 1000 mm
travel per minute (SPM) : 10 to 20 spm
Slider adjustment amount: 800 mm
Mold height: 1600mm
Slider size: 4500 × 2400 mm
Worktable size: 4500 × 2400 mm
Power and CNC System parameters
Air pressure: 0.98 MPa
Main electromotor: AC280 kW (4 poles)
Adjust the electromotor: AC 15KW (6 poles)
