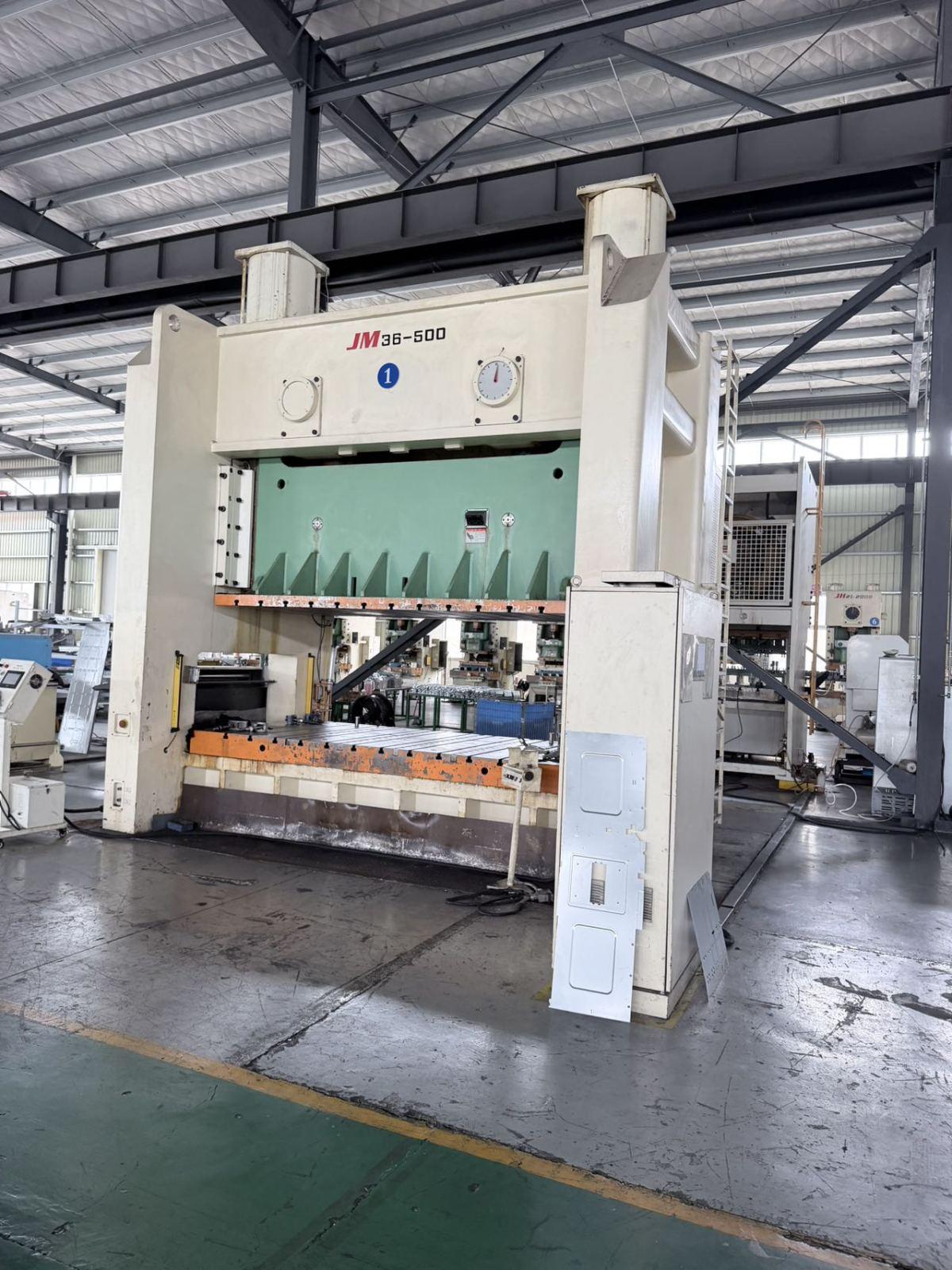

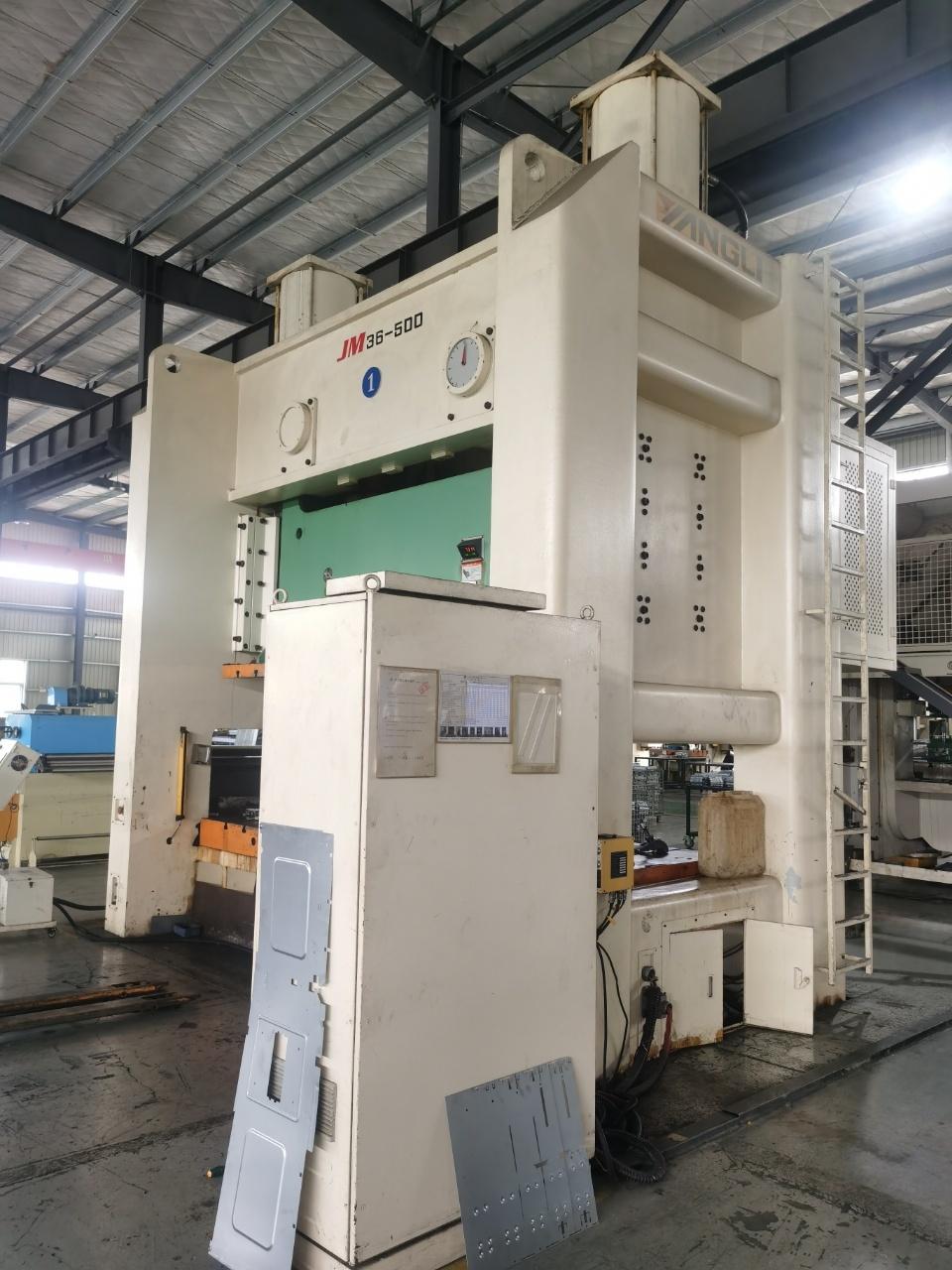

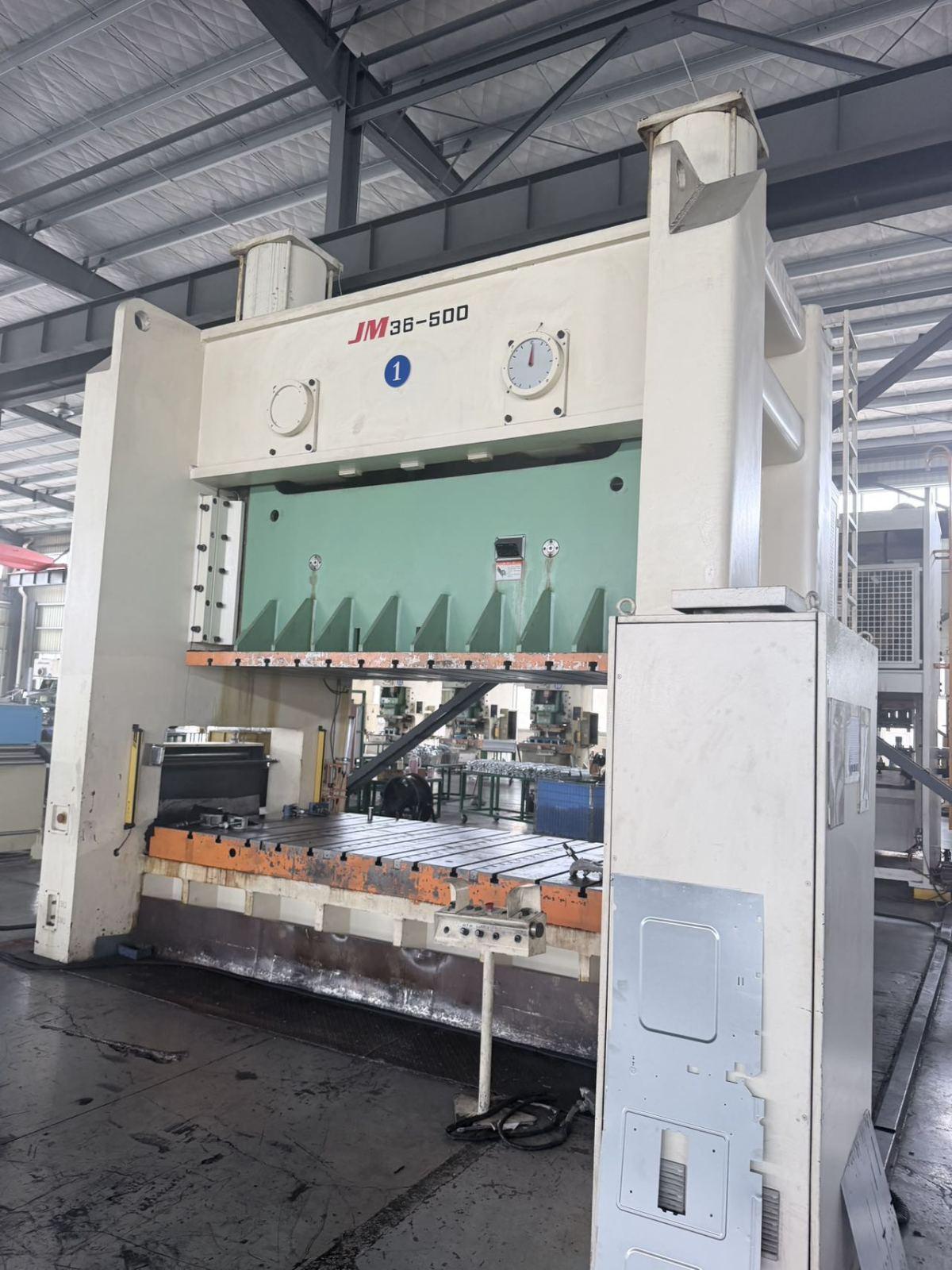

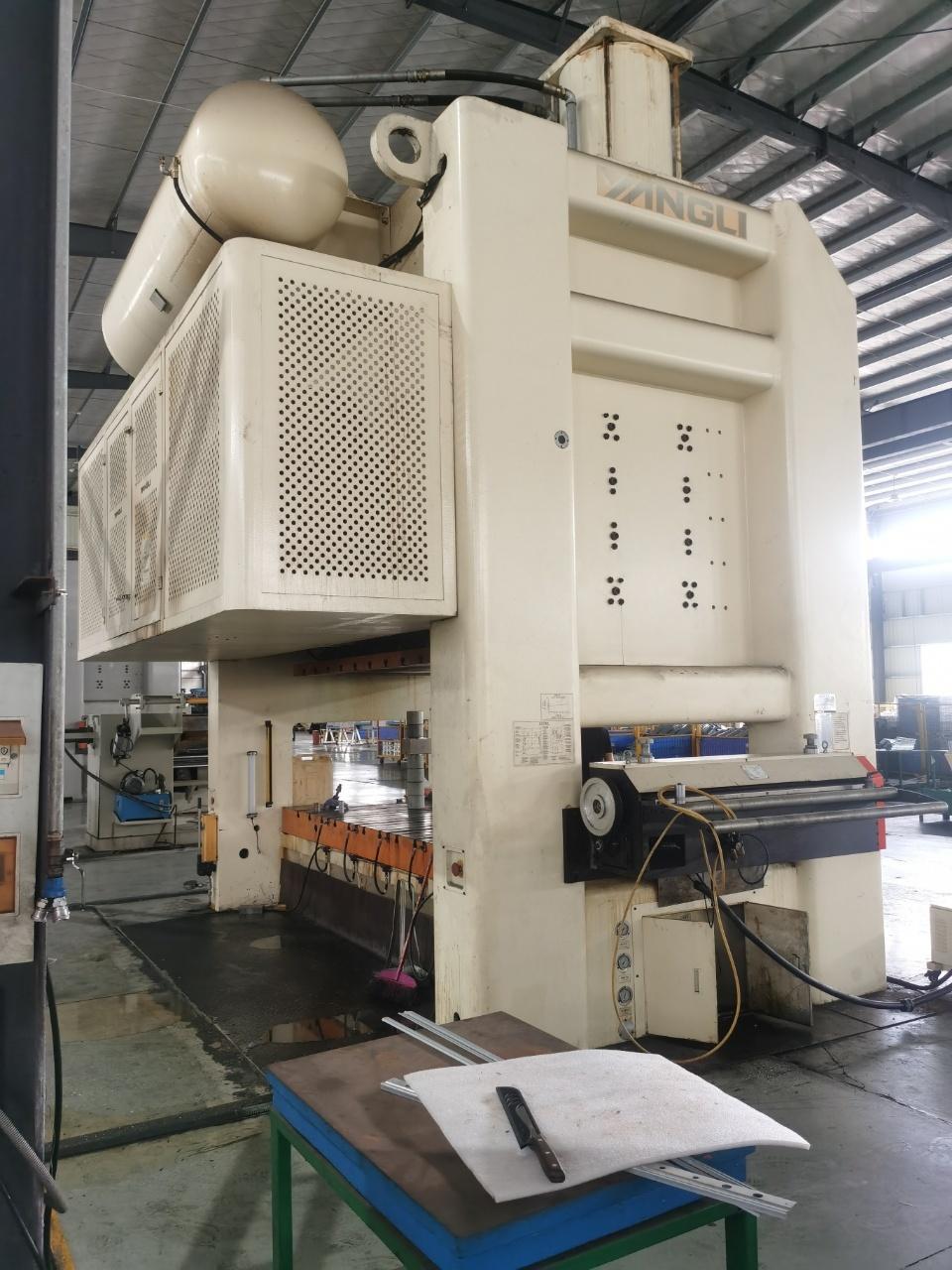

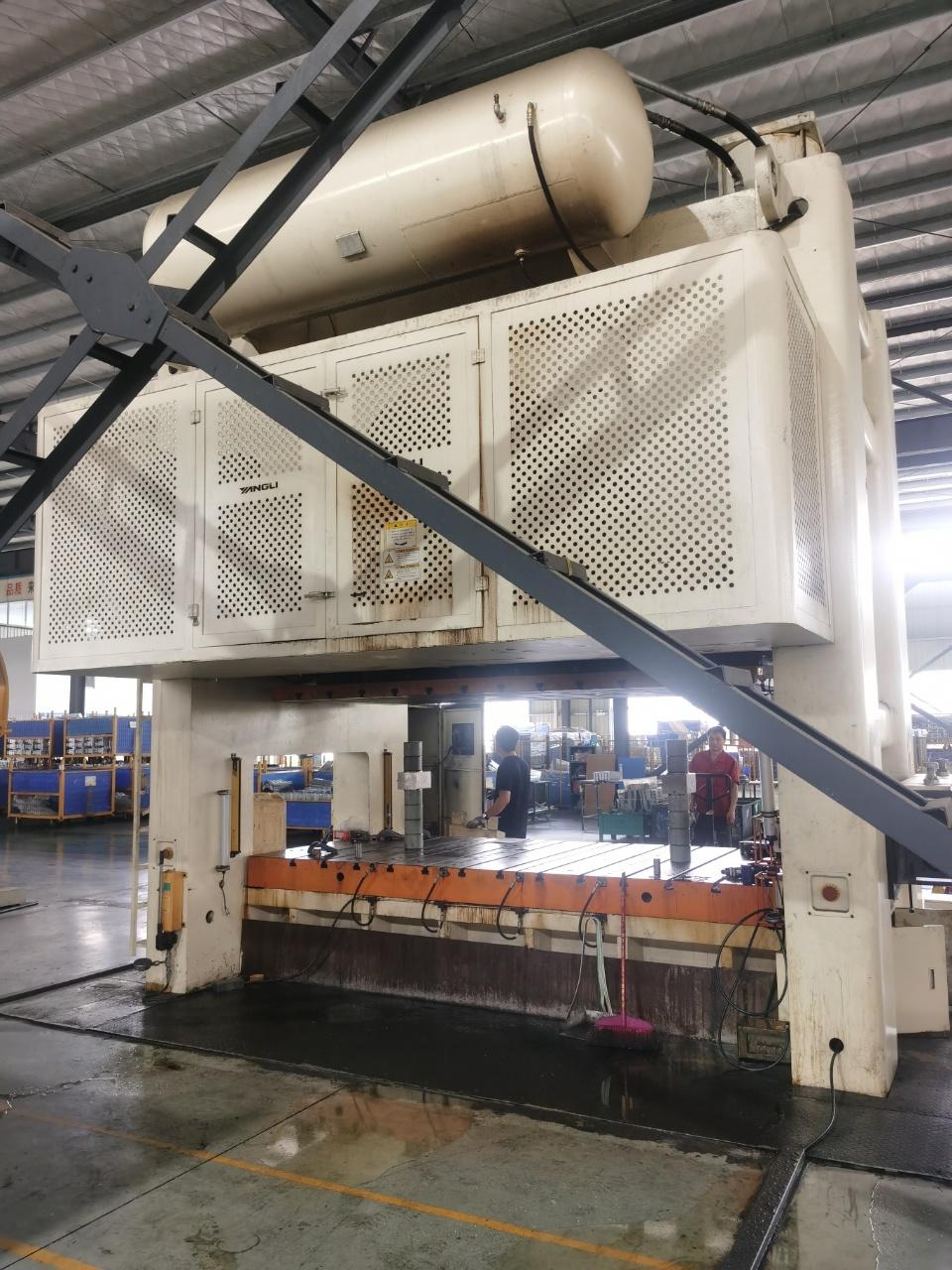

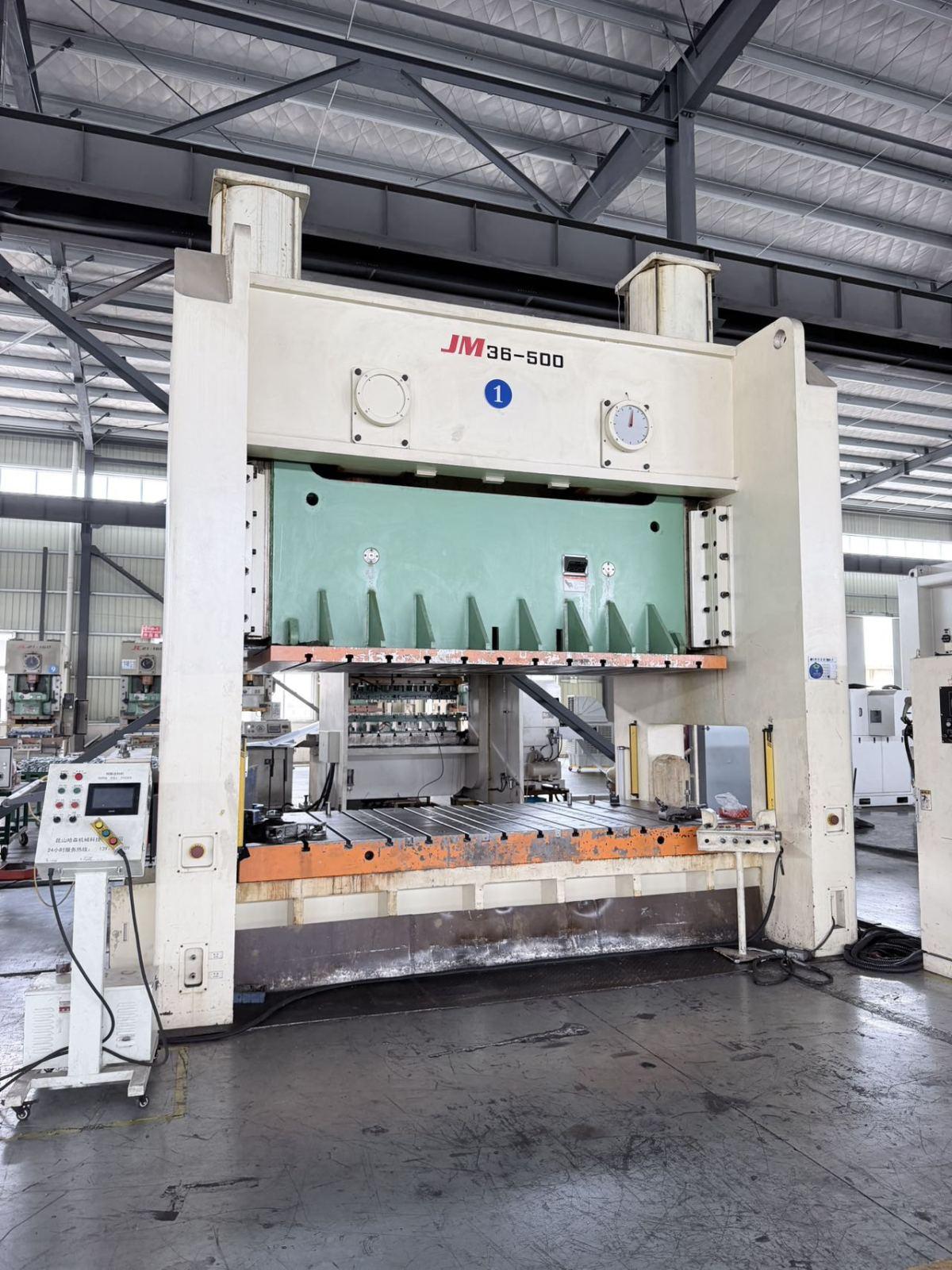

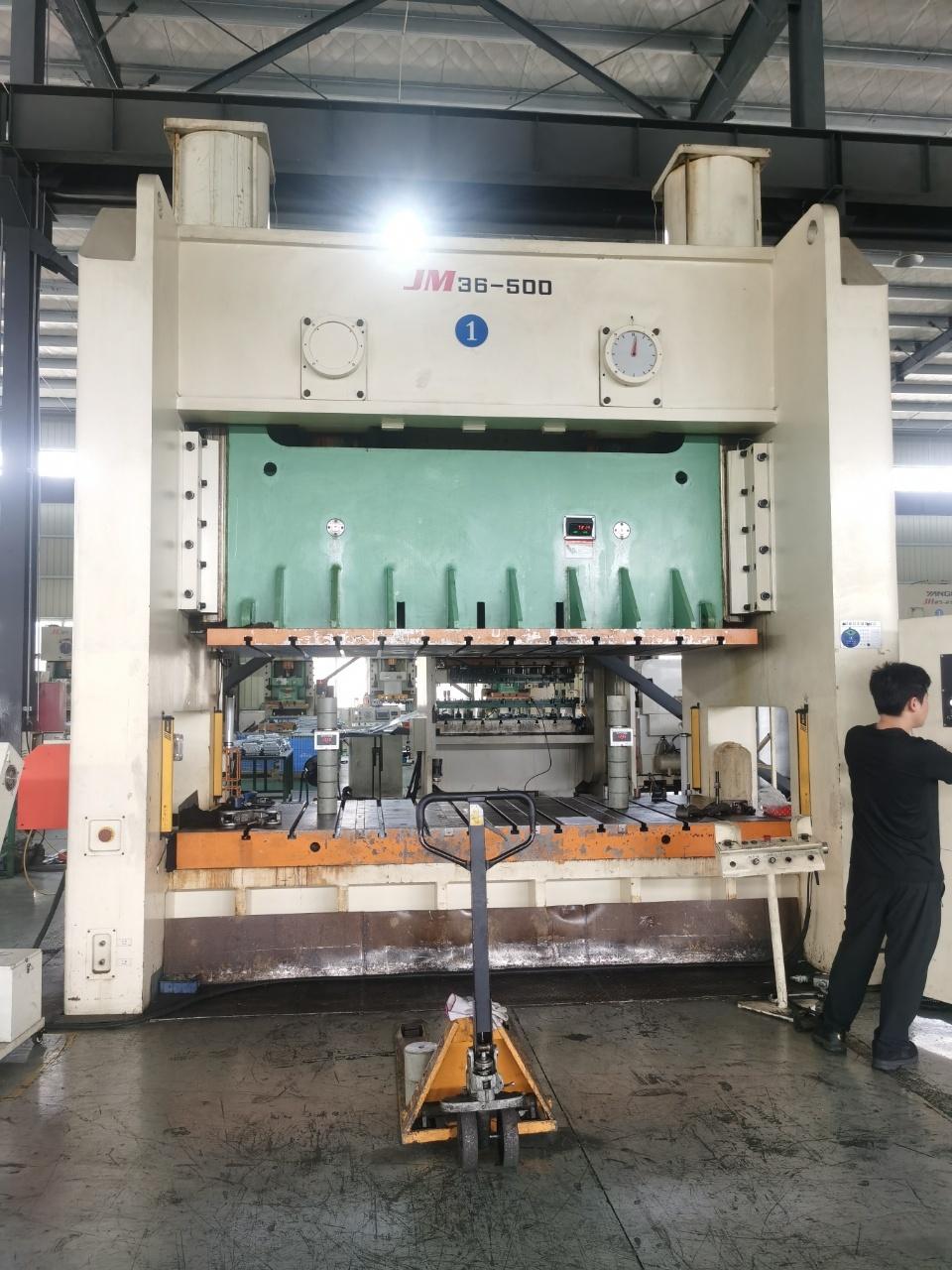

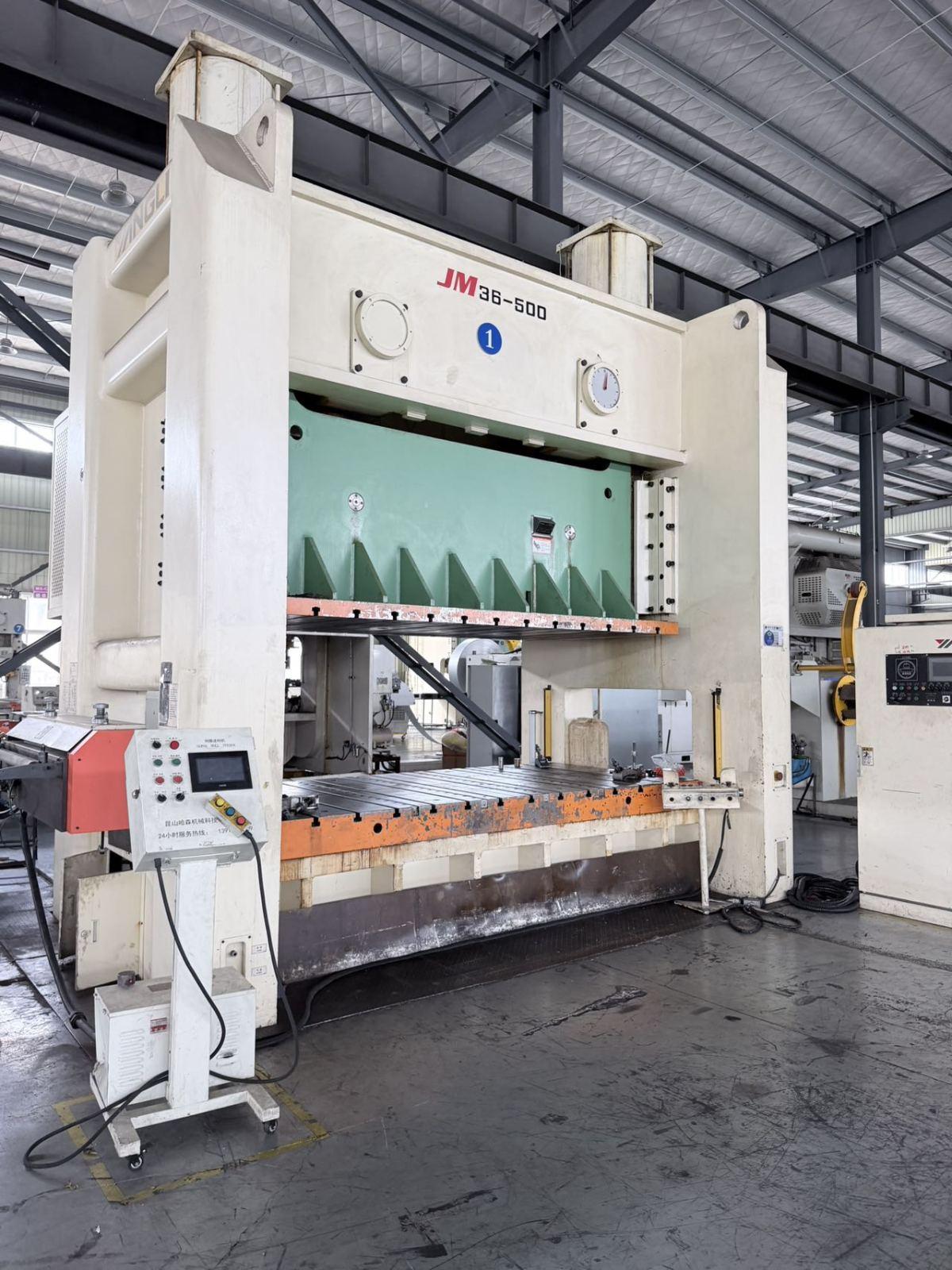

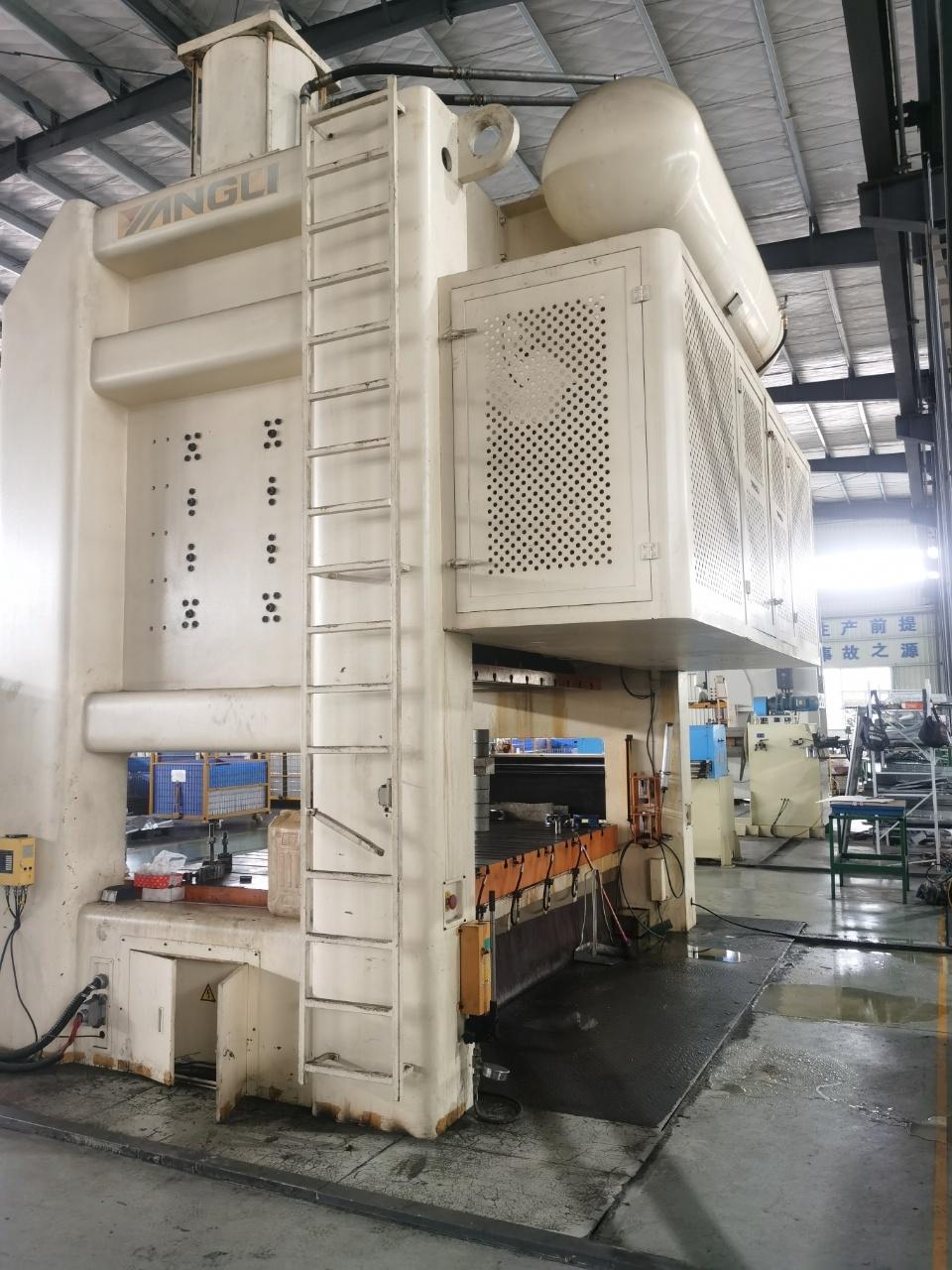

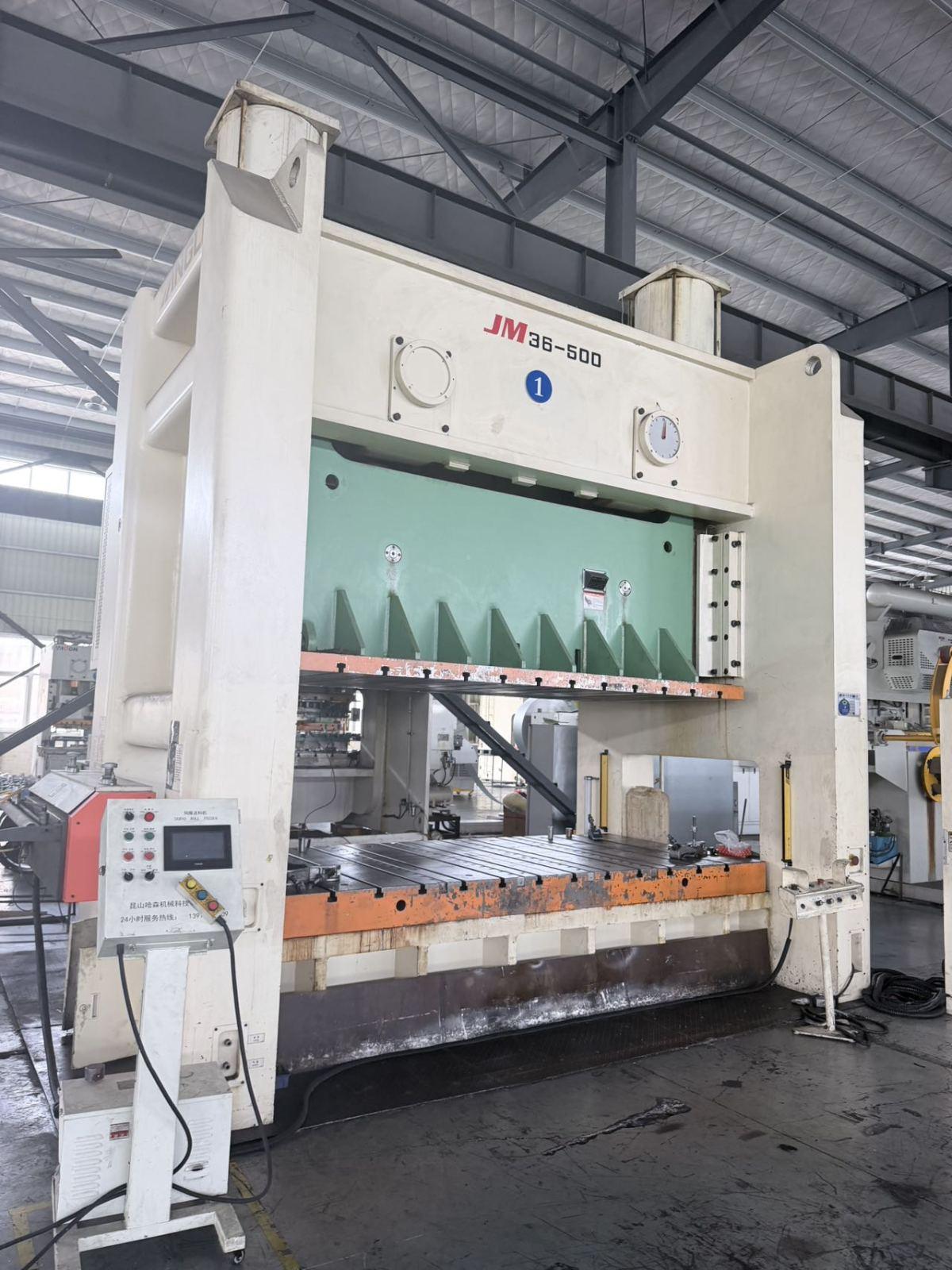

YANGLI JM36-500 Punch / press

Nominal Force: 5000 kN
Nominal travel: 10 mm
Slider travel: 300 mm
Slider travel times (SPM) : 18-25 times per minute
Maximum Die Height: 800 mm
Die Height Adjustment: 150 mm
Main Motor power: 45 kW
Mold and Worktable specifications

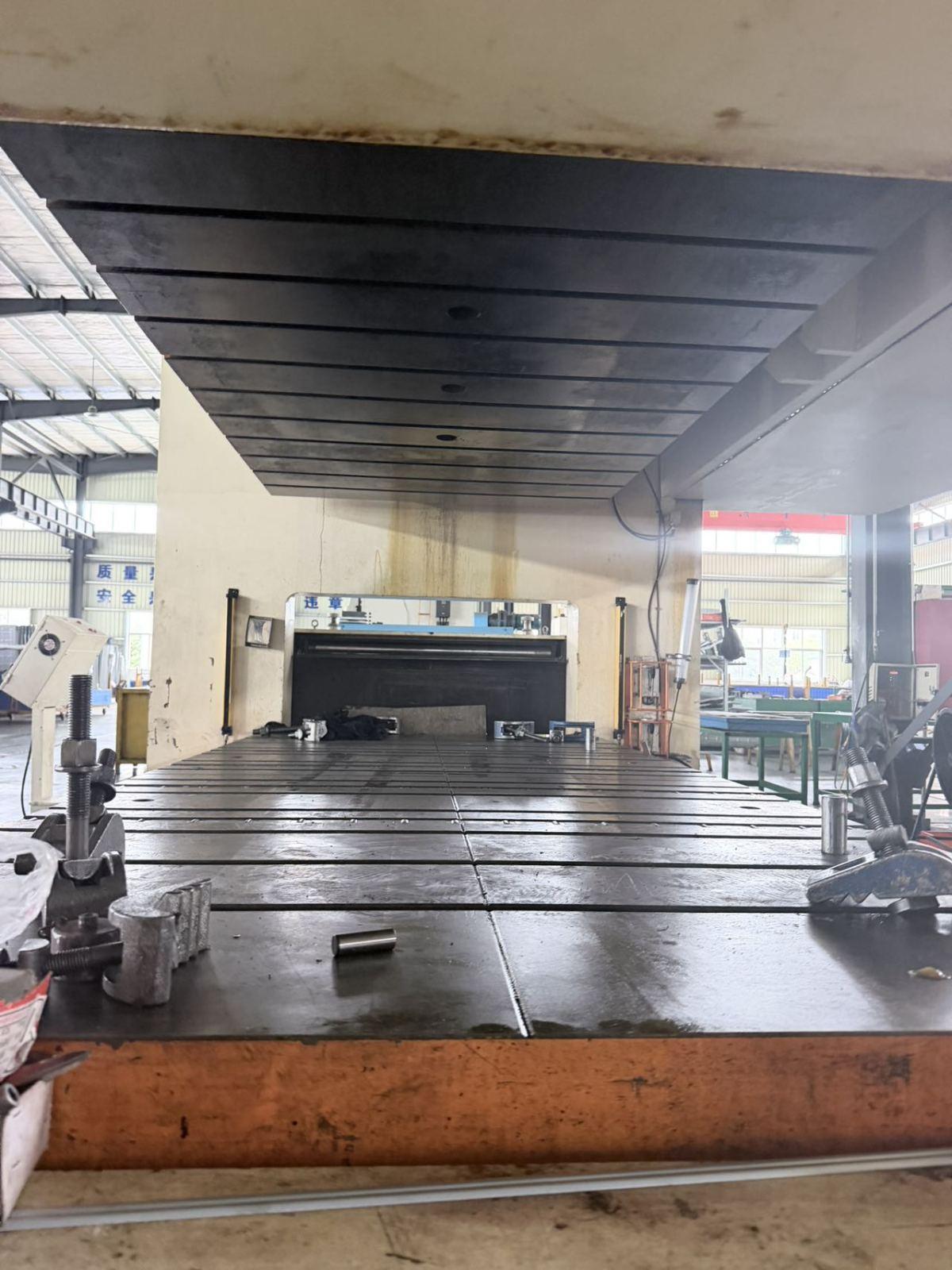

Worktable size (Bolster Area) : 1600 × 3500 mm (front and back × left-right)
Slide Area size: 1500 × 3200 mm
Tool holder Hole size: 70 × 95 mm (diameter × depth)
Between Columns: 3600 mm
Side Opening size: 1400 × 550 mm (for convenient side feeding or part retrieval)
Overall dimensions of machine
Outline footage: 3700 (front and back) × 4550 (left-right) × 5600 (height) mm
