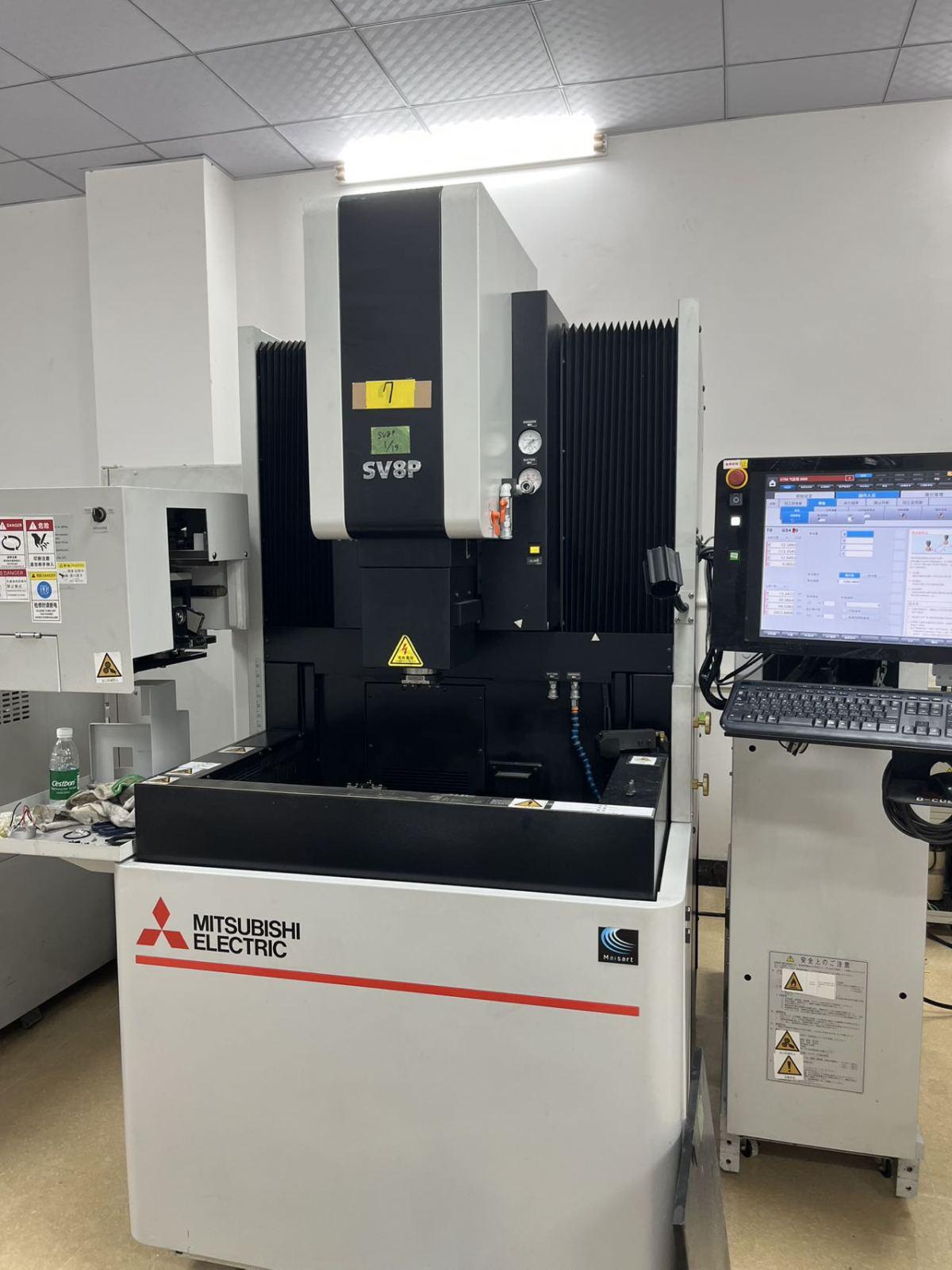

Mitsubishi SV8P Spark eroder

Three-axis travel: 300 × 250 × 250 mm
Maximum workpiece size (W × D × H): 770 × 500 × 200 mm
Maximum dielectric fluid level height: 65–400 mm
Power supply specifications (optional): GV80P / 80A (GV120P / 120A)
Internal working tank dimensions (W × D × H): 800 × 520 × 300 mm
Work tank type: 3-sided drop tank
Maximum workpiece weight: 550 kg
Worktable size (W × D): 500 × 350 mm
Maximum electrode weight: 25 kg
Distance from worktable to electrode plate: 150–400 mm
Distance from worktable to C-axis chuck:
EROWA ITS chuck: 150–400 mm
3R MACRO chuck: 132–383 mm
C-axis: Equipped with C-axis rotation function
Tool magazine capacity: 10 tools
Minimum command unit / resolution: 0.0001 / 0.00005 mm
Rapid traverse rate: 7 mm/min
Machining accuracy: 0.01 mm
Maximum machining current: 80A
