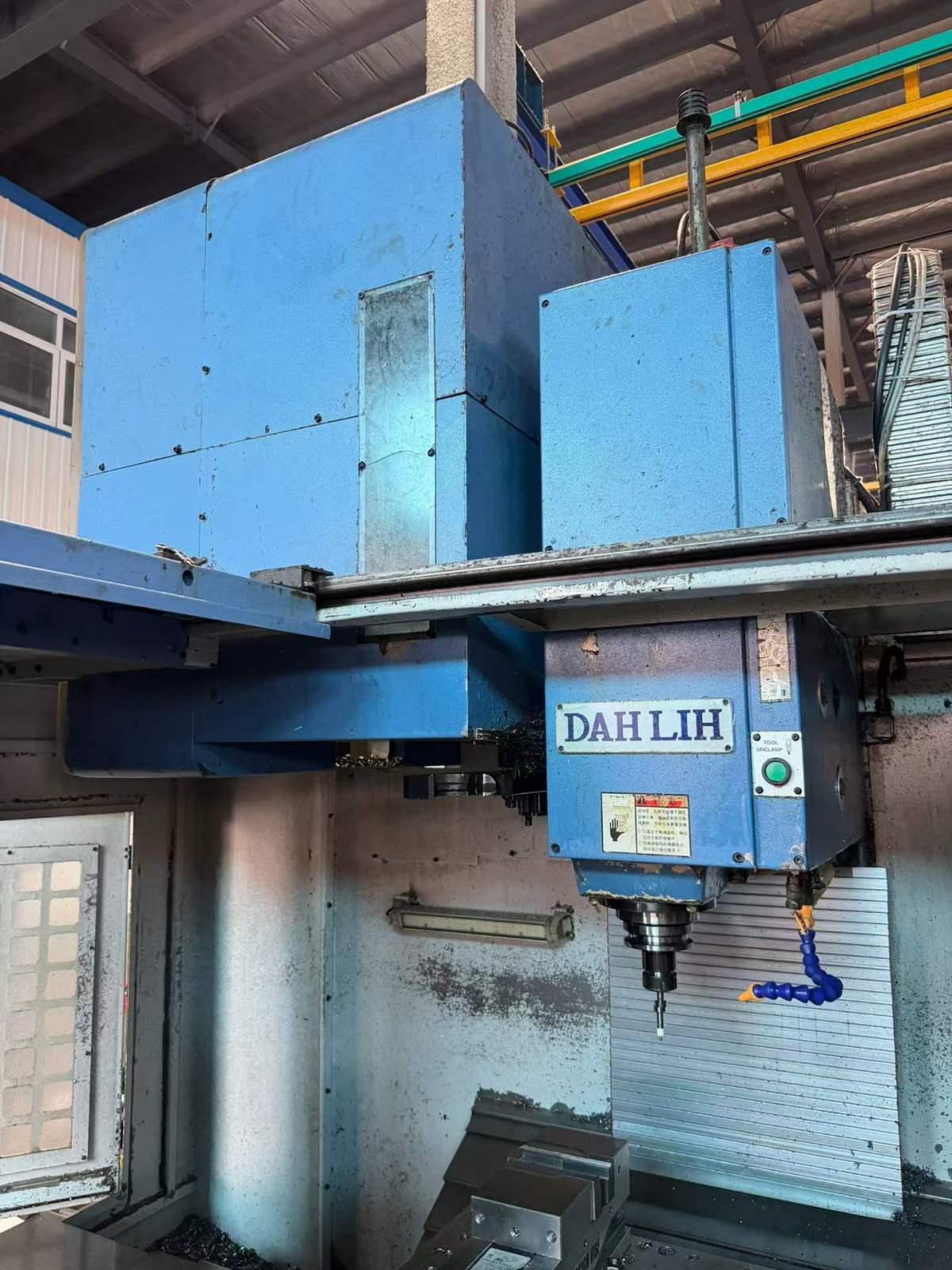

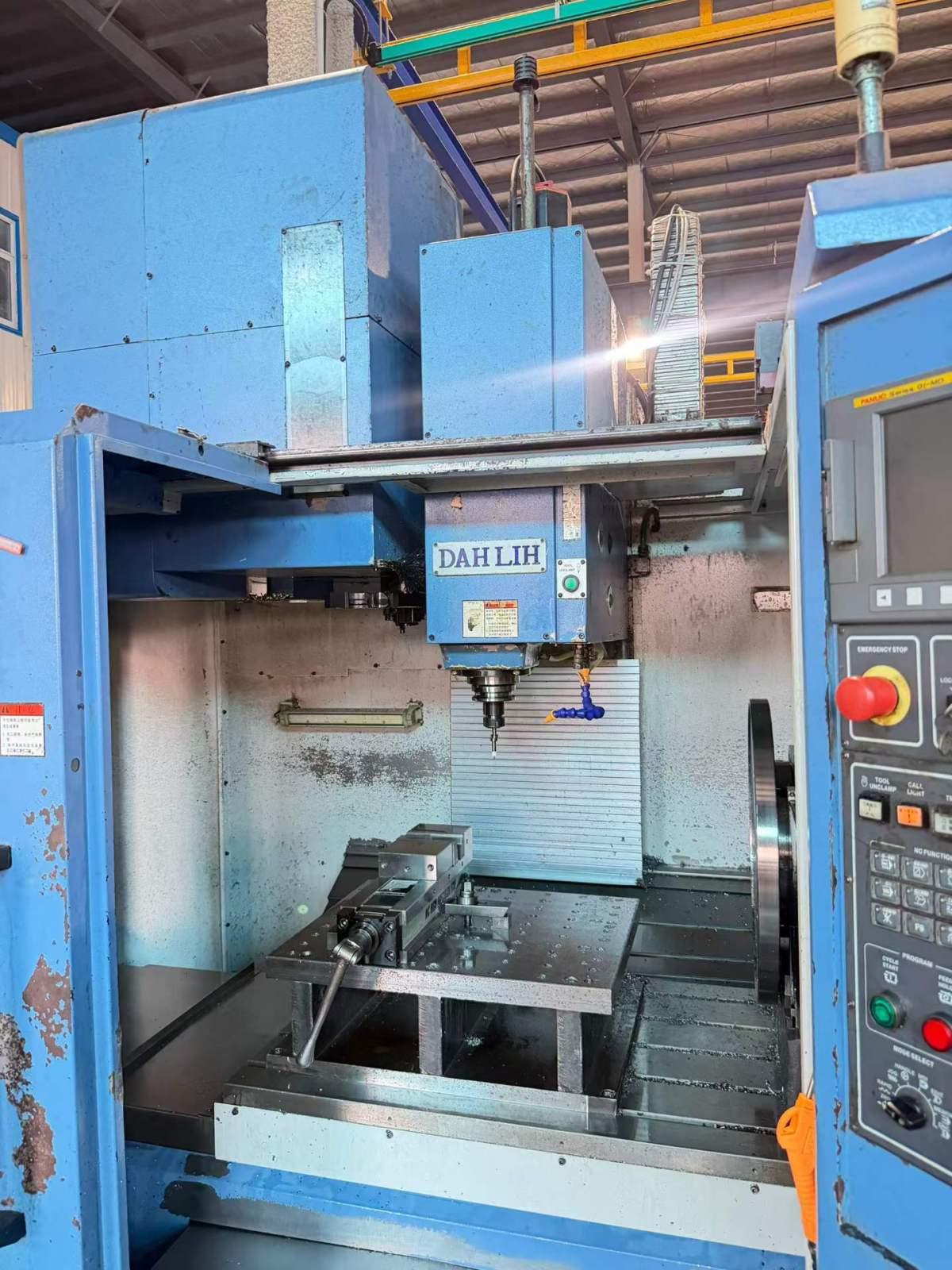

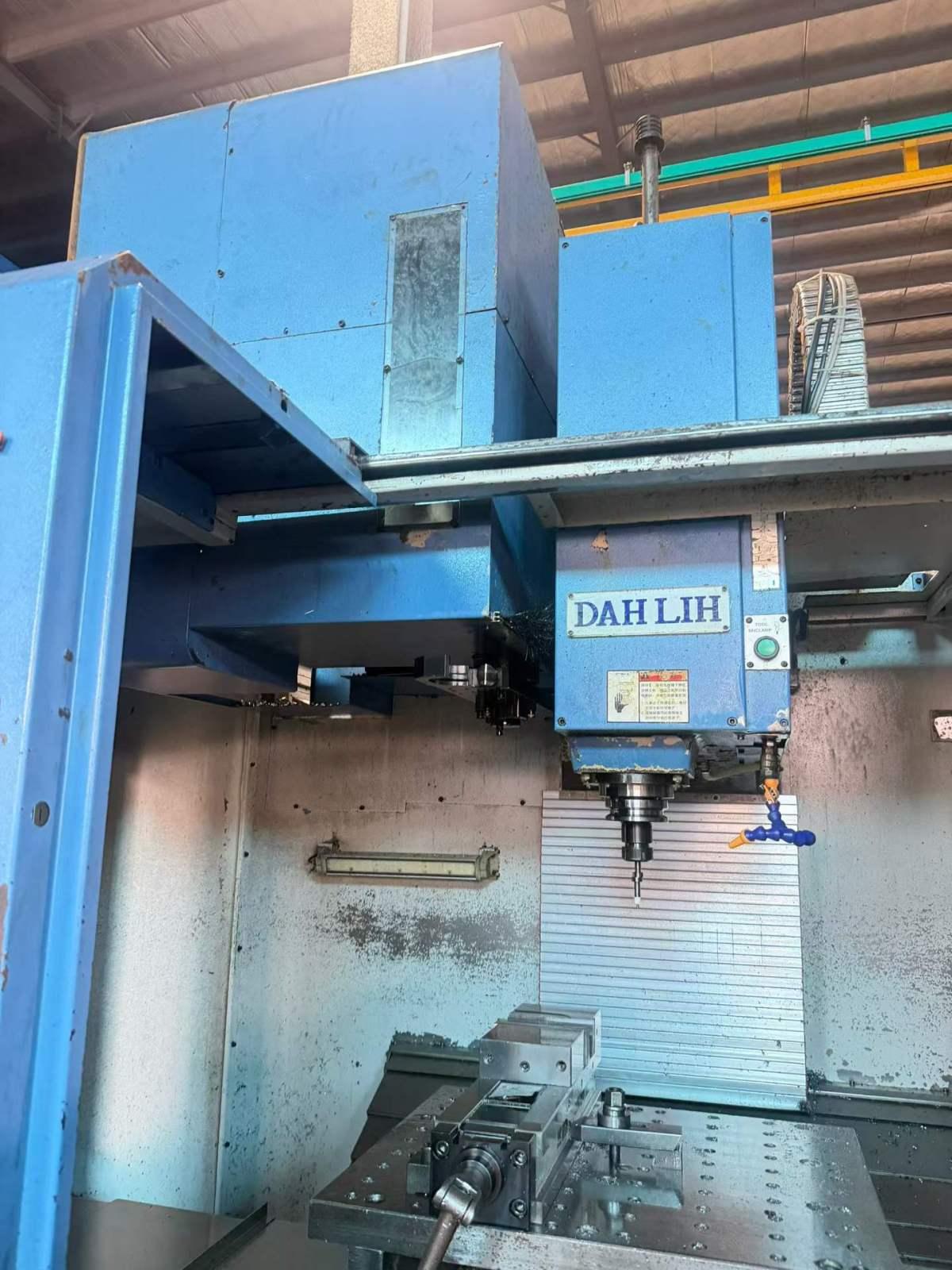

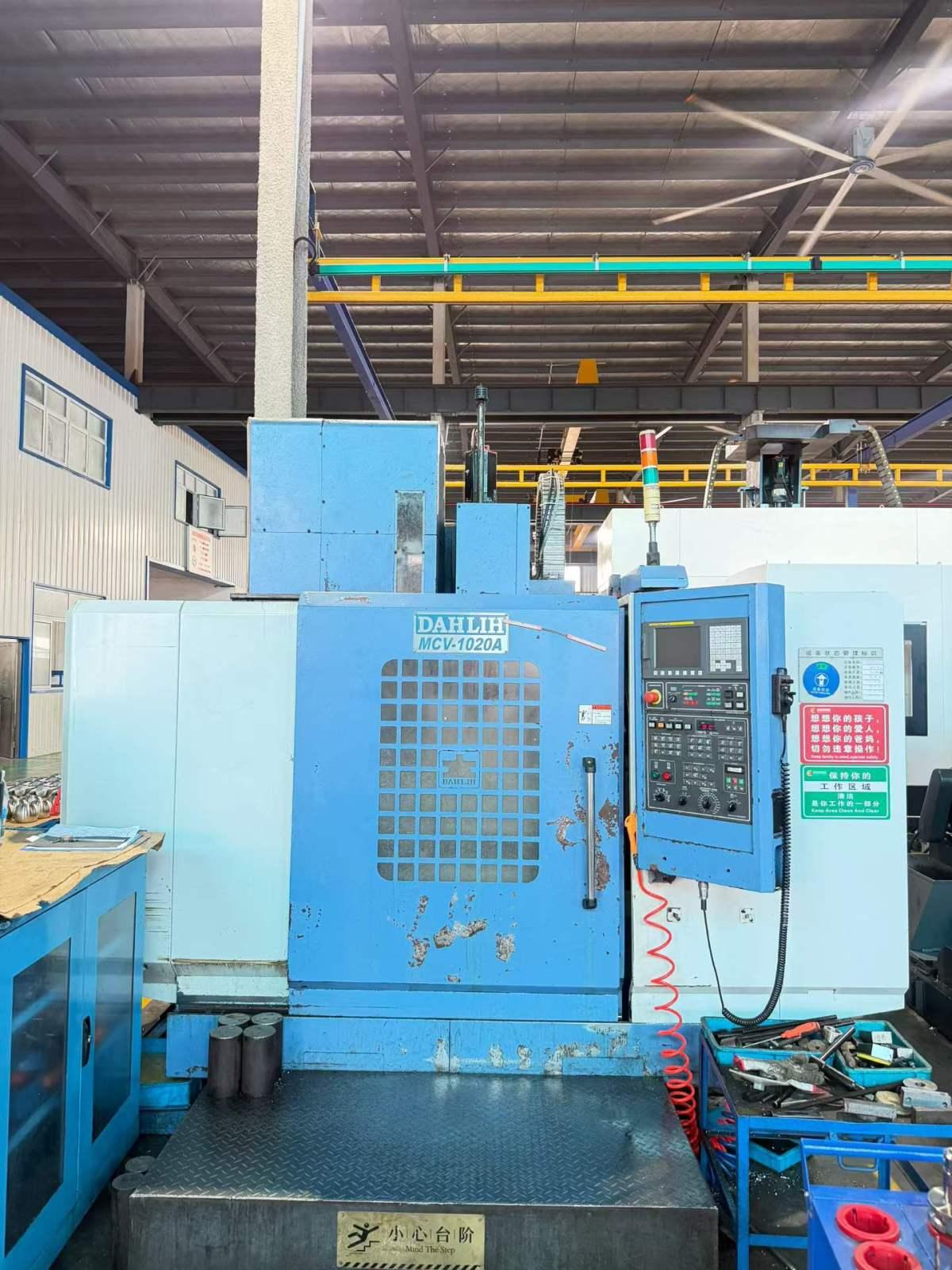

DAHLIH MCV-1020A Vertical Machining centre

CNC System: FANUC Oi-MD
Three-axis travel (X/Y/Z): 1000 × 540 × 560 mm
Worktable size: 1250 × 660 mm
Maximum table load: 1000 kg
Spindle speed: 8,000 rpm
Spindle motor power: 7.5 kW

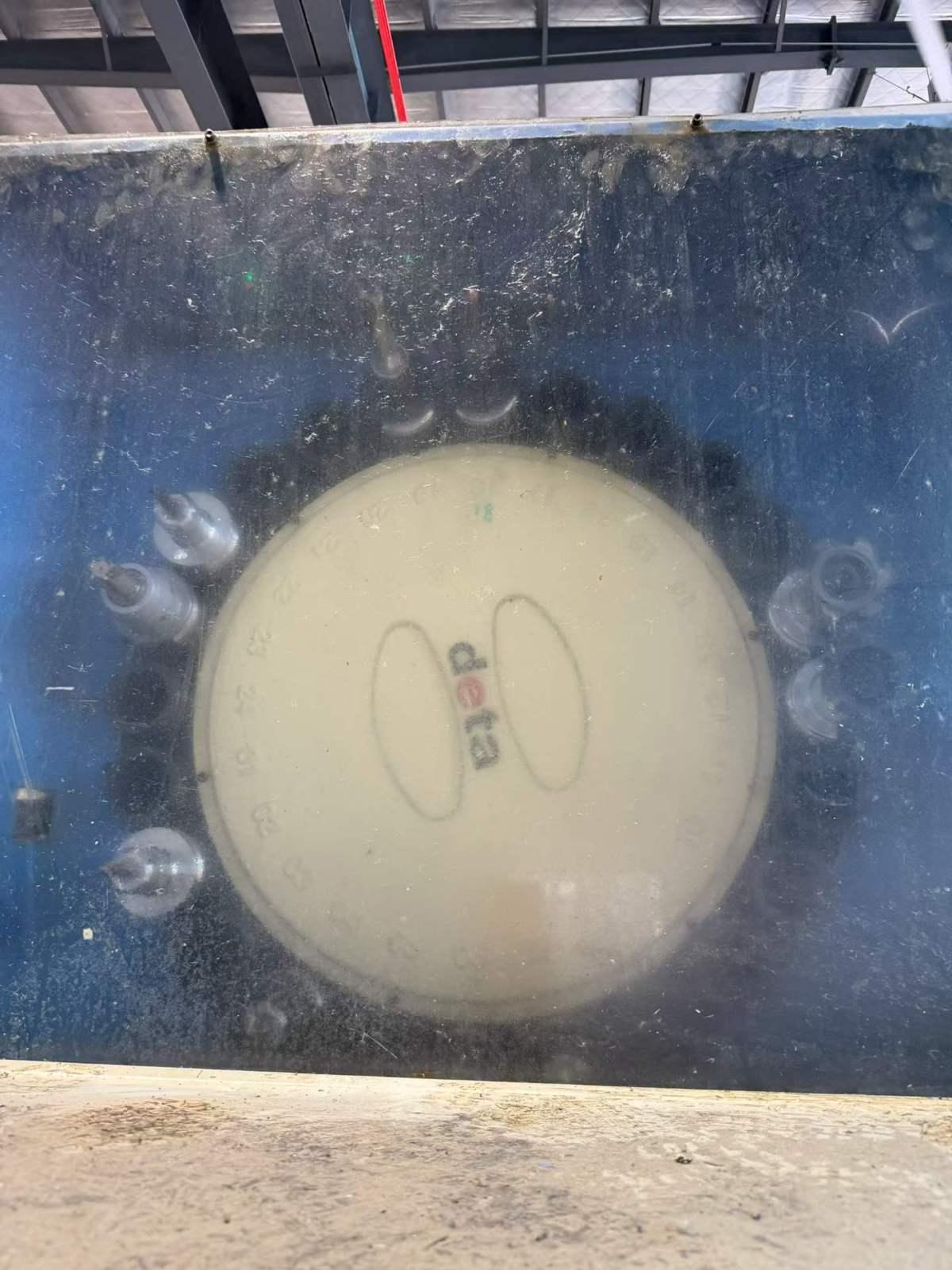

Tool magazine capacity: 24 tools
T-slot (width × number of slots): 18 × 5 mm
Distance from spindle nose to worktable surface: 150–710 mm
Distance from spindle centerline to the front of the column: 600 mm
Guideway configuration: Two linear guideways and one rigid guideway
