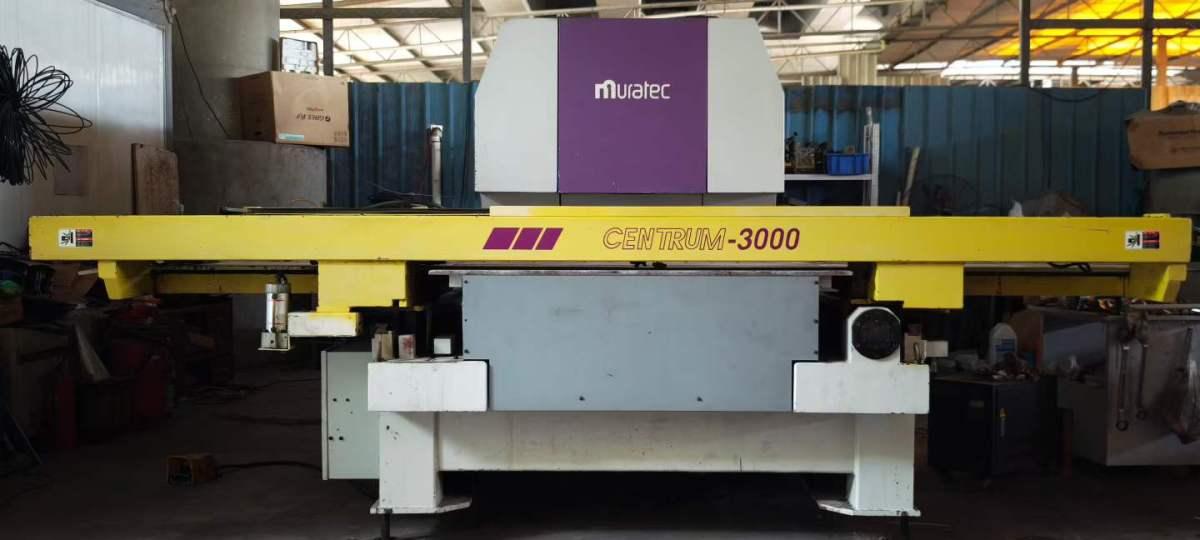

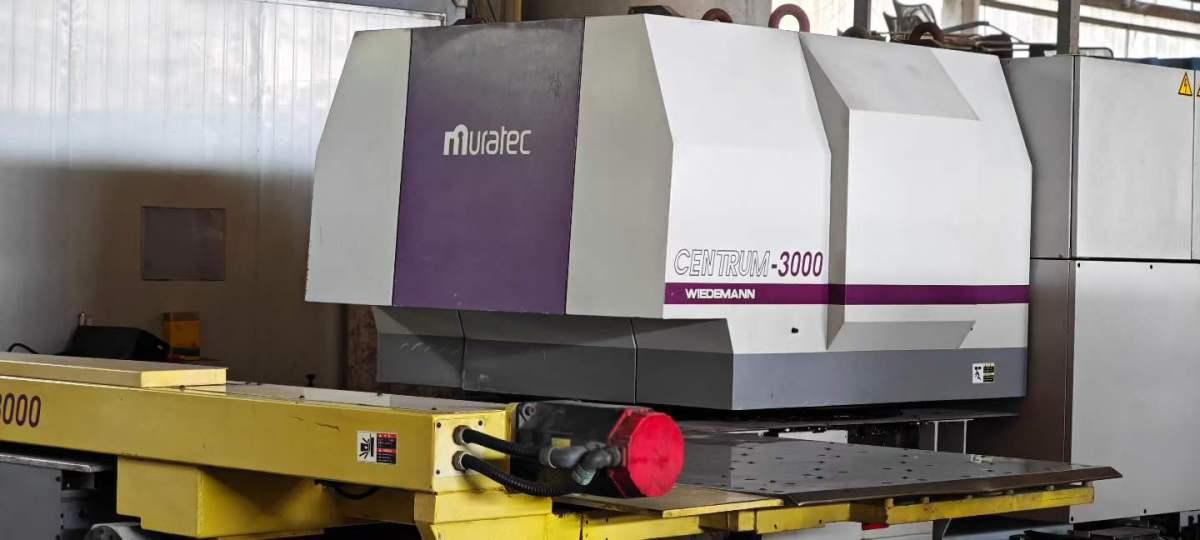

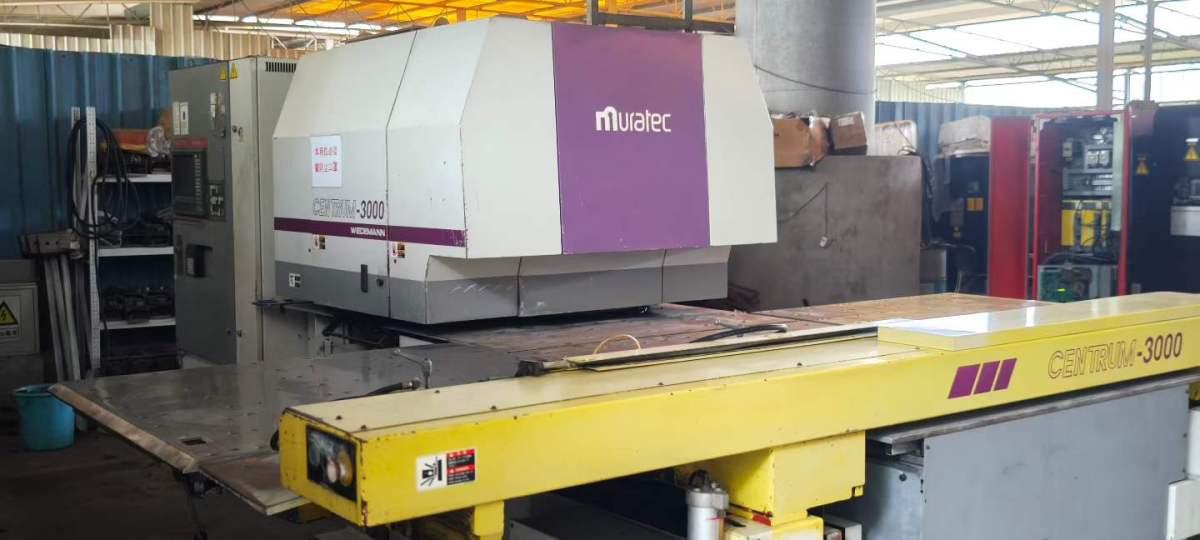

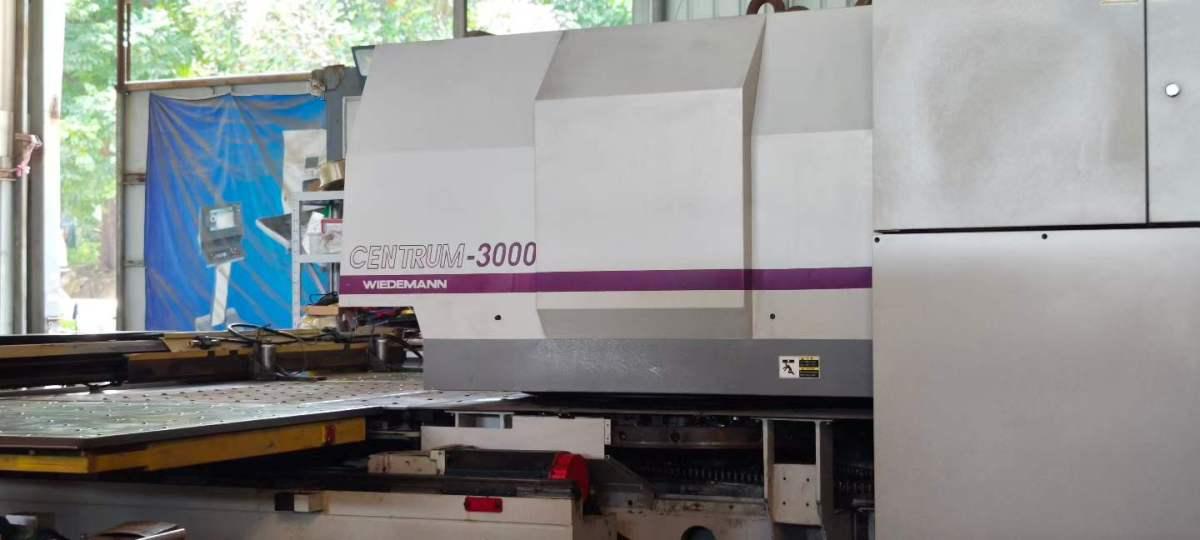

Murata Wiedemann CENTRUM-3000 Punch / press

CNC System: FANUC 16P
Punching capacity: 33 tons
Machining accuracy: ±0.1 mm
X/Y-axis travel: 1270 × 2032 mm
Y-axis repositioning: 4064 mm
Tool stations: 54
Maximum sheet thickness: 6 mm
Worktable travel speed: 64 m/min
Turret rotation speed: 30 rpm
Punching speed: 490 SPM continuous / 250 HPM high-speed
Stroke length: 32 mm
Worktable type: Standard ball-type worktable
