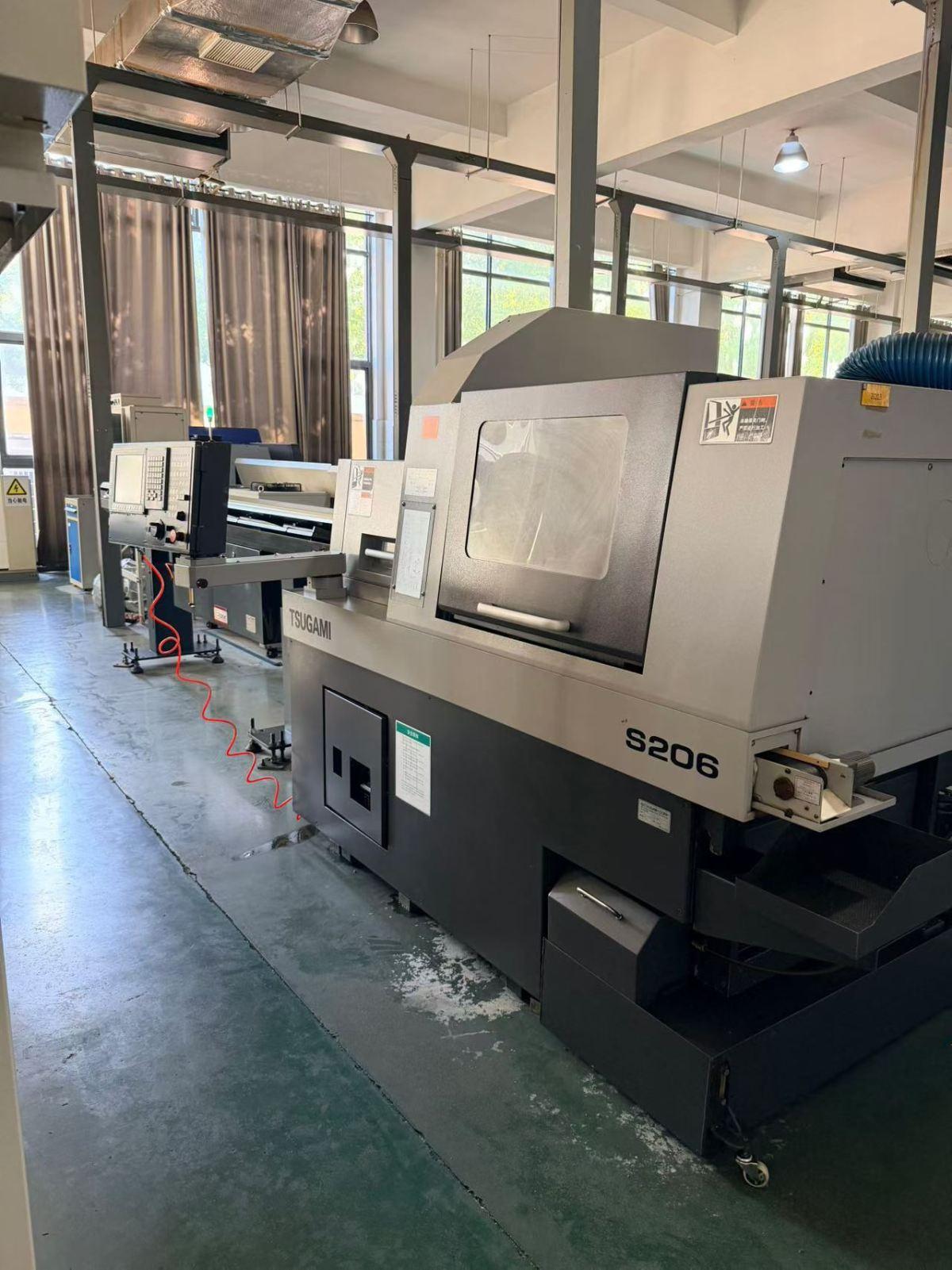

Tsugami S206 Automatic lathe

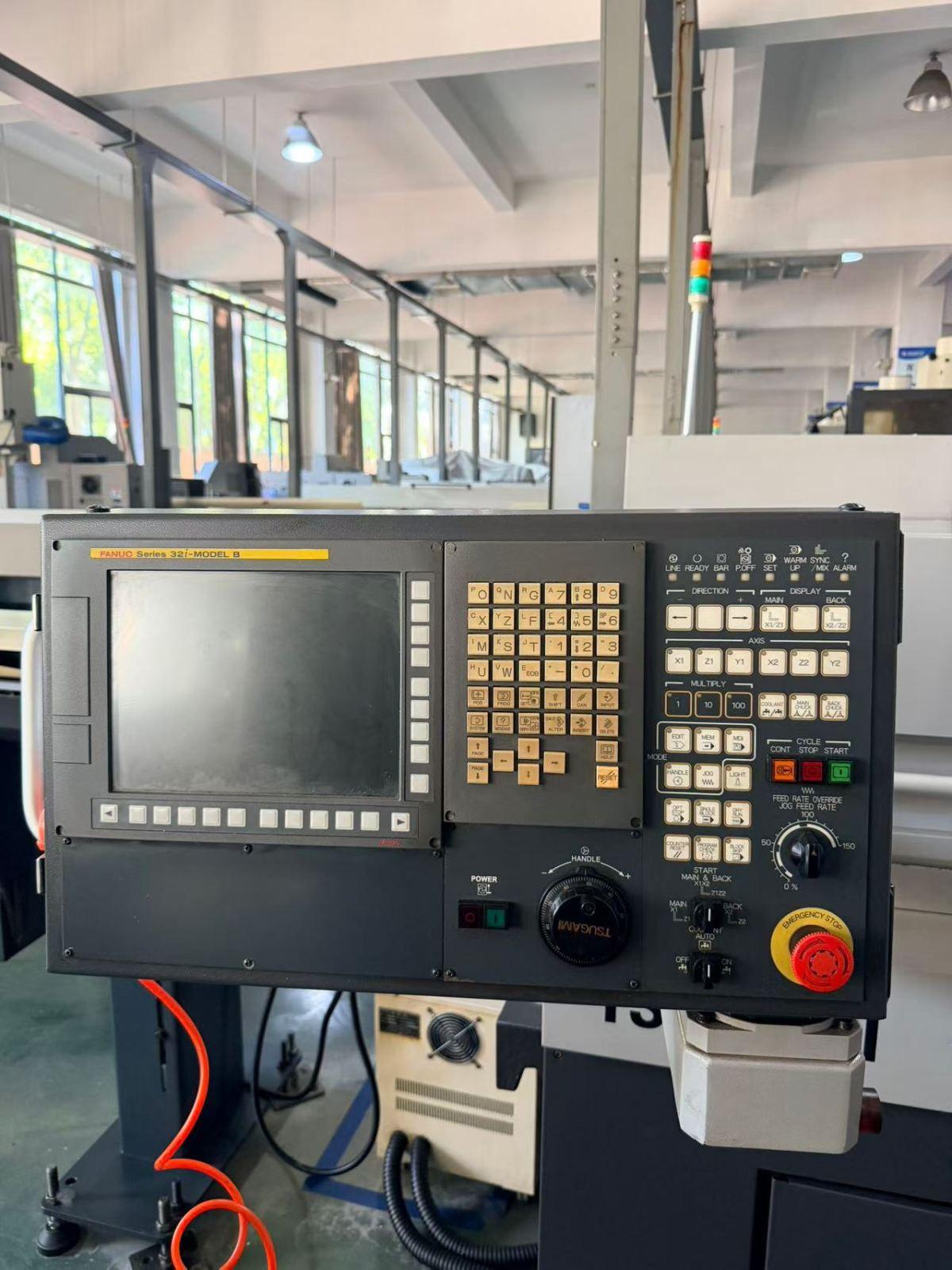

CNC System: FANUC
Spindle Speed: 10,000 rpm
Maximum Machining Diameter: Ø20 mm
Maximum Machining Length: 250 mm
Maximum Machining Length with Clamping Unit: 210 mm
Maximum Bar Machining Diameter: Ø20 mm
Maximum Number of Tools: 25
Main Spindle Machining Capacity:
Maximum Main Spindle Drilling Diameter: Ø10 mm
Maximum Main Spindle Tapping Capacity: M8
Sub Spindle Machining Capacity:
Maximum Sub Spindle Chucking Diameter: Ø20 mm
Maximum Sub Spindle Drilling Diameter: Ø8 mm
Maximum Sub Spindle Tapping Capacity: M6
Lateral Machining Capacity:
Maximum Side Drilling Diameter: Ø7 mm (ER11) / Ø10 mm (ER16)
Maximum Side Tapping Capacity: M5 × 0.8 (Optional)
Tool Spindle Machining Capacity:
Maximum Grooving Tool Diameter: Ø30 mm
Maximum Tool Spindle Drilling Diameter: Ø8 mm
Maximum Backside Tapping Capacity: M5
Configuration:
Conductive Guide Bush
Side Milling Live Tool
Back Spindle Driven Tool
High-pressure Oil Pump

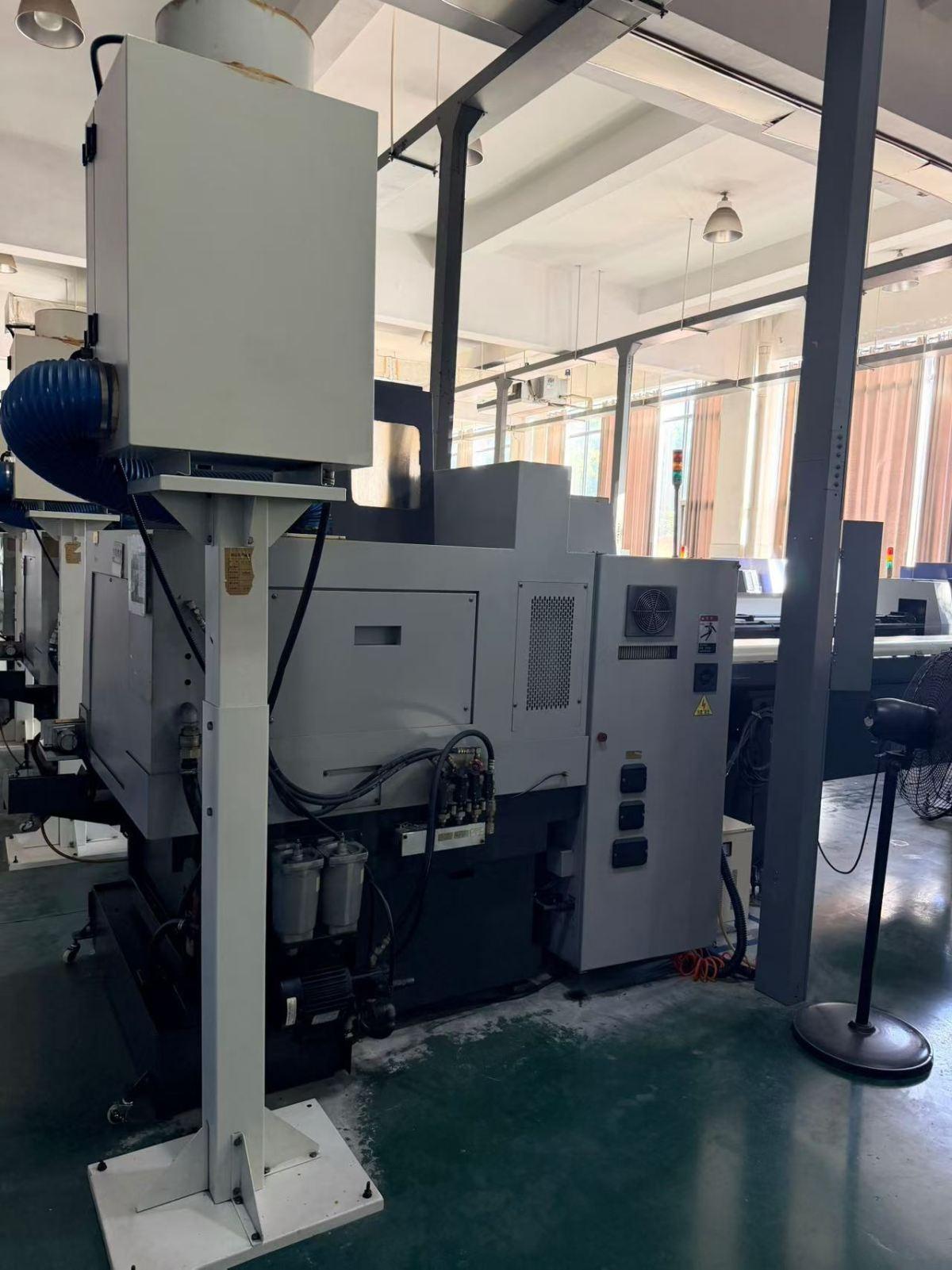

Oil Mist Collector

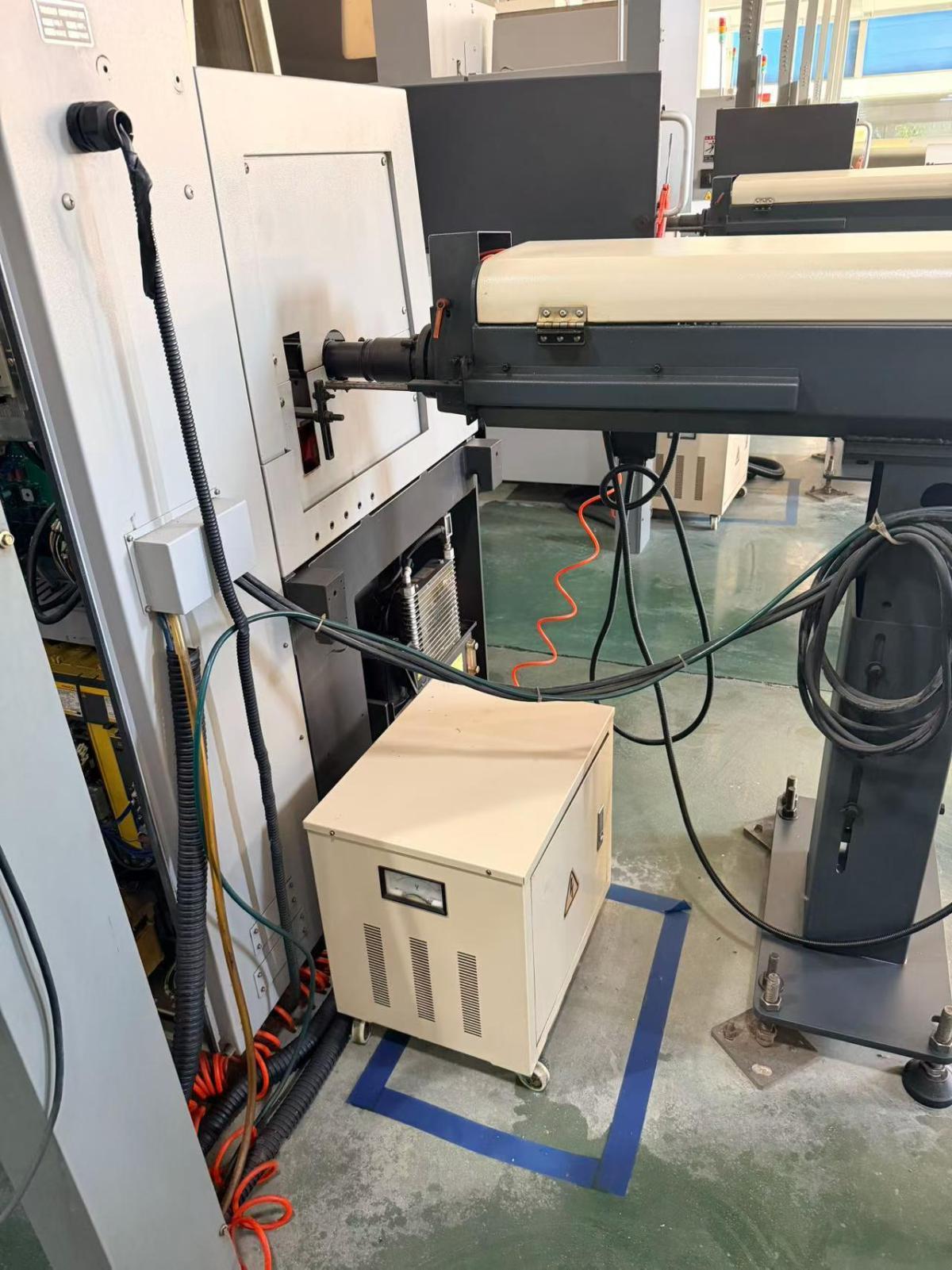

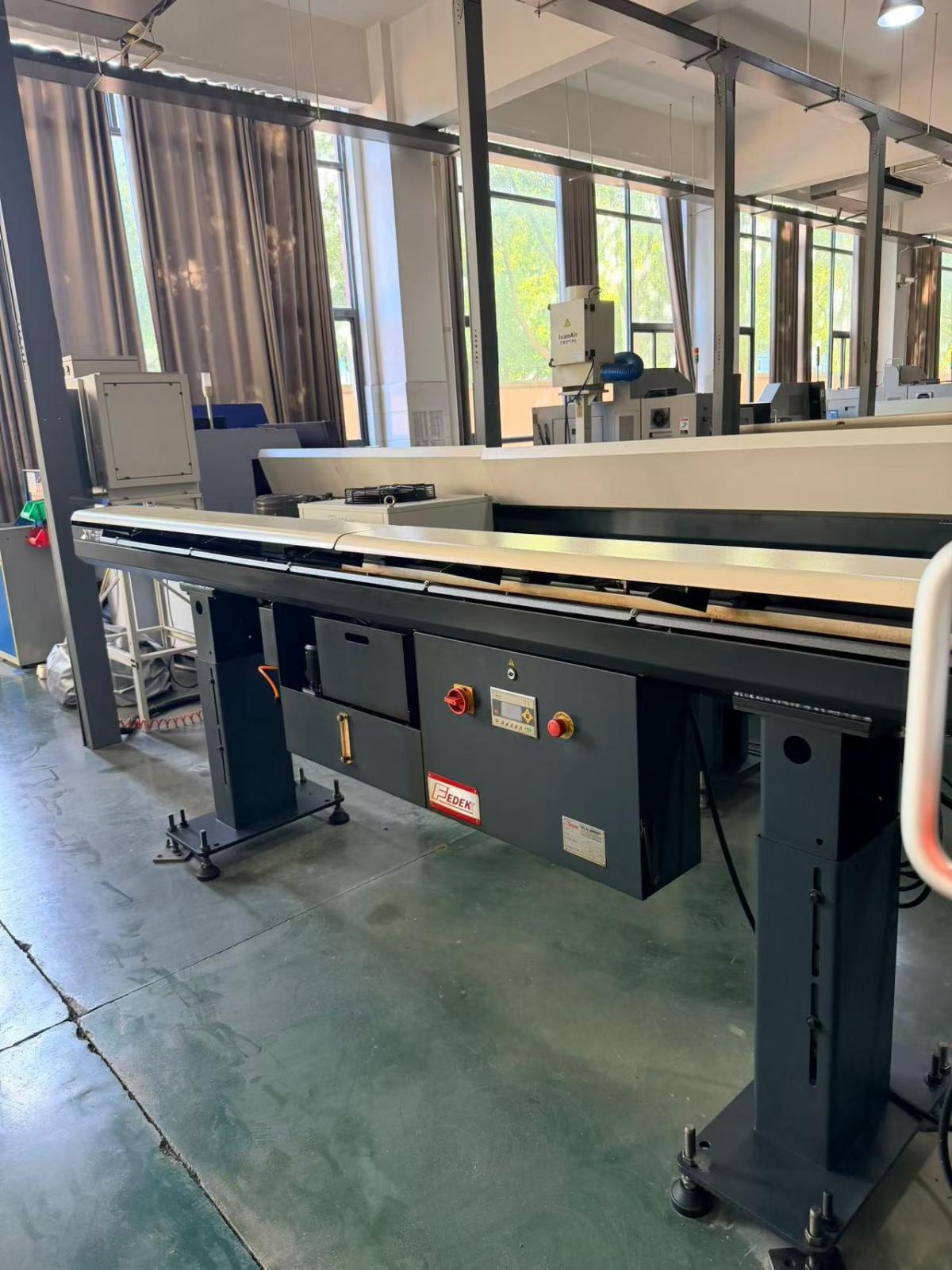

Through-type Bar Feeder
Transformer
