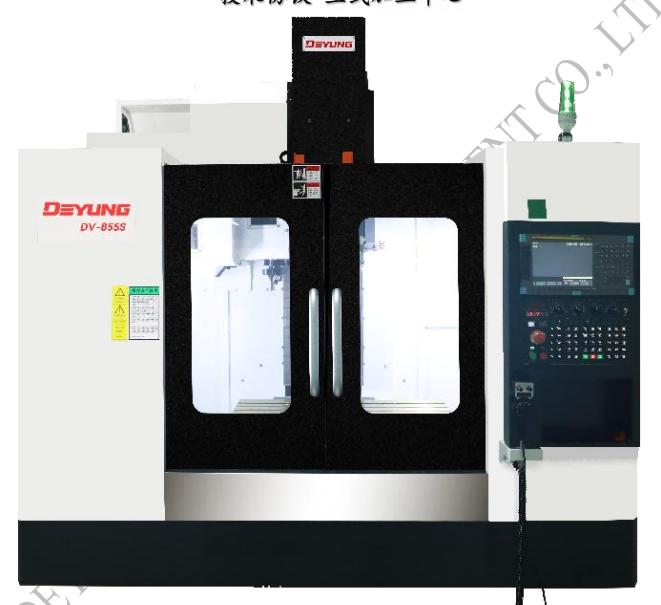

Deyung DV-855S Vertical Machining centre

three-axis travel
X-axis travel: 800 mm
Y-axis travel: 500 mm
Z-axis travel: 550mm
Working range: Distance from spindle nose to Worktable surface is 125 to 675 mm
Worktable size: 1000 × 500 mm
T-slot specification: 18mm (width) × 80mm (spacing) × 5 pieces (quantity)
Maximum load: 500 kg
drive and Motors (3.3 & 3.4)
spindle motor: Continuous /30 minutes rated power of 7.5/11 kW (approximately 10/15 HP)
Spindle speed: 10 to 12,000 rpm
spindle taper: BT 40
Motor configuration
X-axis motor
β iS 12/3000 (1.8 kW)
Y-axis motor
β iS 12/3000 (1.8 kW)
Z-axis motor
β iS 22B/3000 (3.0 kW)
Ball screw rod
X-axis screw rod: Ø40 * 16(C3) (guideway model: MSR35LS-2*2)
Y-axis screw rod: Ø40 * 16(C3) (guideway model: MSR35LE-2*2)
Z-axis screw rod: Ø40 * 16(C3) (guideway model: MSR35LS-2*3)
Feed rate (3.5
Rapid Positioning speed (Rapid Traverse) :
X, Y axis: 48 m/min
Z-axis: 48 m/min
Cutting Feedrate: 1 to 10,000 mm/min
tools magazine (3.6
magazine capacity: 24 pieces
Tool holder specification: BT 40
Pull nail specification: MAS-P40
Tool specification restrictions:
Maximum Tool diameter (full tool/adjacent) : ø 75mm / ø 150mm
Maximum Tool length: 300mm
Maximum Tool weight: 8 kg
precision and CNC System (3.7 & 3.8)
Repeatability Positioning precision: ± 0.005mm
Positioning precision: ± 0.010mm
CNC System: FANUC 0iMF
Electricity demand: 25 KVA
Power supply specification: AC 380 ± 10%, 3-phase, 60/50 Hz
Other requirements
air pressure requirement: above 6 kg/cm²
Cooling water Water tank capacity: 220 liters
Machine Footage and Weight (3.9
Machine length: 2465mm
Machine width: 2826mm
Machine height: 2800 mm
Net weight of machine: 5200 kg
Gross weight of machine: 6200 kg
