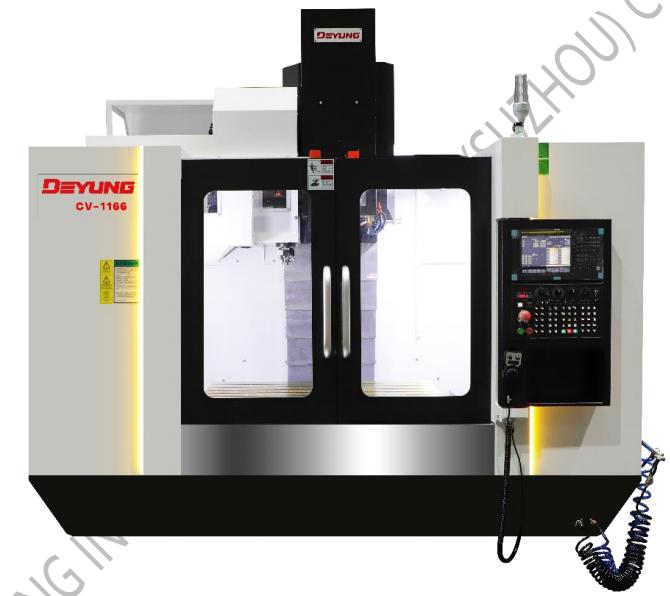

Deyung CV1166 Vertical Machining centre

three-axis travel
X-axis travel: 1100mm
Y-axis travel: 620 mm
Z-axis travel: 600 mm
Working range: Distance from spindle nose to Worktable surface is 150 to 750 mm
spindle motor: Continuous / 30 minutes rated power is 11/15 kW (approximately 15/20 HP)
drive mode: strap drive
Spindle speed: 10 to 18,000 rpm
spindle taper: BT 40
Worktable (3.2
Worktable size: 1200 × 600 mm
T-slot specification: 18mm (width) × 100mm (spacing) × 5 pieces (quantity)
Maximum load: 900 kg
Axial drive (3.4
Motor configuration
X-axis motor
β iS 22/3000 (3.0 kW)
Y-axis motor
β iS 22/3000 (3.0 kW)
Z-axis motor
β iS 22B/3000 (3.0 kW)
Ball screw rod
X-axis screw rod: Ø4012 (model MSRS35LS-23 slide rail)
Y-axis screw rod: Ø4012 (model MSRS45LS-22 slide rail)
Z-axis screw rod: Ø4012 (model MSRF45S-23 slide rail)
Feed rate (3.5
Rapid Positioning speed (Rapid Traverse) :
X, Y axes: 36 m/min
Z-axis: 36 m/min
Cutting Feedrate: 1 to 10,000 mm/min
tools magazine (3.6
tools magazine type: Robotic Arm type
magazine capacity: 30 pieces
Tool holder specification: BT 40
Pull nail specification: MAS-P40
Tool specification restrictions:
Maximum Tool diameter (full tool/adjacent) : ø 65mm / ø 130mm
Maximum Tool length: 300mm
Maximum Tool weight: 8 kg
precision (3.7
Repeatability Positioning precision: 0.006mm
Positioning precision: 0.012mm
Control CNC System and Electricity (3.8)
CNC System: FANUC 0iMF
Electricity demand: 25 KVA
Power supply specification: AC 380 ± 10%, 3-phase, 60Hz (50Hz)
Other requirements
air pressure requirement: above 6 kg/cm²
Cooling water Water tank capacity: 270 liters
Machine Footage and Weight (3.9
Machine length: 2780mm
Machine width: 3240mm
Machine height: 2885mm
Net weight of machine: 6800 kg
Gross weight of machine: 7800 kg
