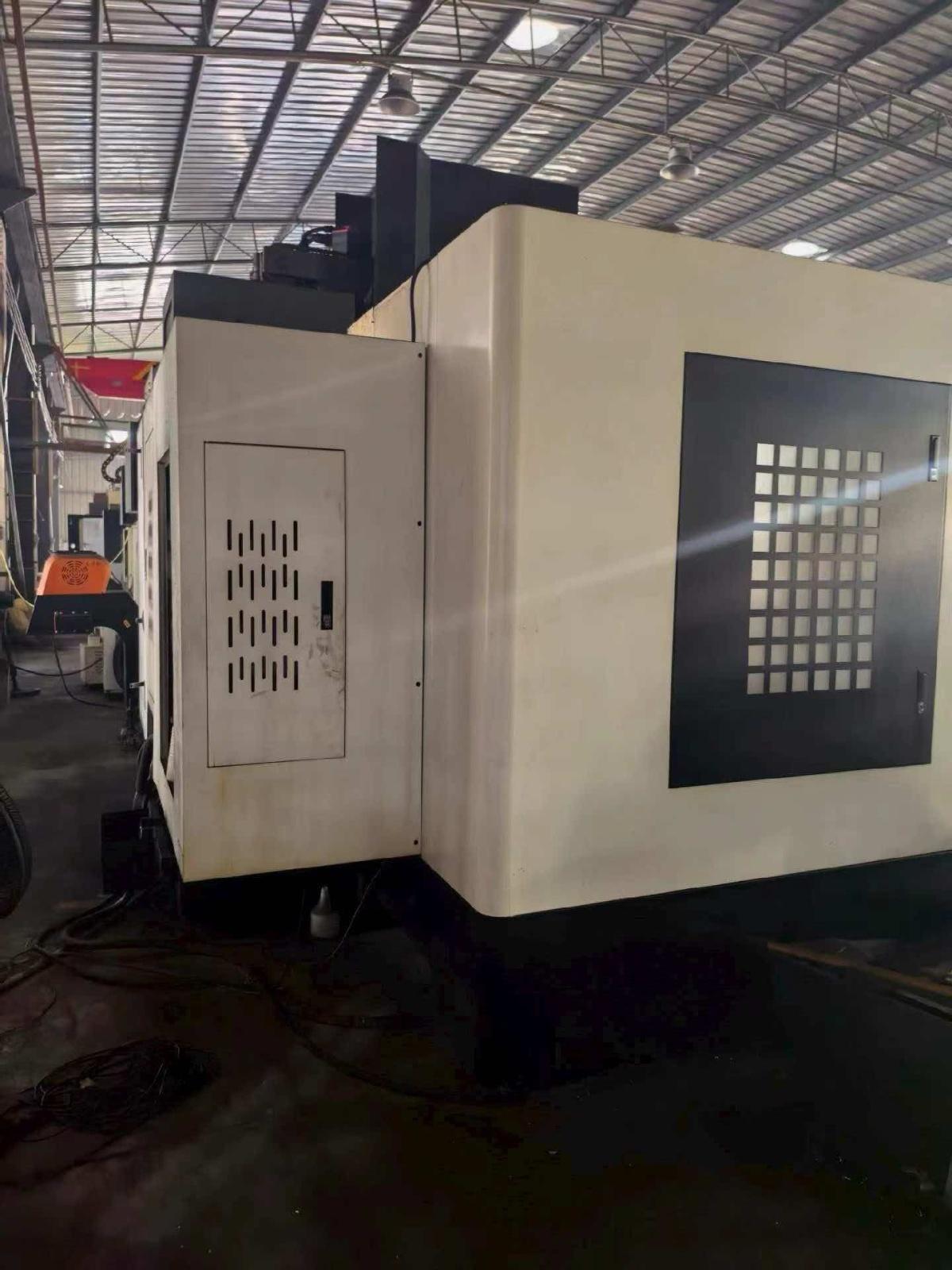

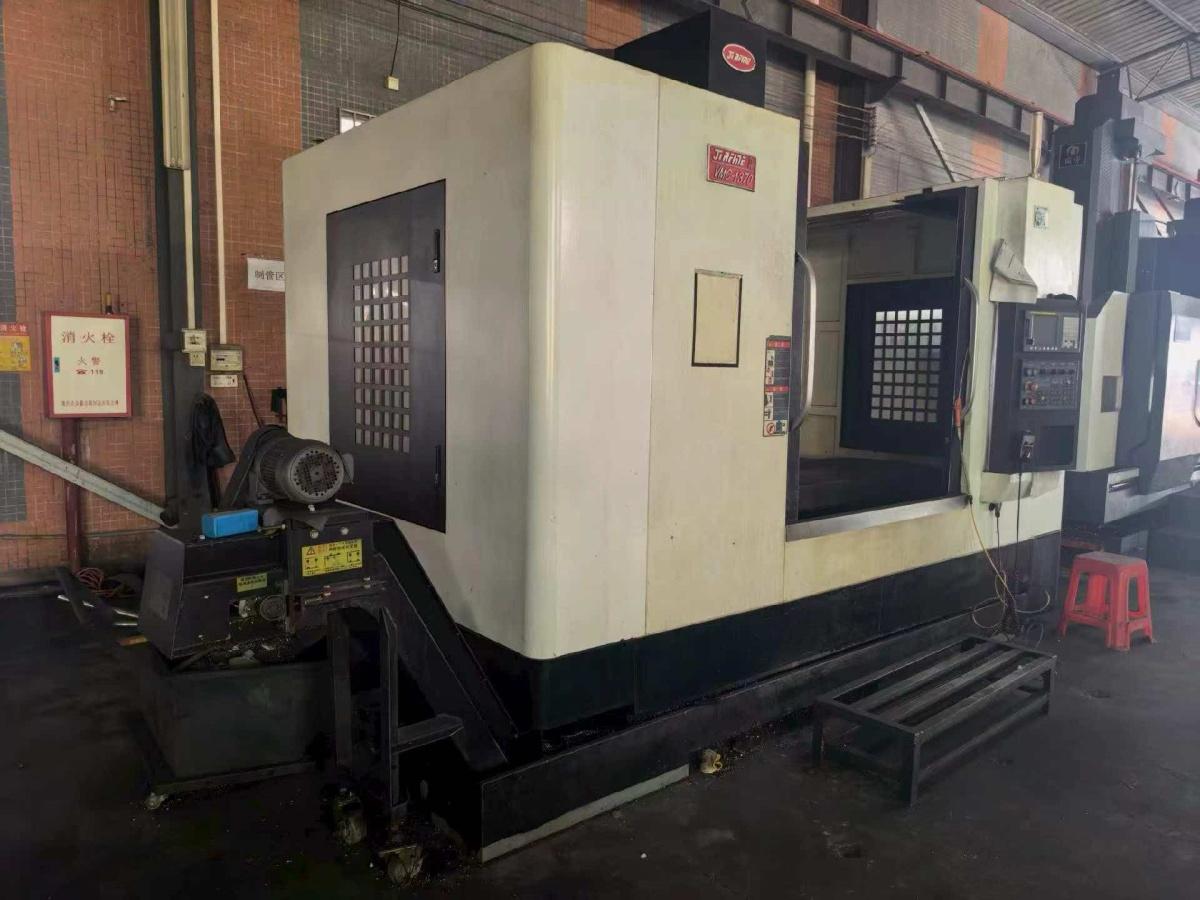

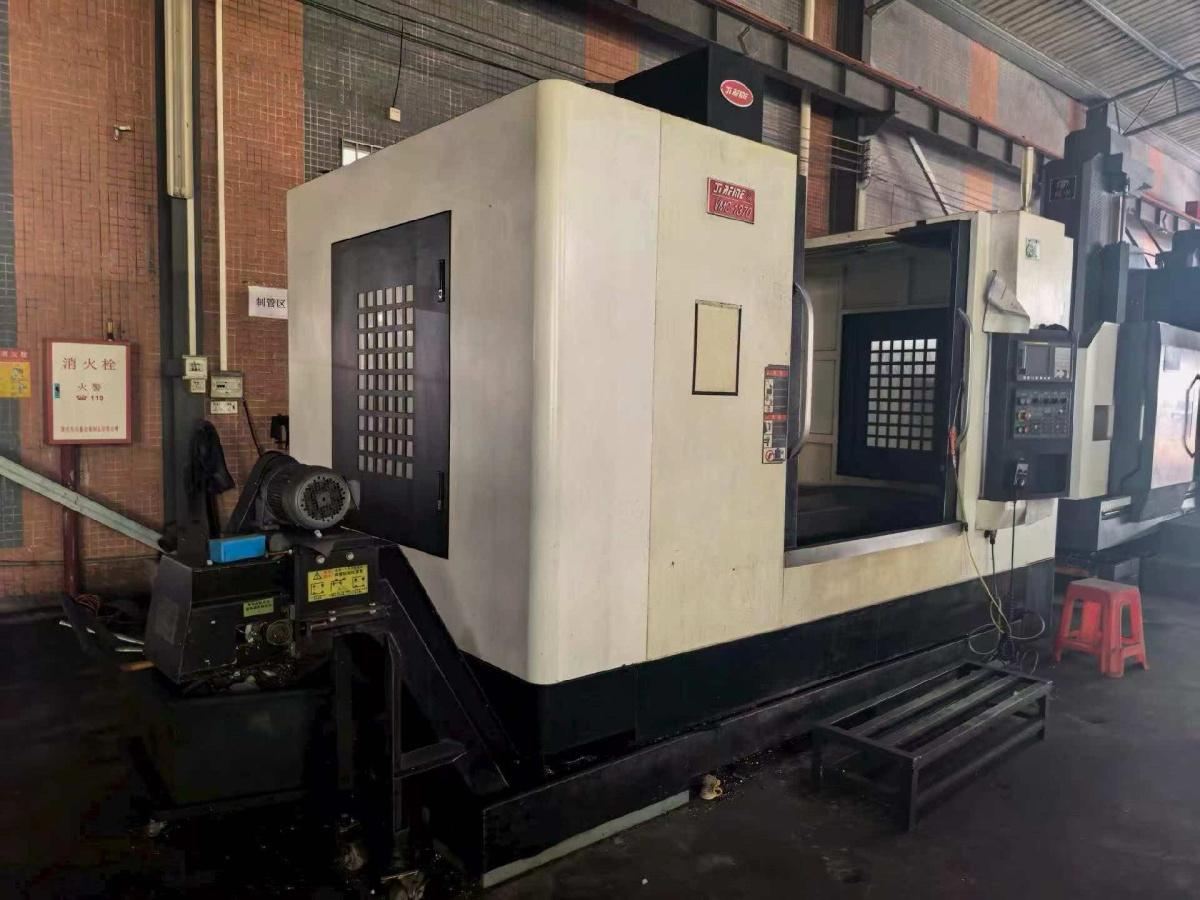

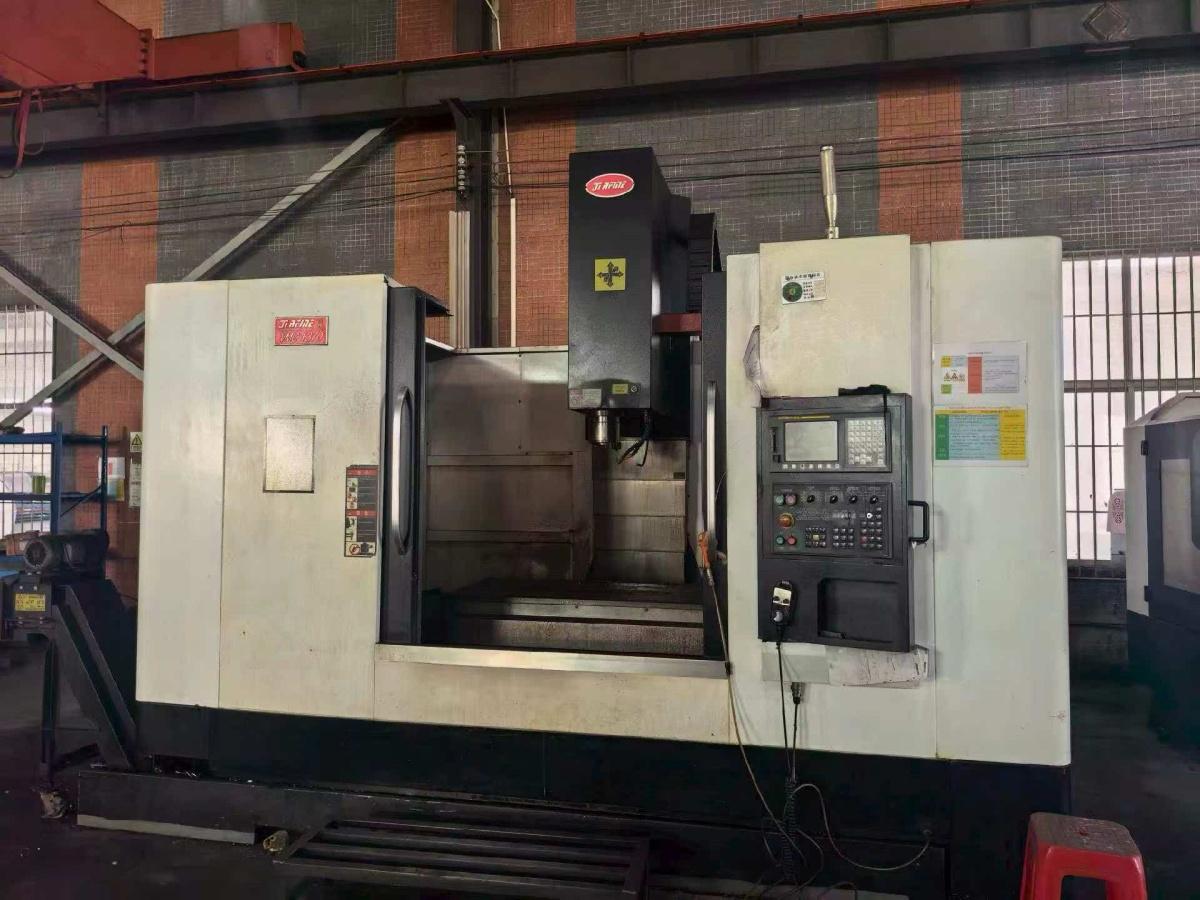

JIRFINE VMC-1370 Machining centre

CNC System: Mitsubishi M70

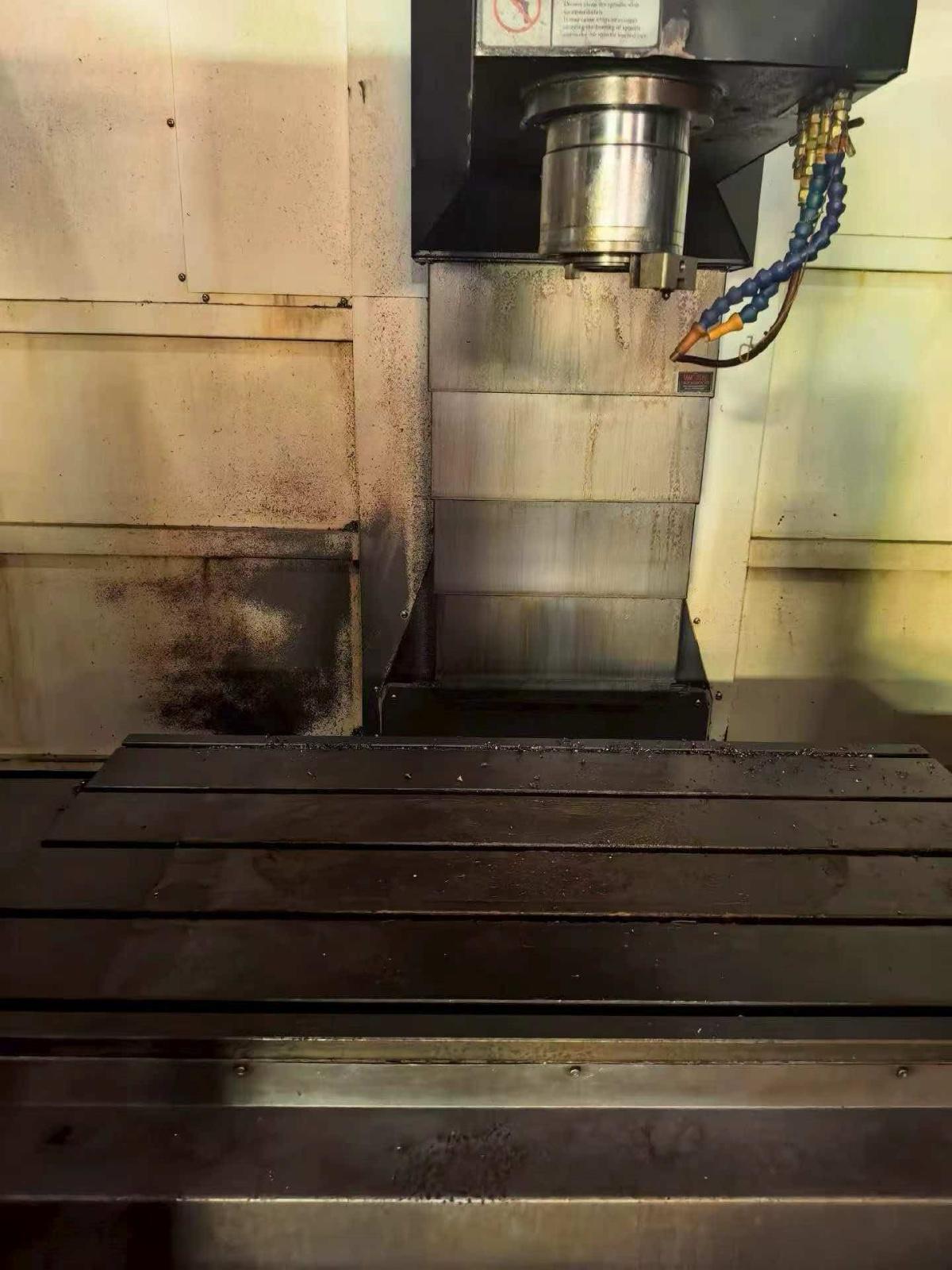

Worktable size: 1400*700mm
T-row slot: 18*5*100mm
Three-axis travel: 1300*700*650mm
Three axes rapid speed: 16*16*16m/min
Three axes feed rate: 10,000 mm/min
Spindle speed: 6000rpm
Distance from spindle nose to Worktable: 230-880mm
Distance from the center of spindle to the column: 760mm
Tools magazine capacity: 24 tons
Spindle type: BT50
Three axes rigid guideways
