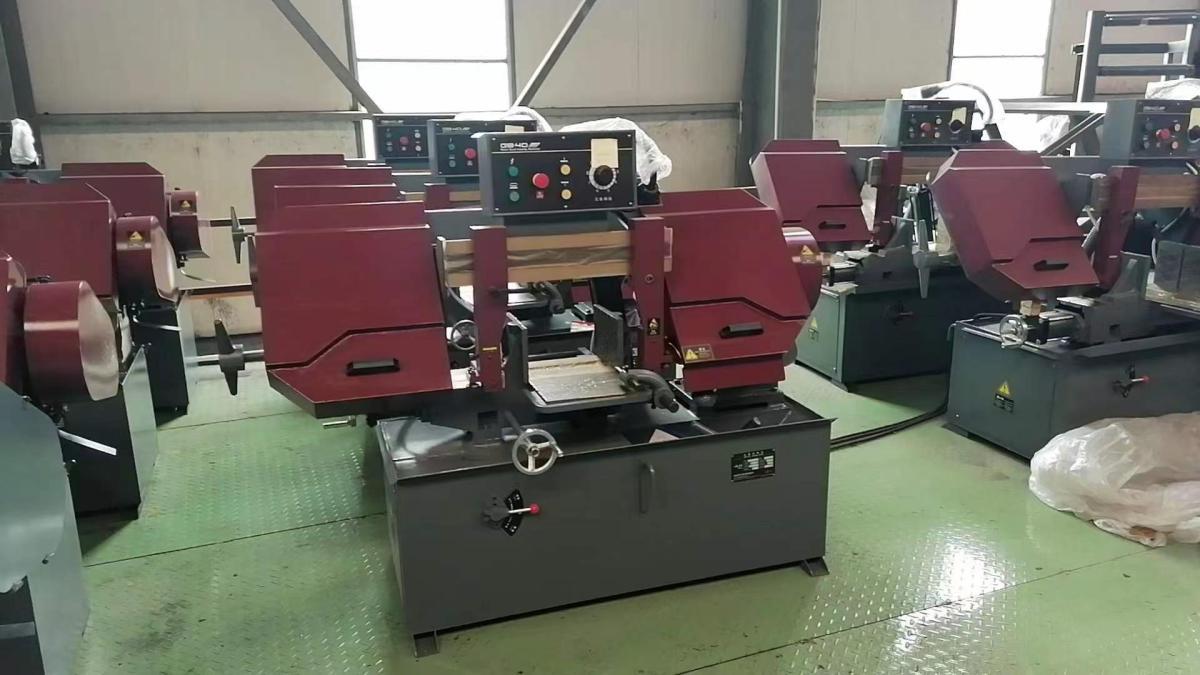

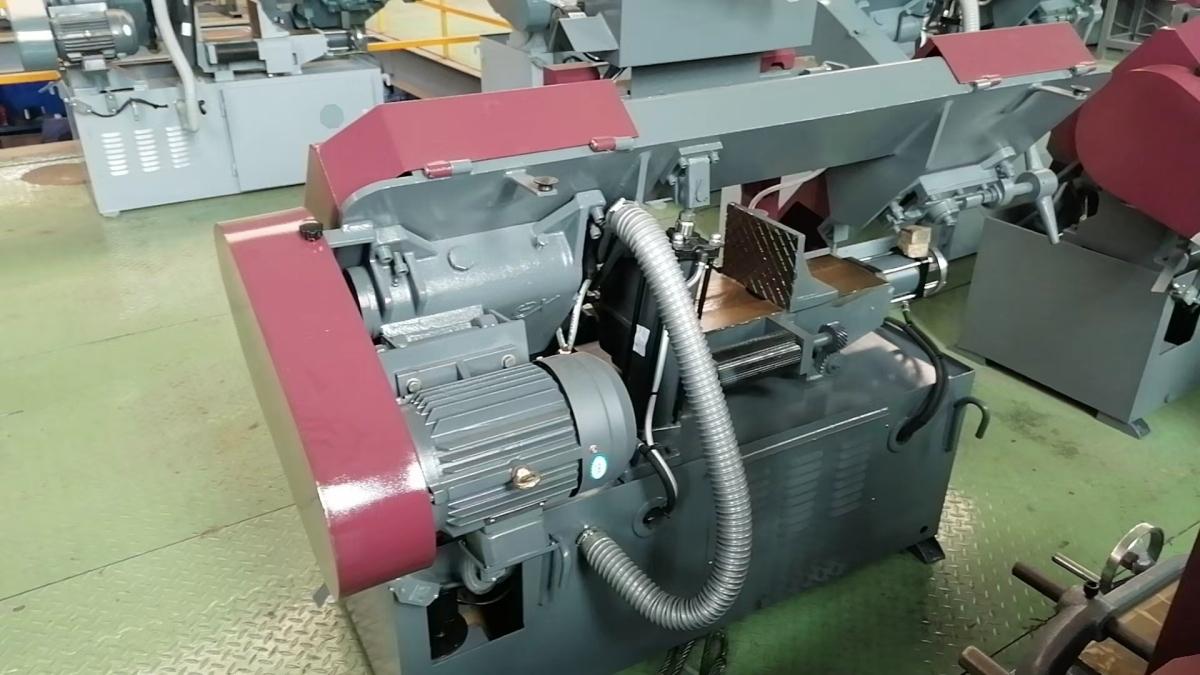

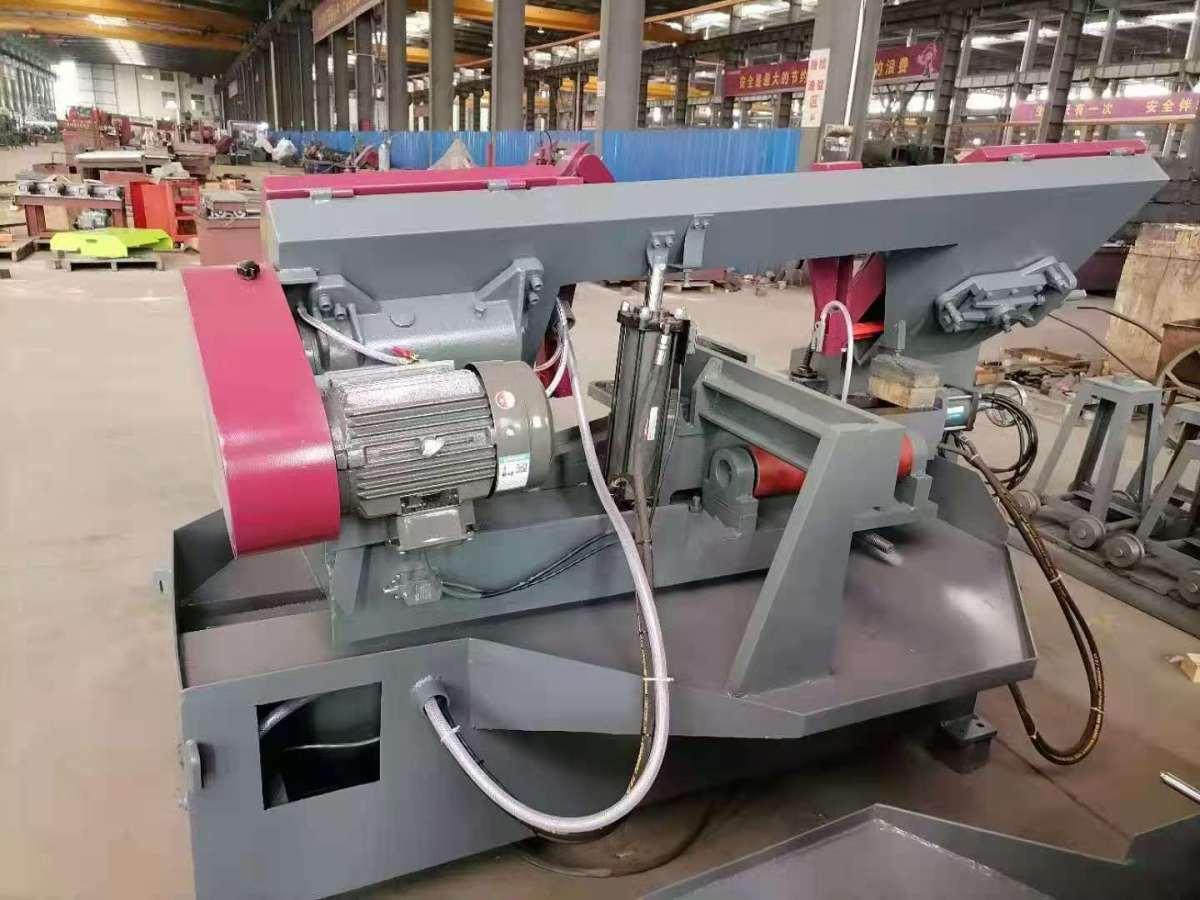

锯力煌 GB4028X40XD Sawing machine

0° Maximum sawing range (mm) ●280 / ■400×220 height
45° Maximum sawing range (mm) ●250 / ■230×220 height
Maximum sawing range of 60° (mm) ●150 / ■160×150 height
Rotation Angle: 0-60°
Band saw blade specifications (length × width × thickness) : 4115×34× 1.1mm
Sawing speed (m/min) : 20/40/60/80
The feed rate is hydraulic infinitely adjusWorktable
The main electromotor has a power of 3kW
The hydraulic electromotor has a power of 0.55kW
The main drive mode is worm gear drive
The clamping method is hydraulic clamping
The saw band is tensioned manually
The method for cleaning sawdust is wire brush
The feeding method is manual feeding
Rotation mode: Manual rotation
The height of Worktable (mm) is approximately 700
The external Footage of the main unit (mm) are approximately 2300×1450×1300
