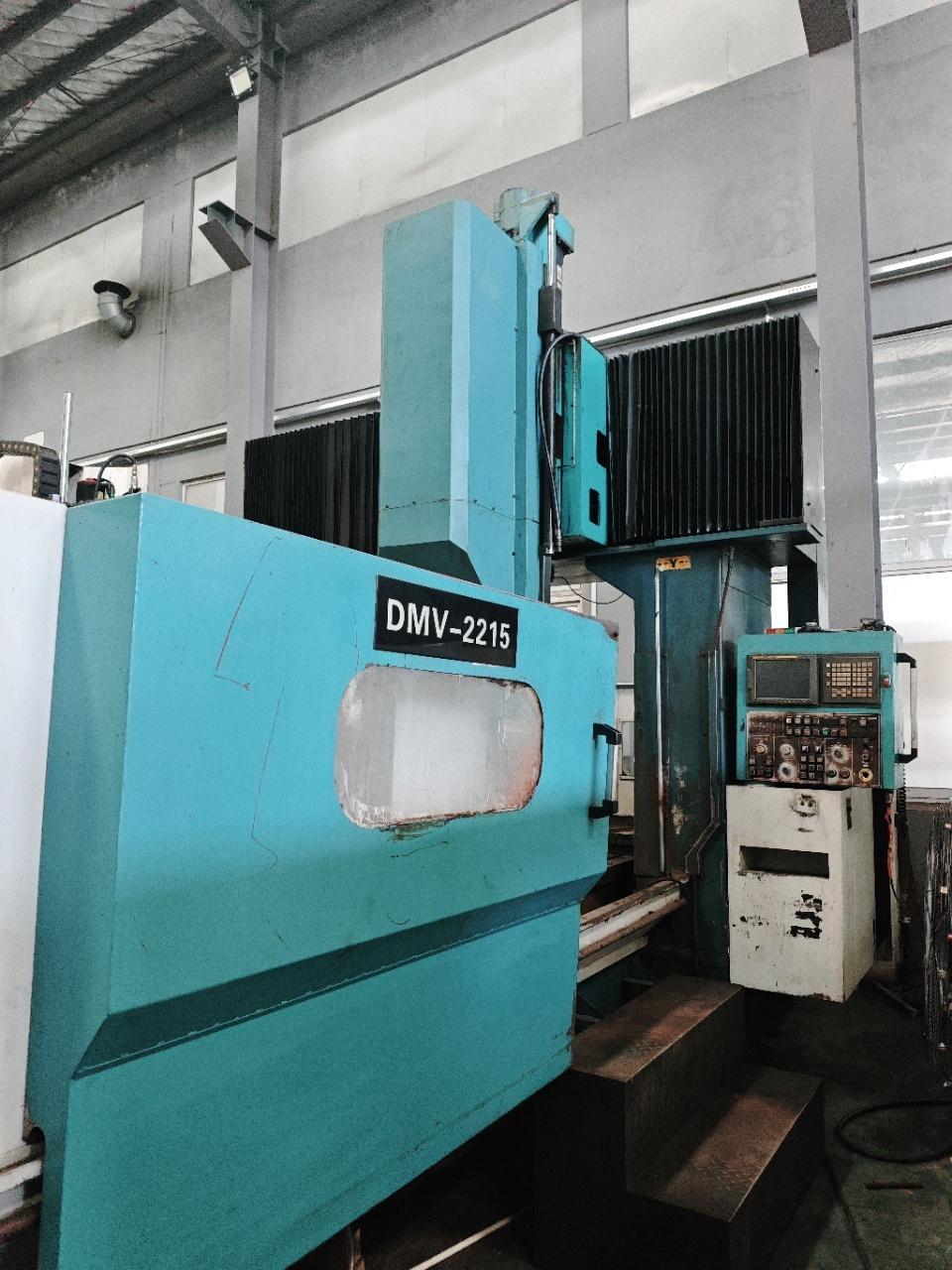

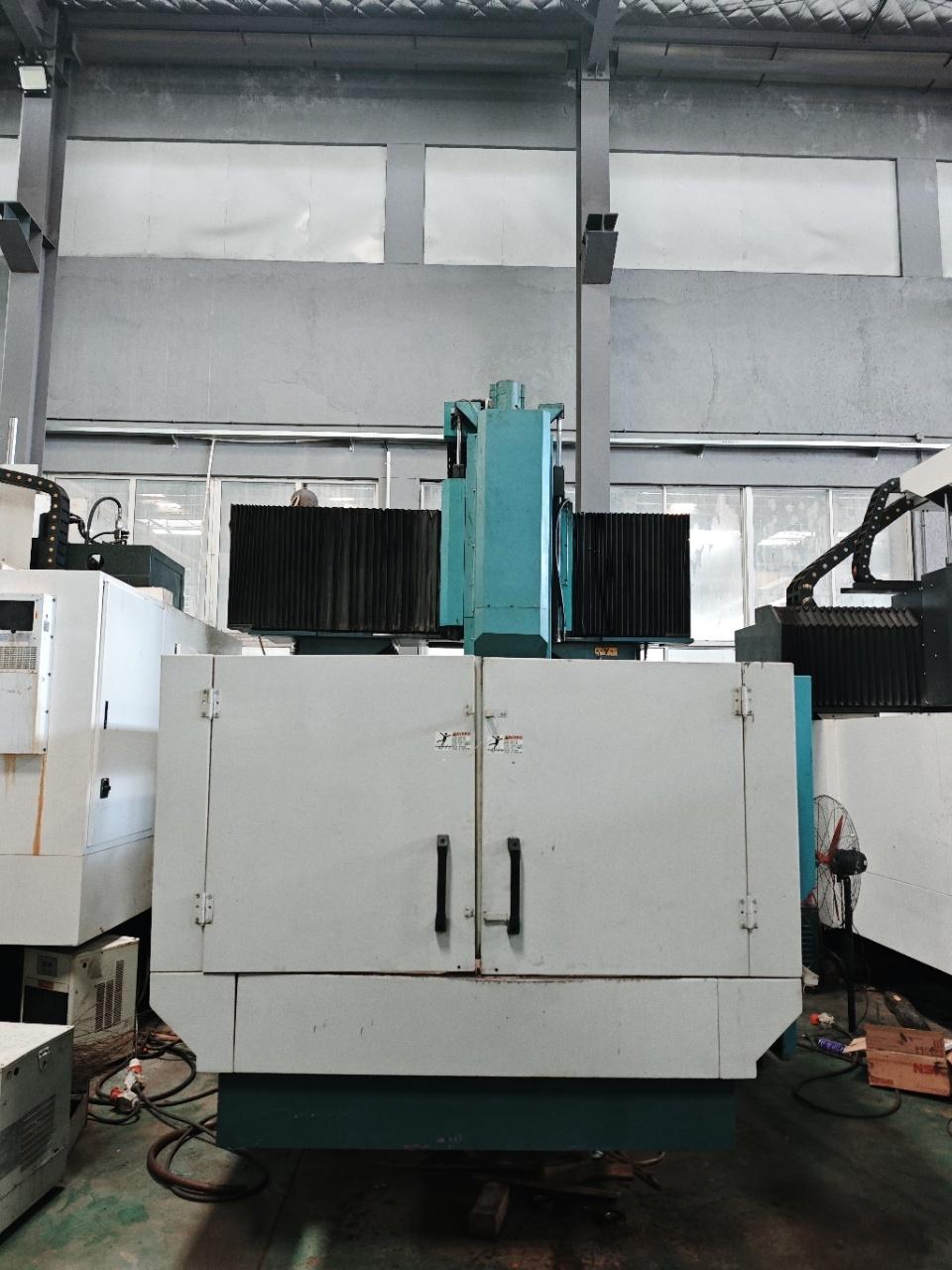

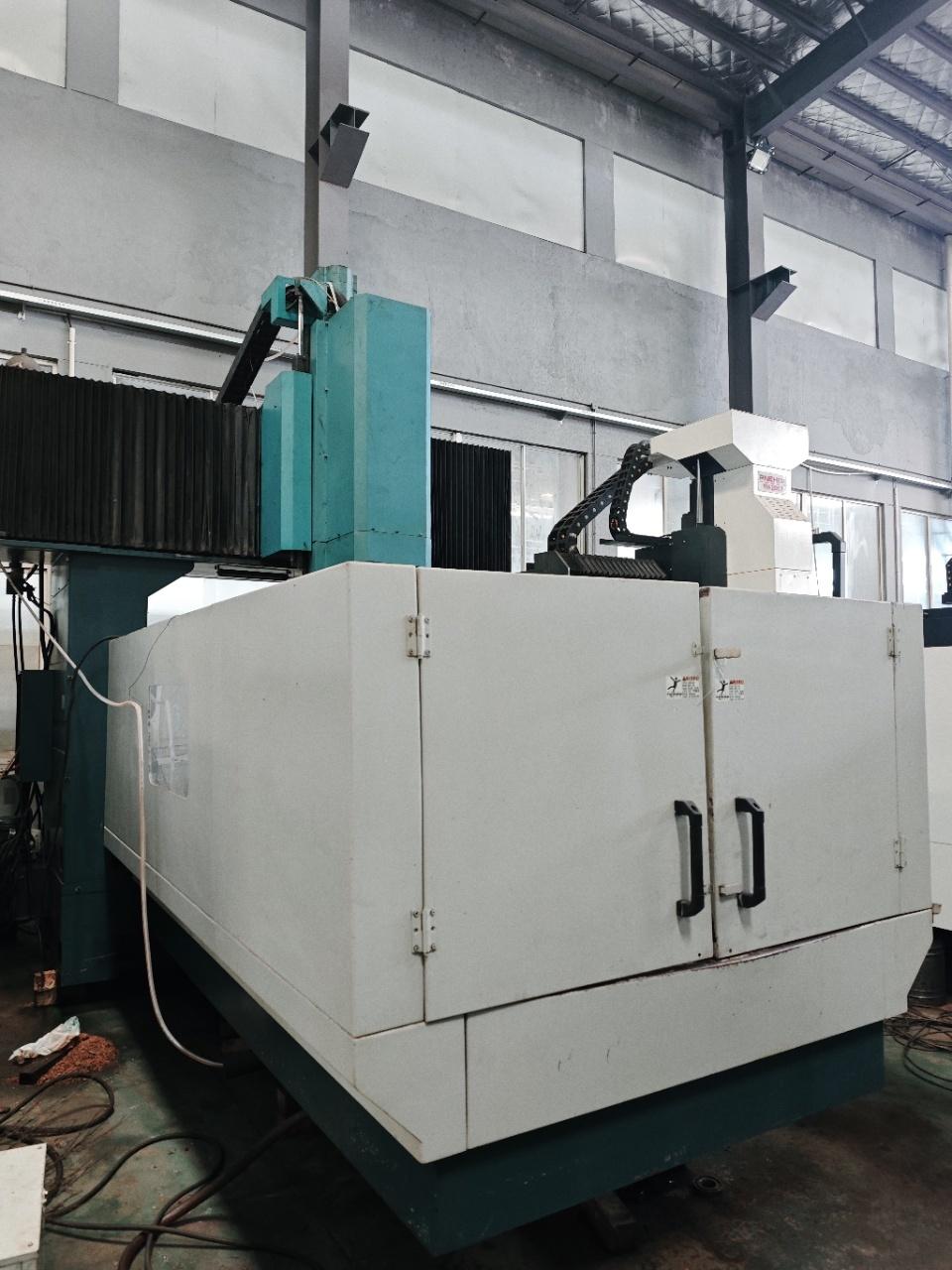

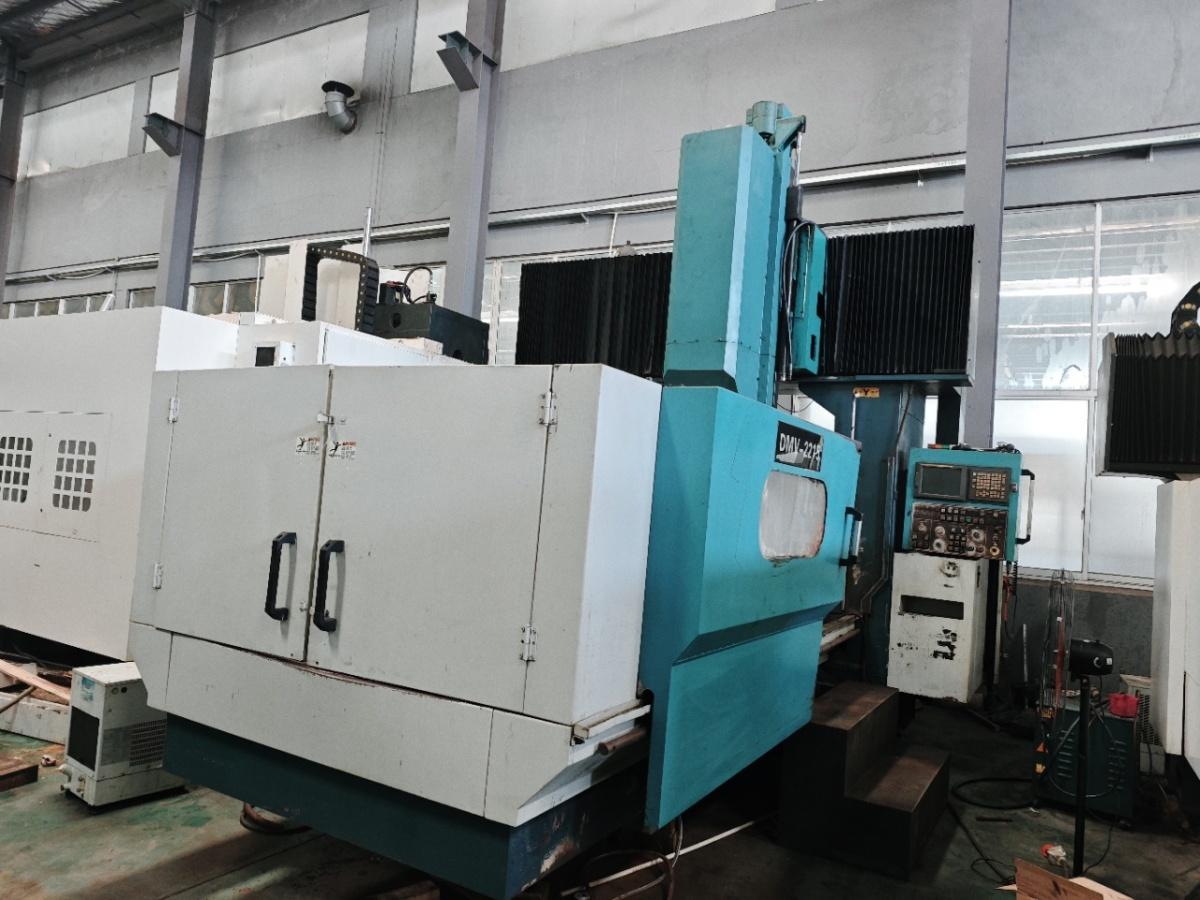

DAHLIH DMV-2215 CNC gantry milling machine

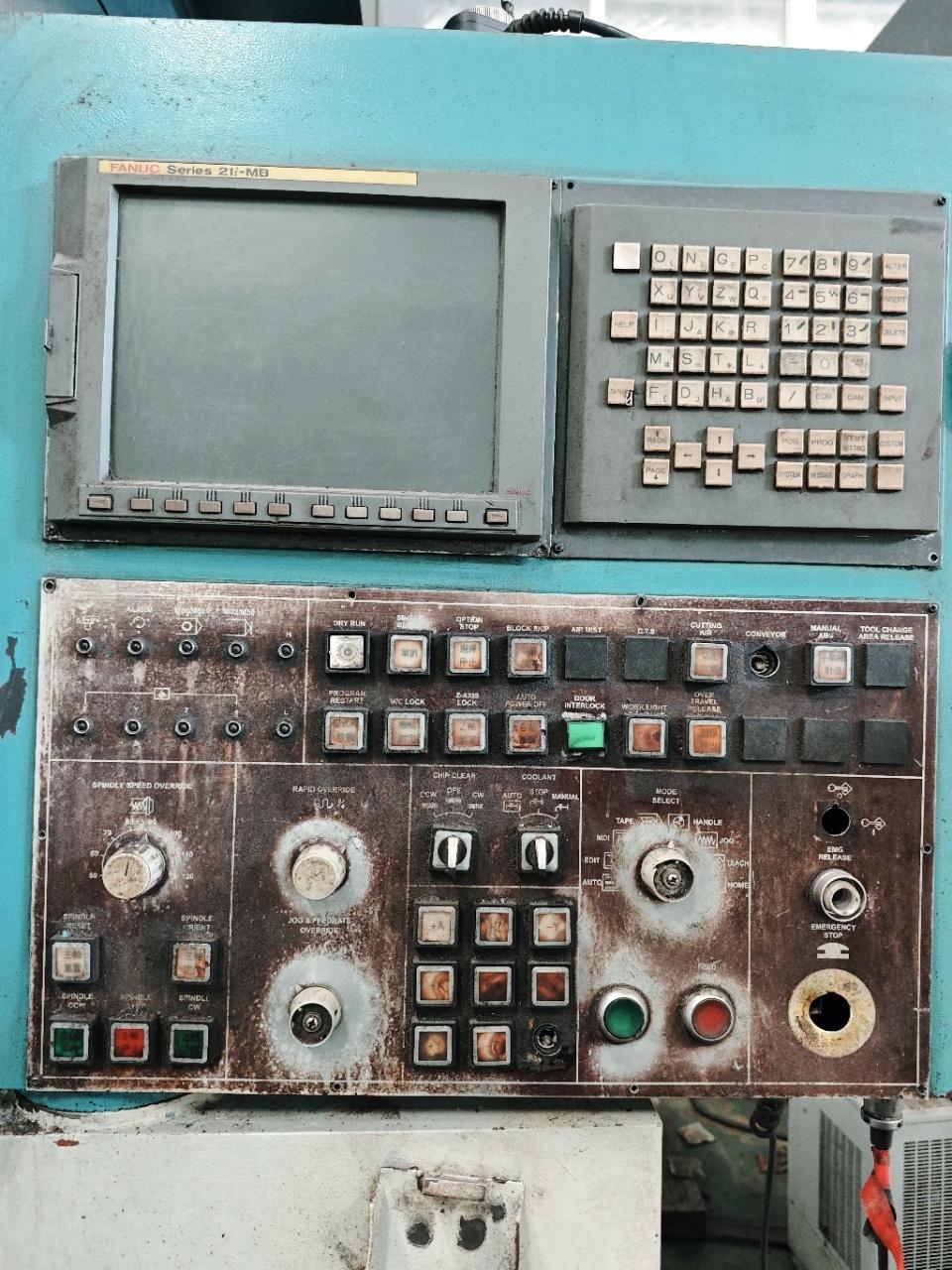

CNC System: FANUC MB-21i
Three-axis travel: 2200 × 1500 × 800 mm

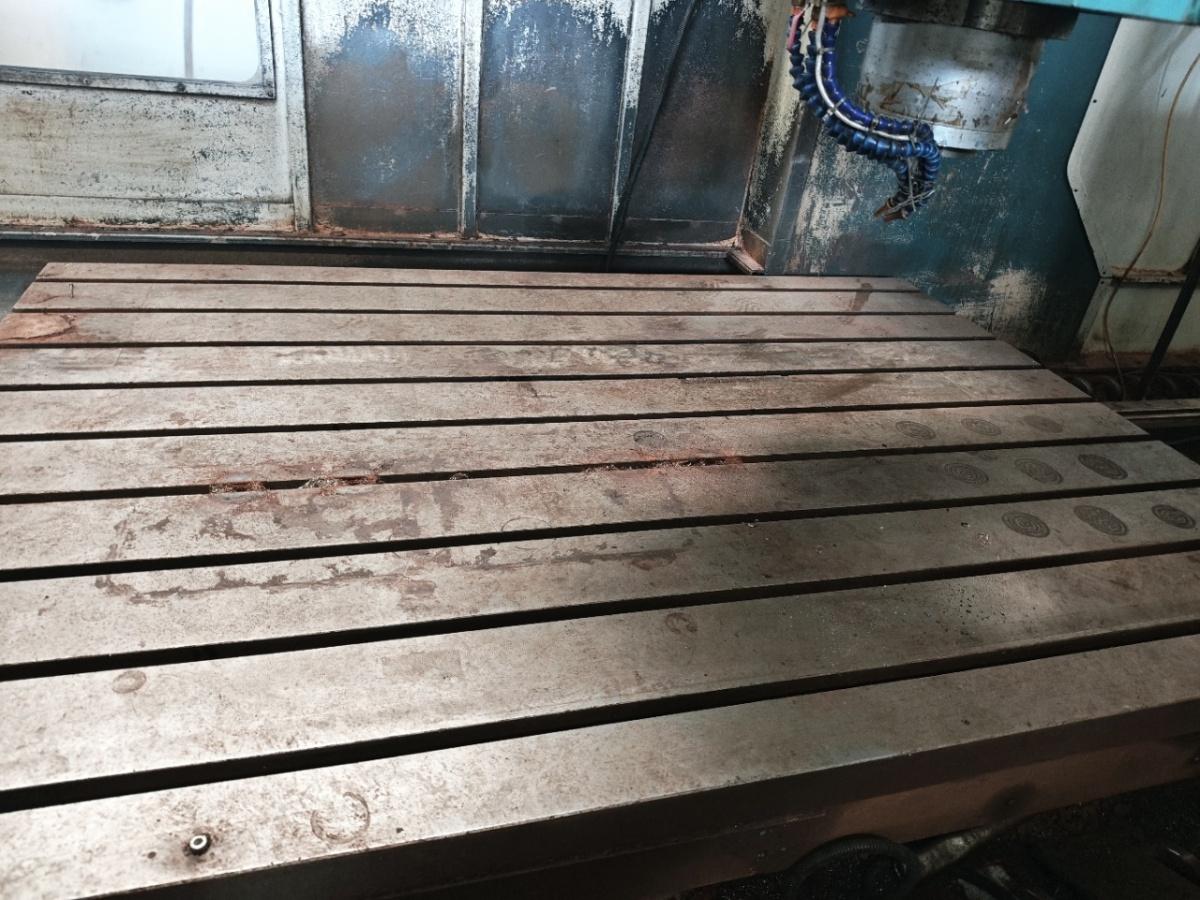

Worktable size: 2000 × 1400 mm
Gantry height: 1425 mm
Gantry width: 1620 mm
Guideway form: Two linear guideways and one box guideway
Spindle taper: BT50
Spindle speed: 6000 rpm
Distance from worktable to spindle nose: 1250 mm
Configuration

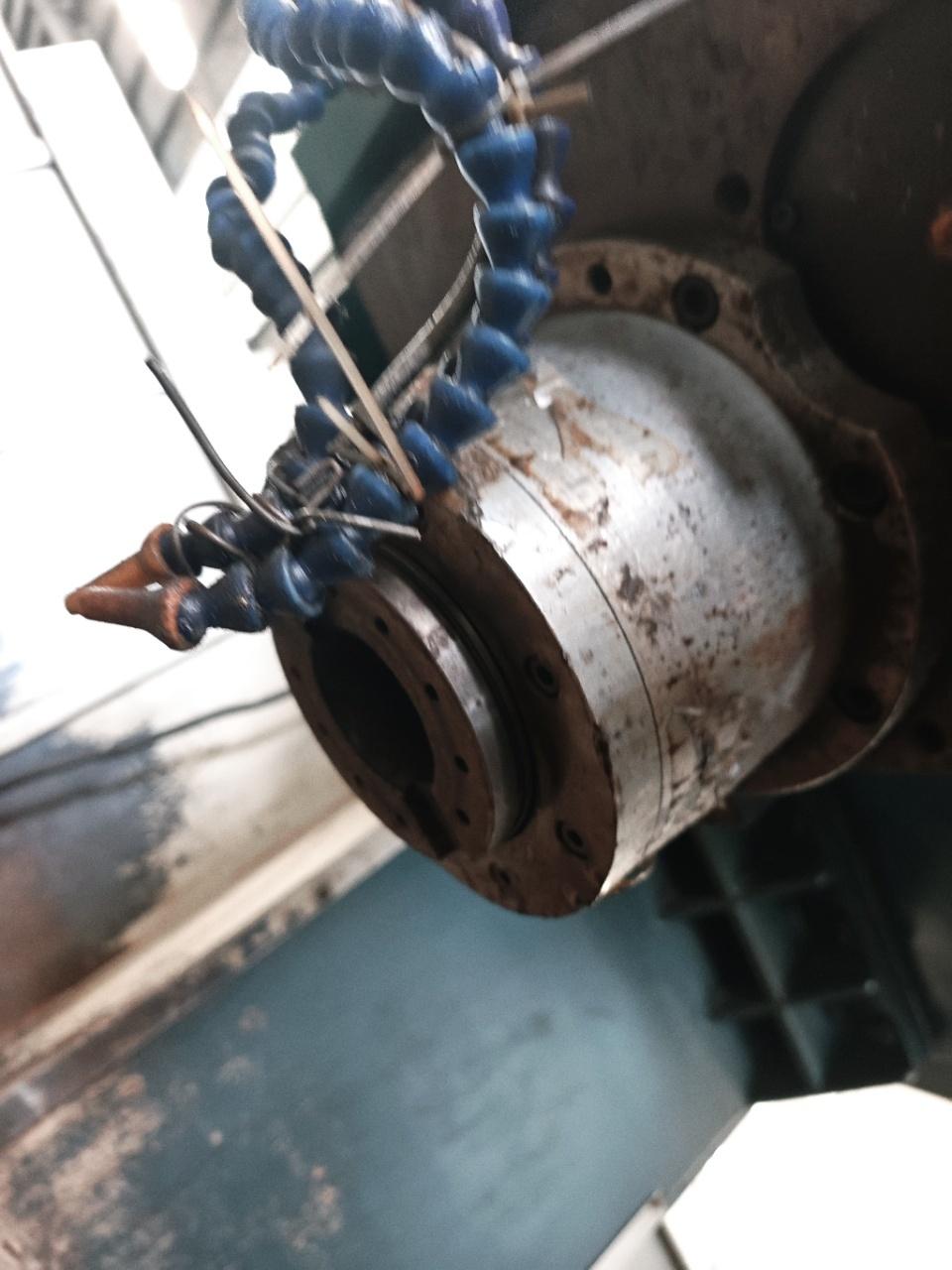

Gear-driven spindle
Spindle equipped with oil cooling
Hydraulic station
Built-in double-screw chip conveyor
