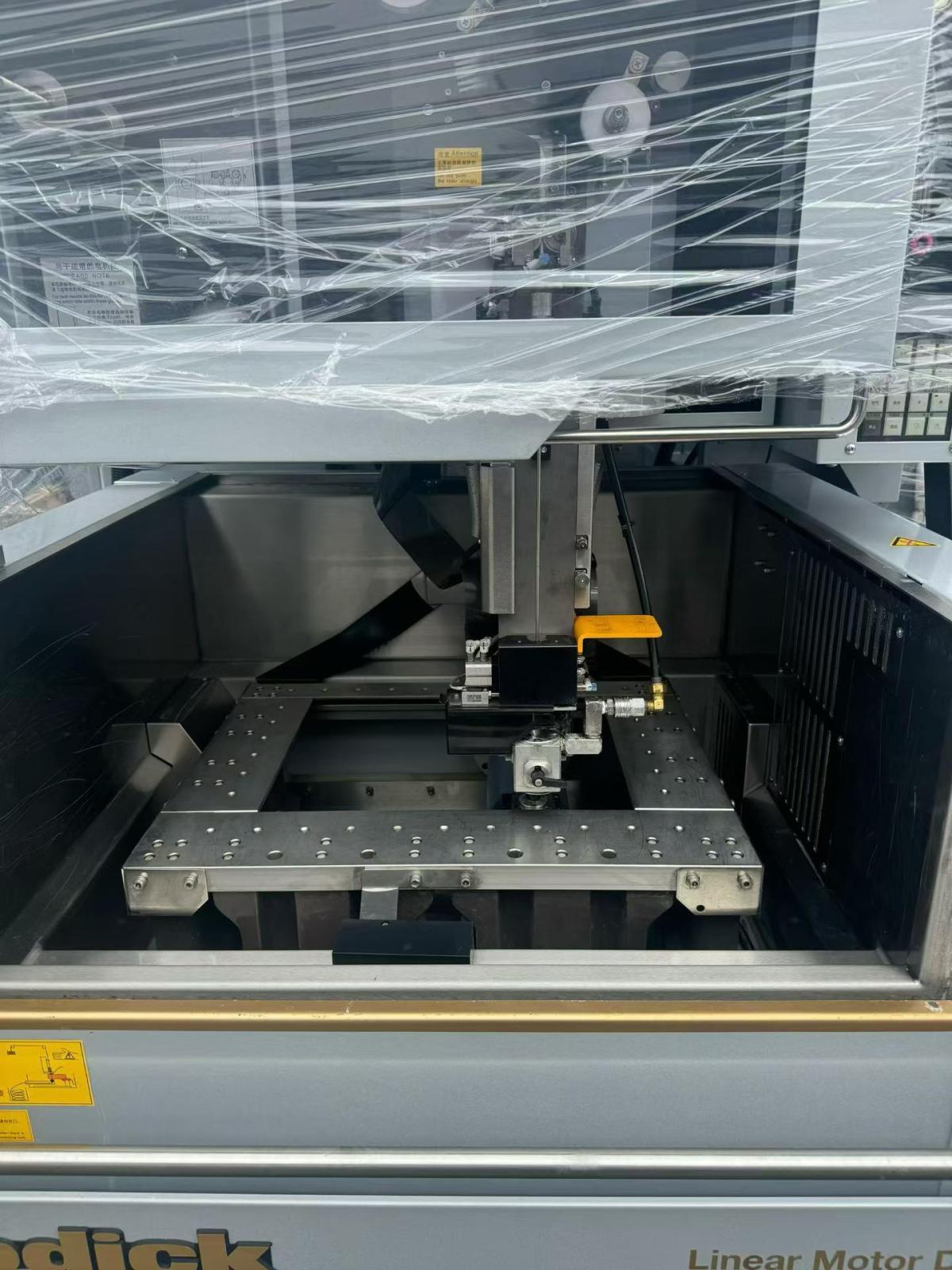

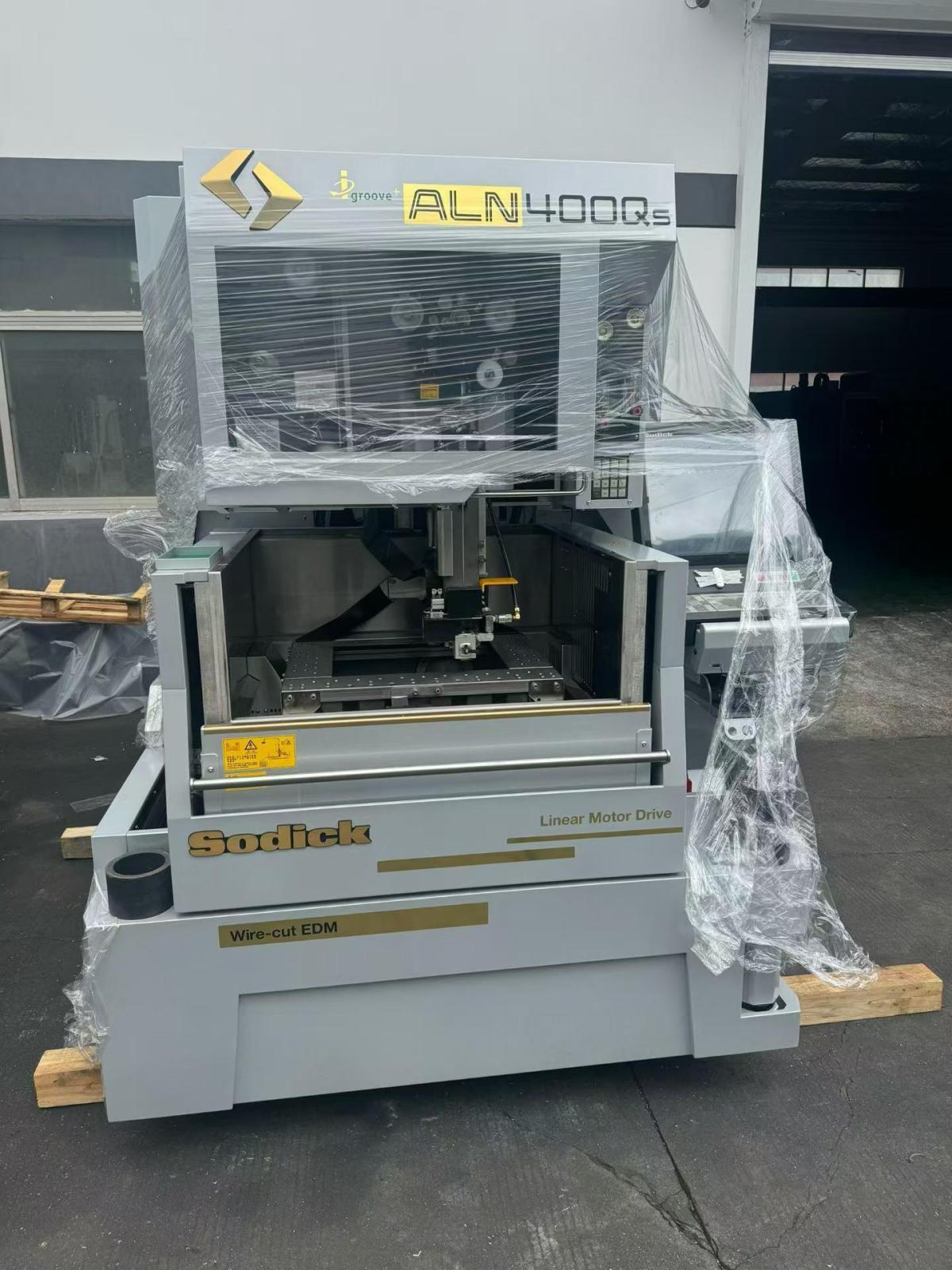

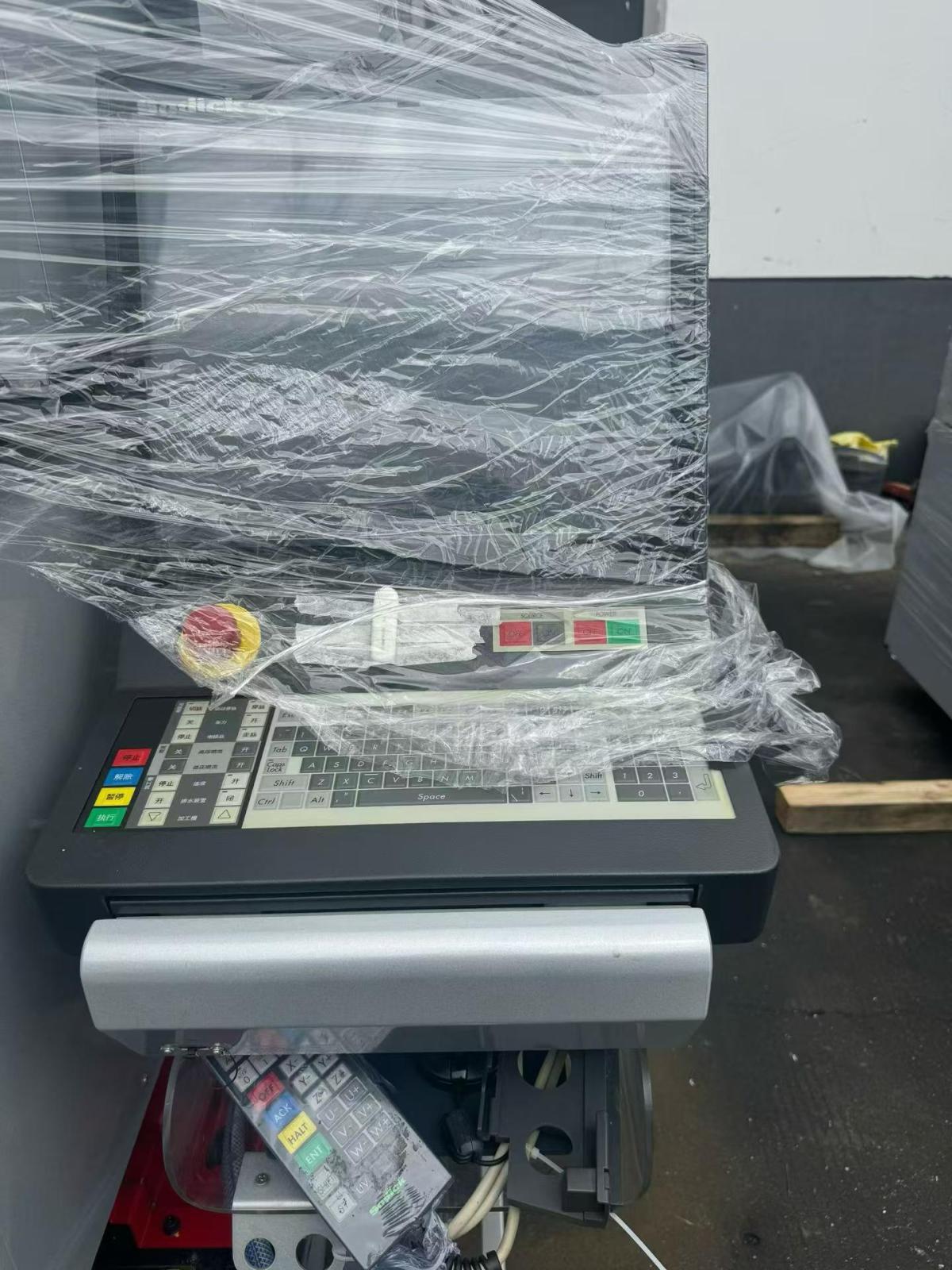

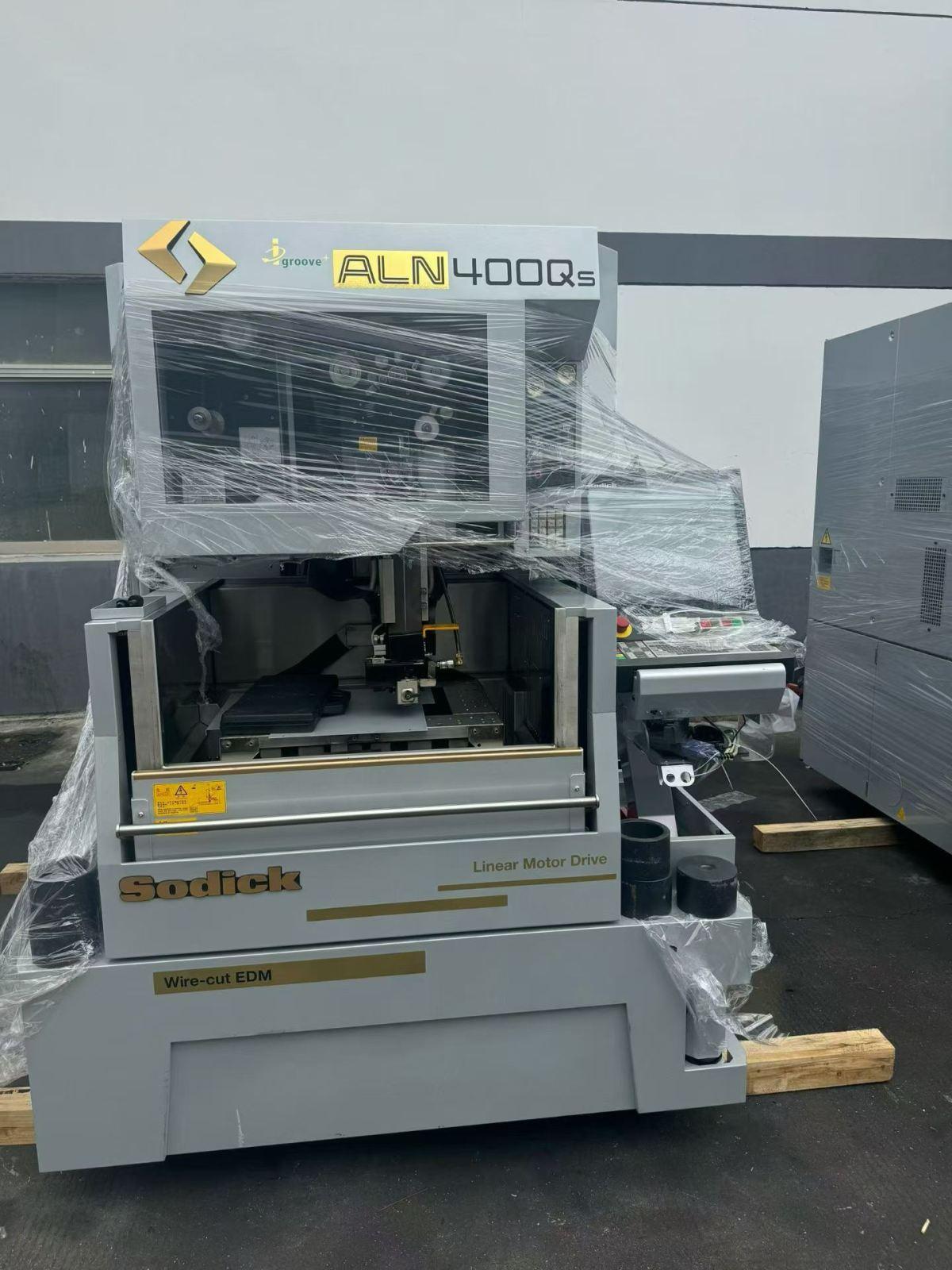

Sodick ALN400Qs Wire cutting machine

Three-Axis Travel (X/Y/Z): 400 × 300 × 250 mm
U/V Axis Travel: 150 × 150 mm
Max Workpiece Dimensions: 600 × 470 × 240 mm
Max Cutting Thickness: 250 mm
Wire Diameter: Φ0.10 – Φ0.30 mm
Surface Roughness: 0.19 μm
Max Cutting Speed: 3.3 mm/min
Input Voltage: 200 VAC
Maximum Power Consumption: 13 kVA
Machine Dimensions: Approx. 2190 × 2425 × 2205 mm
Machine Weight: Approx. 3100 kg
