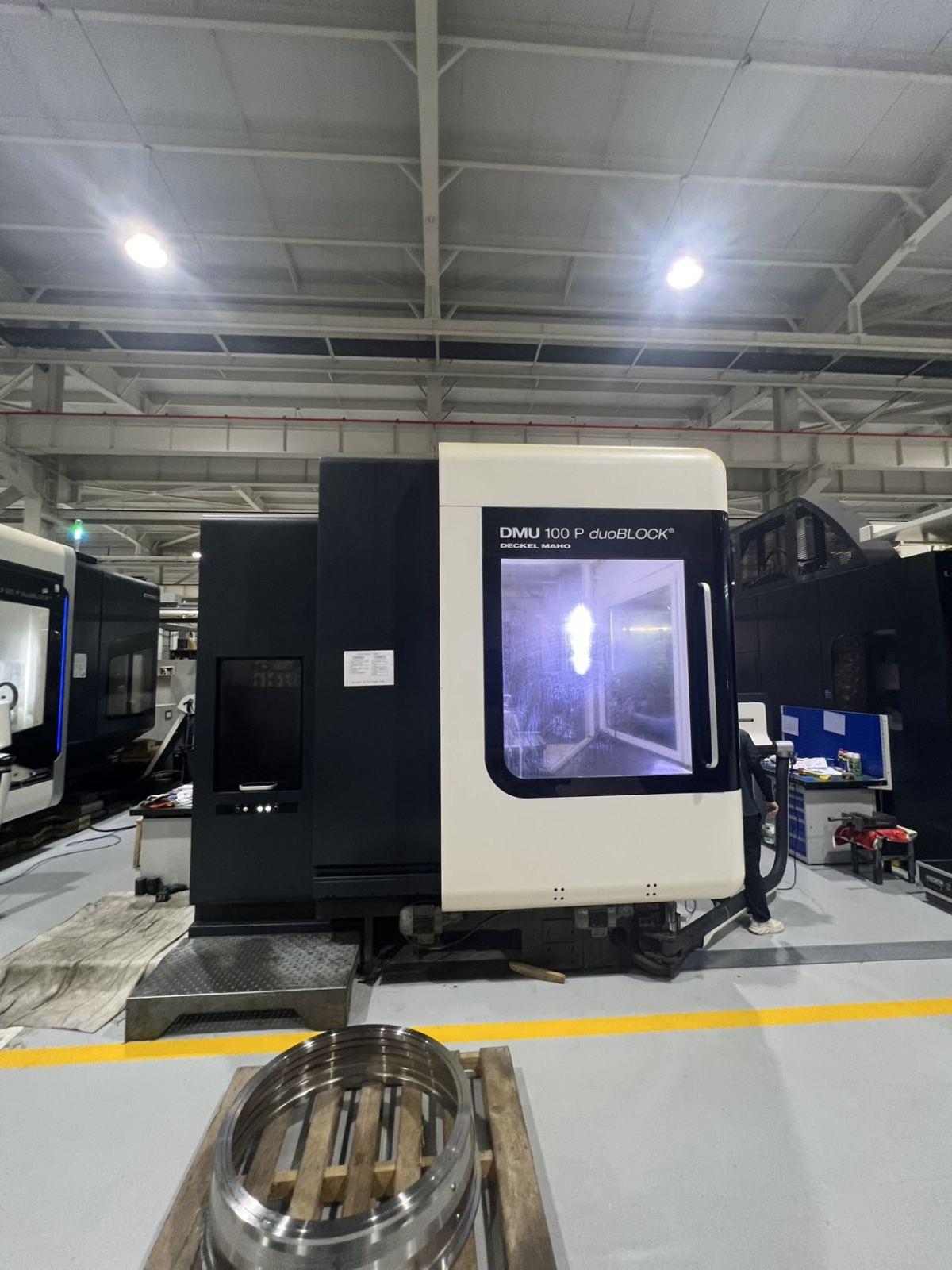

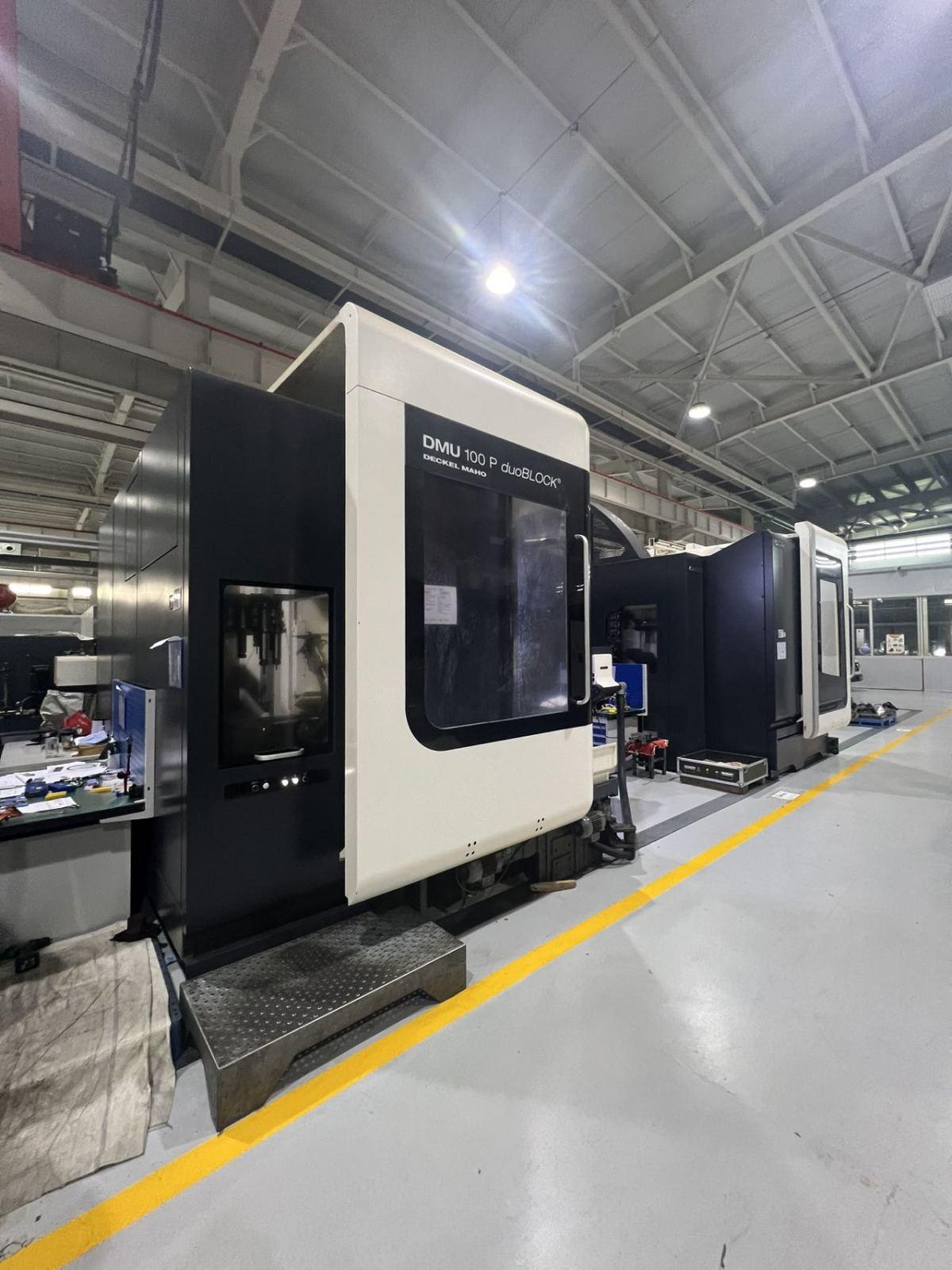

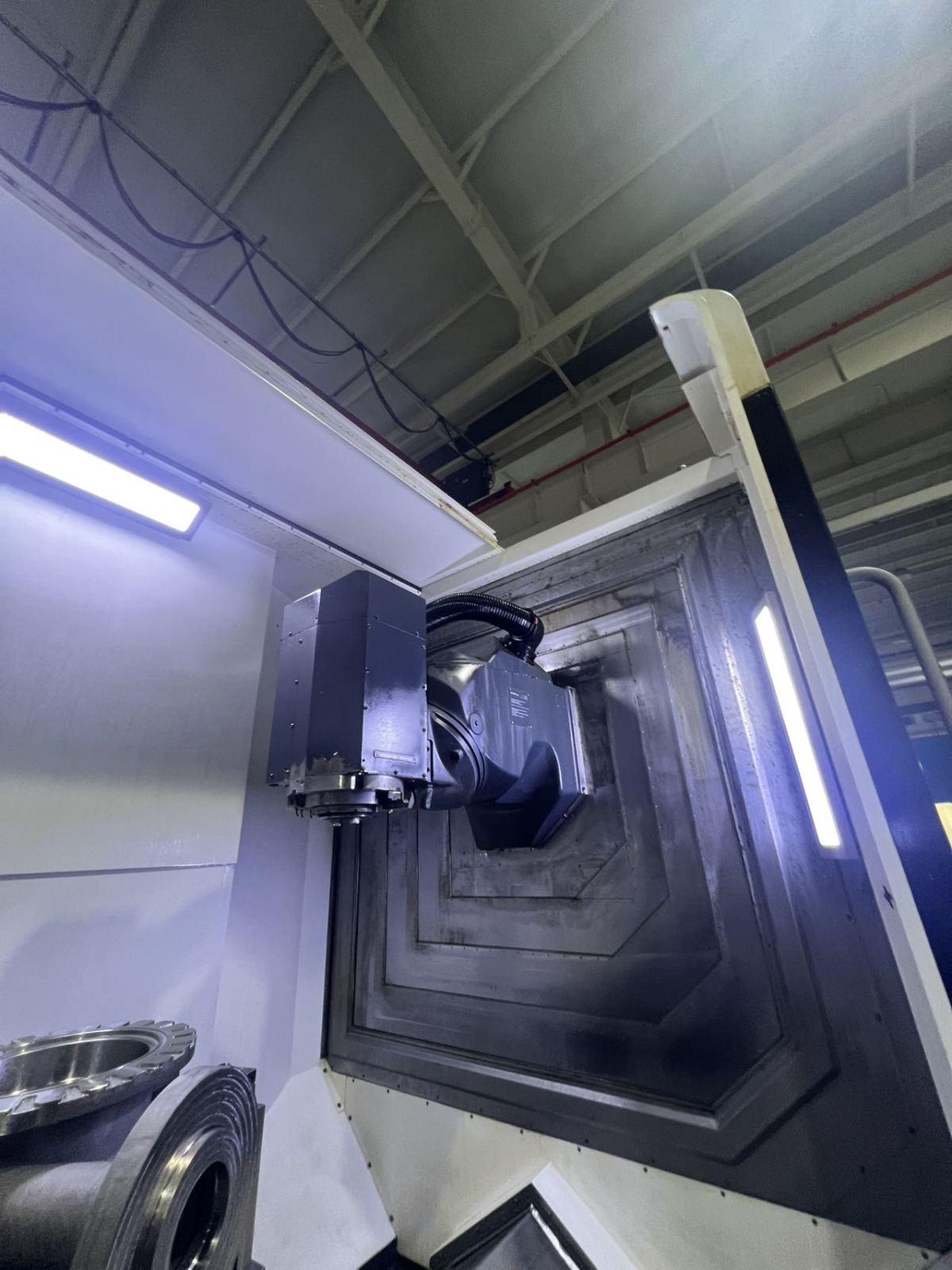

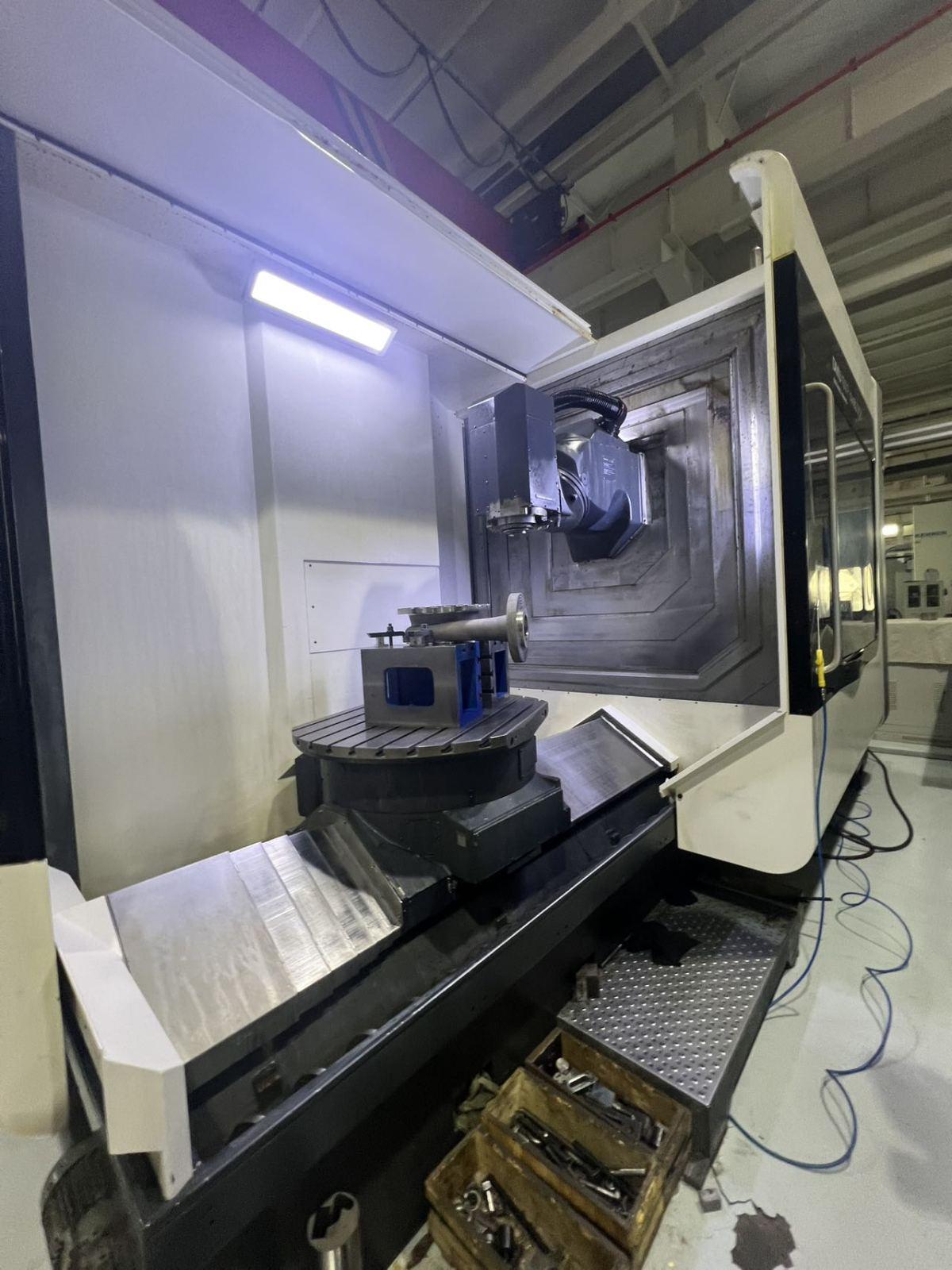

DMG DMU 100 P duoBLOCK 5 axis machining centre

CNC System: HEIDENHAIN iTNC 530
Three-axis travel: 1000 × 1250 × 1000 mm
B-axis swing Angle: -30° to 180°
C-axis swing Angle: 360°
Main drive: Electric spindle
Spindle speed: 12,000 rpm
Power: 44 kW (40% load) / 32 kW (100% load)
Torque: 288 Nm
Tool holder interface: HSK-A100
Standard: DIN 69872

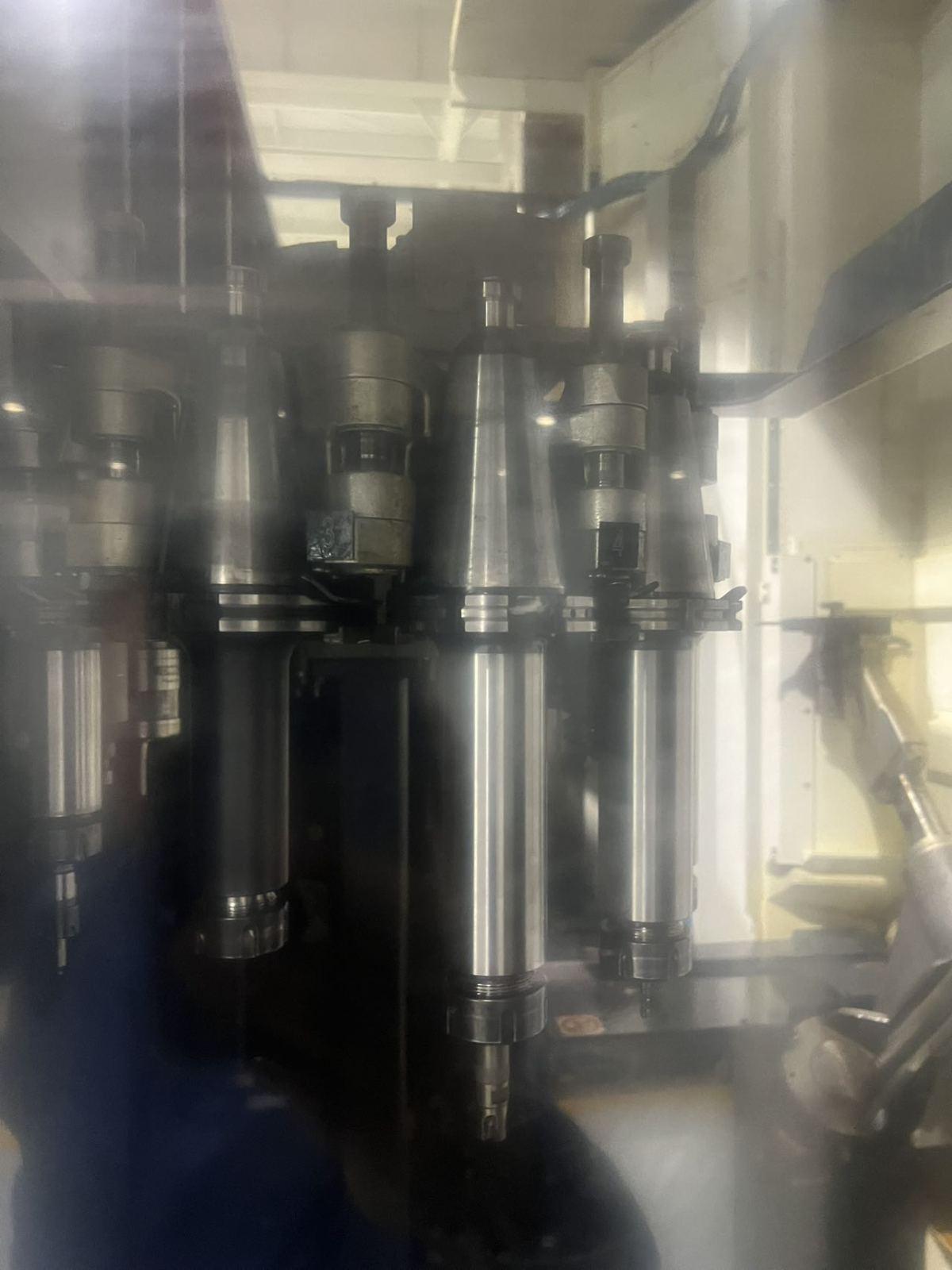

Magazine capacity: 40 tool positions
Tool changing method: Wheel-type tool magazine + double gripper
B-axis horizontal tool changer: controllable
The size of the NC rotary worktable is 1100 × 900 mm
Cooling system
Coolant tank: 980 L
Internal cooling pressure: 10–80 bar
Spindle center cooling: with
Configuration

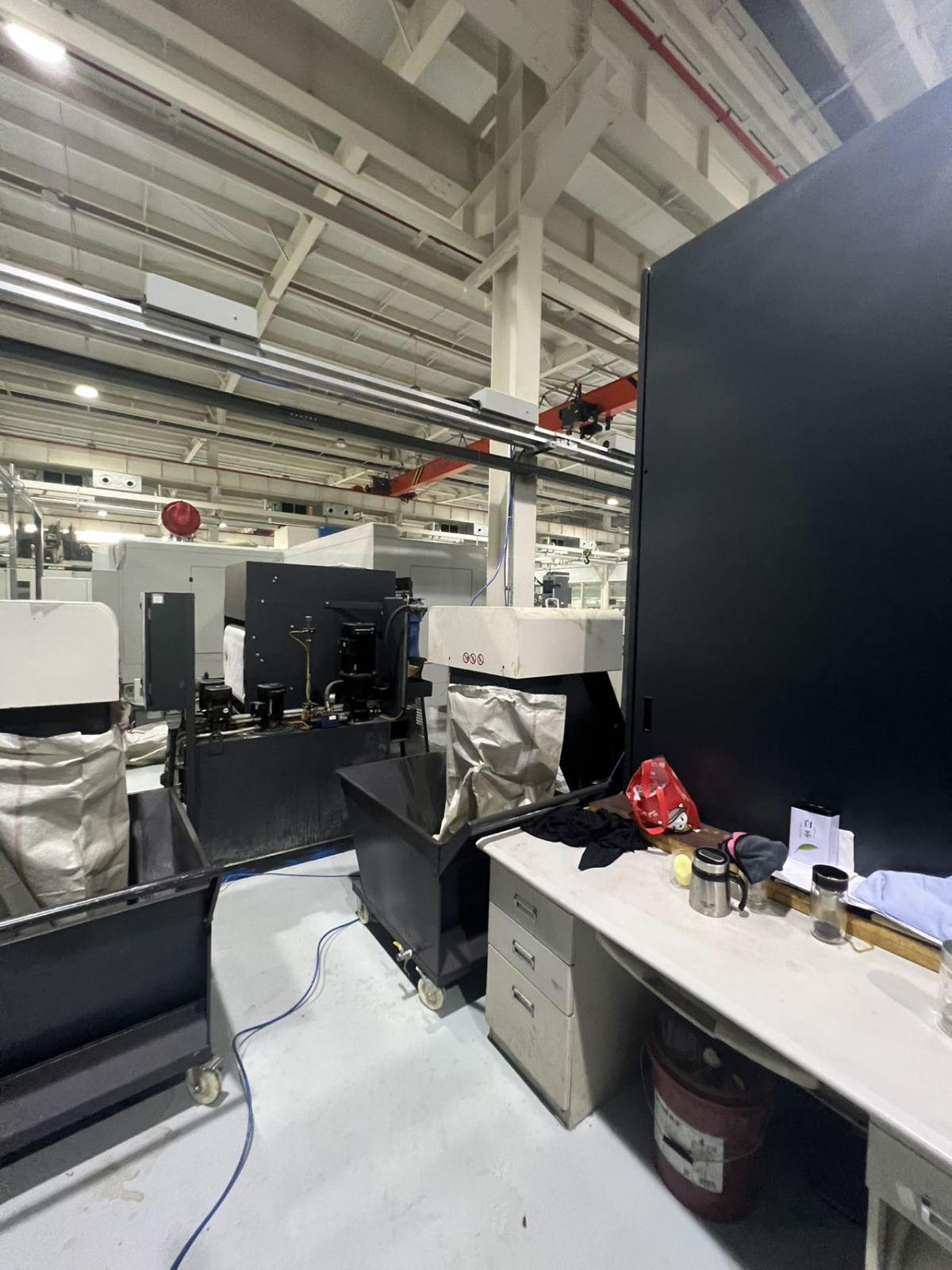

Chip conveyor
Filtration system (with filter screen)
Transparent observation window
Optional functions
Spindle center air blow
Air gun
Renishaw probe PP60
3D quickset
Anti-collision protection system
Four-color warning lamp
Precision package
Tropical climate package
Electronic handwheel
ATC machining strategy (precision / surface / speed optimization)
Power-off protection
Network service
Messenger system
Service assistant
