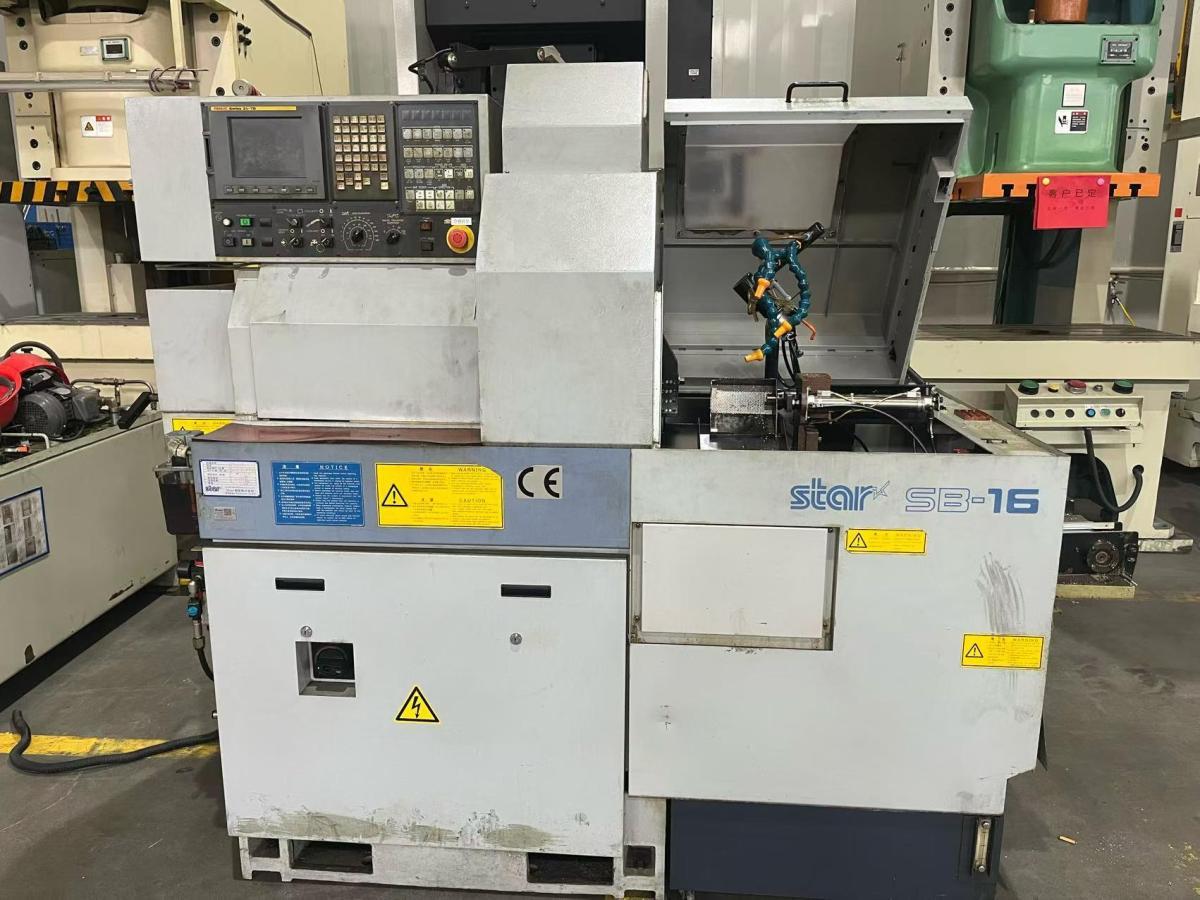

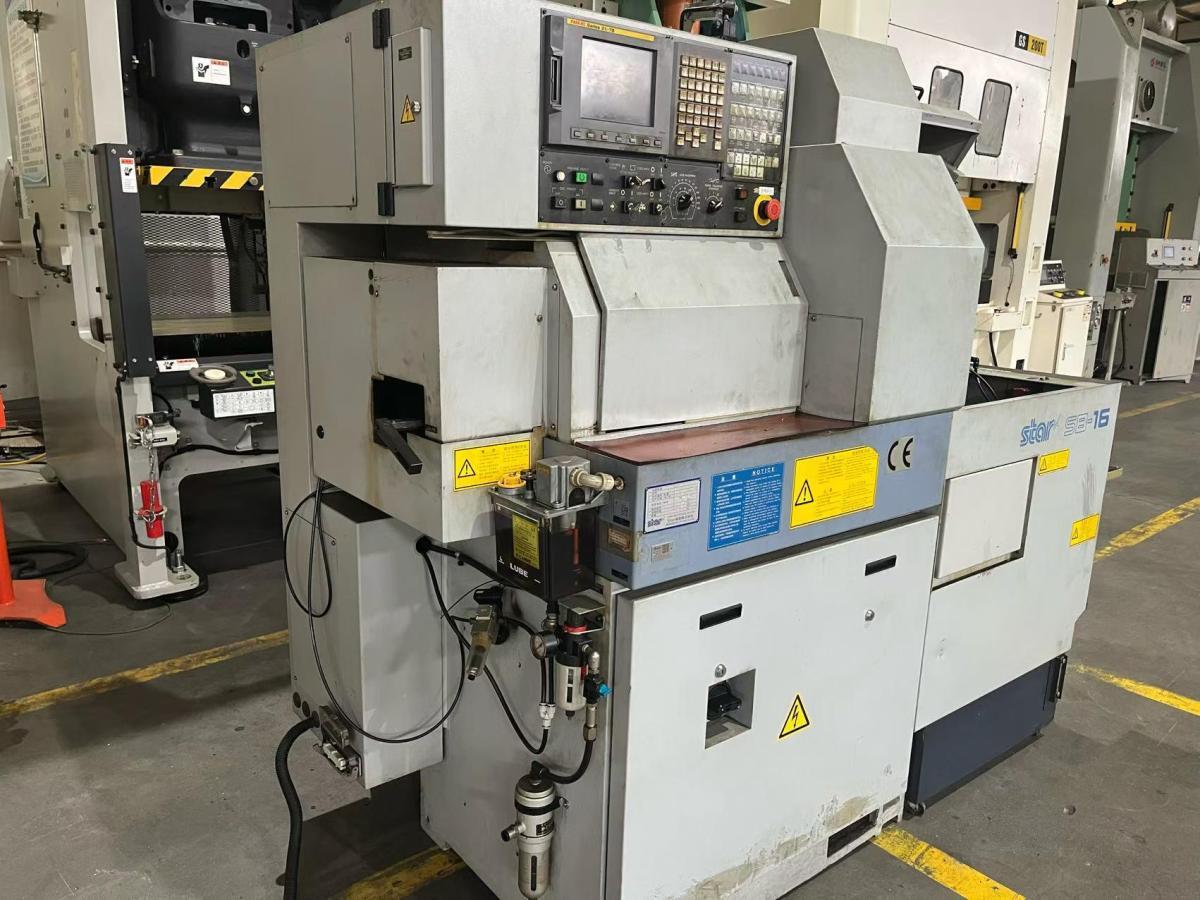

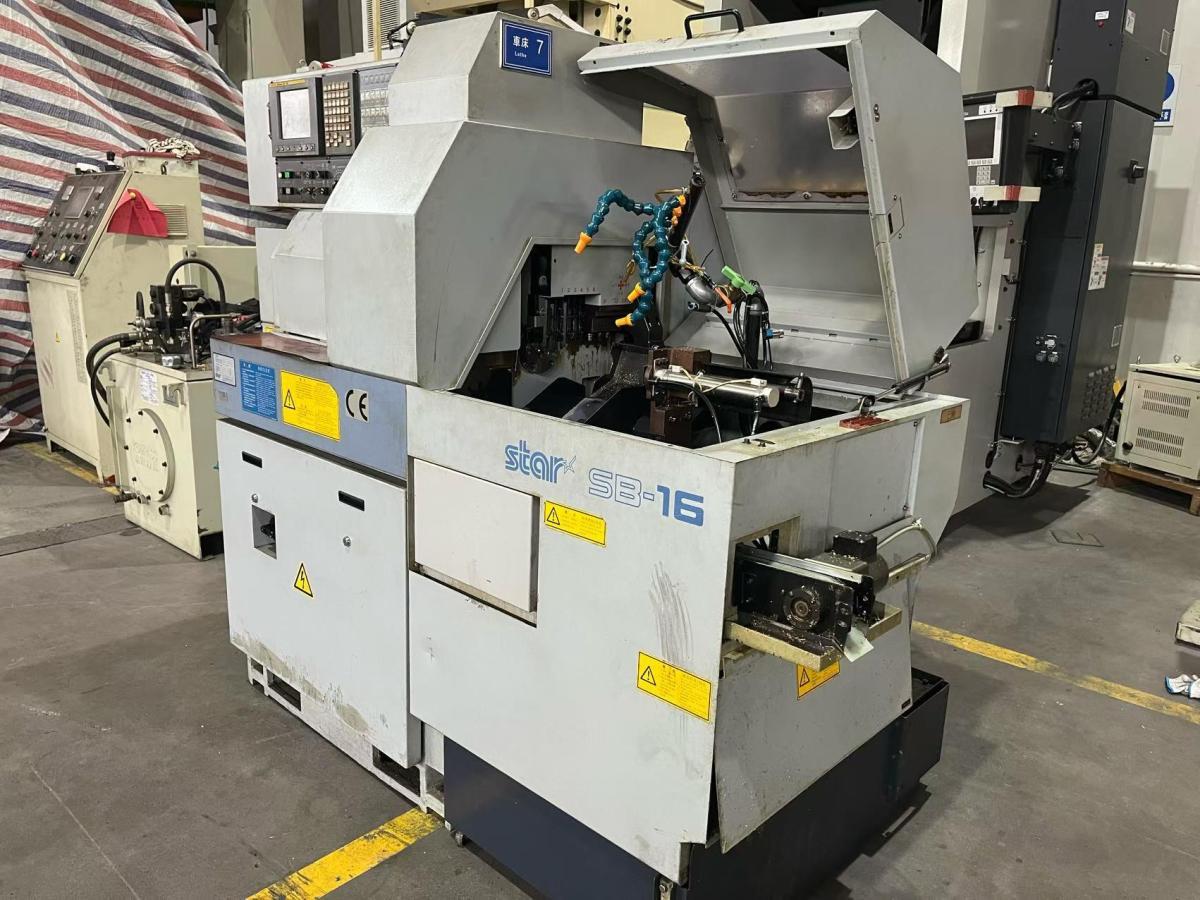

STAR SB-16 Automatic lathe
[Product Information]:
- Inventory number：813191
- Brand：STAR
- Model：SB-16
- Origin："Japan
- Location：China
- Year：2006
- Create Time：2026-09-16
Specifications:
Maximum Machining Diameter: φ16 mm
Maximum Headstock Travel: 205 mm
Spindle Through Hole: 155 mm
Machining Length: 205 mm

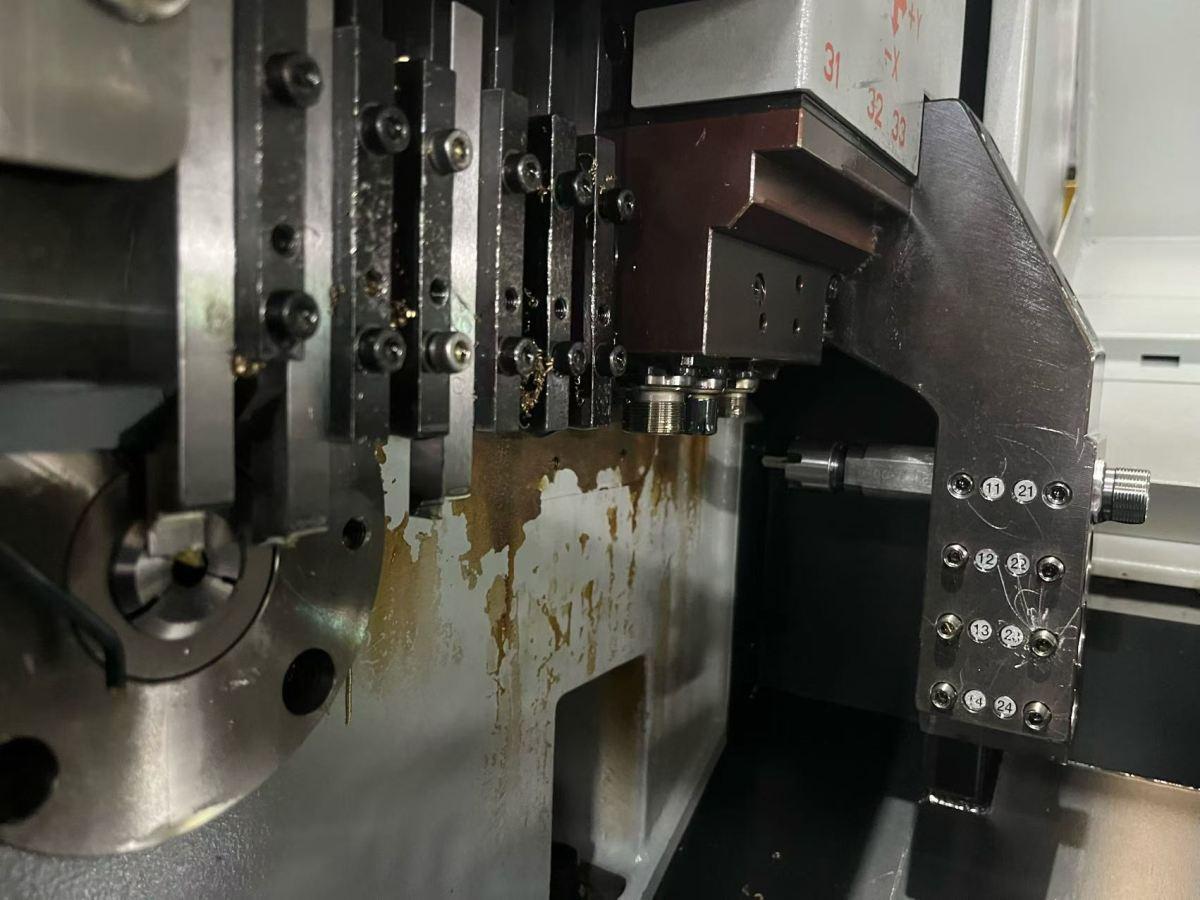

4-Axis Sleeve:
Tool Capacity: 6 tools
Maximum Drilling Capacity: φ10 mm
Maximum Tapping Capacity: M8 × P1.25
Power-Driven Accessories:
Tool Capacity: 2 tools
Maximum Drilling Capacity: φ6 mm
Maximum Tapping Capacity: M5 × P0.8
Maximum Spindle Speed: 10,000 rpm
Spindle Motor: 2.2/3.7 kW
Rapid Feed Rate: 35 m/min (X/Y/Z/B axes)
Indexing Angle: 15°/1° (OP/C axis), OP: 15°
Power-Driven Accessory Spindle Speed: 5,000 rpm / 7,500 rpm
Power-Driven Accessory Drive Motor: 0.4 kW
Coolant Tank Capacity: 152 liters
Overall Dimensions (W × D × H): 1.861 × 1.060 × 1.750 m
Center Height: 1060 mm
Weight: 1650 kg / 1530 kg
Power Consumption: 3.0 kVA / 2.5 kVA
