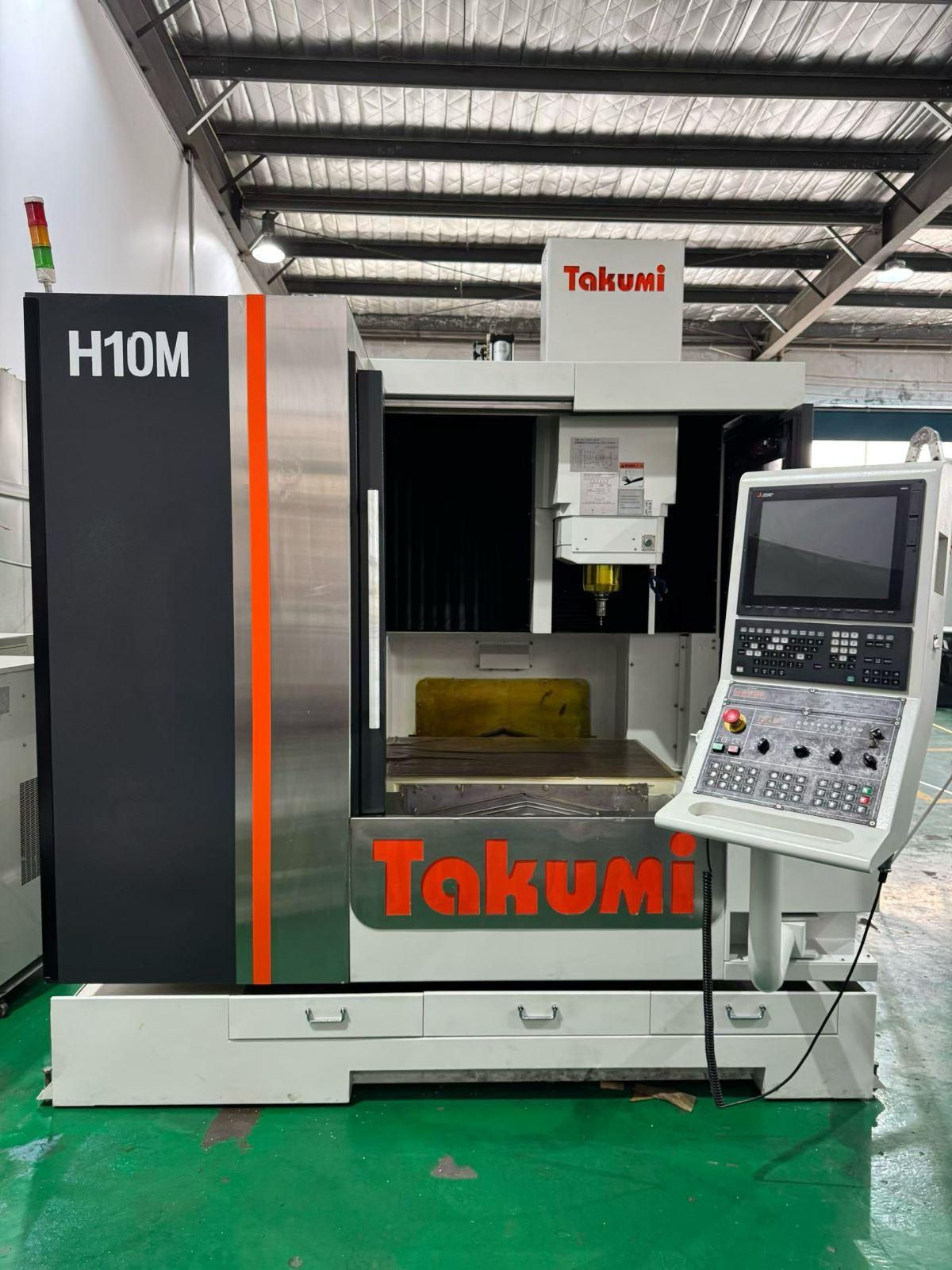

Takumi H10M High speed Machining centre

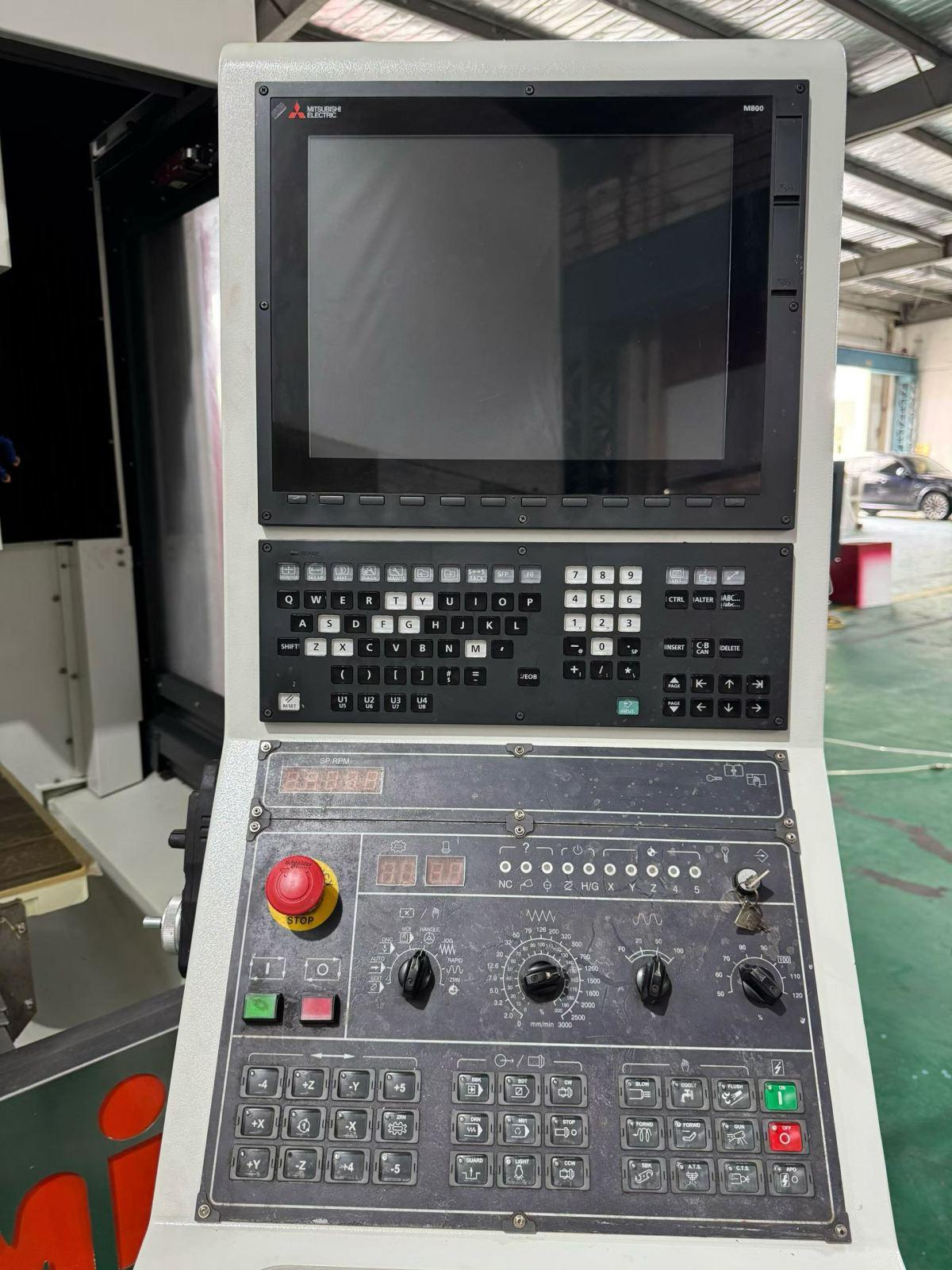

CNC System: Mitsubishi M800
Three-Axis Travel: 1,000 × 680 × 500 mm

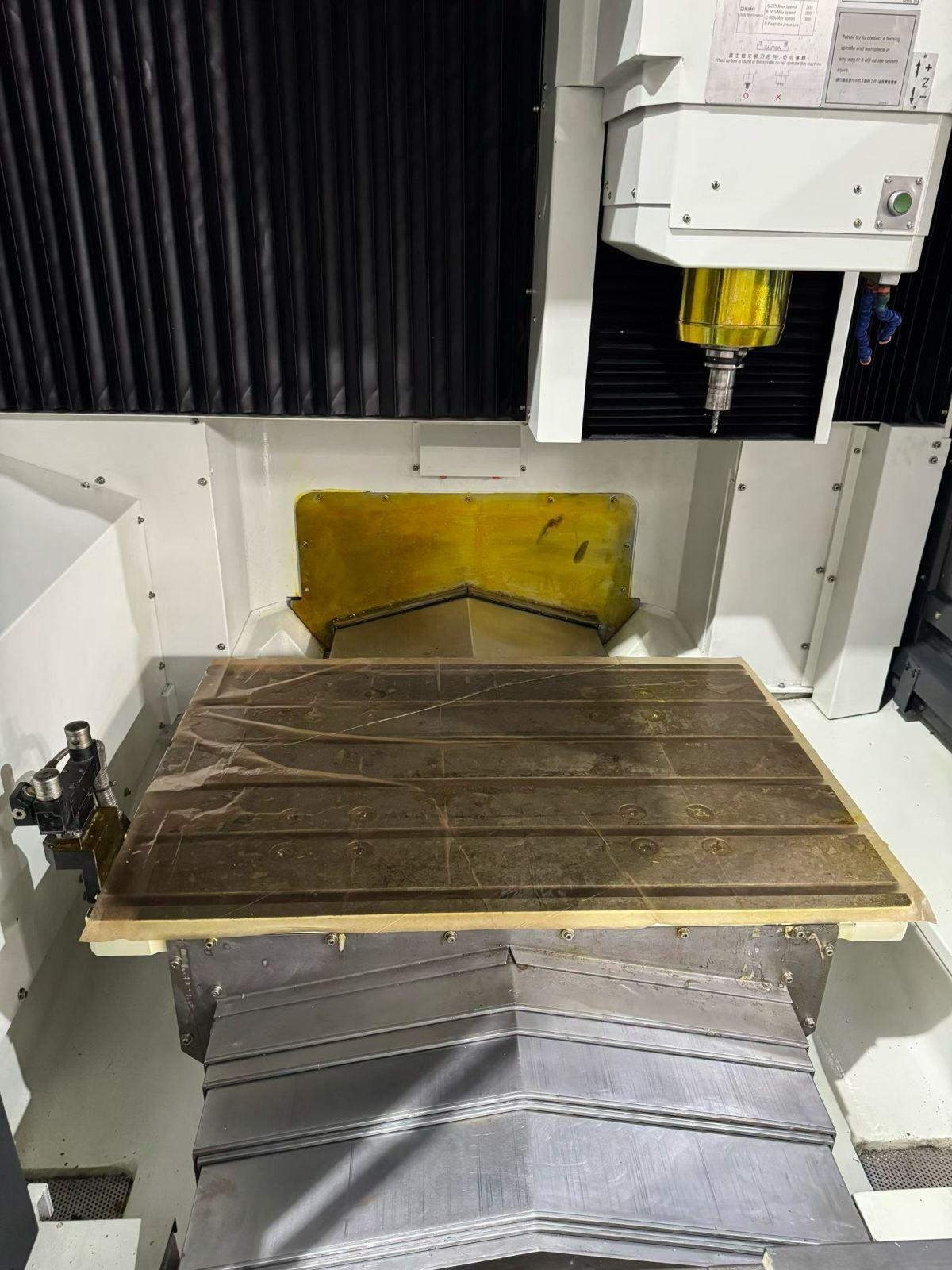

Worktable Size: 1,050 × 700 mm
Maximum Worktable Load: 800 kg
Distance Between Inner Sides of Columns: 1,080 mm

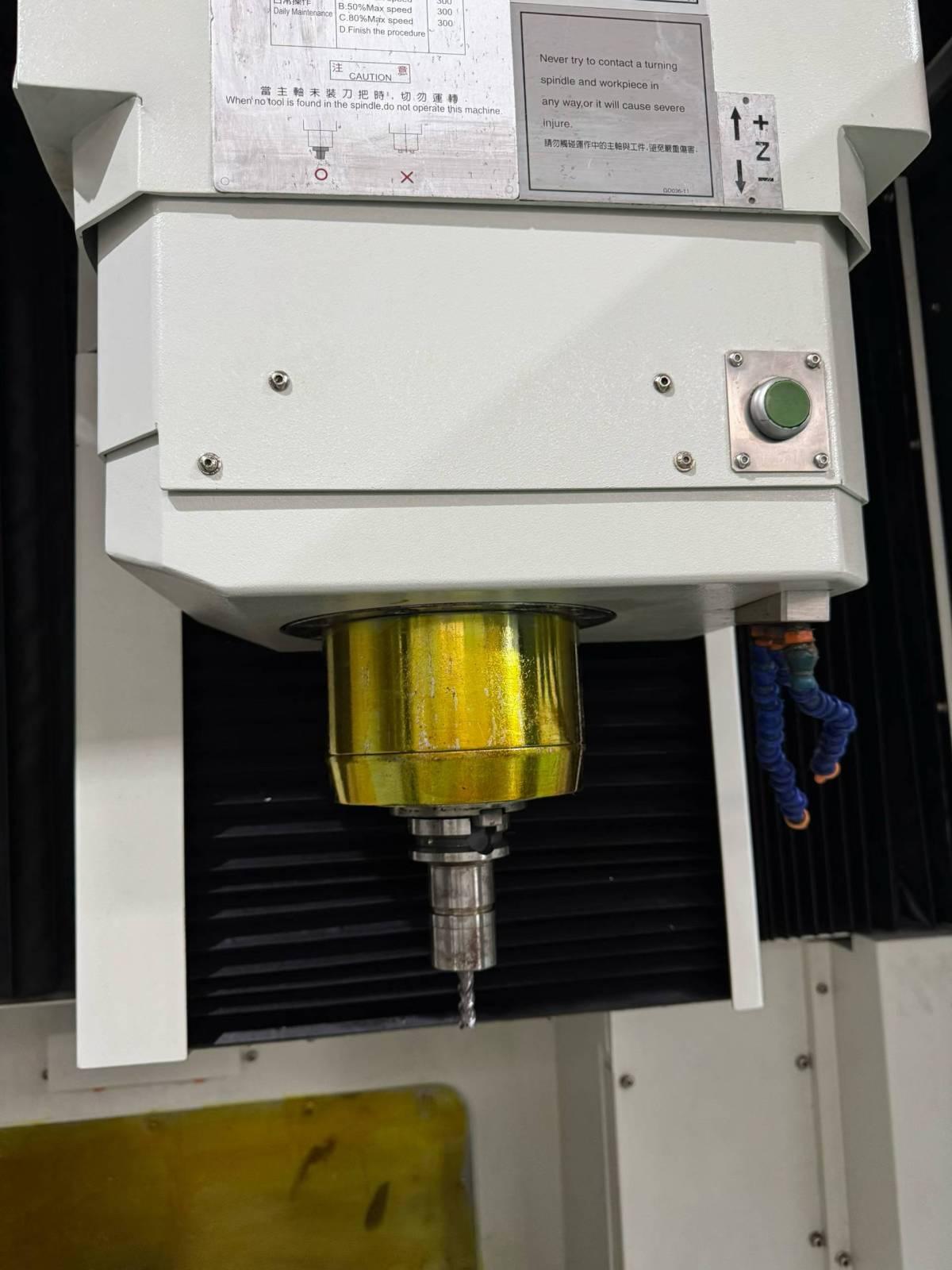

Spindle Type: BBT40 (Direct Drive)
Maximum Spindle Speed: 15,000 rpm
Distance from Spindle Nose to Worktable Surface: 200 mm
Spindle Motor Power: 18.5 / 30 kW
Spindle Torque: 63.7 / 89.4 N·m
Floor Space: 4,520 × 4,290 mm
Machine Height: 2,830 mm
Machine Net Weight: 9,100 kg
Total Power Capacity: Approximately 50 kVA
