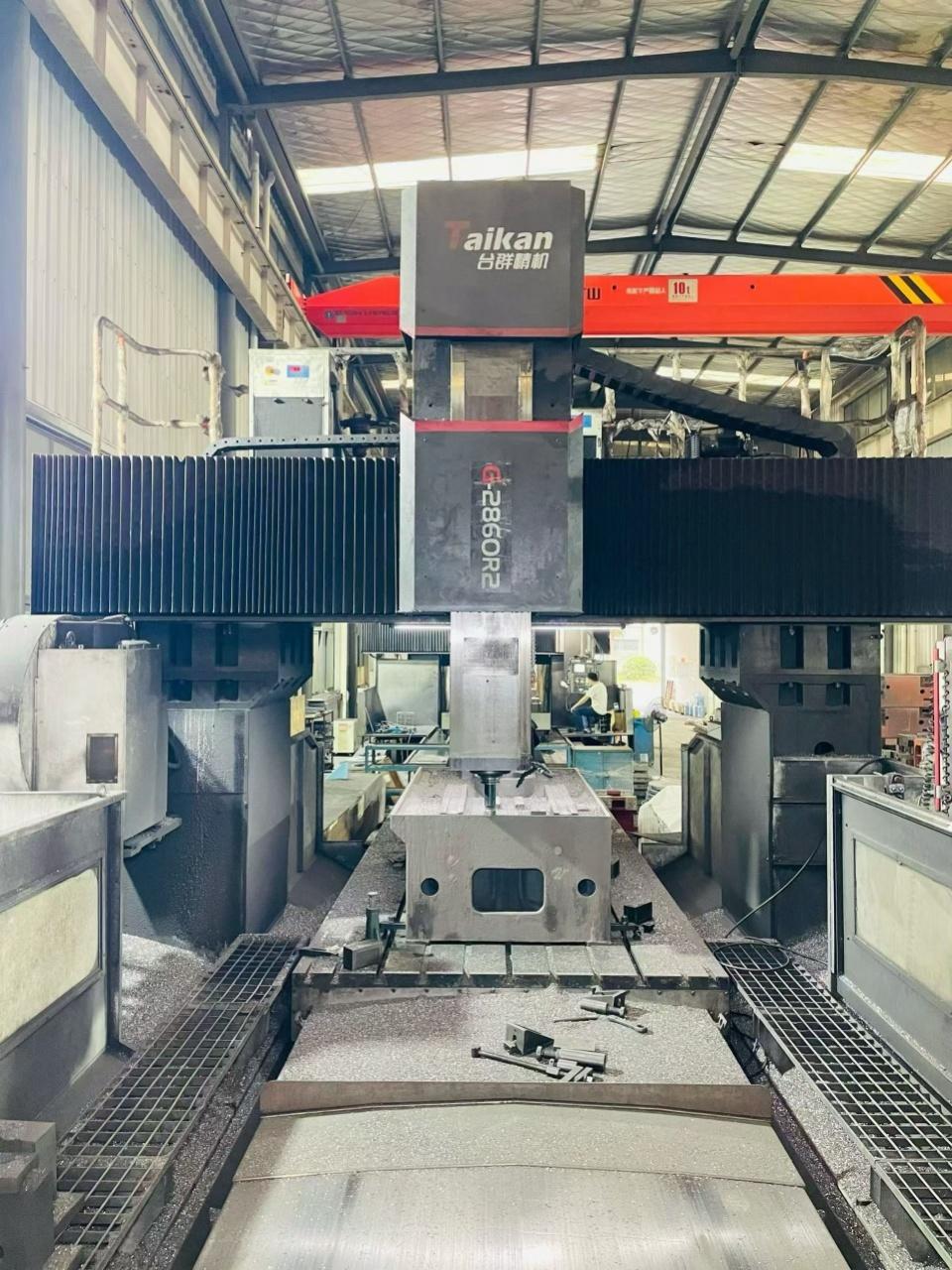

Taikan G-2860 R2 Gantry machining centre

[Product Information]:

Inventory number：68905
Brand：Taikan
Model：G-2860 R2
Origin：Taiwan, China
Location：China
Year：2020
Create Time：2026-08-27

Specifications:

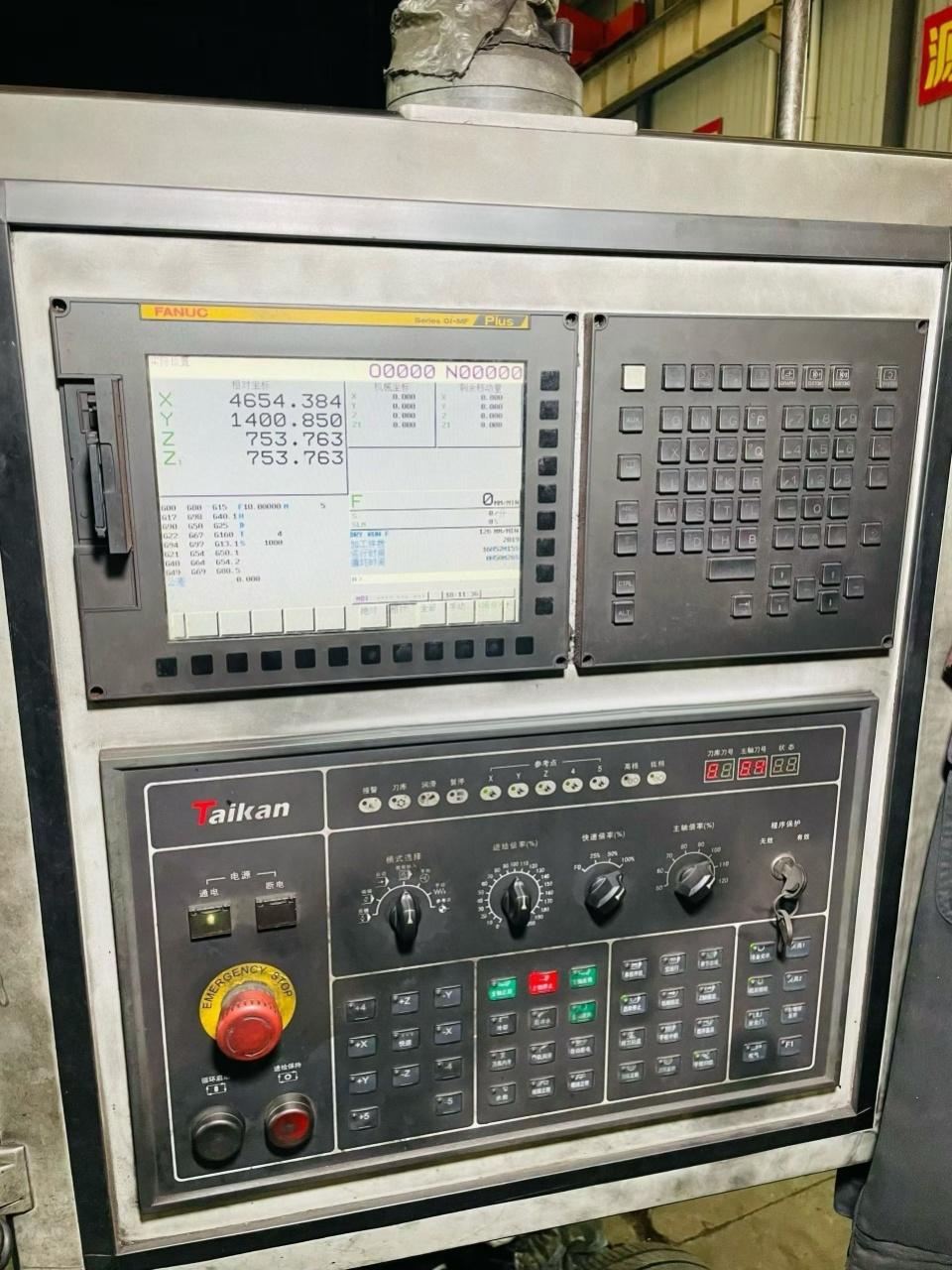

CNC System: FANUC oi-MF PLUS
Worktable size: 2000*6000mm
three-axis travel: 6200*2800*1300mm
Distance from spindle nose to Worktable: 200-1200mm
Gantry width: 2800mm
Gantry height: 1650mm
Worktable load: 28,000 kg
Spindle diameter: 210mm
Main motor power: 22/26 kW
Spindle speed: 20-6000rpm
Slide pillow cross-section: 400*400mm
The weight of machine tool: 40,000 kg
