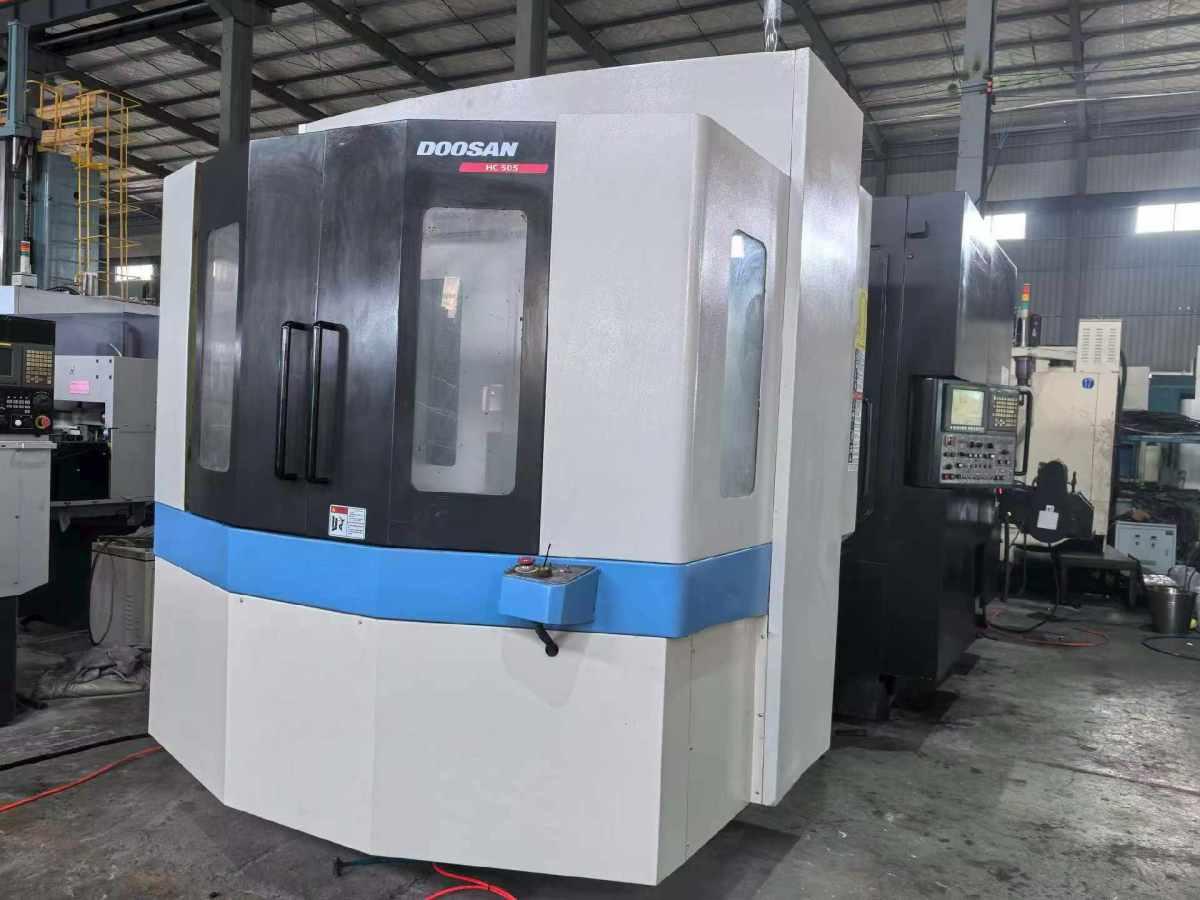

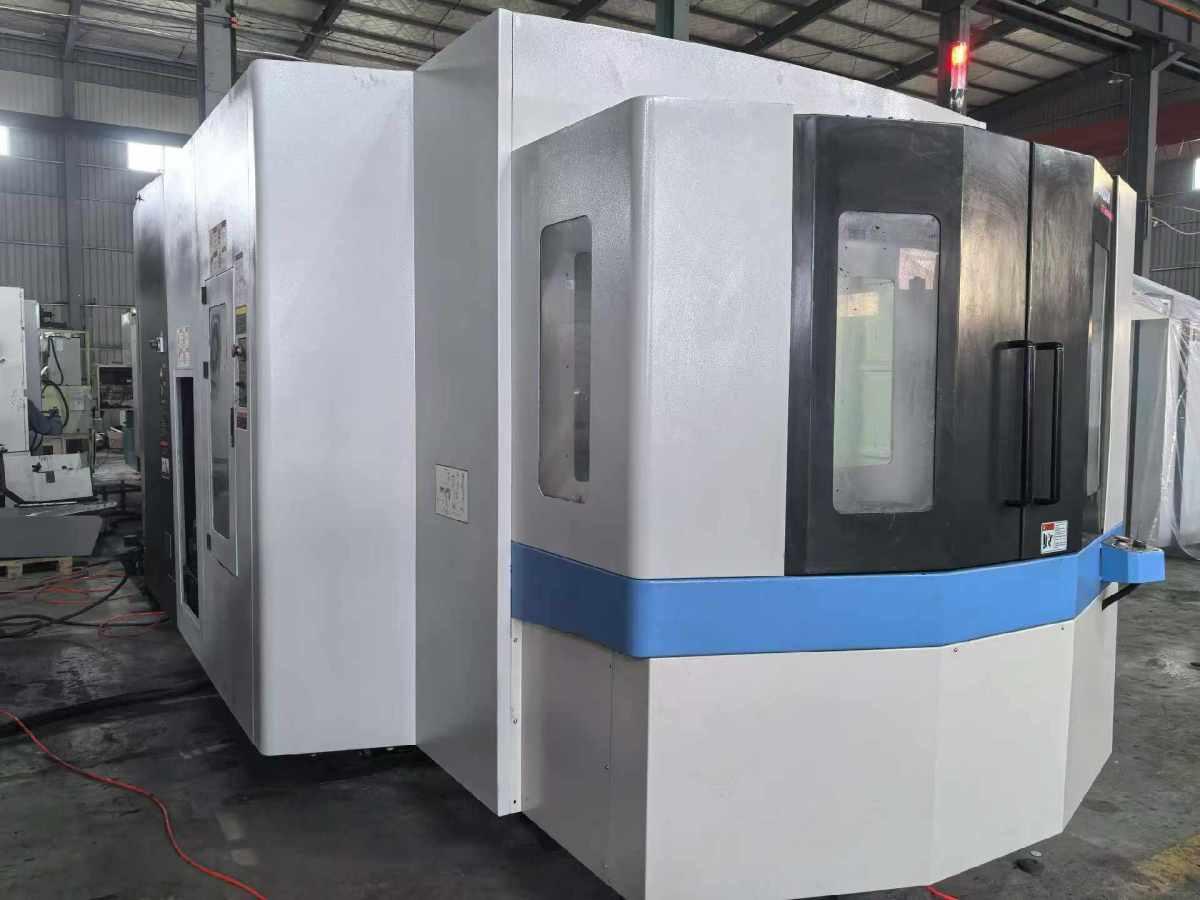

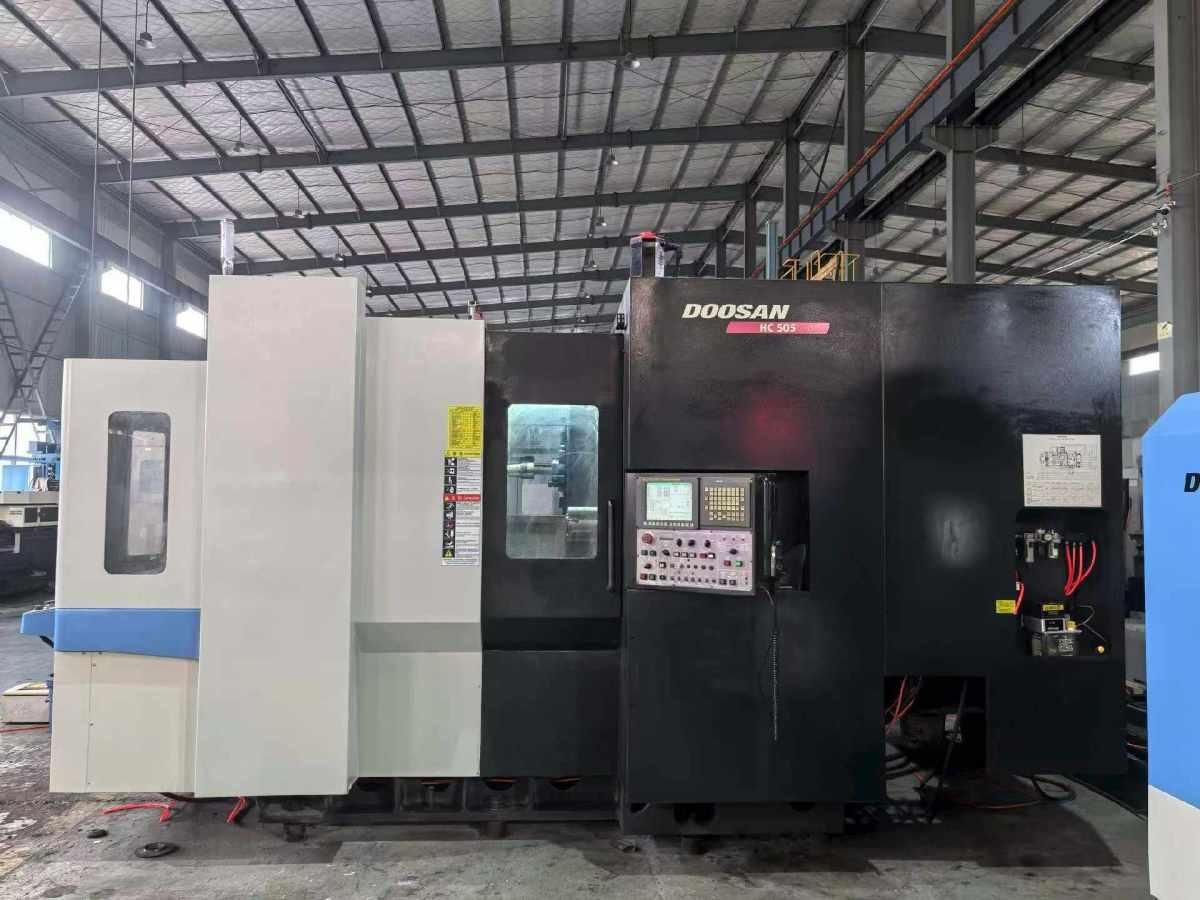

DOOSAN HC505 Horizontal Machining centre

Three-axis Travel (X/Y/Z): 850 × 700 × 750 mm
Distance from Spindle Center to Worktable Top: 50–750 mm
Distance from Spindle Nose to Worktable Center: 150–900 mm

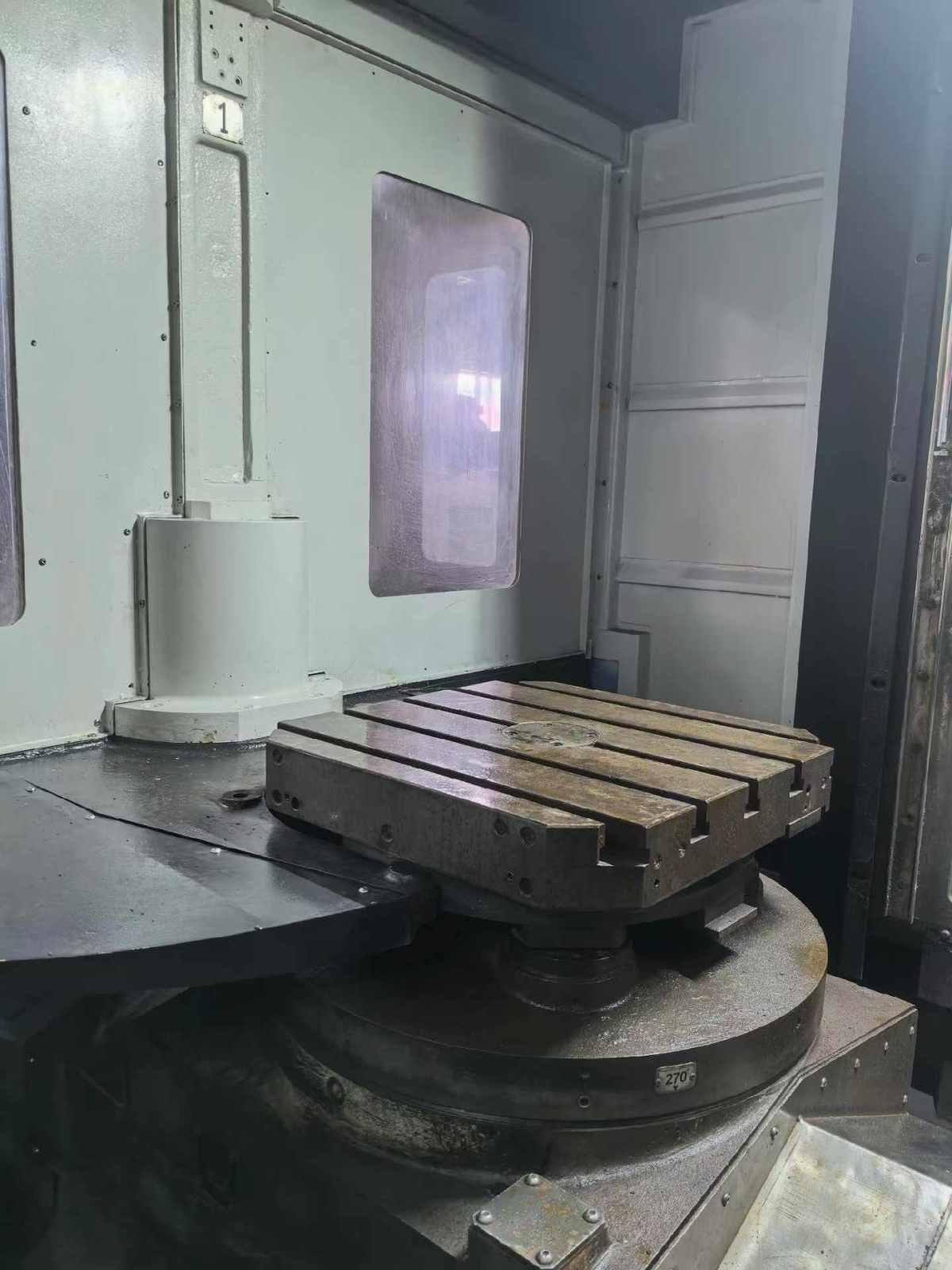

Worktable Size: 500 × 500 mm
Worktable Load Capacity: 500 kg
Max. Spindle Speed: 8,000 rpm
Max. Spindle Torque: 353.4 Nm
Rapid Traverse Rate (X/Y/Z): 40 × 40 × 40 m/min
Tool Holder Type: BT40

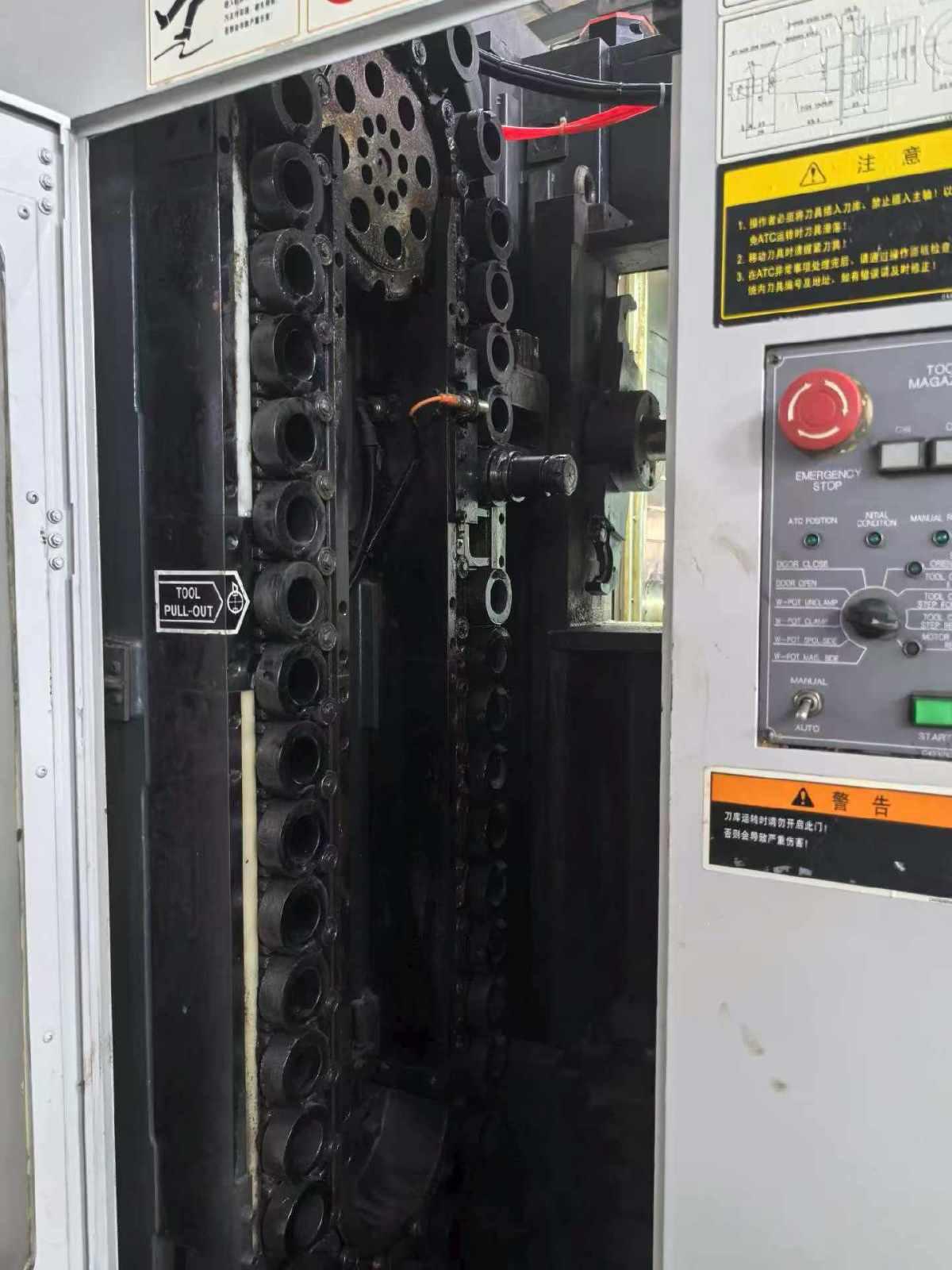

Tool Magazine Capacity: 40 tools (60 tools optional)
Max. Tool Diameter: Ø75 mm
Max. Tool Length: 400 mm
Max. Tool Weight: 10 kg
Spindle Motor Power: 18.5 kW
Machine Dimensions (L×W×H): 5290 × 2680 × 3020 mm
