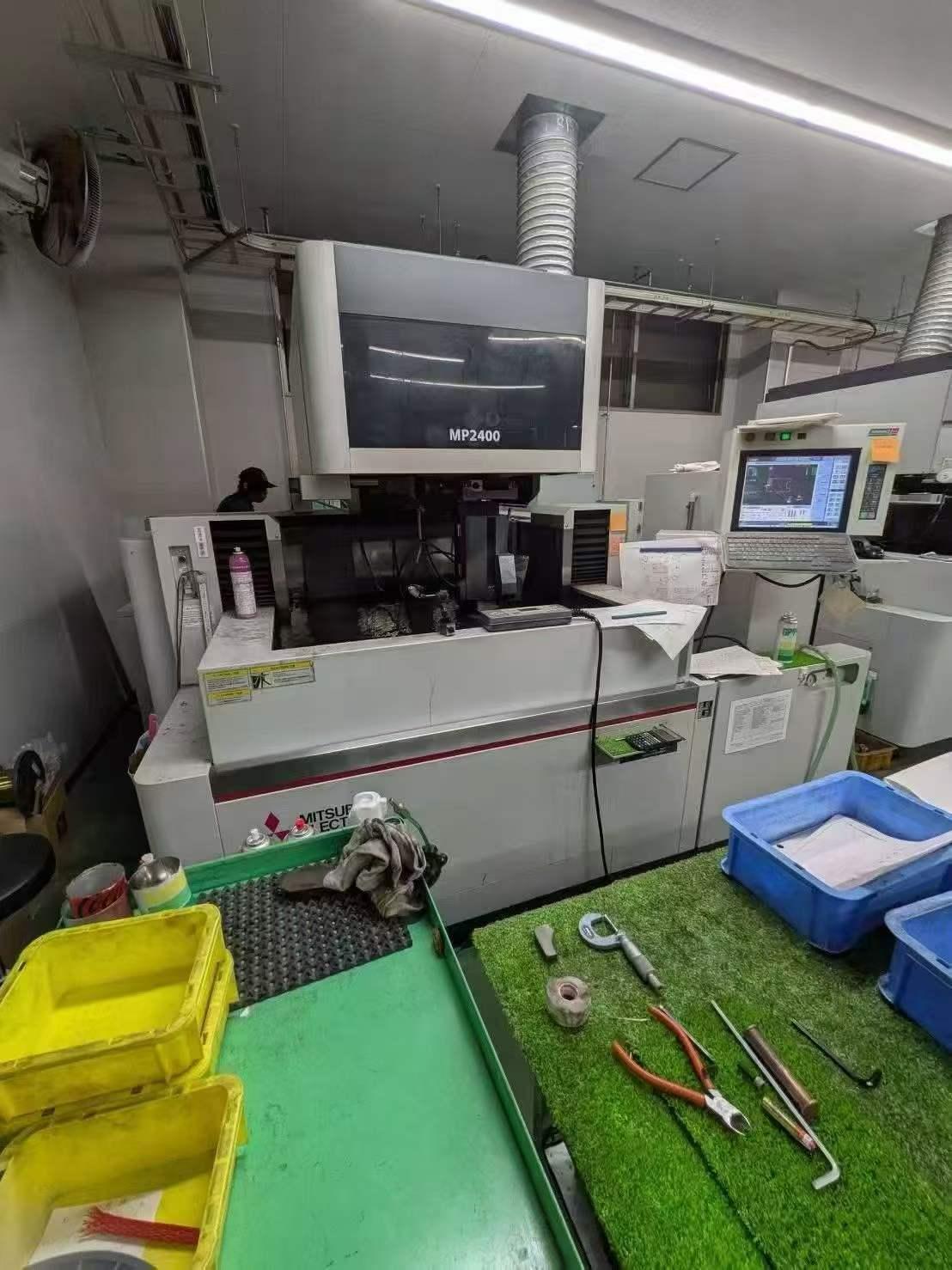

Mitsubishi MP2400 Wire cutting machine

Maximum workpiece dimensions (W × D × H): 1050 × 820 × 305 mm
Maximum workpiece weight: 1500 kg
Worktable size (W × D): 860 × 640 mm
Three-axis travel (X × Y × Z): 600 × 400 × 310 mm
U × V-axis travel: ±75 × ±75 mm
Wire diameter (Standard): Φ0.10–0.30 mm
Wire diameter (Optional): Φ0.05, 0.07 mm
Working tank type: Automatic lifting tank
Machine weight: 4100 kg
Dielectric fluid tank capacity: 800 L
Ion exchange resin water purifier capacity: 10 L
Overall dimensions (W × D × H): 2684 × 3030 × 2150 mm
Machine body dimensions (W × H): 2022 × 2150 mm
