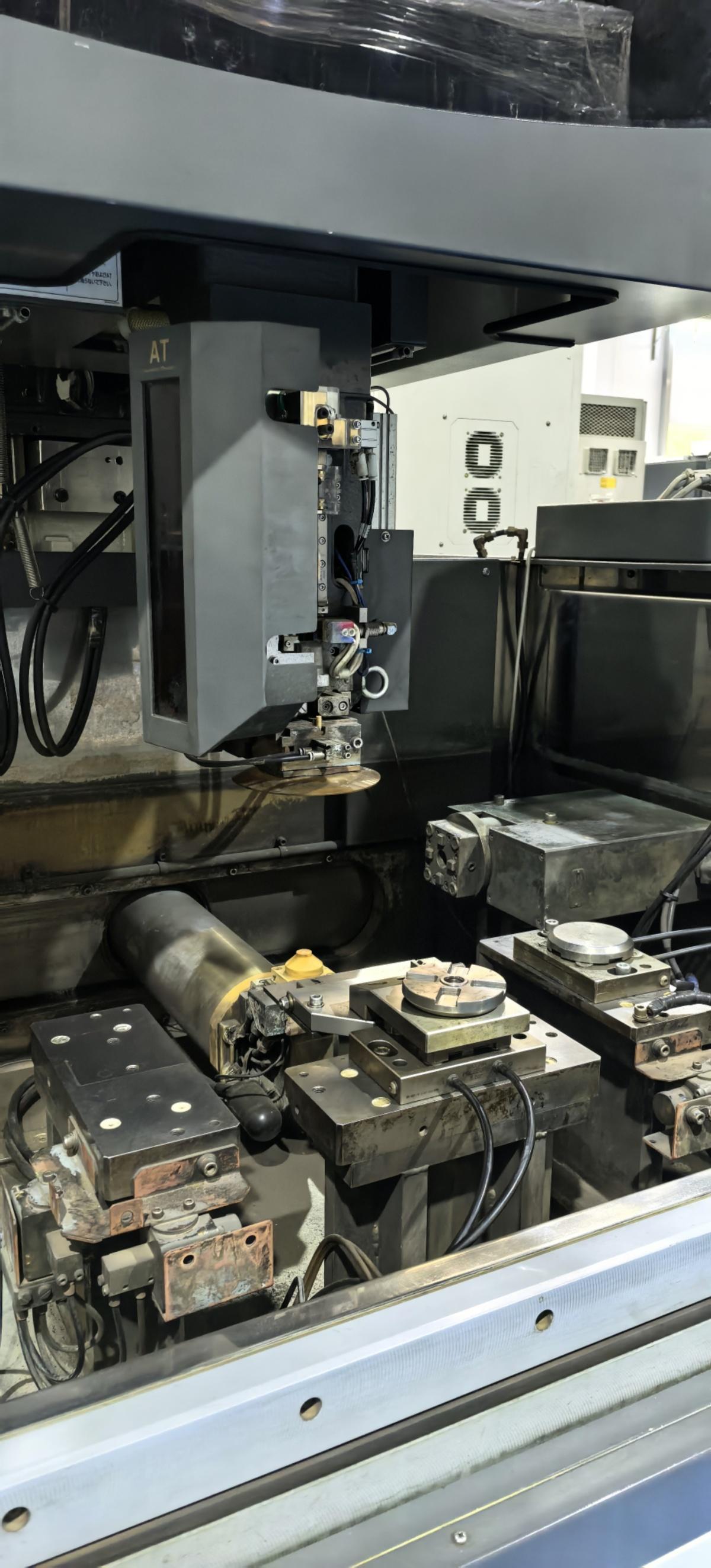

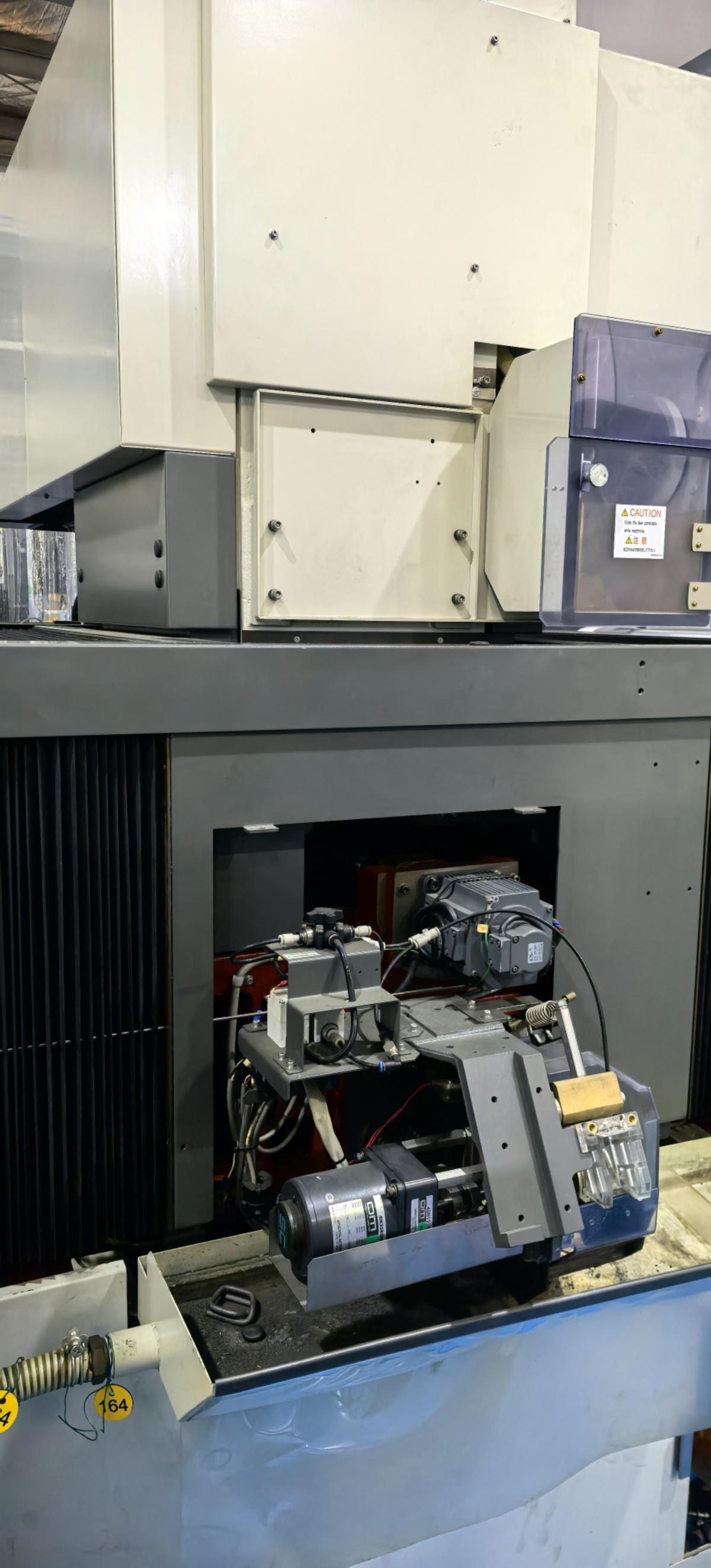

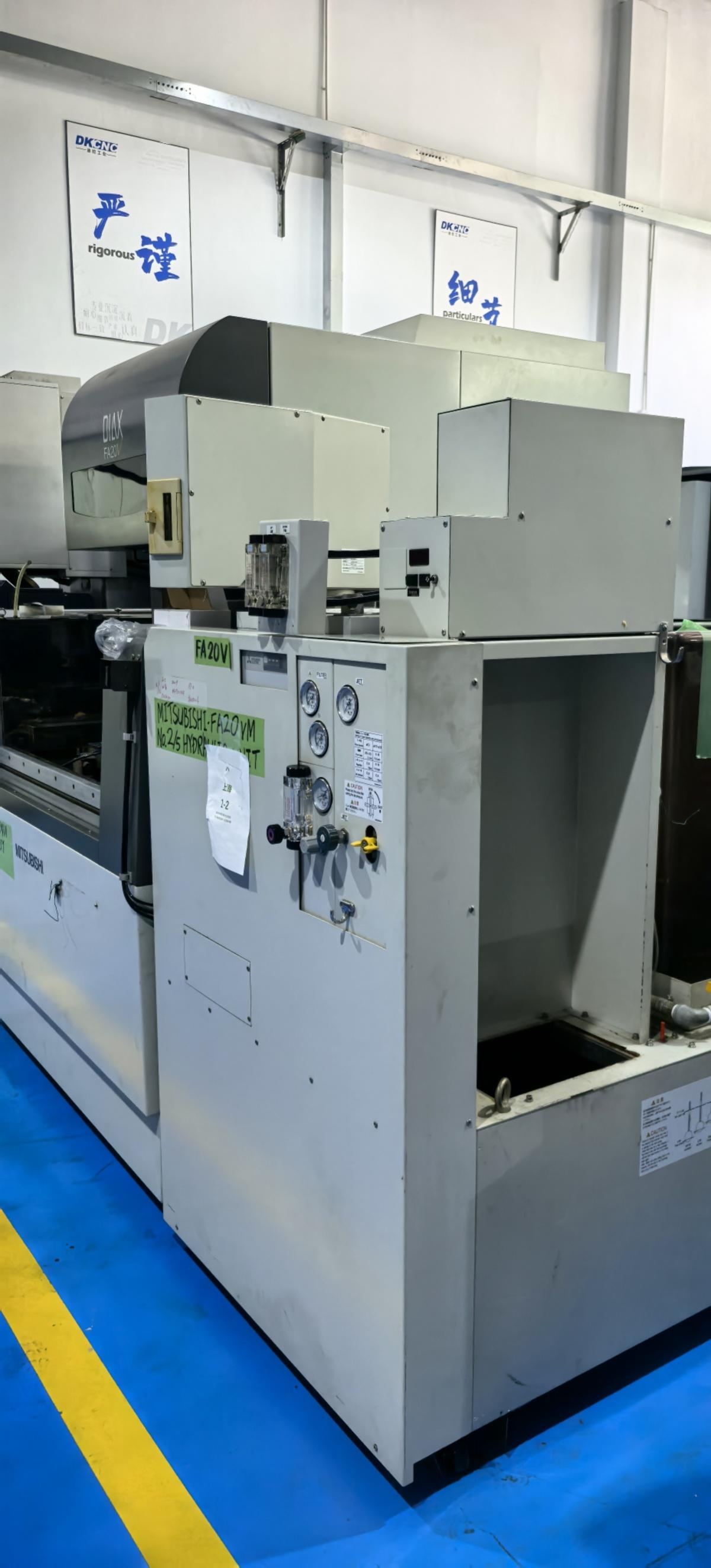

Mitsubishi FA20V Wire cutting machine

Three-Axis Travel (X/Y/Z): 500 × 350 × 300 mm
U/V-Axis Travel: 31.75 × 31.75 mm
Maximum Taper Cutting: 15° over 100 mm
Internal Tank Dimensions: 1049 × 1049 mm
Maximum Workpiece Dimensions: 1050 × 800 × 295 mm
Maximum Workpiece Weight: 1497 kg
Worktable Size: 780 × 630 mm
Minimum Resolution: 0.00005 mm
Wire Diameter: Ø0.15–Ø0.30 mm (Standard: Ø0.25 mm)
Filter Tank Capacity: Approximately 738 L
Power Supply: 208 V / 3-Phase / 60 Hz
Machine Dimensions (L × W × H): 2012 × 2621 × 2098 mm
Machine Weight: 3500 kg
Configuration:
Equipped with a 5-Axis Simultaneous Control 3R Rotary Axis

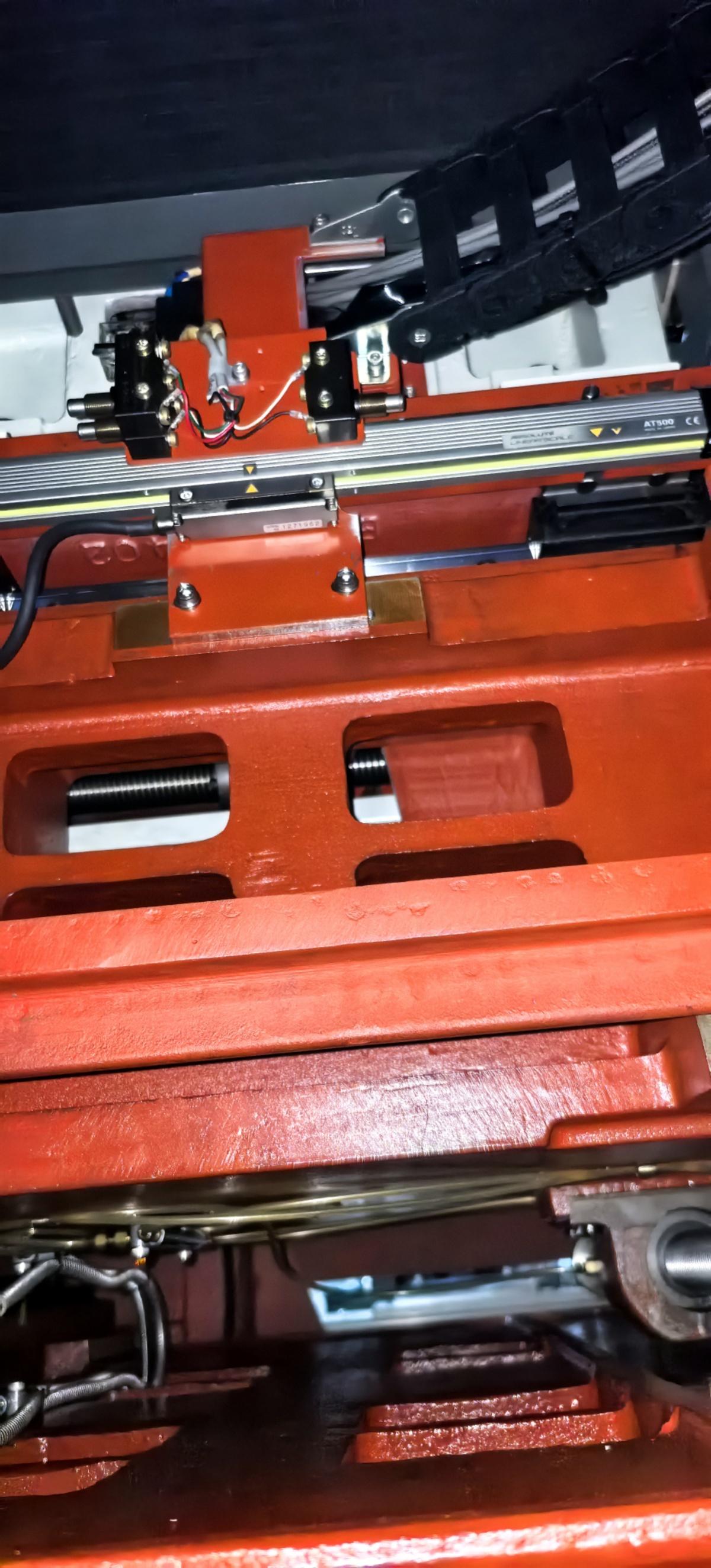

Equipped with Linear Scales
Fine Wire Cutting Function
