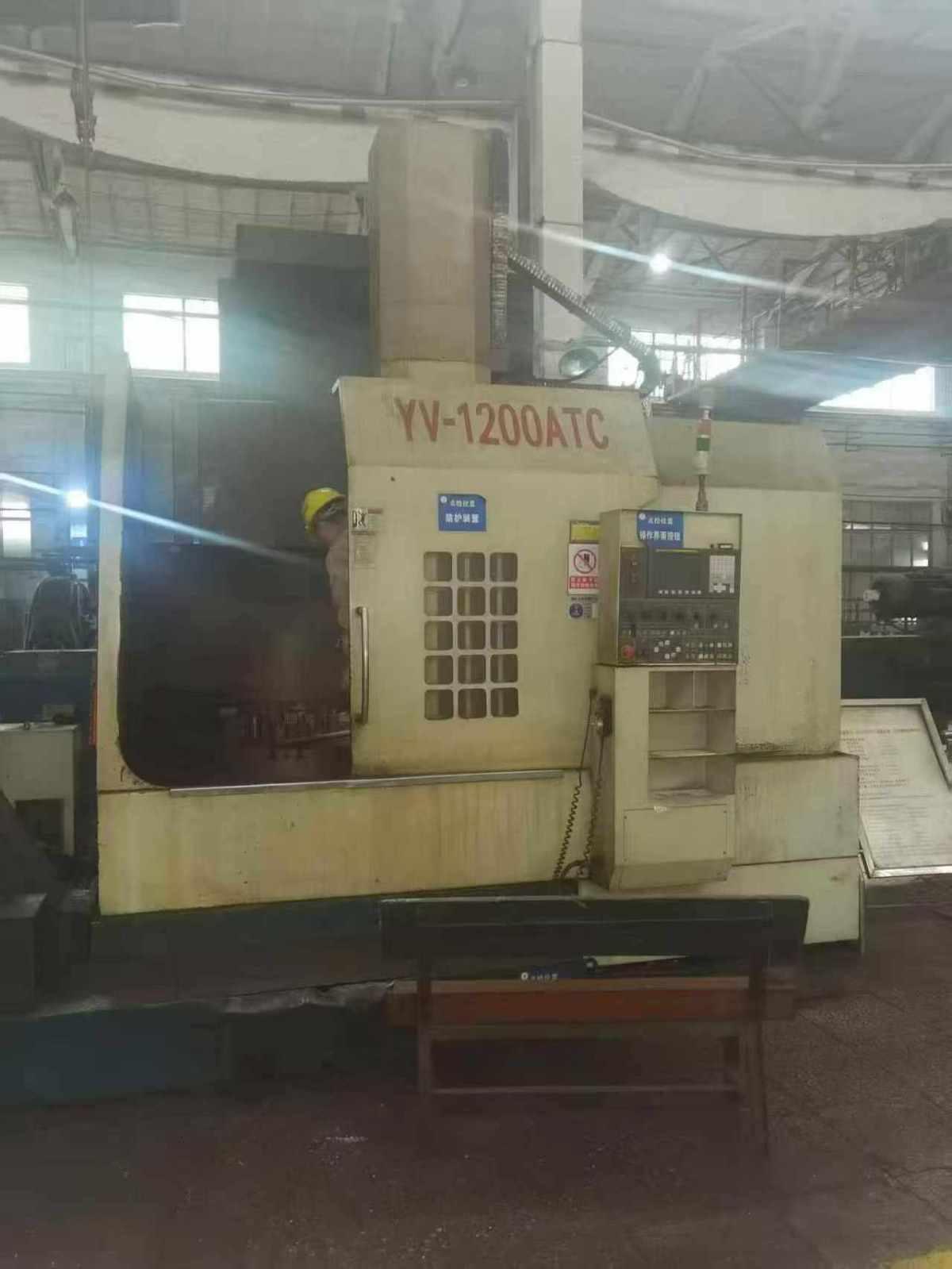

YouJi YV-1200ATC CNC vertical lathe

[Product Information]:

Inventory number：468548
Brand：YouJi
Model：YV-1200ATC
Origin：Taiwan, China
Location：China
Year：2005
Create Time：2026-08-19

Specifications:

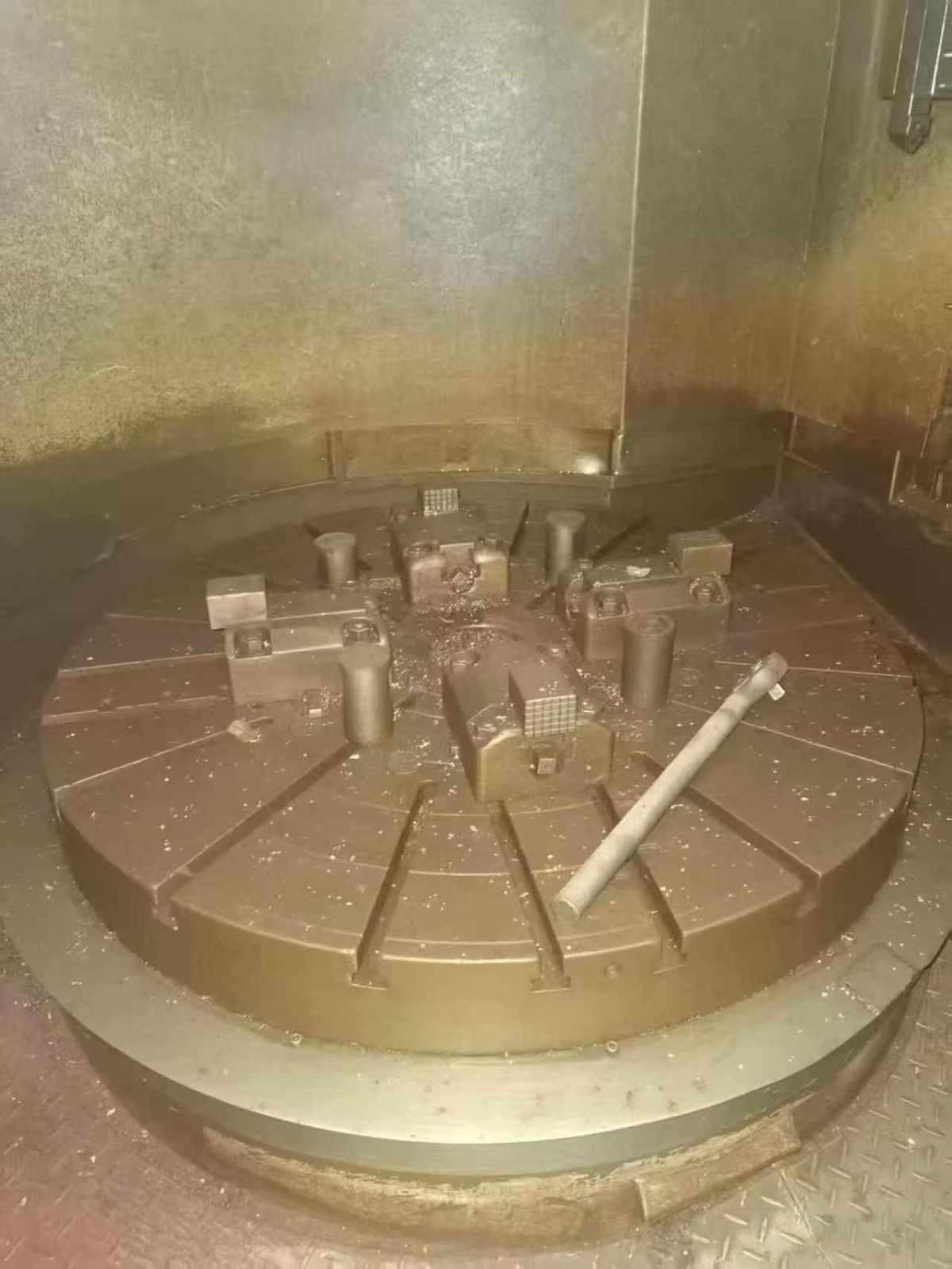

Countertop diameter ‌ : 1250mm
Rotational diameter ‌ : 1600mm
Cutting diameter ‌ : 1350mm
‌Cutting height ‌ : 1200mm
Weight of ‌ machining ‌ : 5000kg
‌X* z-axis travel ‌ : 935*900mm
The up and down travel of the ‌ crossbeam ‌ : 700mm
‌Spindle speed ‌ : 108-350rpm
‌spindle torsion: 8200nm
‌Rapid feed rate ‌ : 12m/min
‌cutting feed rate ‌ : 2000mm/min
‌Manual feed rate ‌ : 10m/min
‌spindle motor power: 37kW/45kW
‌Positioning precision: 0.005mm
floor area ‌ : 4000*4600mm

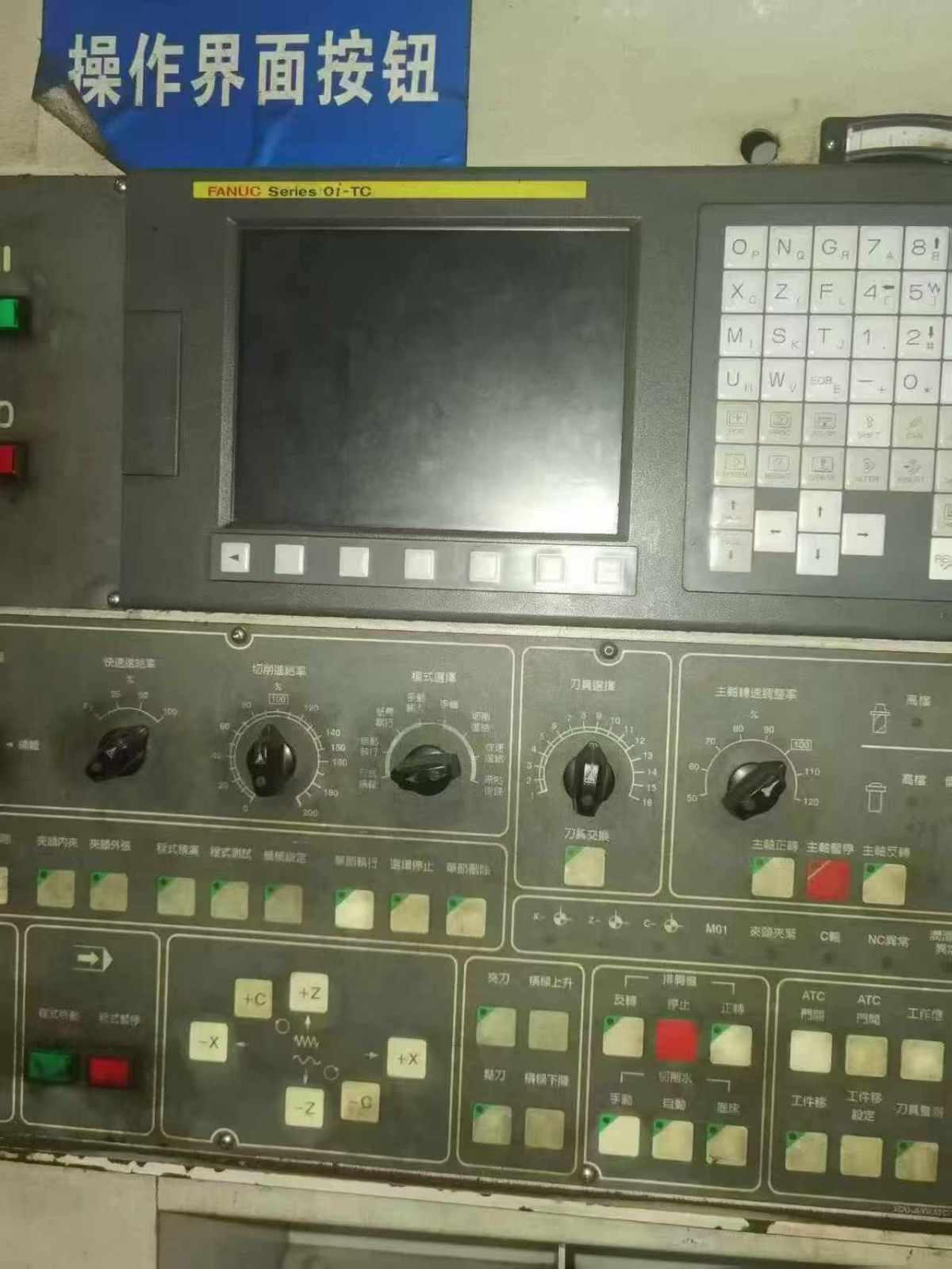

CNC System: FANUC 0i-TC
