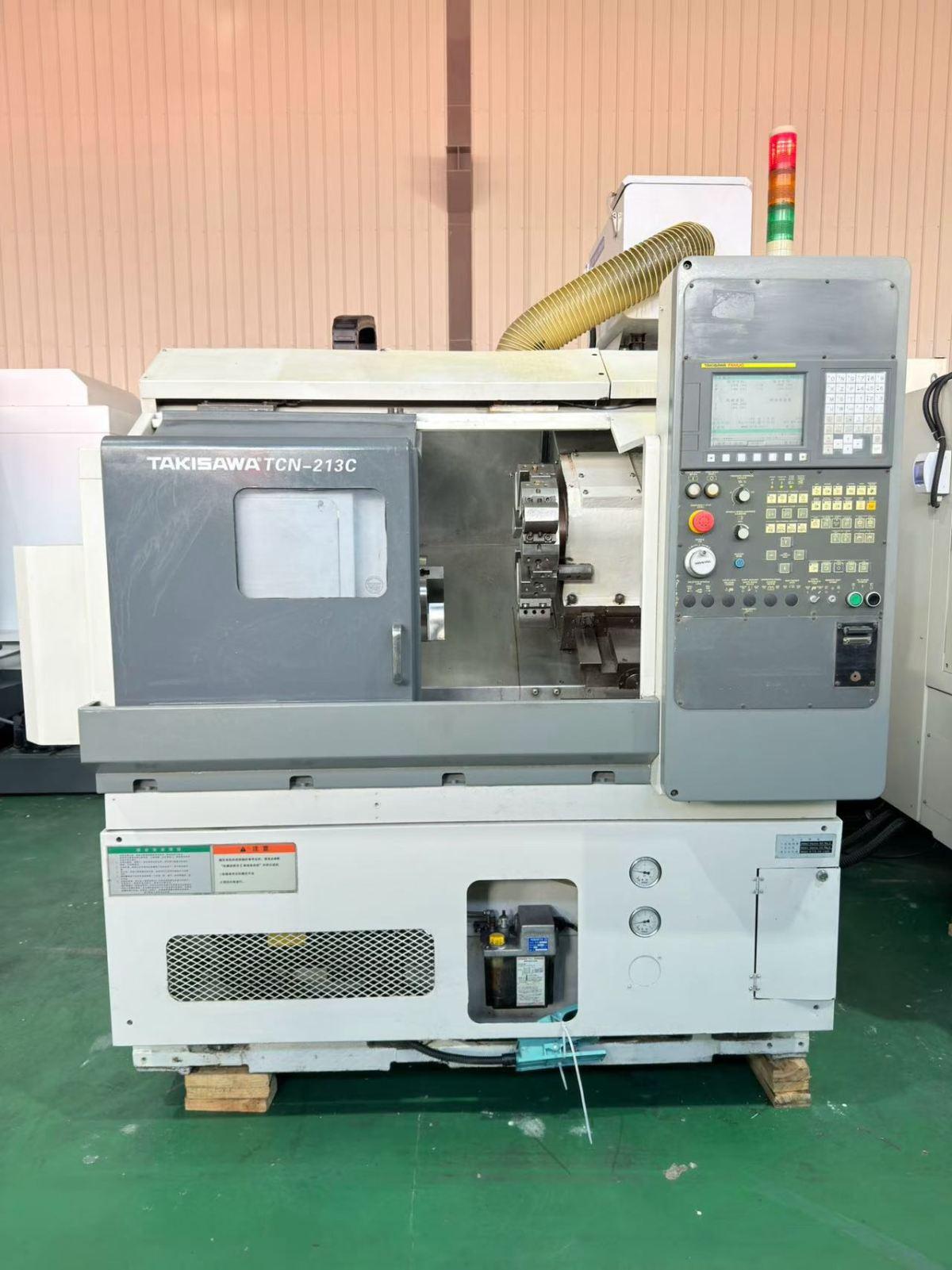

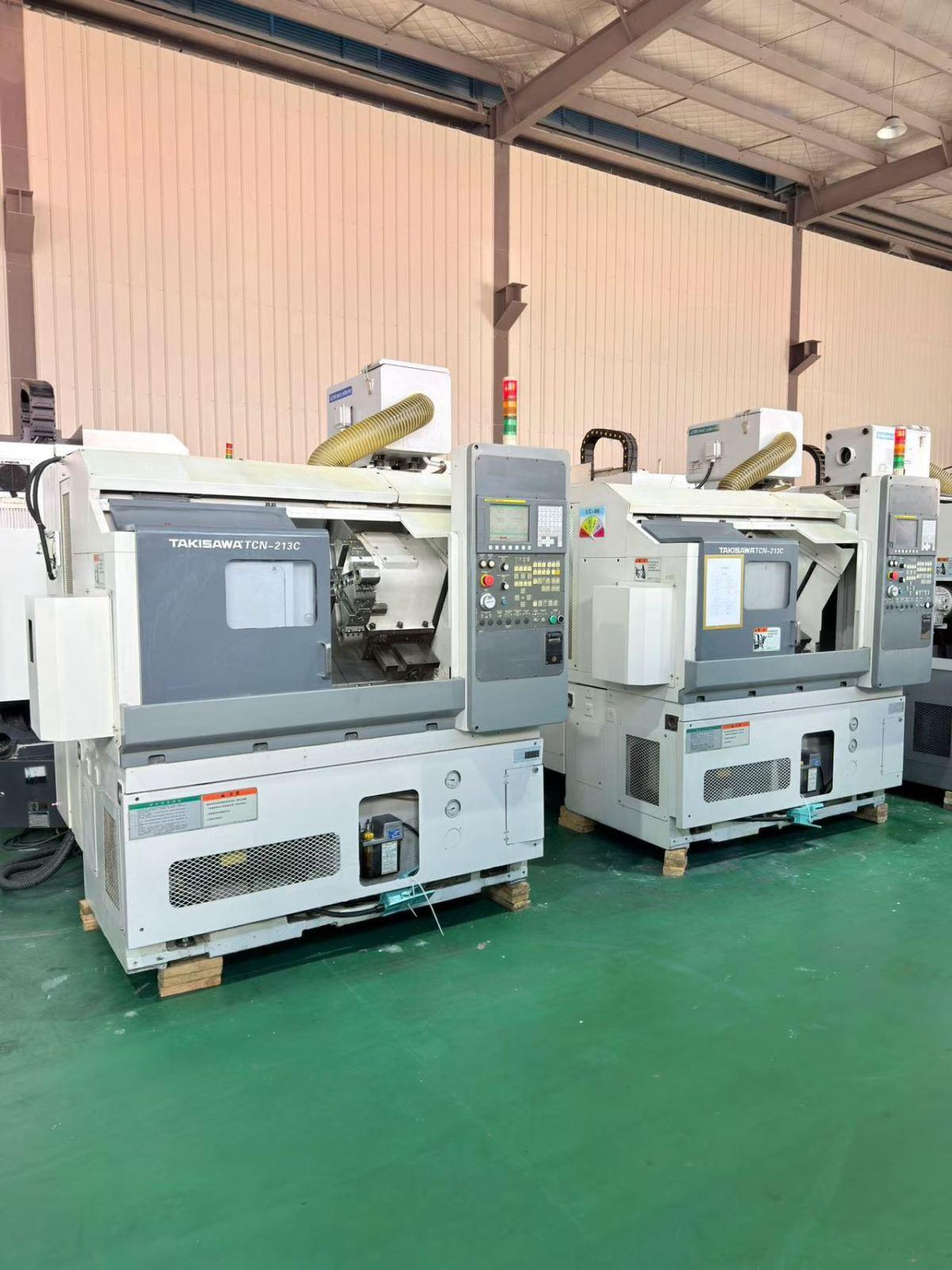

Takisawa TCN-213C CNC turning lathe

[Product Information]:

Inventory number：812934
Brand：Takisawa
Model：TCN-213C
Origin：Taiwan, China
Location：China
Year：2015
Create Time：2026-08-17

Specifications:

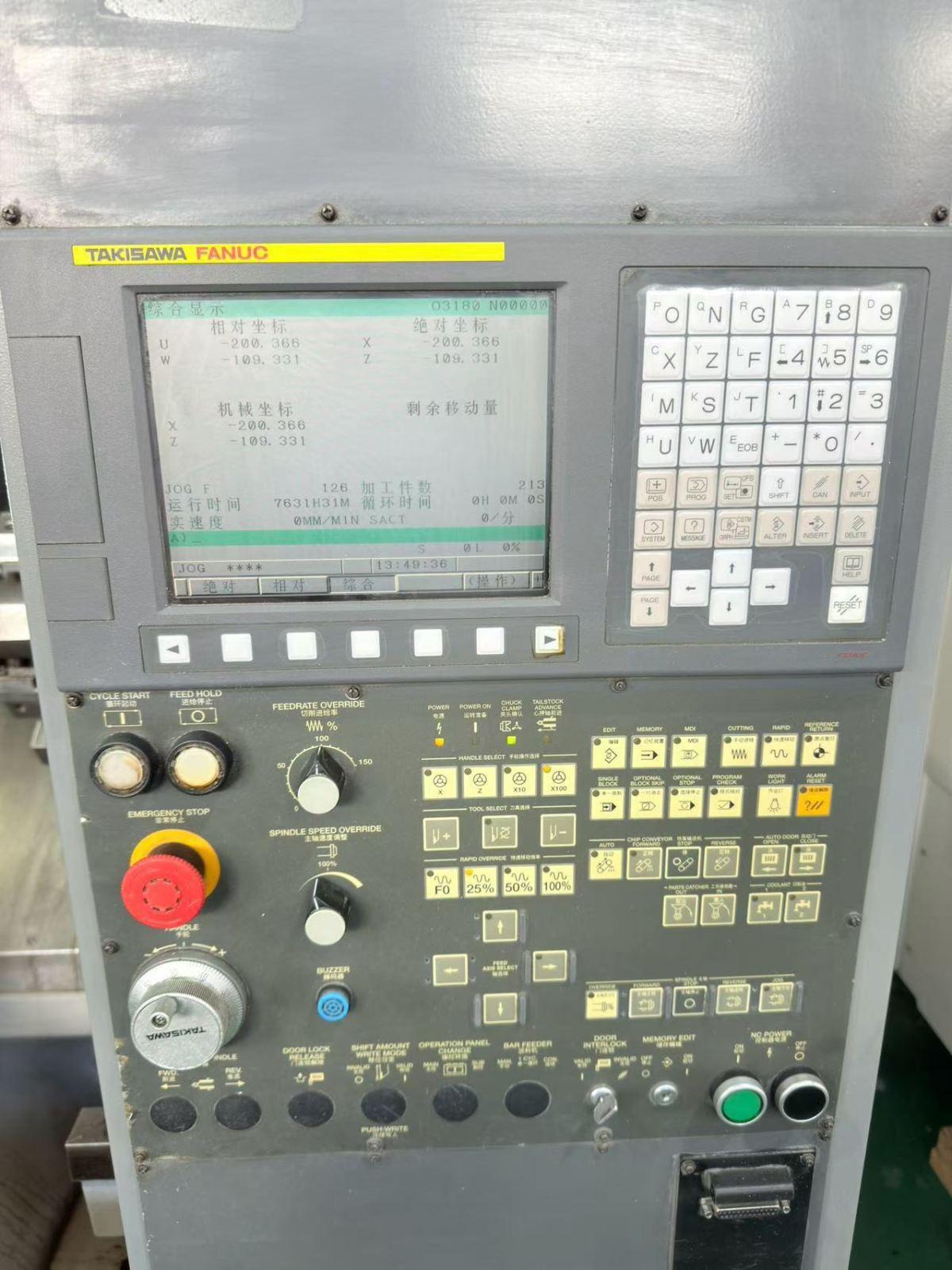

CNC System: FANUC TD
Spindle Speed: 6000 rpm
X/Z-Axis Travel (X/Z): 420 × 370 mm
Guideway Type: Box Ways on X/Z Axes
Maximum Machining Diameter: 410 mm
Maximum Machining Length: 301 mm
Maximum Bar Capacity: 51 mm

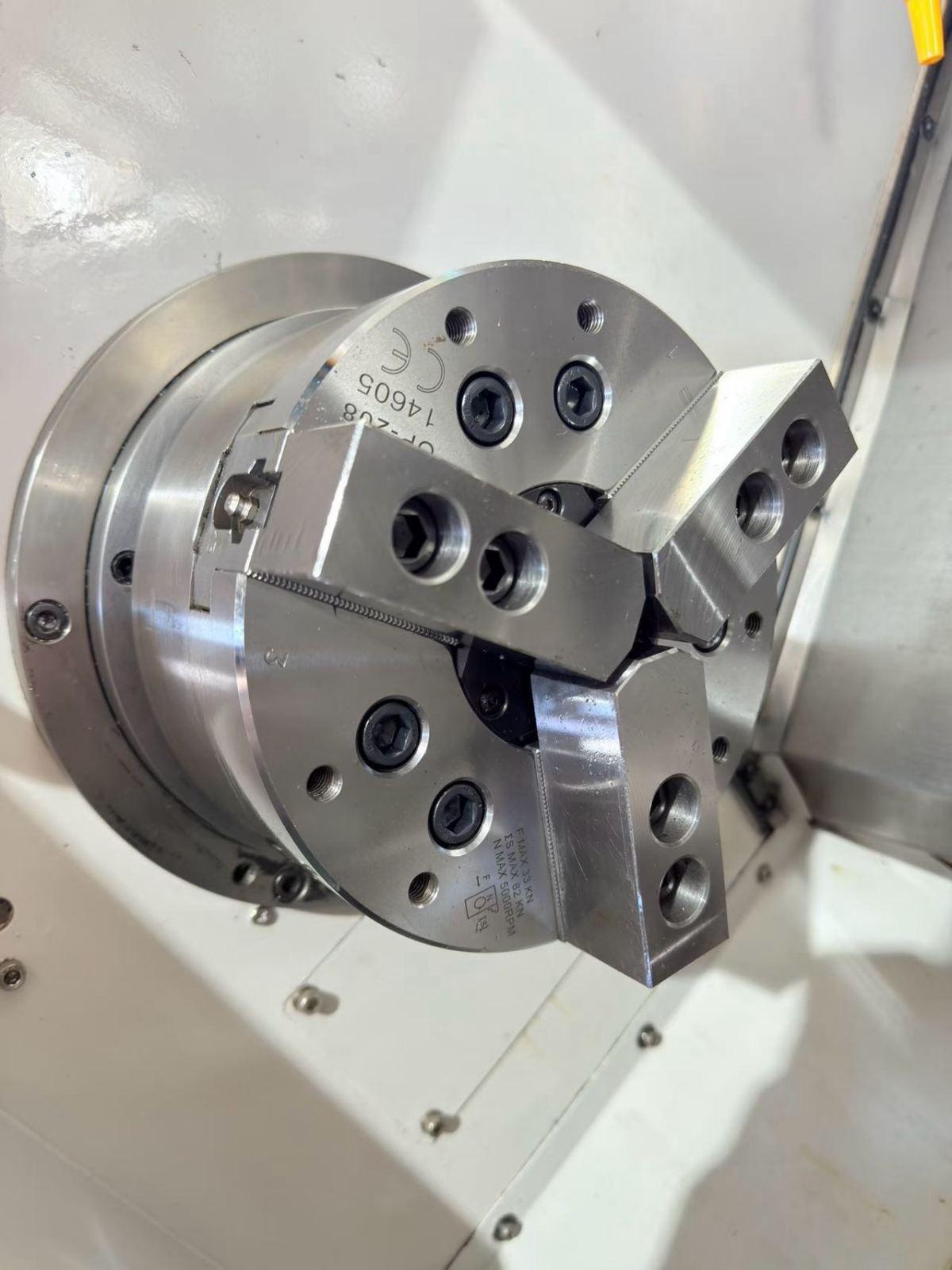

Chuck: Taiwan Qian Dao 8-inch Hydraulic Chuck

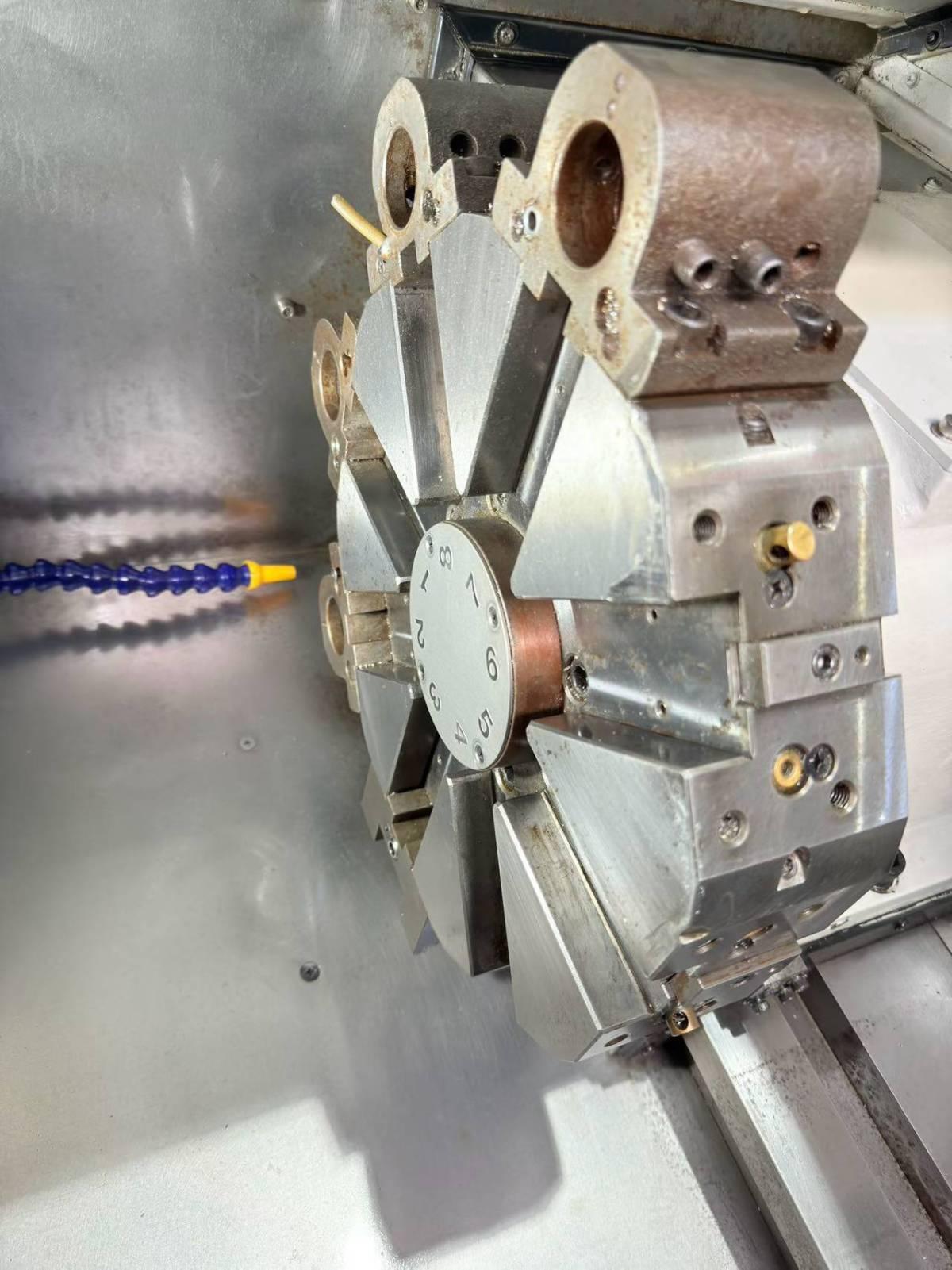

Turret Capacity: 8 Stations
Optional Configuration:
Gantry-Type Chip Conveyor
Oil Mist Collector
