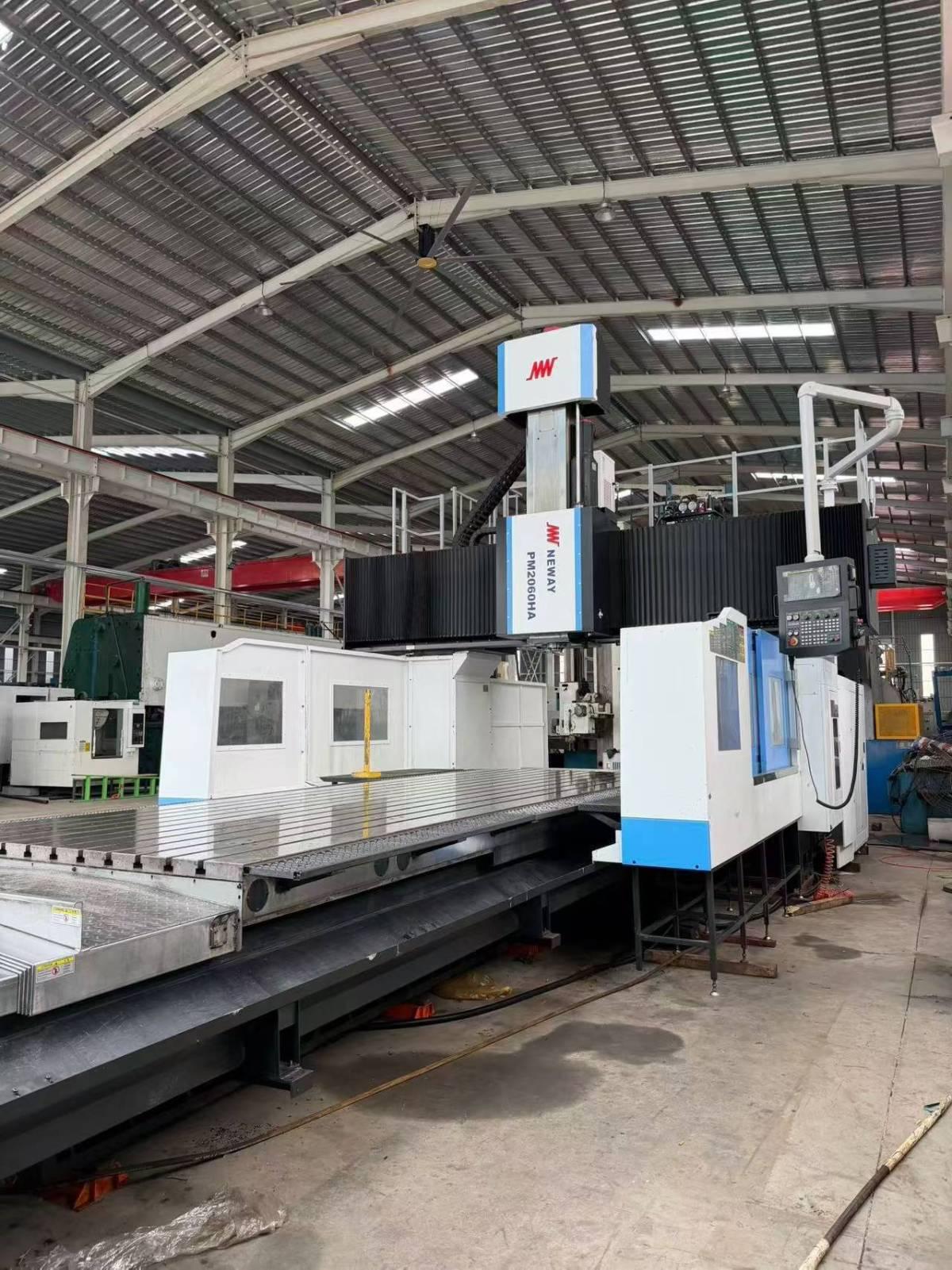

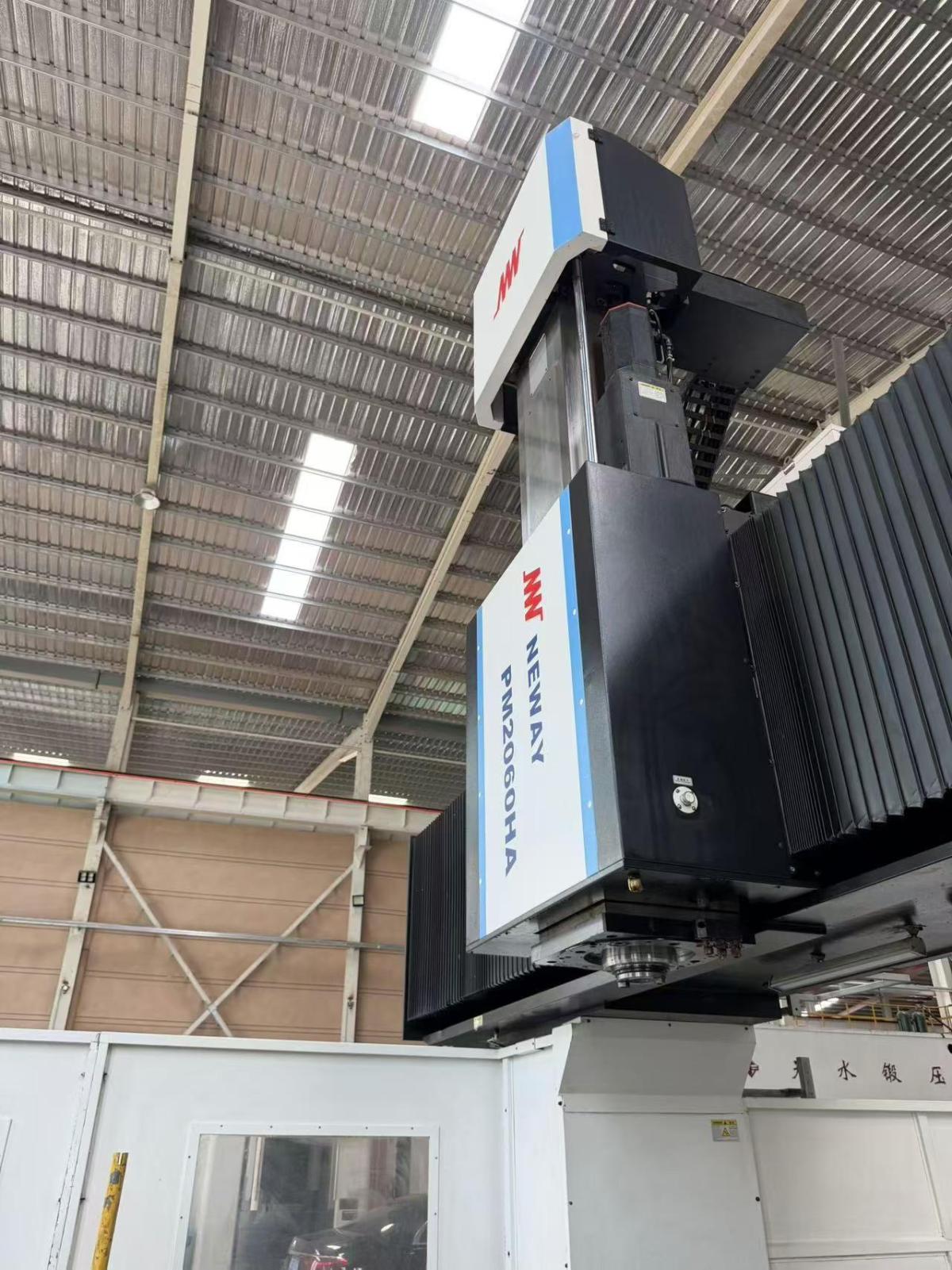

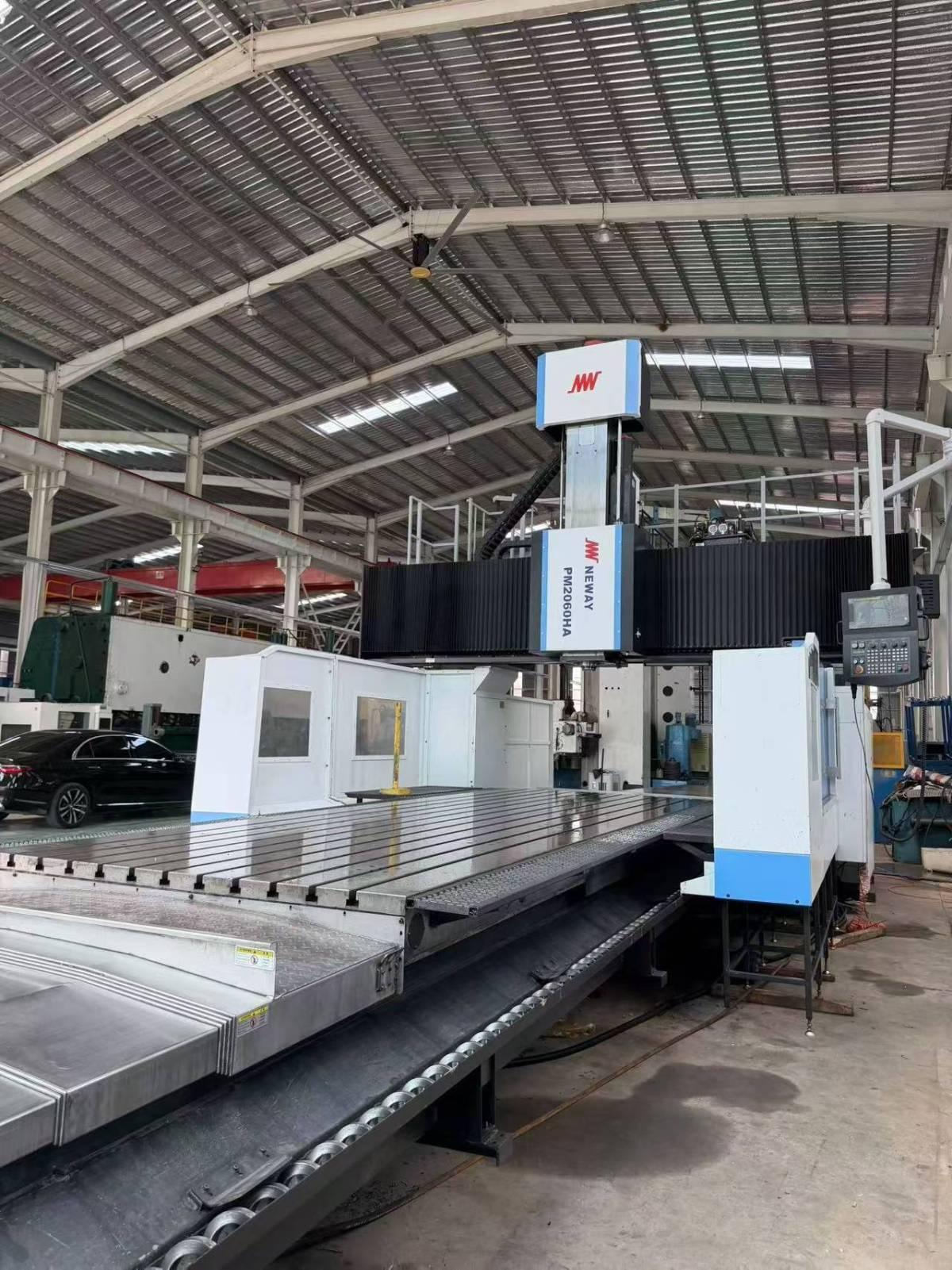

NEWAY PM2060HA Gantry machining centre

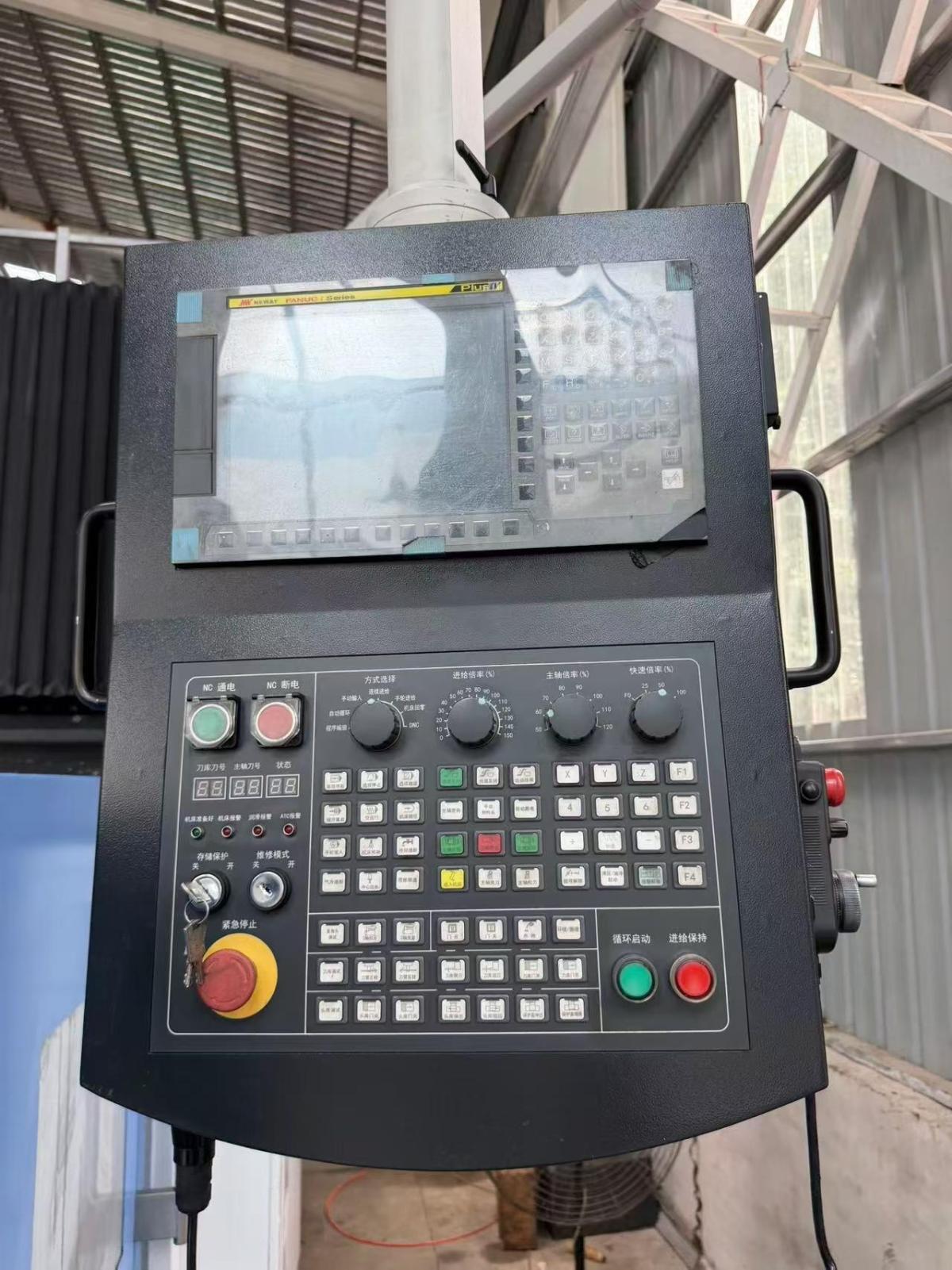

CNC System: FANUC
Three-axis travel: 6200 × 3200 × 1250 mm
Distance from spindle nose to worktable surface: 1200 mm
Gantry width: 3300 mm
Gantry height: 1750 mm
Distance between two columns: 2800 mm
Square ram size: 400 × 400 mm
Worktable size: 6000 × 2500 mm
Worktable load capacity: 26,000 kg
Tool holder specification: BT50
Spindle speed: 6000 rpm
Spindle power: 22/26 kW
Overall dimensions (L × W × H): 15000 × 6000 × 5400 mm
Machine weight: 55,000 kg
Configuration:

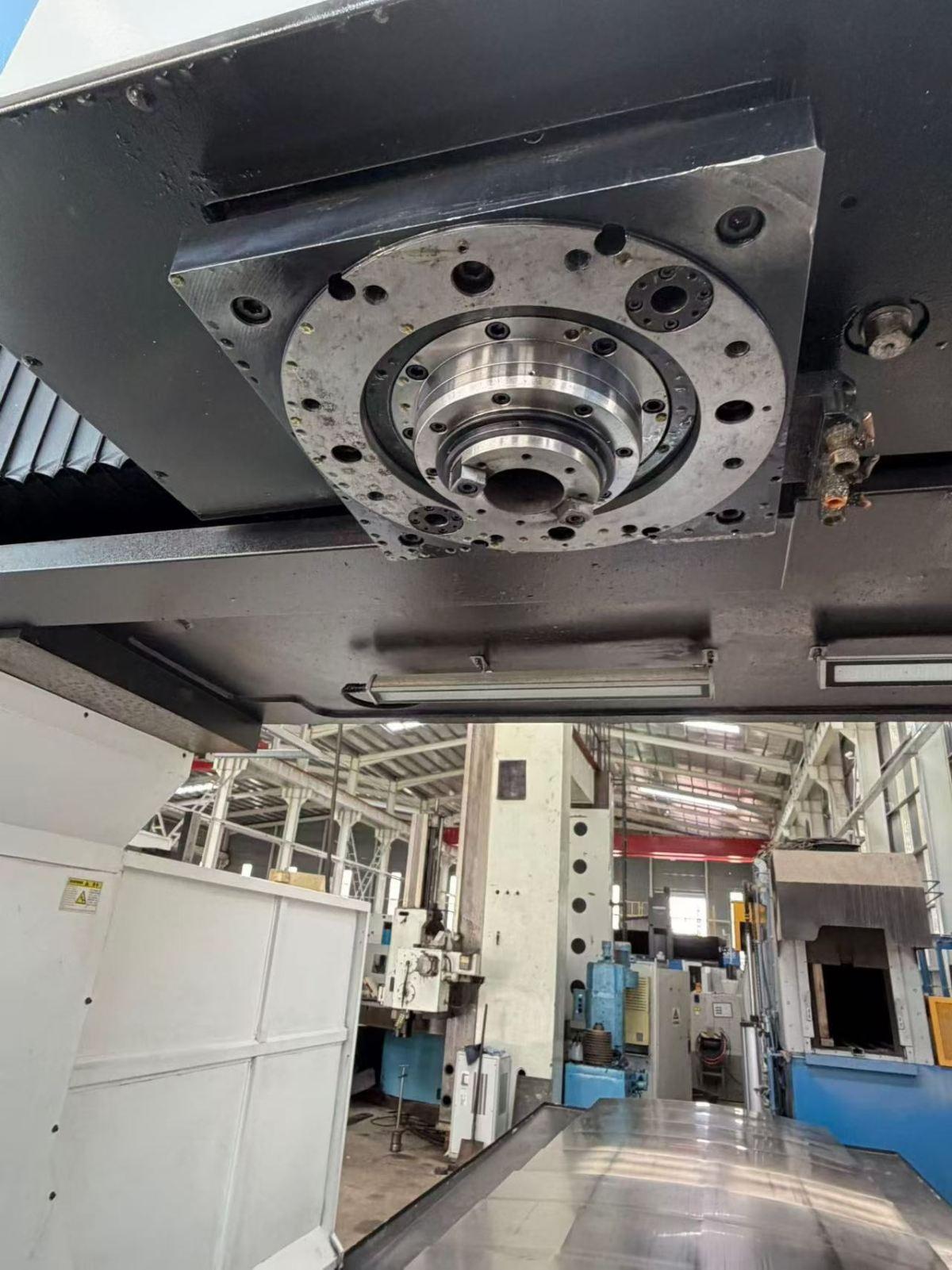

Fully automatic milling head
