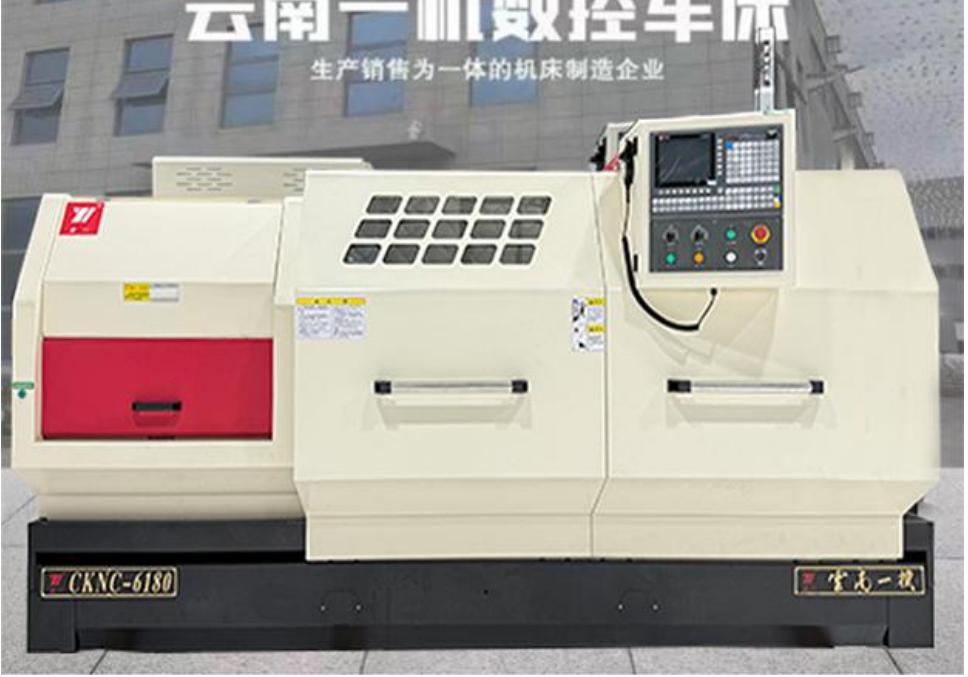

Yunnan Yiji CKNC6180 CNC turning lathe

CNC System: FANUC (Optional)
Machining Capacity
Maximum Swing Diameter Over Bed: Φ800 mm
Maximum Swing Diameter Over Slide: Φ480 mm
Maximum Center Distance: 1000 / 1500 / 2000 / 3000 mm
Maximum X-Axis Travel (Longitudinal): 470 mm
Maximum Z-Axis Travel (Longitudinal): 1000 / 1500 / 2000 / 3000 mm
Guideway Width: 600 mm
X/Z-Axis Ball Screws: 3210 / 6310
Rapid Traverse Rate:
X-Axis: 8 m/min
Z-Axis: 4 m/min
Machining Accuracy: IT6–IT7
Spindle
Spindle Head Model: C-11
Spindle Taper / Through Hole: External 1:4; Internal 1:20 / Φ105 mm
Spindle Speed: Three-speed gearbox with variable frequency drive and stepless speed adjustment within each range
Low Range: 45–125 rpm
Medium Range: 110–350 rpm
High Range: 290–950 rpm
Chuck Size: Φ630 mm Four-Jaw Chuck
Accuracy
Positioning Accuracy:
X-Axis (Longitudinal): ≤0.02 mm
Z-Axis (Longitudinal): ≤0.025 mm
Repeat Positioning Accuracy:
X-Axis (Longitudinal): ≤0.012 mm
Z-Axis (Longitudinal): ≤0.015 mm
Tool Rest
Type: Four-Station Tool Holder
Tool Holder Size: 300 × 300 mm
Tool Size: 40 × 40 mm
Tailstock
Tailstock Quill Diameter / Travel: Φ120 mm / 250 mm
Tailstock Center Taper: MT6
Motor
Main Motor Power: 15 kW (Variable Frequency Motor)
Configuration：
Φ630 mm Four-Jaw Chuck × 1 set
Double-Ended Wrenches × 1 set
Hex Socket Wrenches × 1 set
Shock-Absorbing Pads × 1 set
Screwdrivers × 1 set
Factory Certificate of Conformity × 1 copy
Packing List × 1 copy
Operation Manual (Electronic Version) × 1 copy
