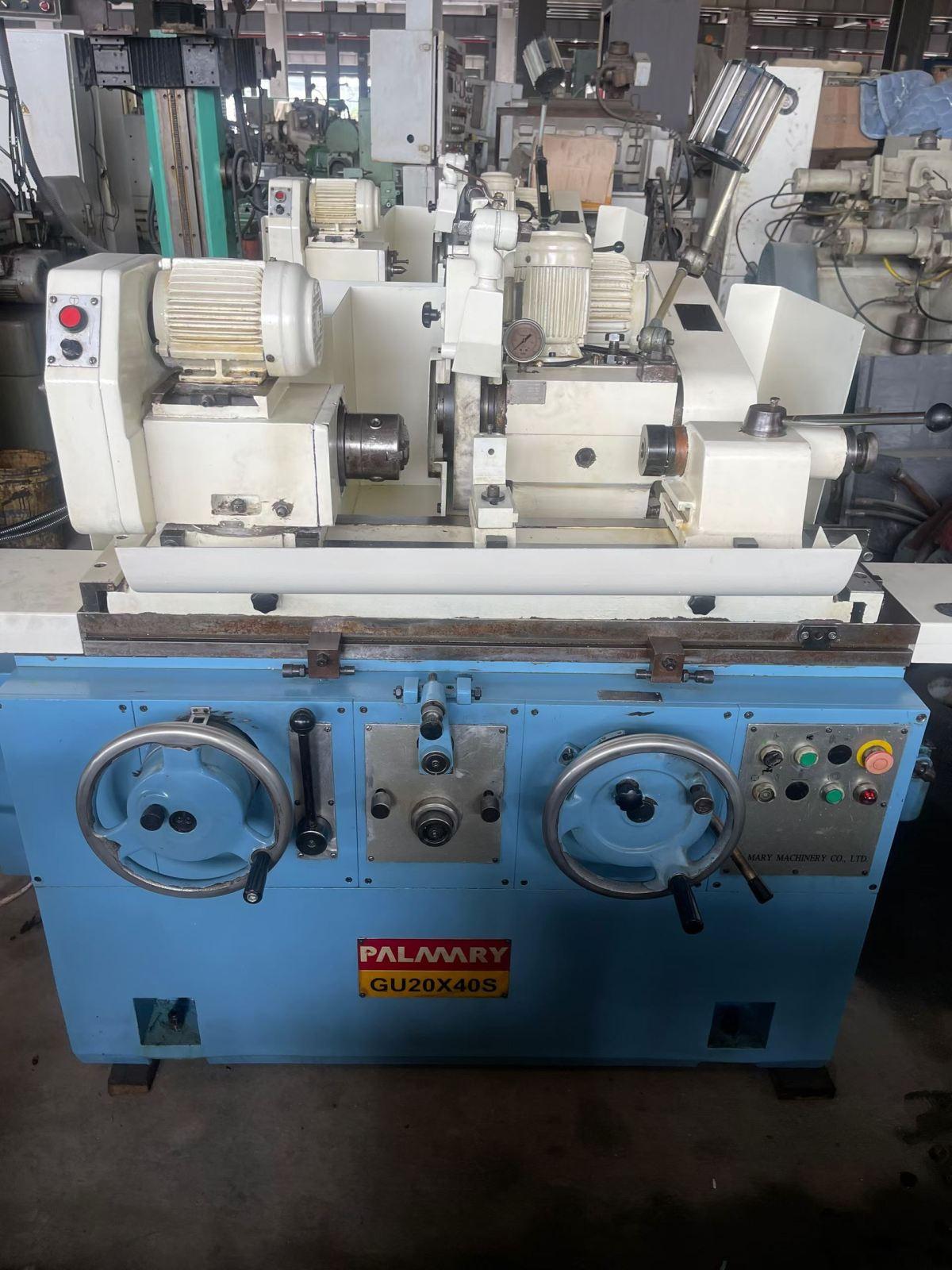

PALMARY GU2040S Cylindrical grinder

Center height: 100 mm
Maximum rotation diameter of Worktable: Φ 200mm
Actual maximum grinding external diameter: Φ 160mm
Maximum distance between the two centers: 400mm
The maximum load-Load of the two top workpiece is 60 kg
Maximum grinding length: 400mm
grinding wheel specification: Φ305 × 38 × Φ 127mm
The standard speed of the grinding wheel spindle is 2085 rpm
grinding wheel spindle motor: 3.7kW
