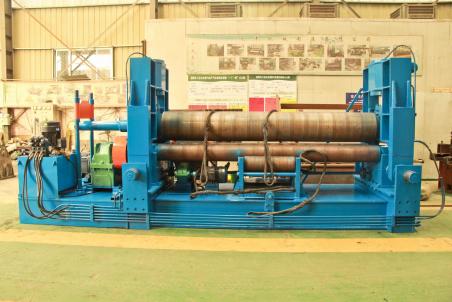

manhaTnc W11STNC-20X2500 other

Upper Roller Pressure: 130 Tons
Upper Roller Diameter: Ø320 mm
Lower Roller Diameter: Ø205 mm
Number of Idler Groups: 1 Group
Number of Idlers: 4
Maximum Rolling Plate Width: 2500 mm
Roller Working Length: 2550 mm
Driving Speed: Approx. 4 m/min
Rolling Capacity: σs ≤ 245 MPa
Symmetrical Rolling Capacity:
T20 × B2500 × Ømin 1000 mm
Asymmetrical Rolling Capacity:
T16 × B2500 × Ømin 1000 mm
Drive Motor Power: 18.5 kW
Hydraulic Station Motor Power: 5.5 kW
Horizontal Movement Motor Power: 2.2 kW
