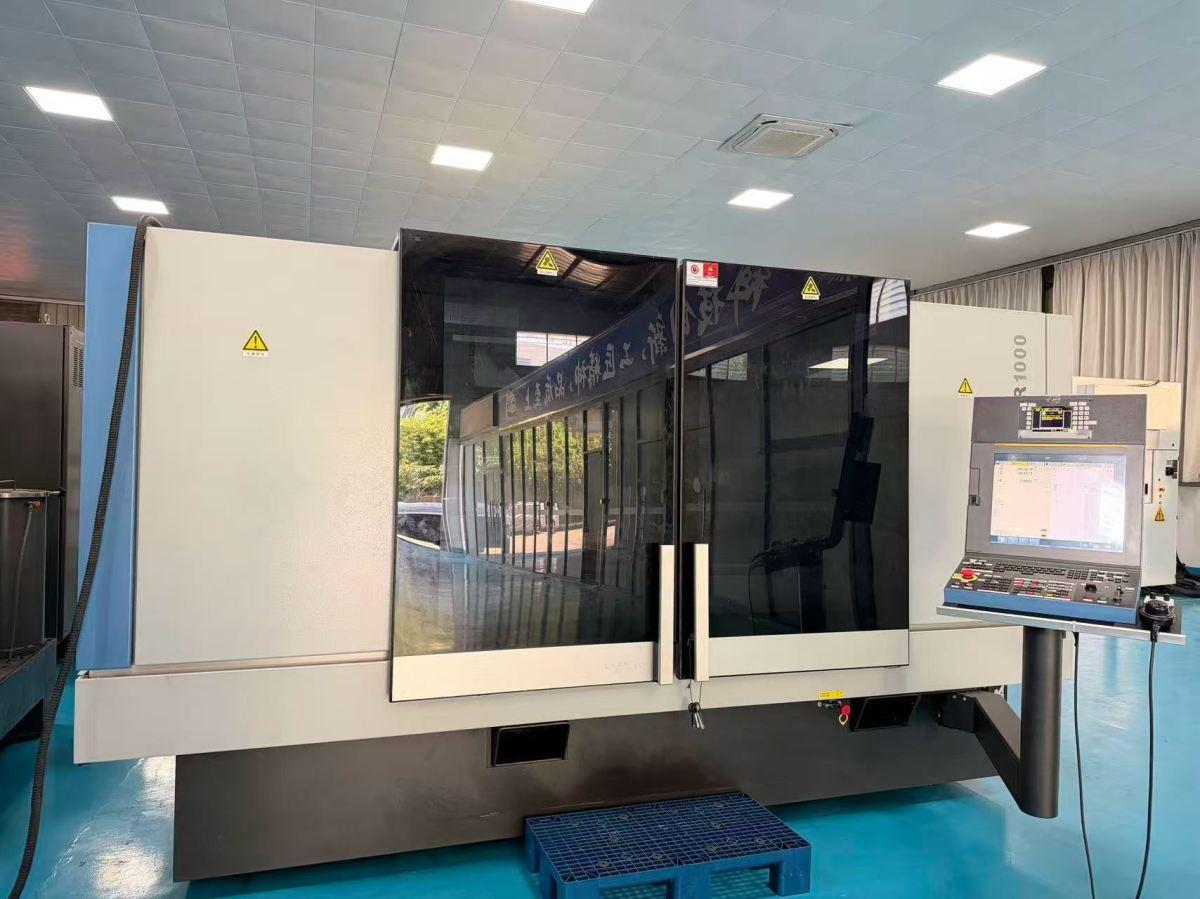

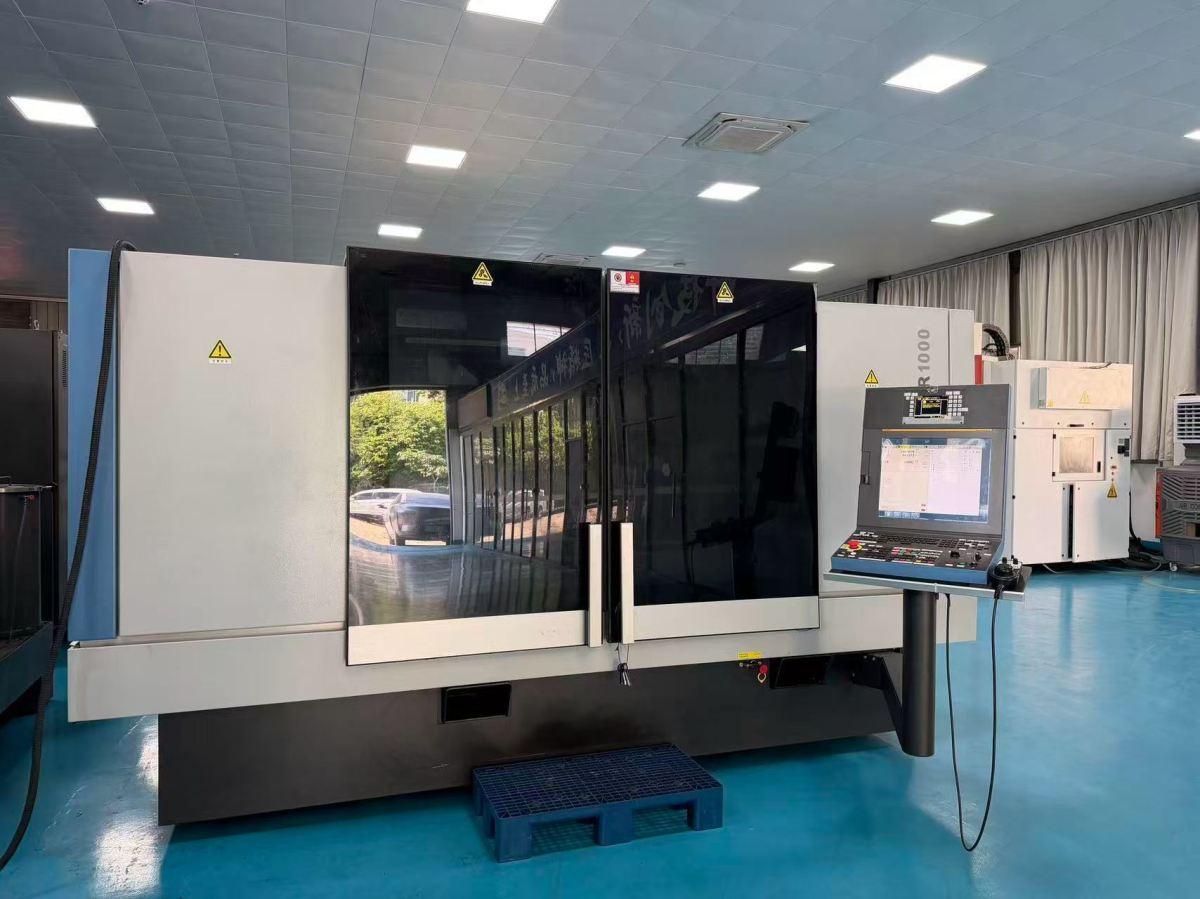

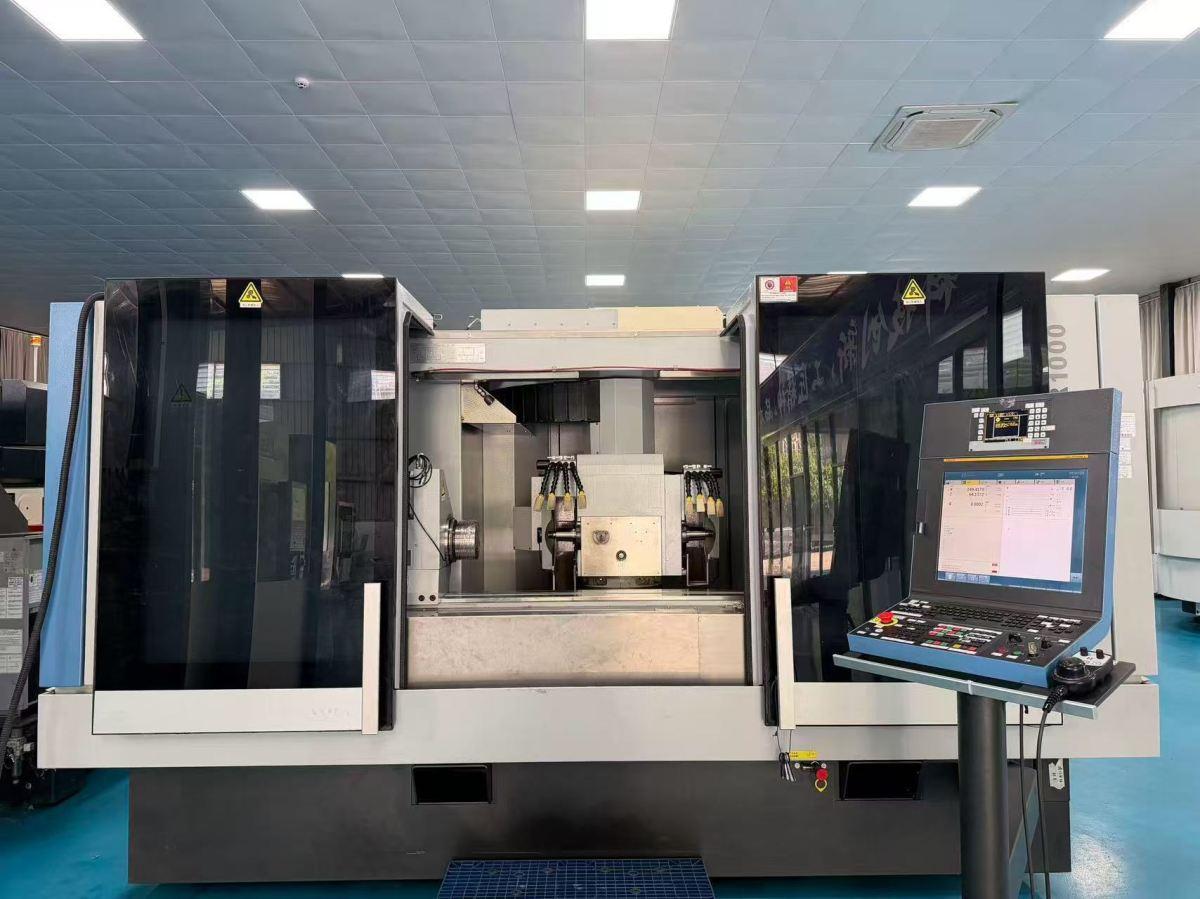

Kellenberger KELLENBERGER 1000 CNC Cylindrical grinder

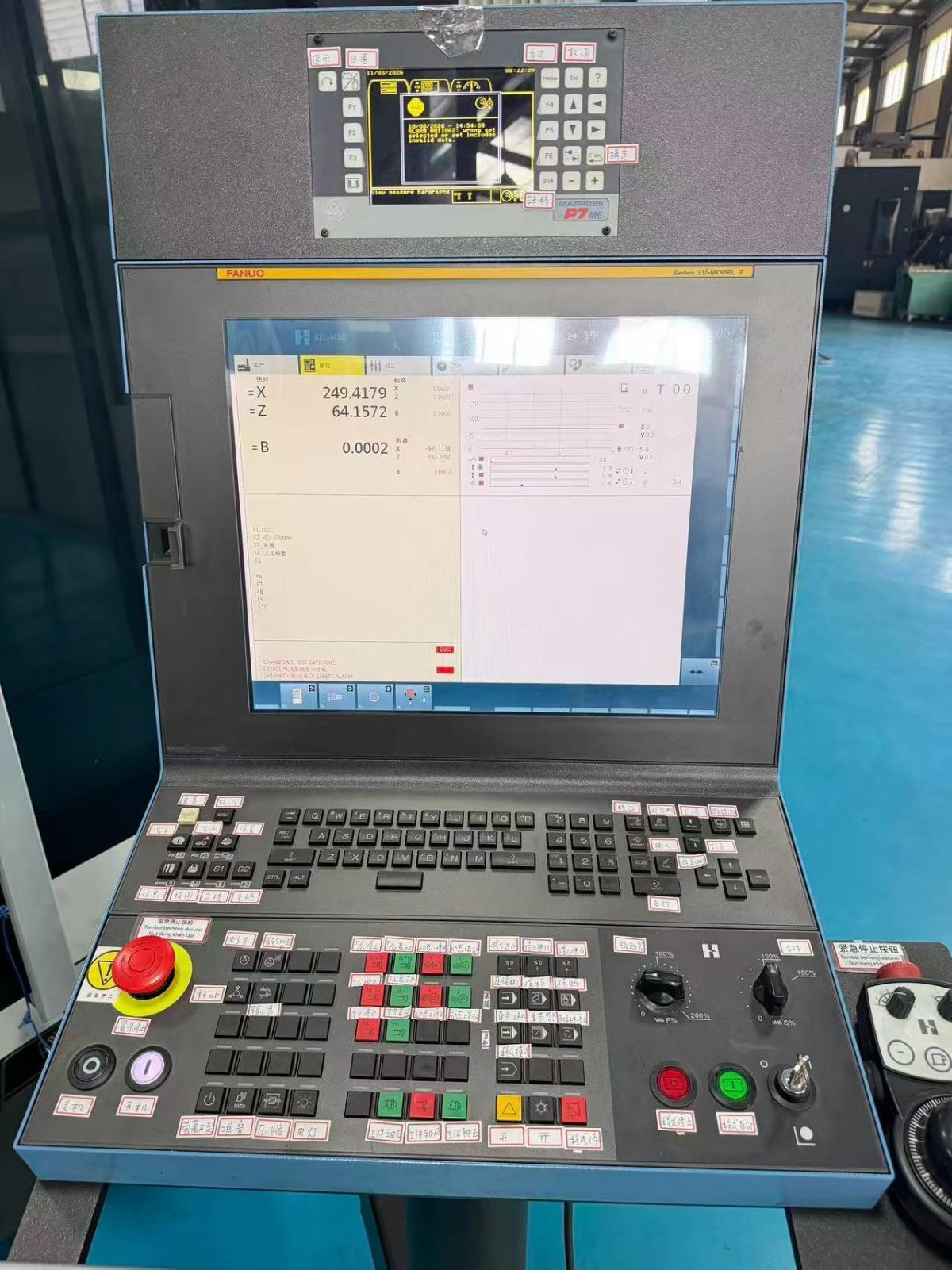

CNC System: FANUC 31i-B

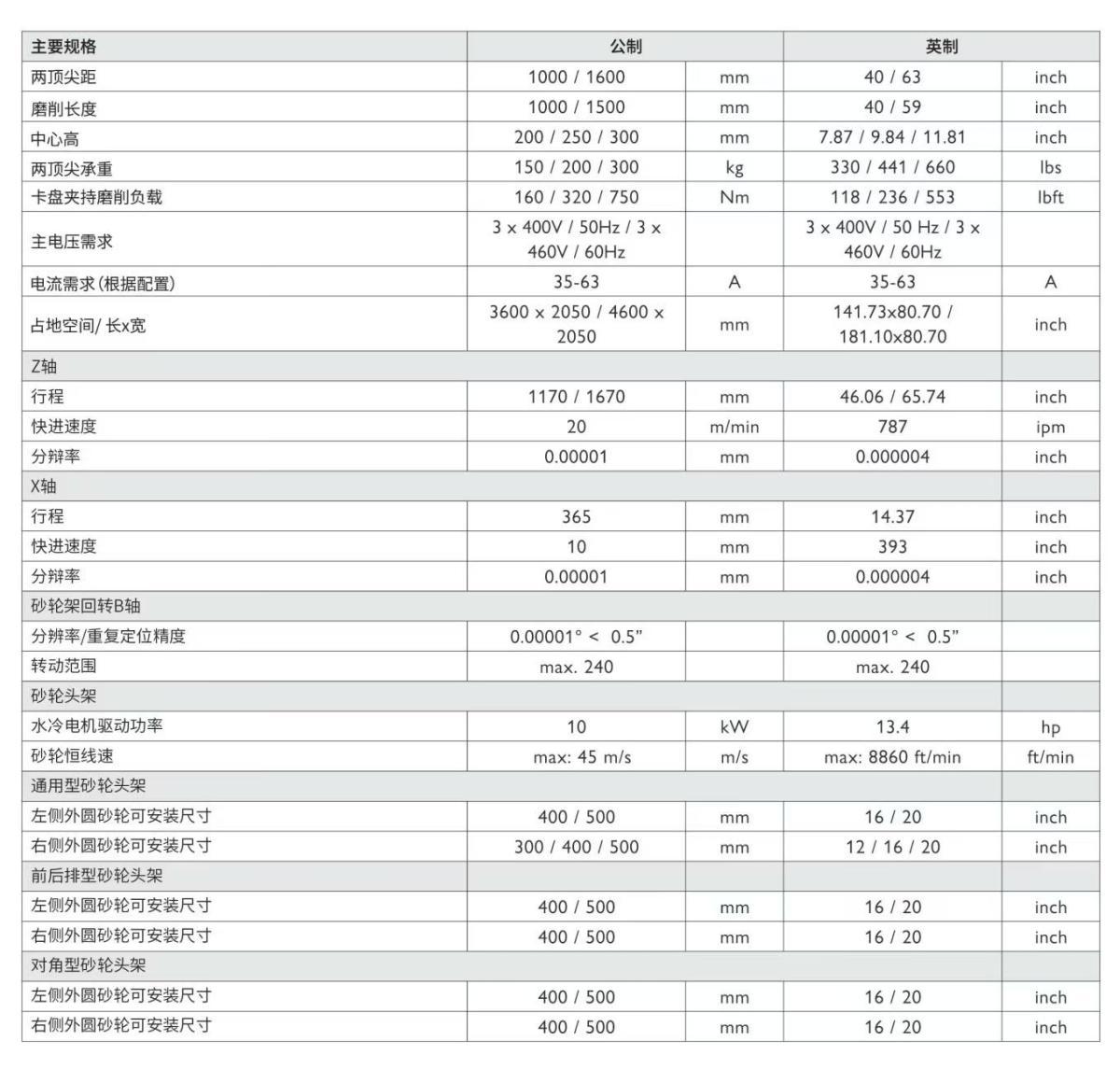

Machining Capacity
Distance between centers: 1000 / 1600 mm
Grinding length: 1000 / 1500 mm
Center height: 200 / 250 / 300 mm
Workpiece load between centers: 150 / 200 / 300 kg
Chuck clamping grinding load: 160 / 320 / 750 Nm
Electrical Parameters
Main power supply: 3 × 400V / 50Hz, 3 × 460V / 60Hz
Current requirement (depending on configuration): 35–63 A
Machine Dimensions
Floor space (L × W): 3600 × 2050 mm / 4600 × 2050 mm
Z-axis
Travel: 1170 / 1670 mm
Rapid feed rate: 20 m/min
Resolution: 0.00001 mm
X-axis
Travel: 365 mm
Rapid feed rate: 10 m/min
Resolution: 0.00001 mm
Grinding Wheel Headstock Rotation B-axis
Resolution / Repeatability: 0.00001° < 0.5″
Rotation range: Max. 240°

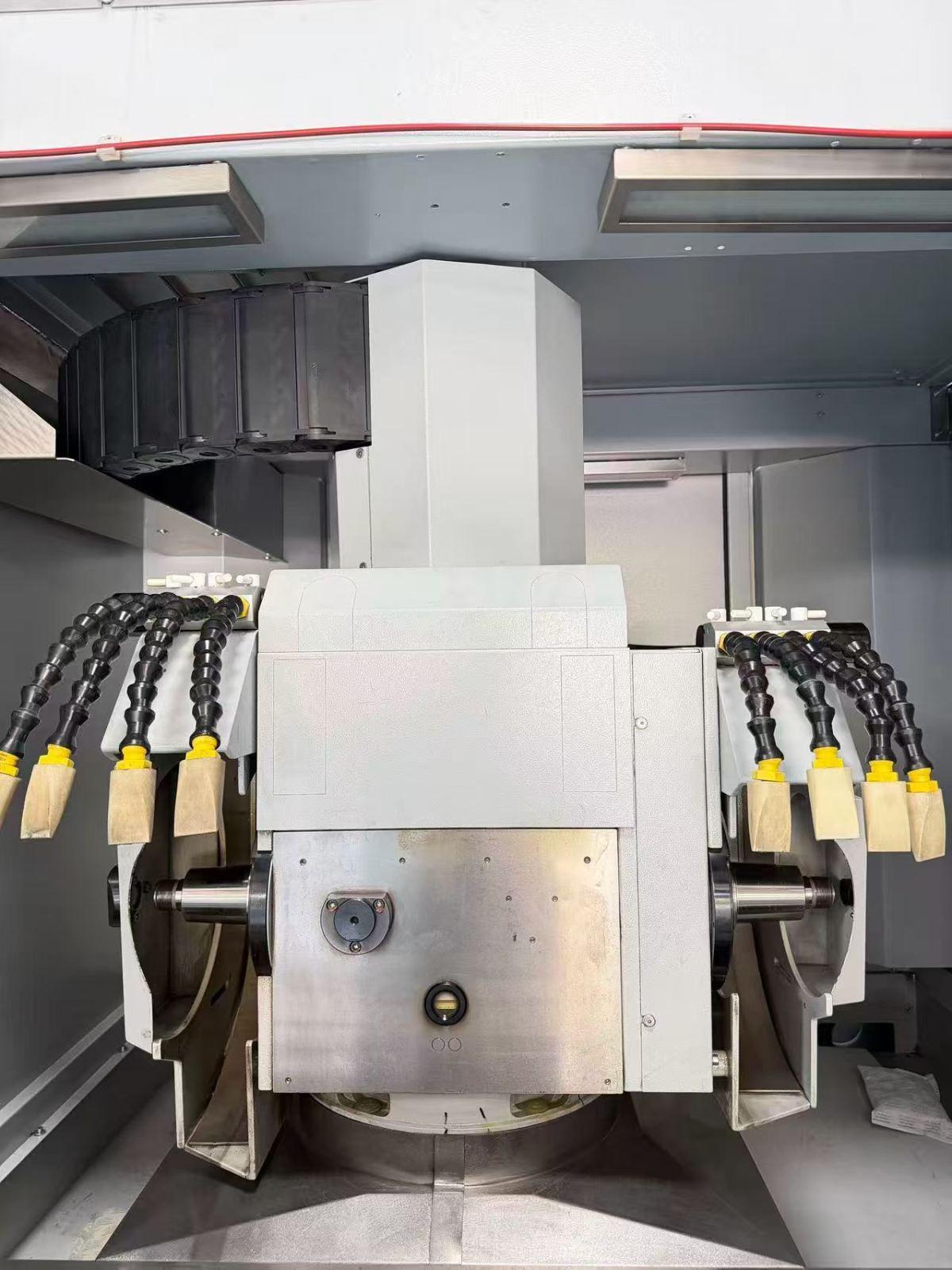

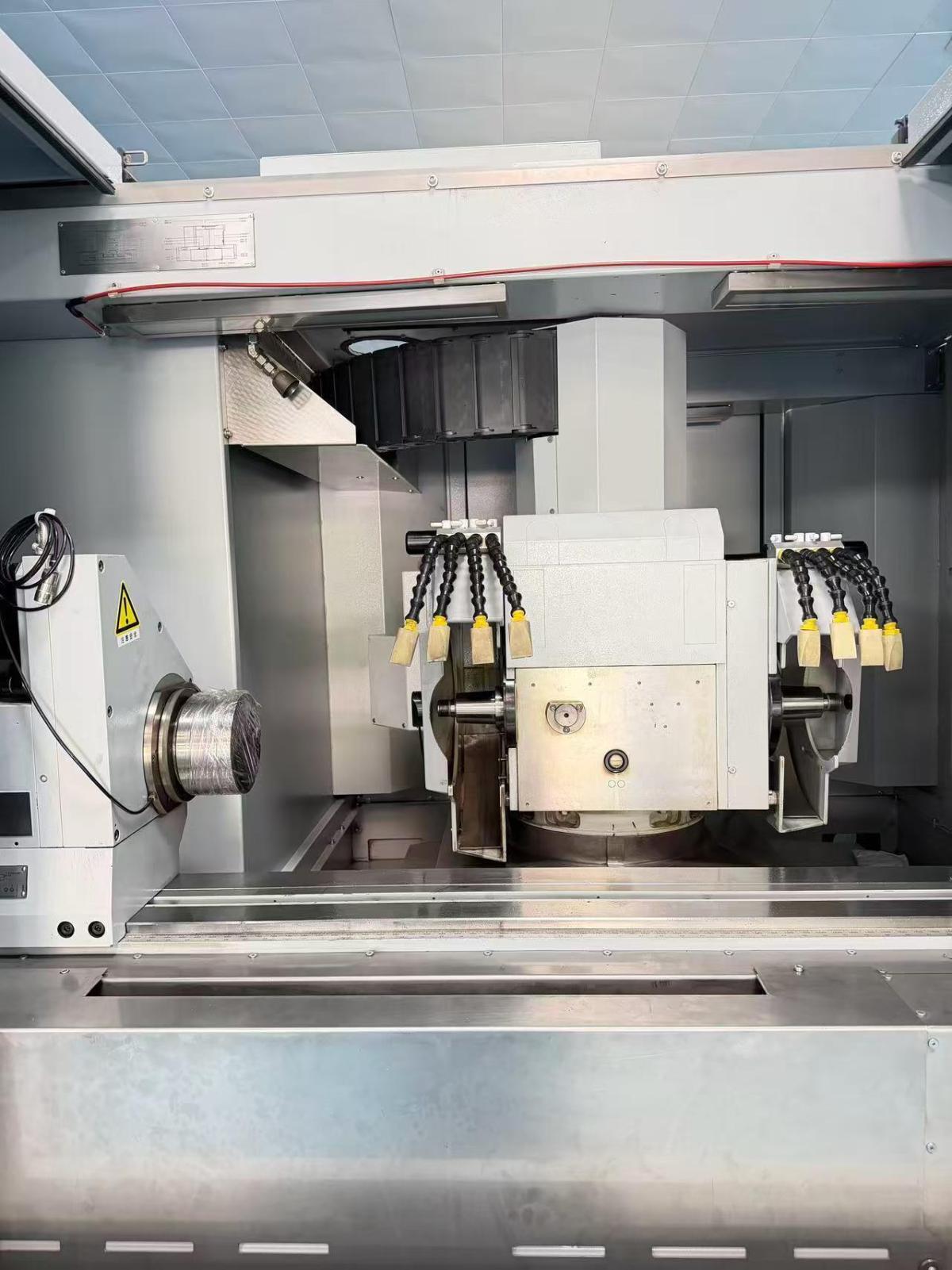

Grinding Wheel Headstock
Water-cooled motor drive power: 10 kW
Constant peripheral speed of grinding wheel: Max. 45 m/s
Universal Grinding Wheel Headstock
Left external grinding wheel mounting size: 400 / 500 mm
Right external grinding wheel mounting size: 300 / 400 / 500 mm
Front and Rear Grinding Wheel Headstock
Left external grinding wheel mounting size: 400 / 500 mm
Right external grinding wheel mounting size: 400 / 500 mm
Diagonal Grinding Wheel Headstock
Left external grinding wheel mounting size: 400 / 500 mm
Right external grinding wheel mounting size: 400 / 500 mm
Internal Grinding Spindle
Internal grinding spindle mounting bore: 120 mm
MFM High-frequency Spindle
Power: 10 / 15 kW
Maximum spindle speed:
MFM 1224/42: 42,000 rpm
MFM 1242/60: 60,000 rpm
MFM 1290: 60,000 rpm
Workpiece Headstock
Speed range: 1–1000 / 1–1000 / 1–500 rpm
Internal taper: MT5 / MT5 / MT6
Short external taper: ISO 702-1: Size 5 / Size 5 / Size 8
Fine adjustment range: ±1.5°
Tailstock
Internal taper: MT4
Quill travel: 50 / 80 mm
Fine adjustment range: ±75 mm
