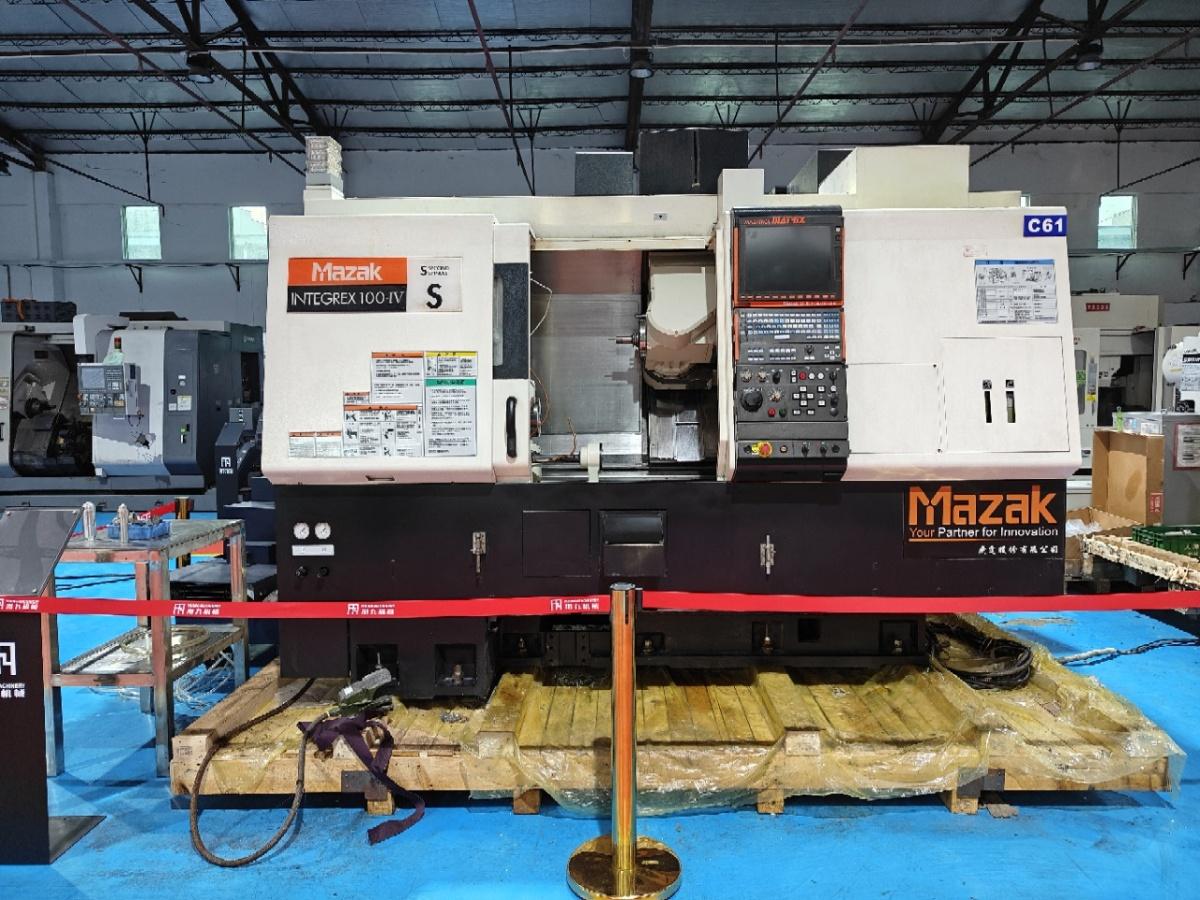

MAZAK INTEGREX 100-IV S Turn Mill Machining Centre

Maximum Machining Diameter: Φ600 mm
Maximum Machining Length: 860 mm
Three-Axis Travel (X/Y/Z): 535 × 210 × 900 mm
B-Axis Rotation Range: -30° to +210°
Spindle Chuck Size: 6 inches
Maximum Spindle Speed: 6000 rpm
C-Axis Indexing Accuracy: 0.0001°
Spindle Through-Hole Diameter: Φ61 mm
Milling Spindle Maximum Speed: 12,000 rpm
Milling Spindle Torque: 57.3 N·m
Tool Holder Specification: BT40
Tool Magazine Capacity: 40 tools (including tool holders)
