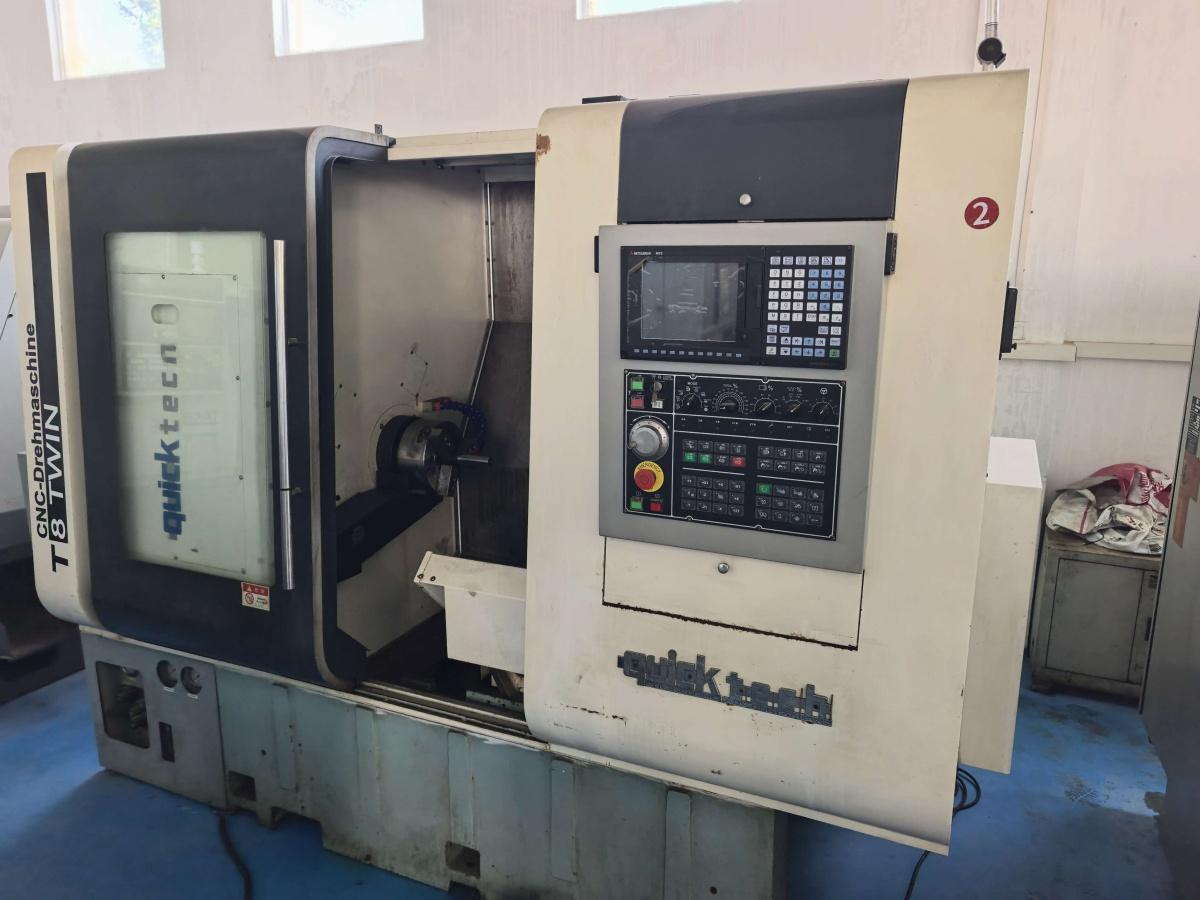

QUICK-TECH T-8 TWIN Turn Mill Machining Centre

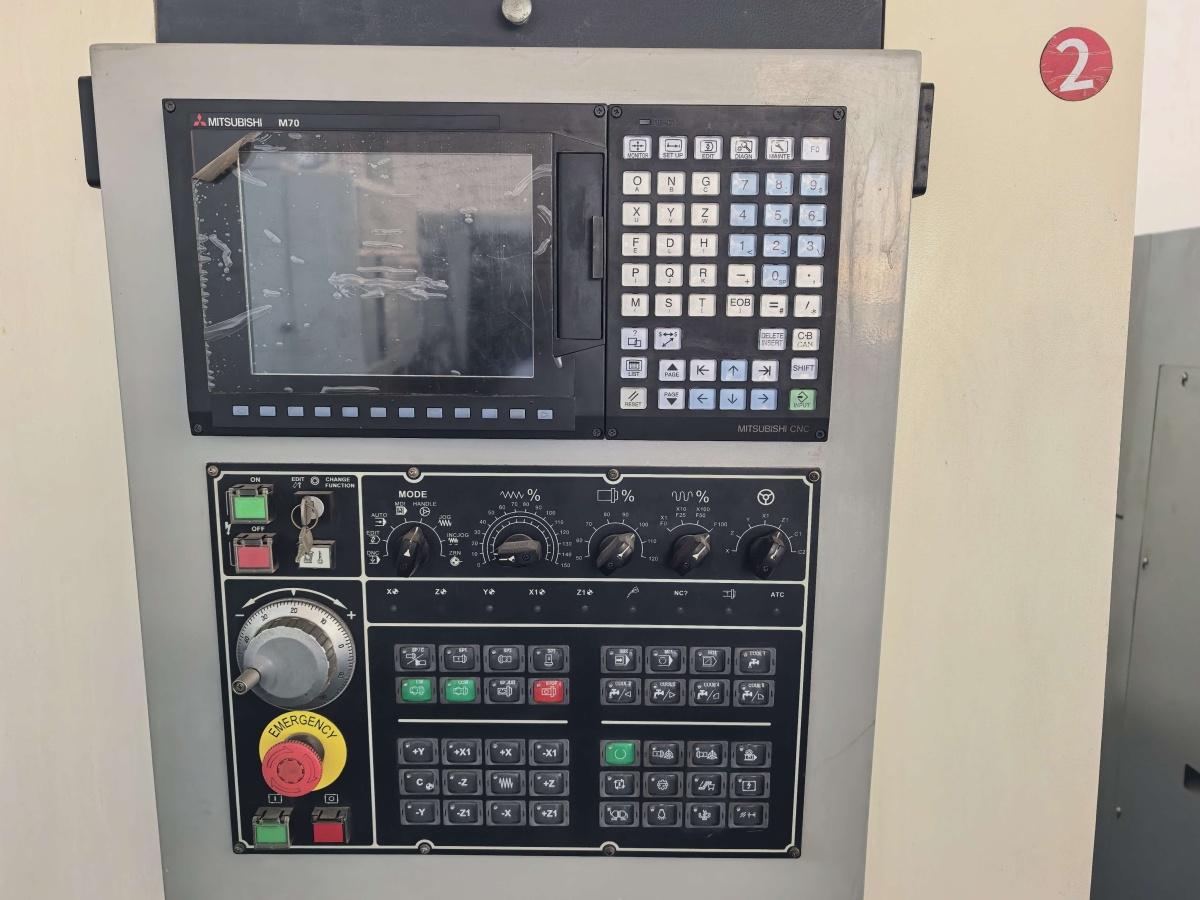

CNC System: Mitsubishi
Maximum Swing Over Bed: Φ500 mm
Maximum Swing Over Cross Slide: Φ300 mm
Maximum Bar Machining Capacity: Φ65 mm
Maximum Machining Length: 350 mm
Maximum Spindle Speed: 4000 rpm
Main Spindle Motor: 20 HP Integral Motor
C-Axis Indexing Precision: 0.001°
Sub-Spindle Maximum Bar Machining Capacity: Φ42 mm
Sub-Spindle Maximum Machining Length: 335 mm
Sub-Spindle Maximum Speed: 4000 rpm
Sub-Spindle Motor: 7.5 HP Integral Motor
Sub-Spindle C-Axis Indexing Precision: 0.001°
Rapid Traverse Rate: 30 m/min

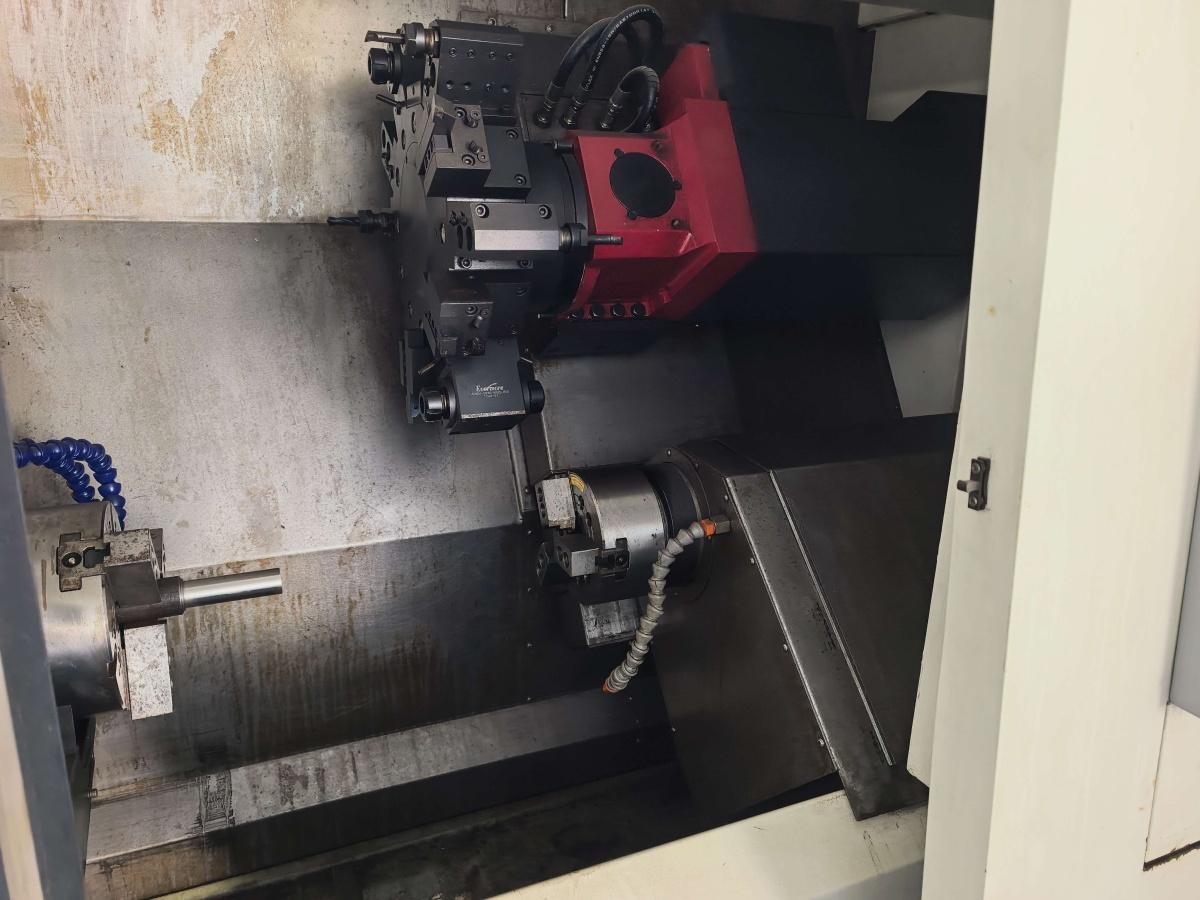

Tool Turret Type: BMT-55 Servo Tool Turret
Number of Tool Positions: 12
Number of Live Tool Positions: 12
Square Tool Holder Size: 25 × 25 mm
Boring Bar Capacity: Φ25 mm
Live Tool Motor: 5 HP
Maximum Live Tool Speed: 4000 rpm
