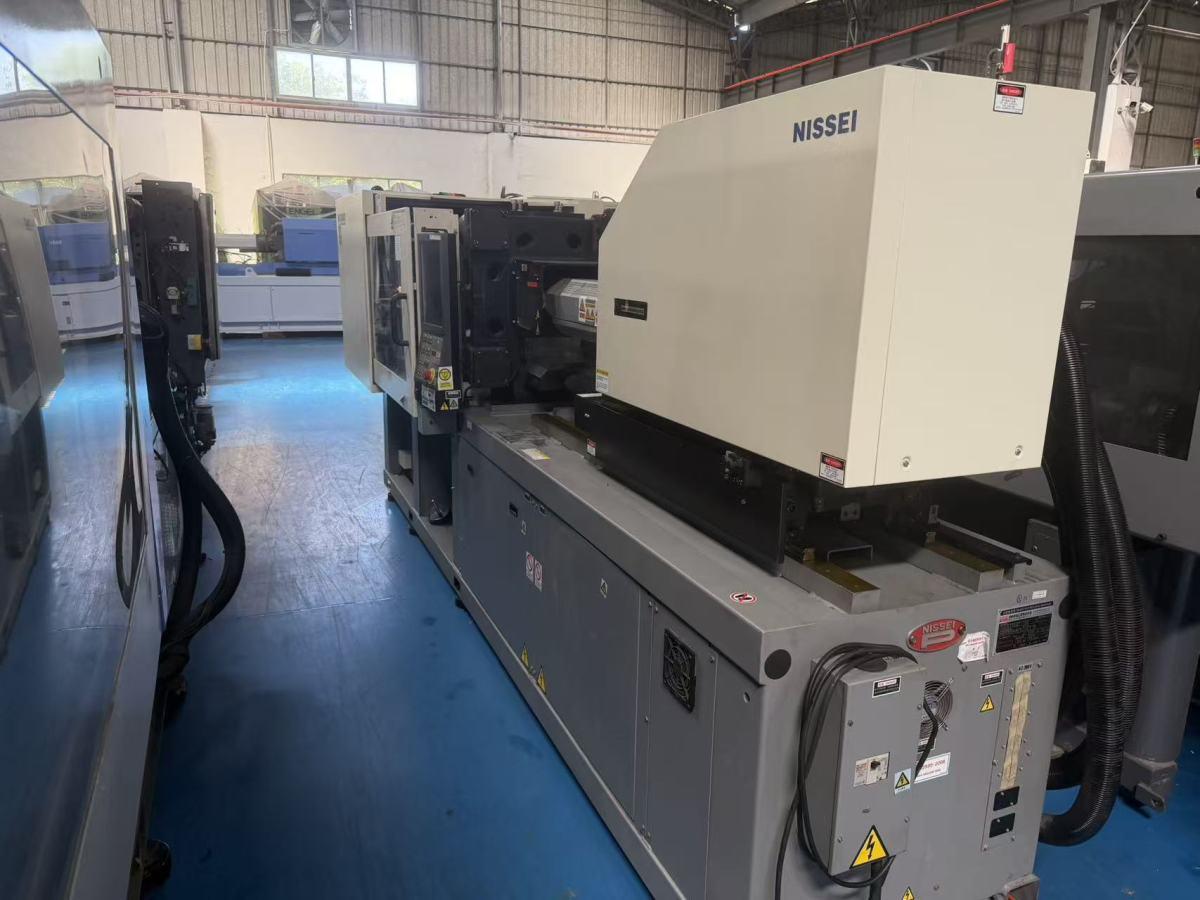

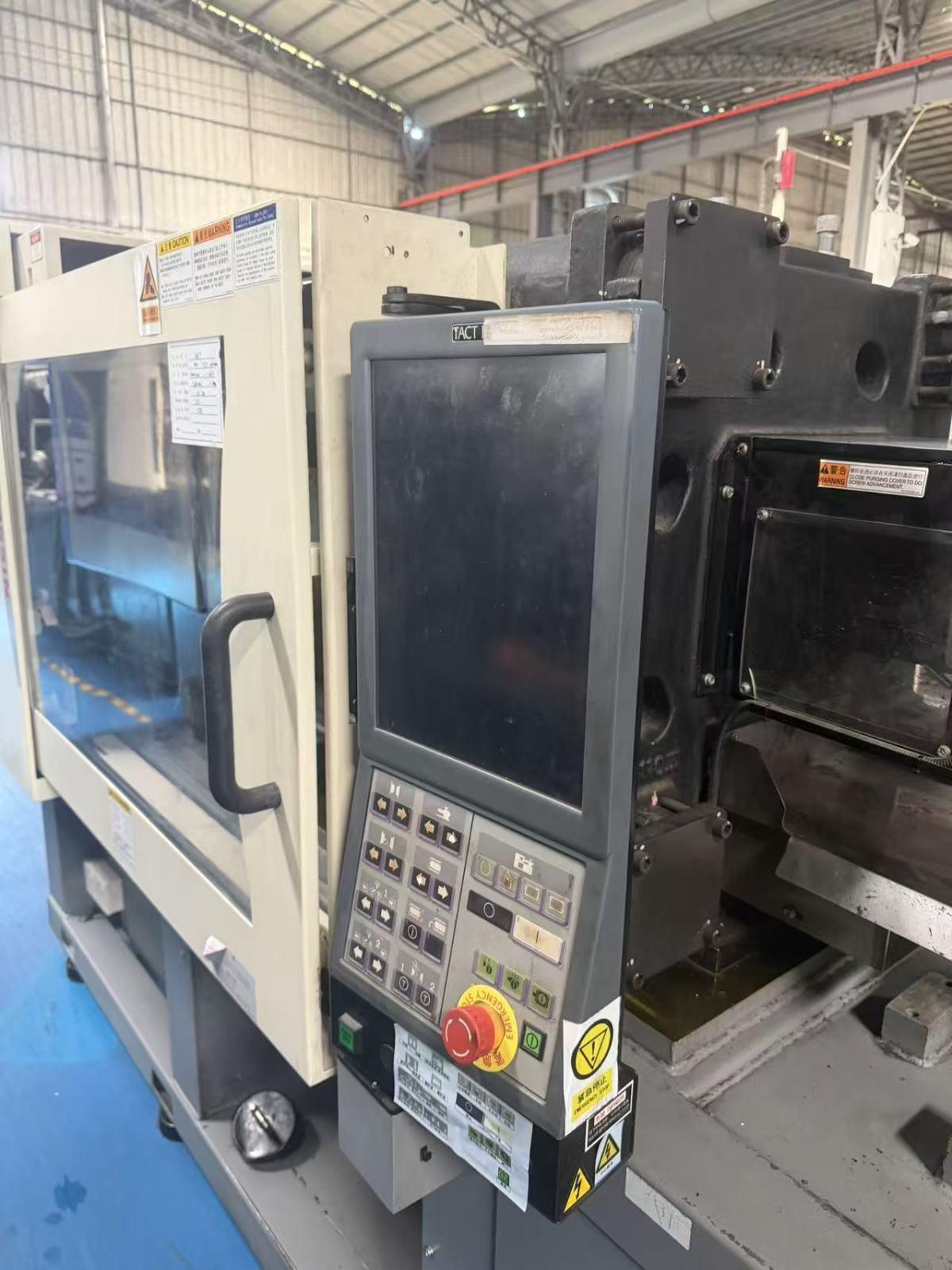

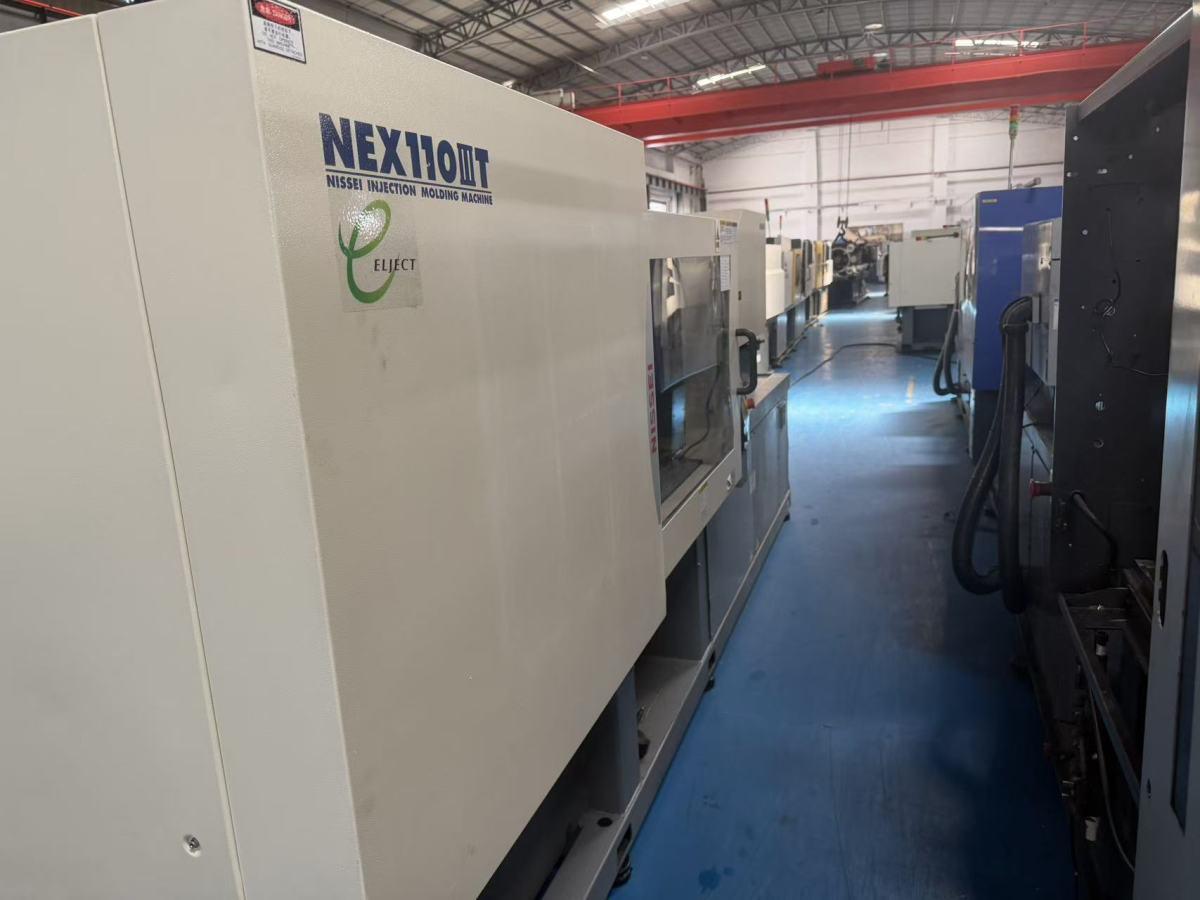

NISSEI NEX110IIIT-12E injection molding machine
[Product Information]:
- Inventory number：468616
- Brand：NISSEI
- Model：NEX110IIIT-12E
- Origin："Japan
- Location：China
- Year：2017
- Create Time：2026-08-11
Specifications:
Rated clamping force: 1080kN
Pull rod spacing: 460 × 460 mm
The external Footage of the template are 610 × 610 mm
Maximum mold opening travel: 720mm
Minimum capacitance: 200mm
Maximum modulus: 580 mm
Maximum template spacing: 720mm
Standard swing diameter: φ 28mm
Theoretical injection volume: 69 cm³
Theoretical injection weight: approximately 76 g
Maximum injection pressure: 280 MPa
Maximum injection speed: 300 mm/s
The maximum speed of the screw is 350 rpm
