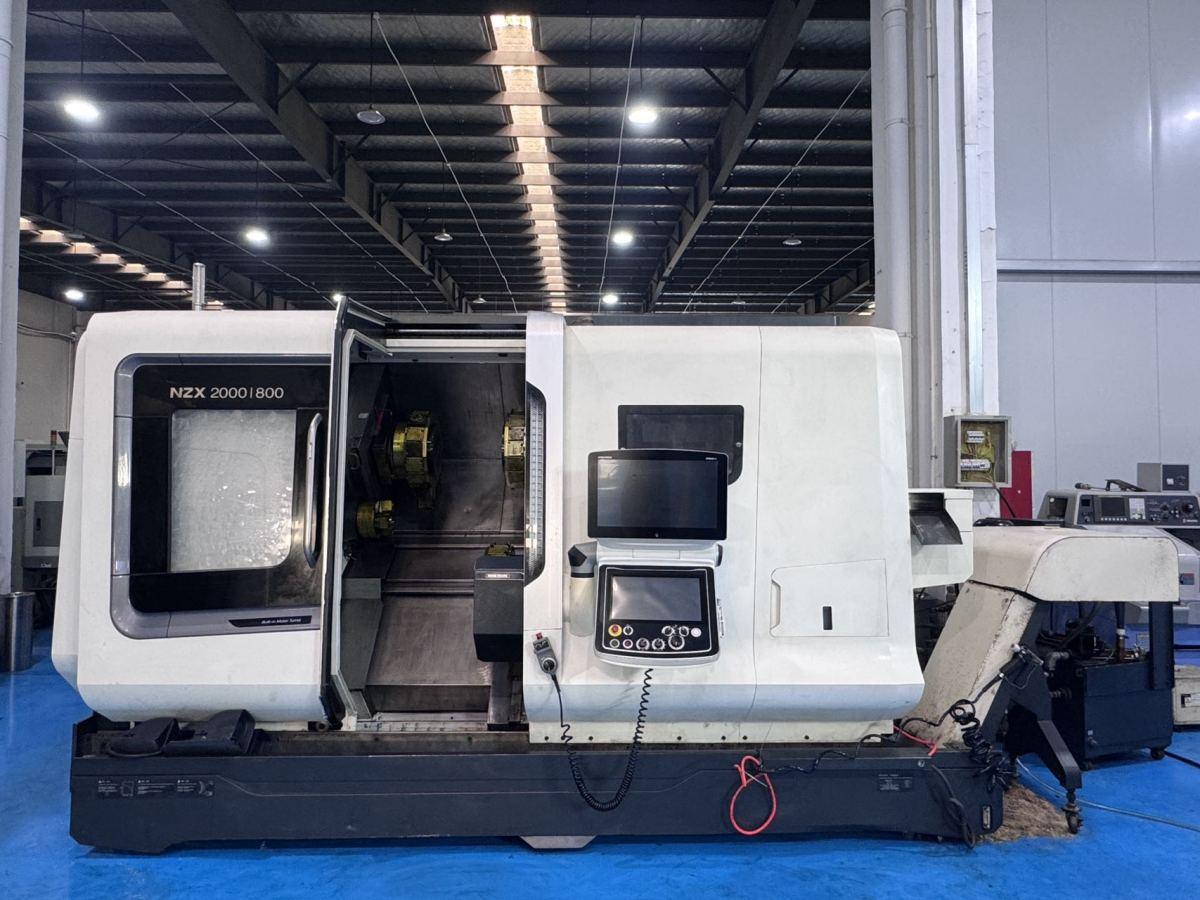

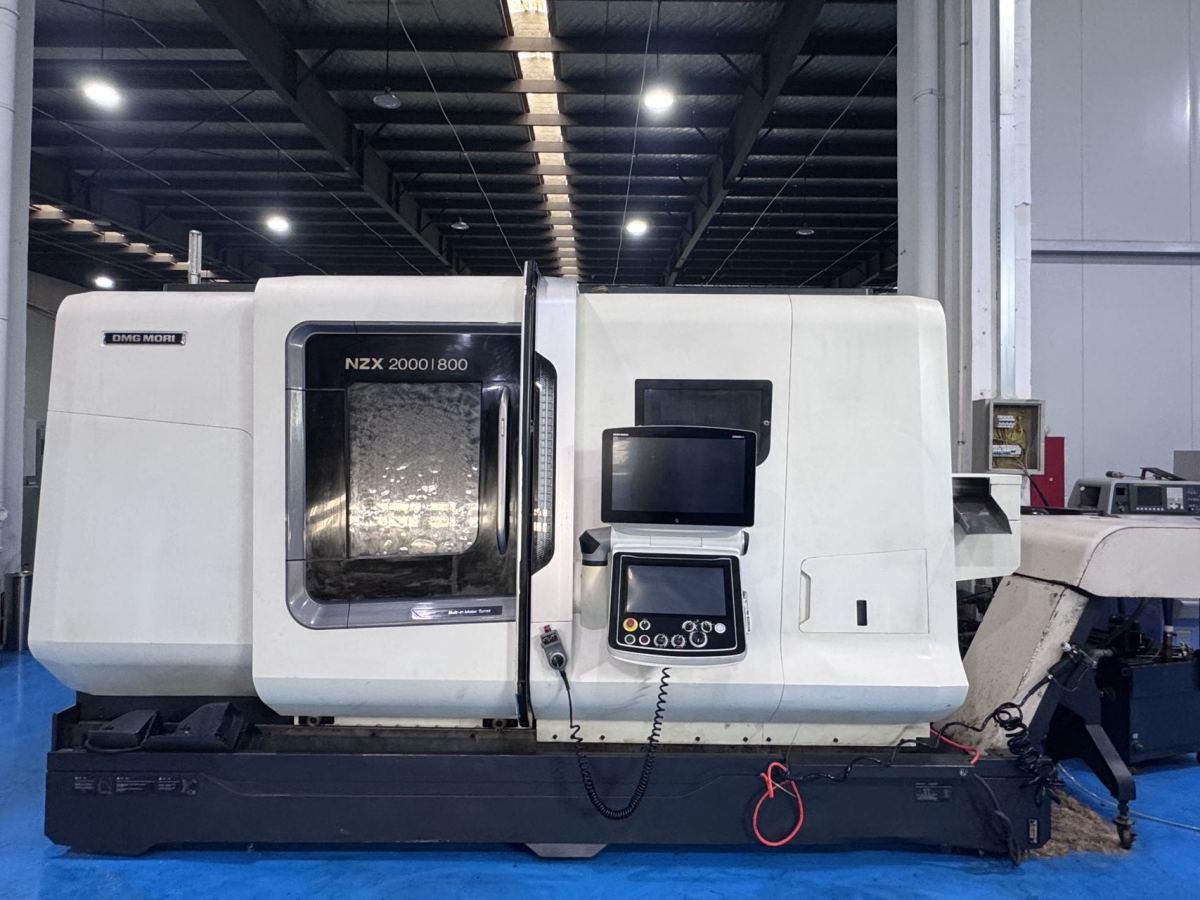

DMG MORI NZX2000/800STY3 Turn Mill Machining Centre

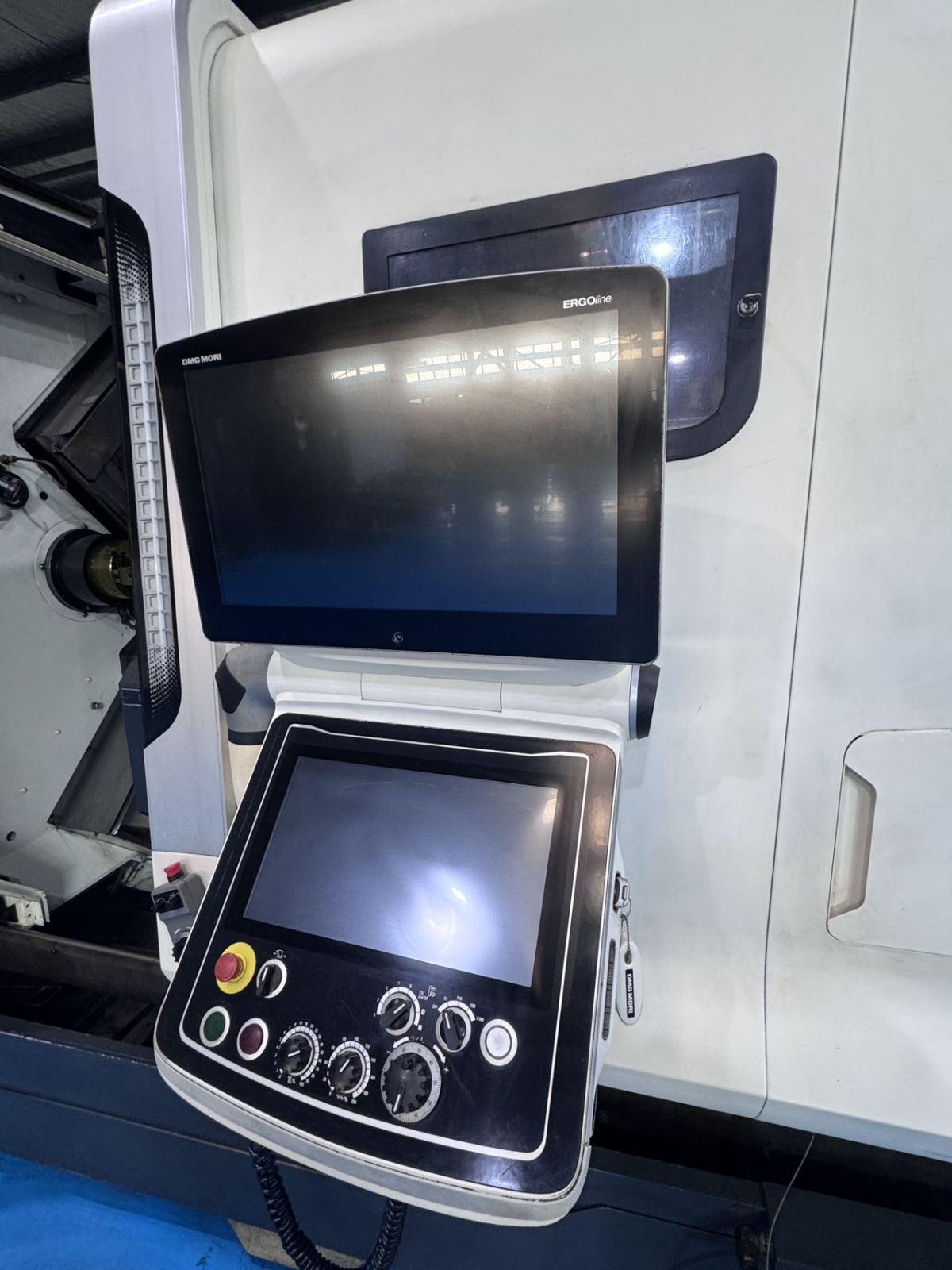

CNC System: FANUC 31i-B + Sensei System dual CNC system
Maximum machining length: 810 mm
Maximum rotational diameter: 800 mm
Maximum turning diameter: 320 mm
Spindle through-hole diameter: 65 mm
X-axis travel (X1 / X2 / X3): 210 mm
Y-axis travel (Y1 / Y2 / Y3): 110 mm
Z-axis travel (Z1 / Z2 / Z3): 300 / 820 / 300 mm
B-axis travel (second spindle): 870 mm
C-axis indexing accuracy: 0.001°
First spindle speed: 6000 rpm
Second spindle speed: 6000 rpm
Chuck configuration:
Current installation: 8-inch chuck
Optional: 10-inch chuck

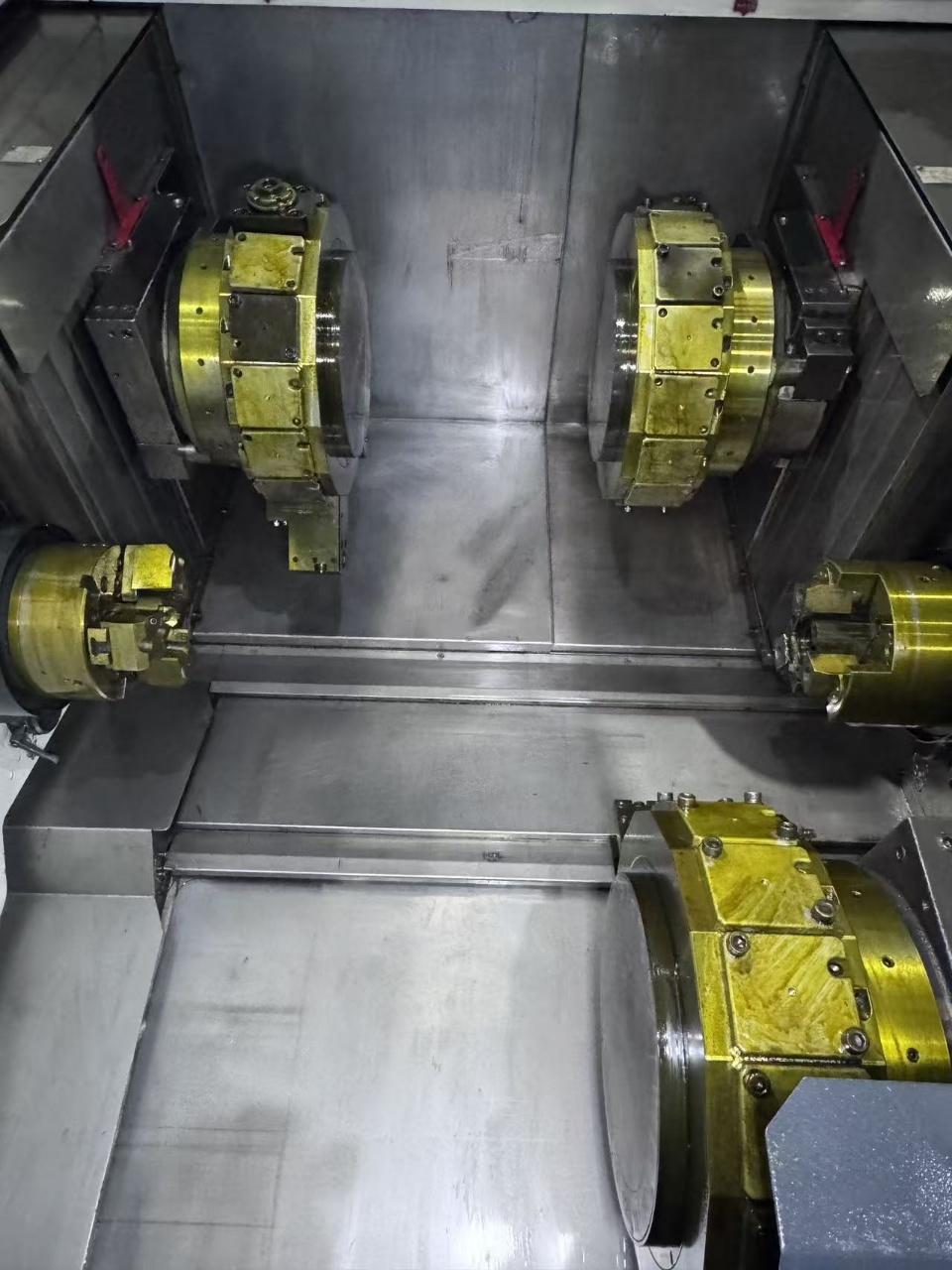

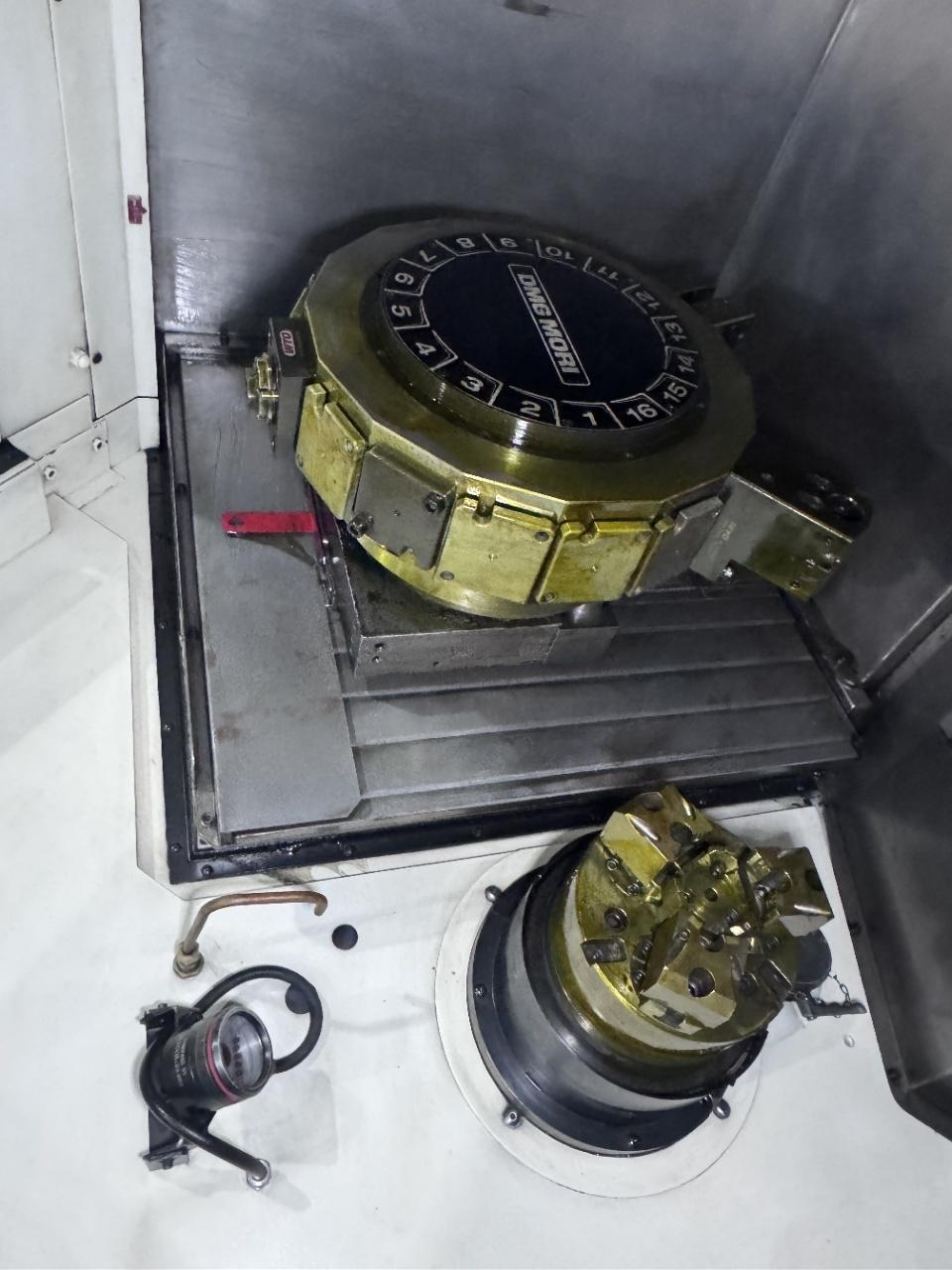

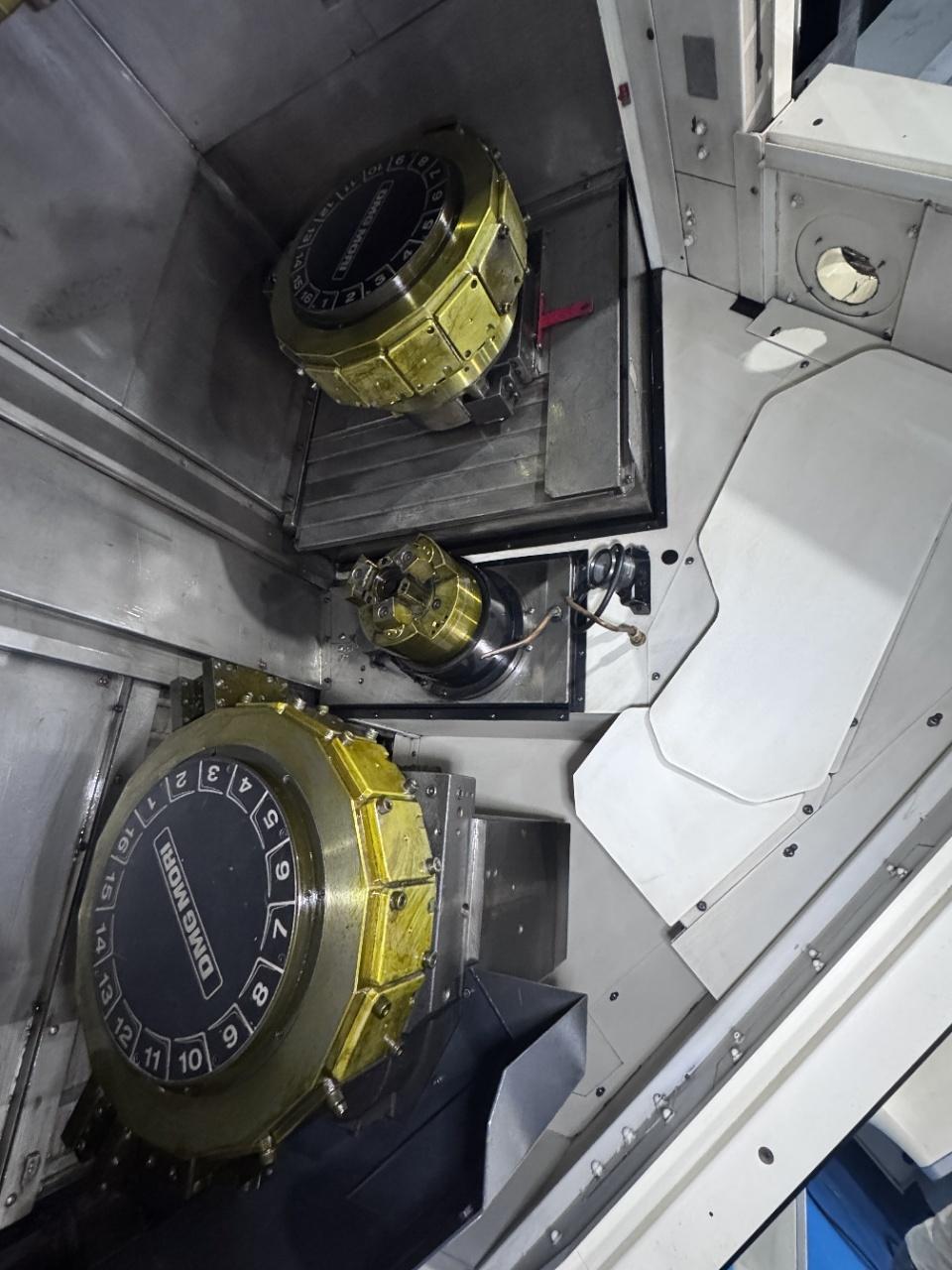

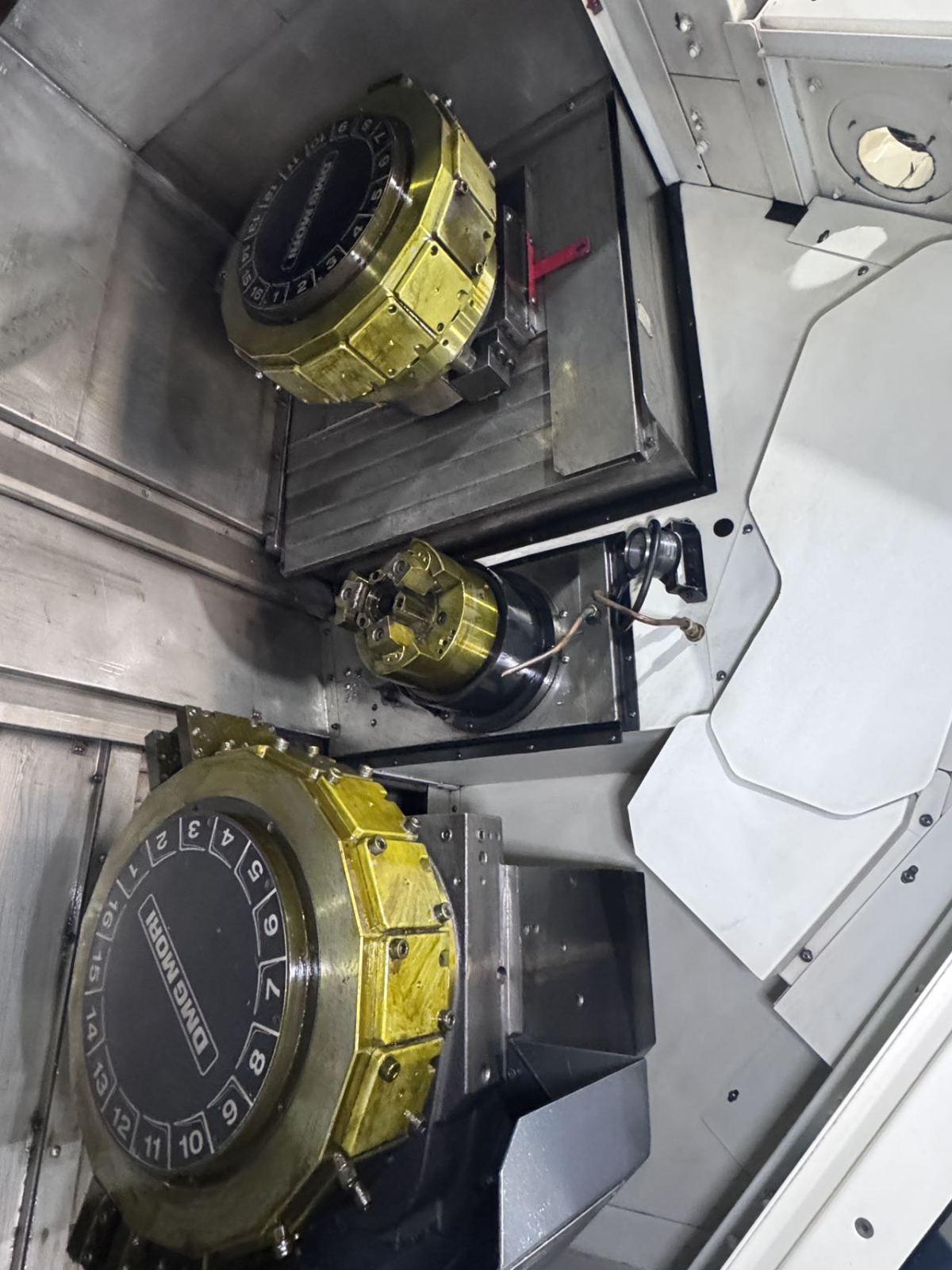

Turret configuration:
Three-turret structure
16-station servo tool turret × 3
All equipped with powered tool heads
Configuration:
Heidenhain glass scales
Faucet-type chip conveyor
