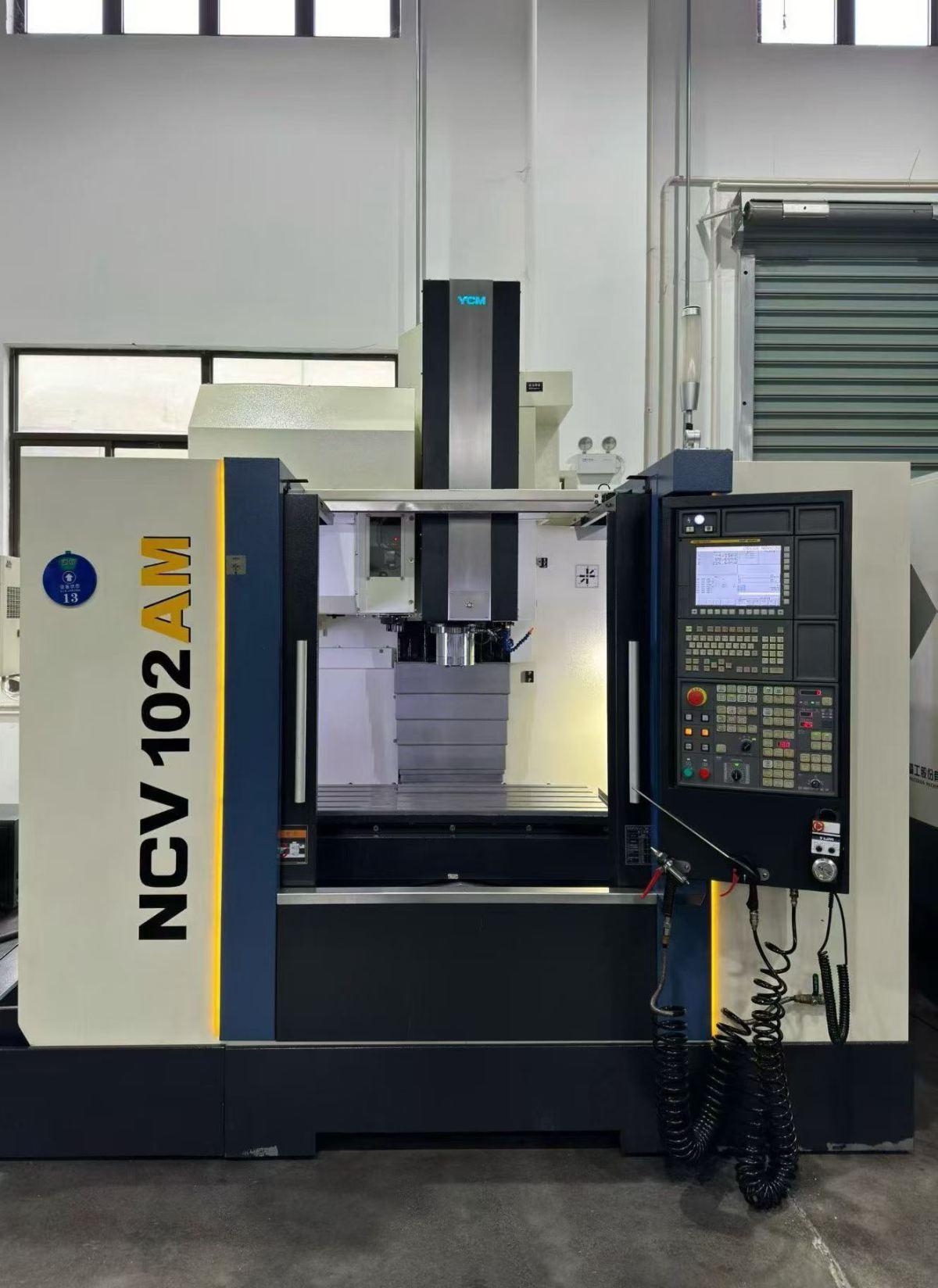

YCM NCV102AM Vertical Machining centre

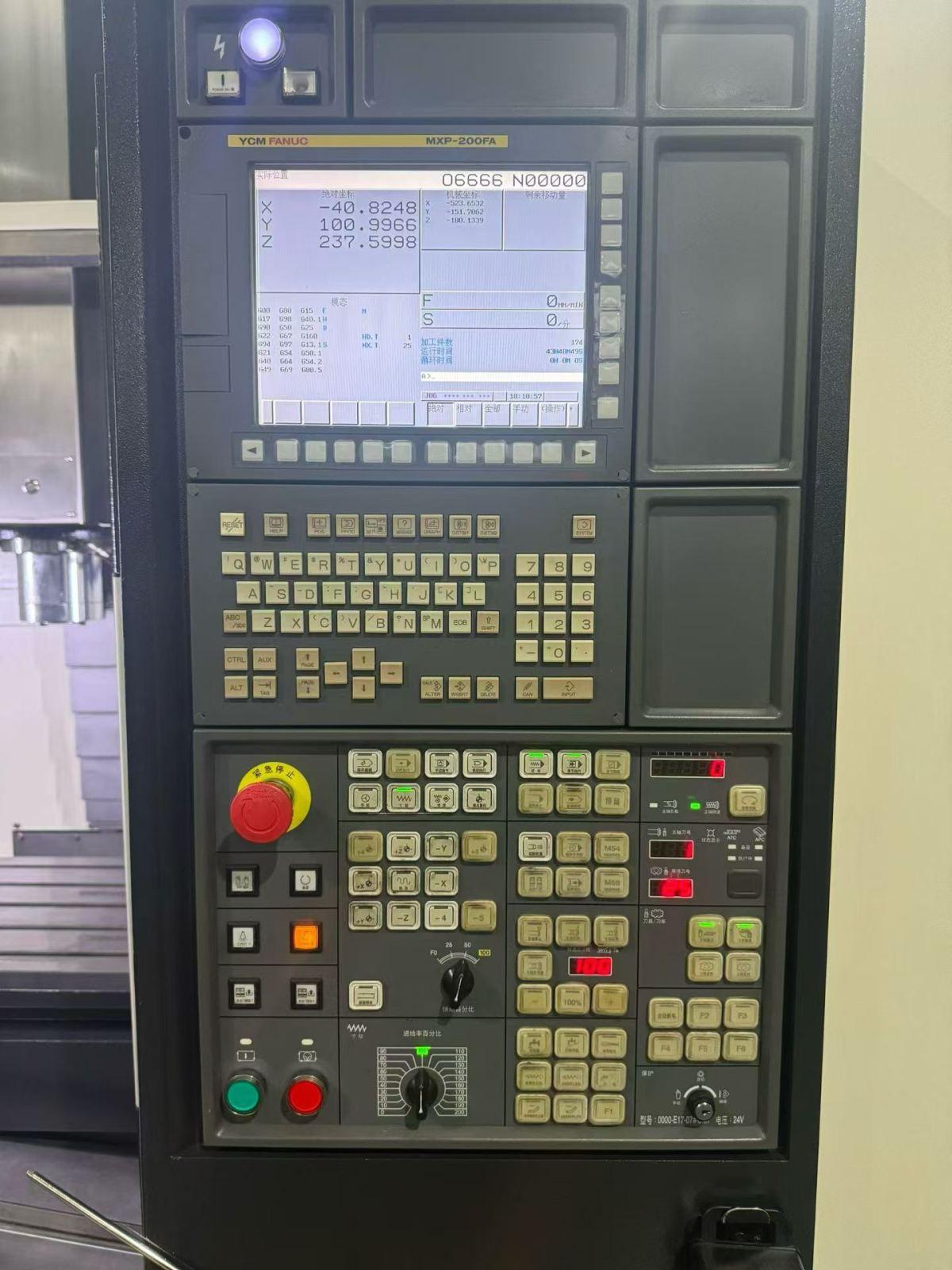

CNC system: FANUC MXP-200FA
Three-axis travel: 1020 × 520 × 540 mm

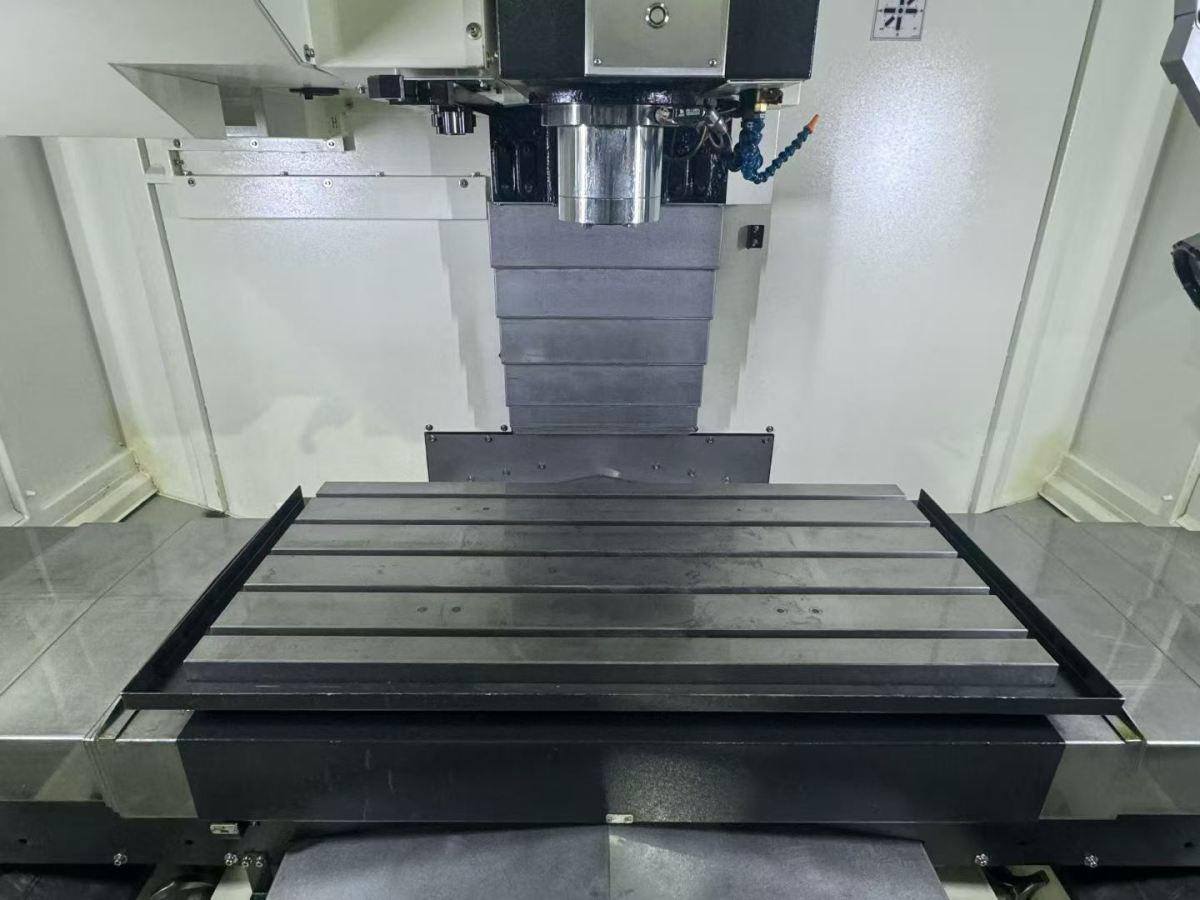

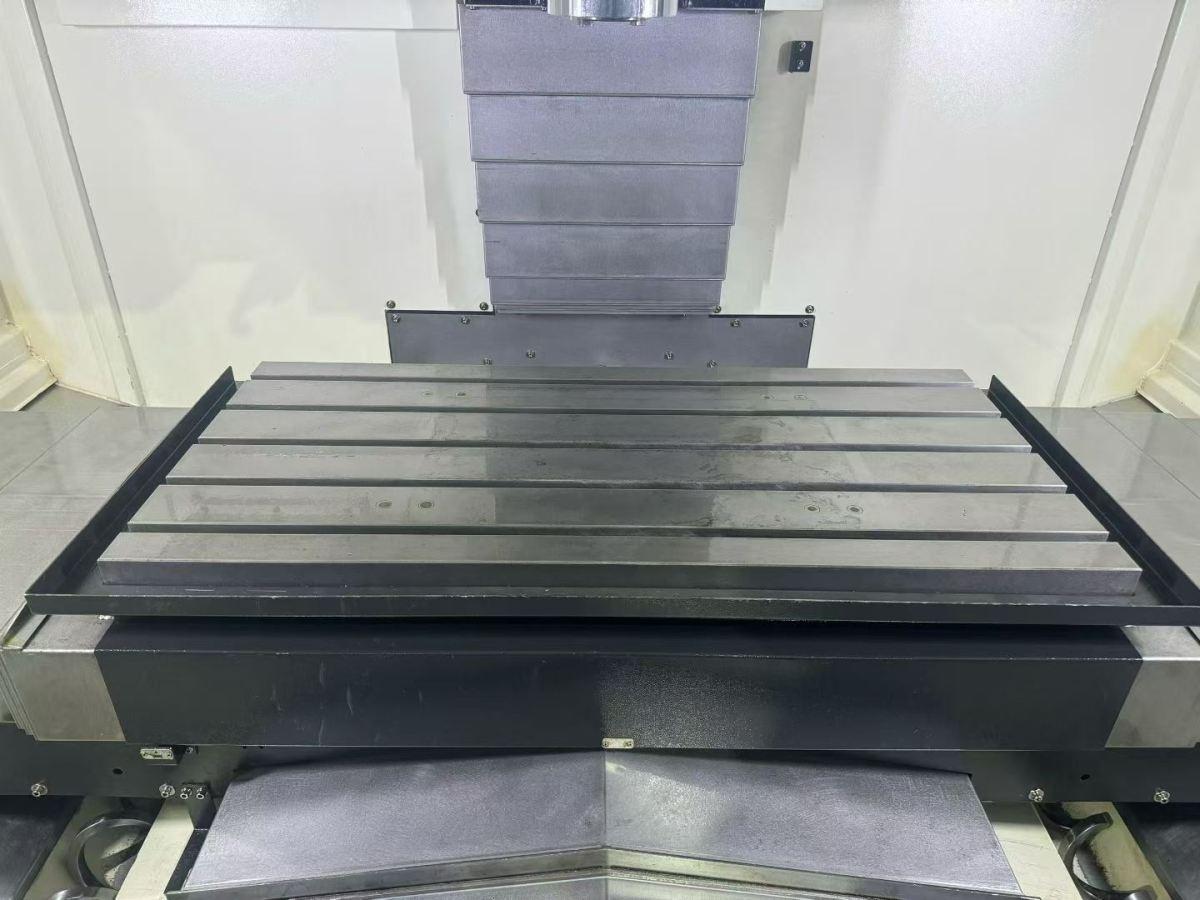

WorkTable size: 1120 × 520 mm
Maximum spindle speed: 12,000 rpm
Spindle motor power: 18.5 kW
Spindle taper: BT40
Distance from spindle nose to worktable surface: 140–680 mm
Rapid traverse rate (X/Y/Z): 24 / 24 / 16 m/min
Tools magazine capacity: 24，arm-type
