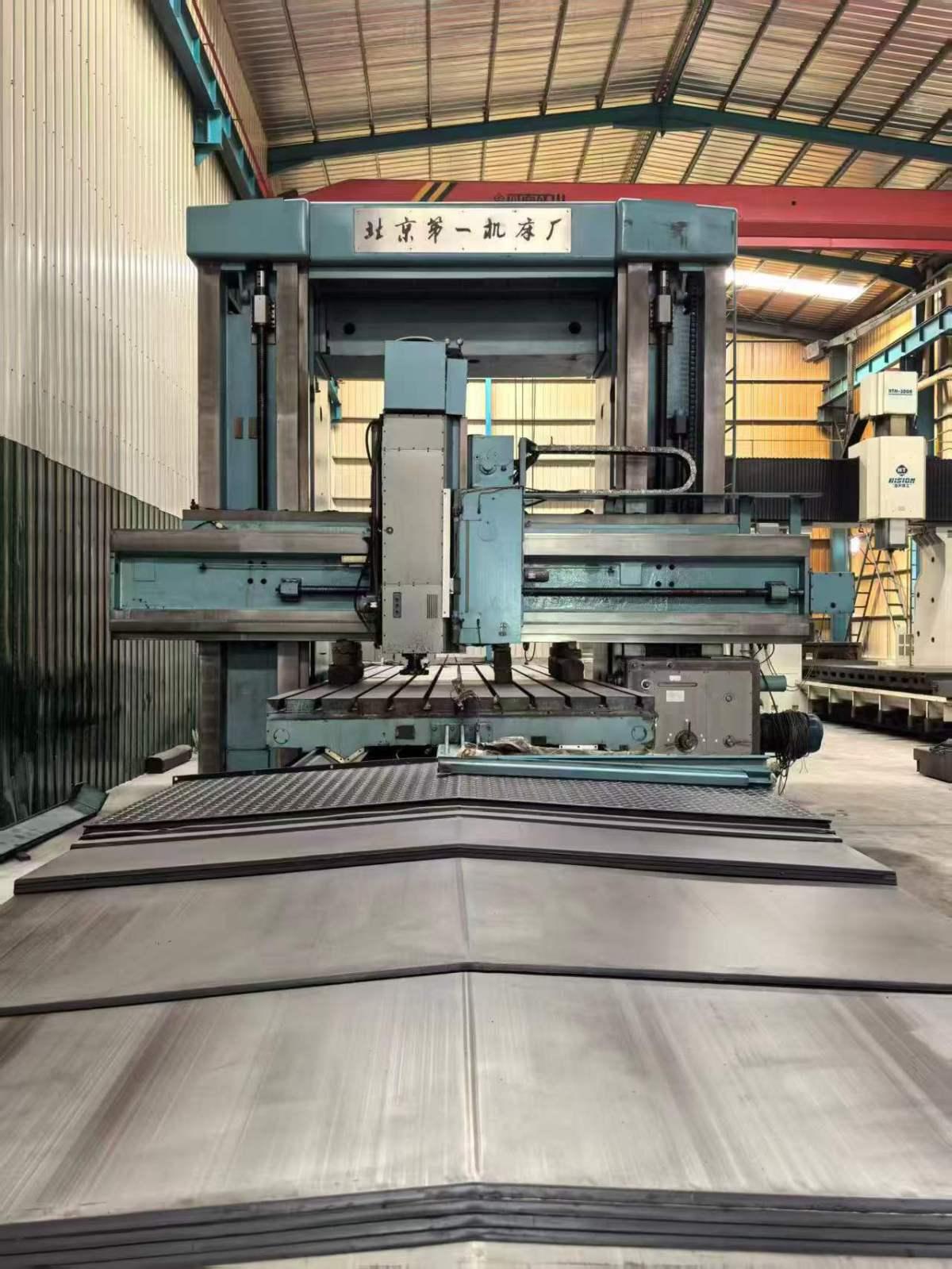

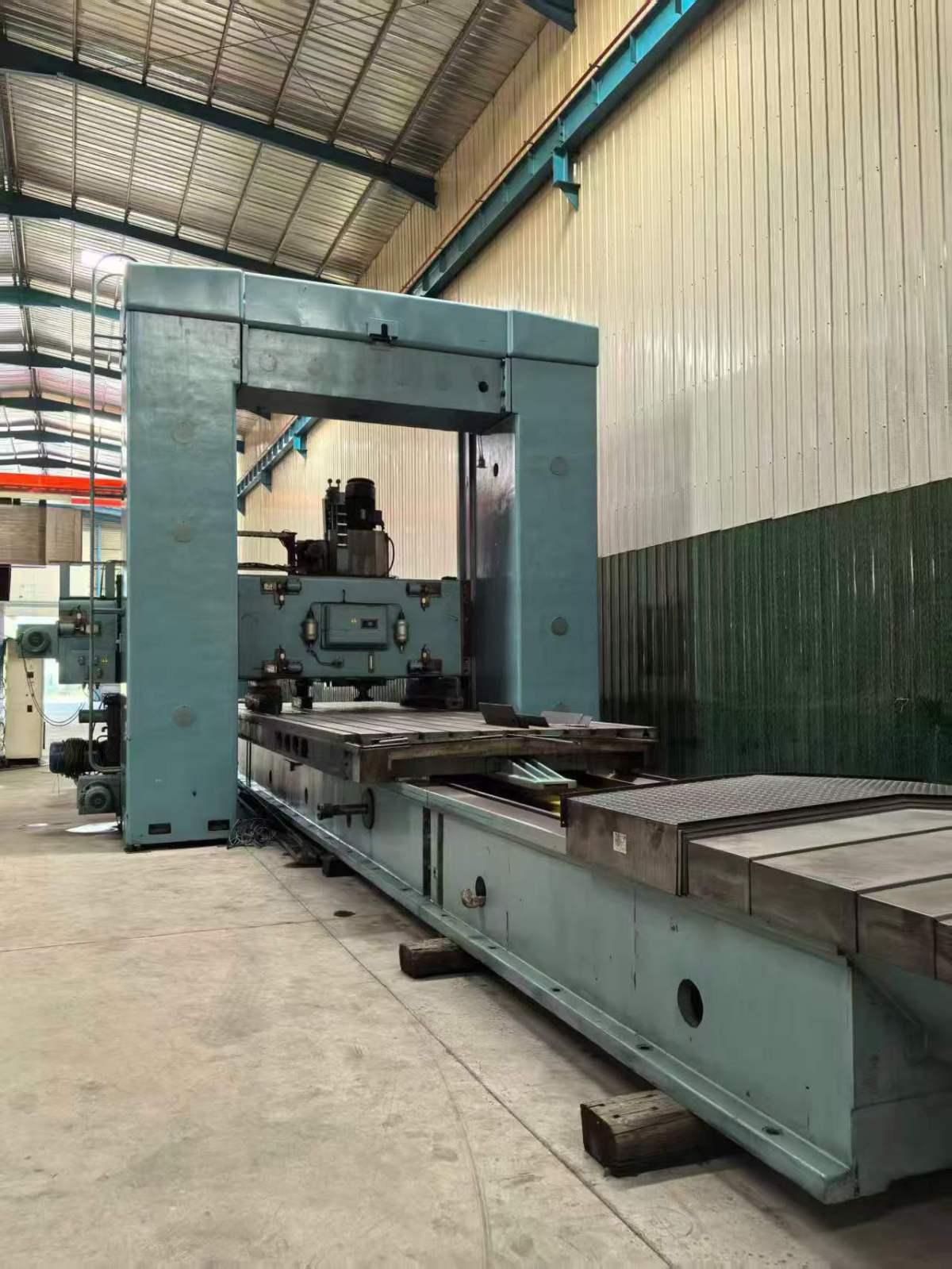

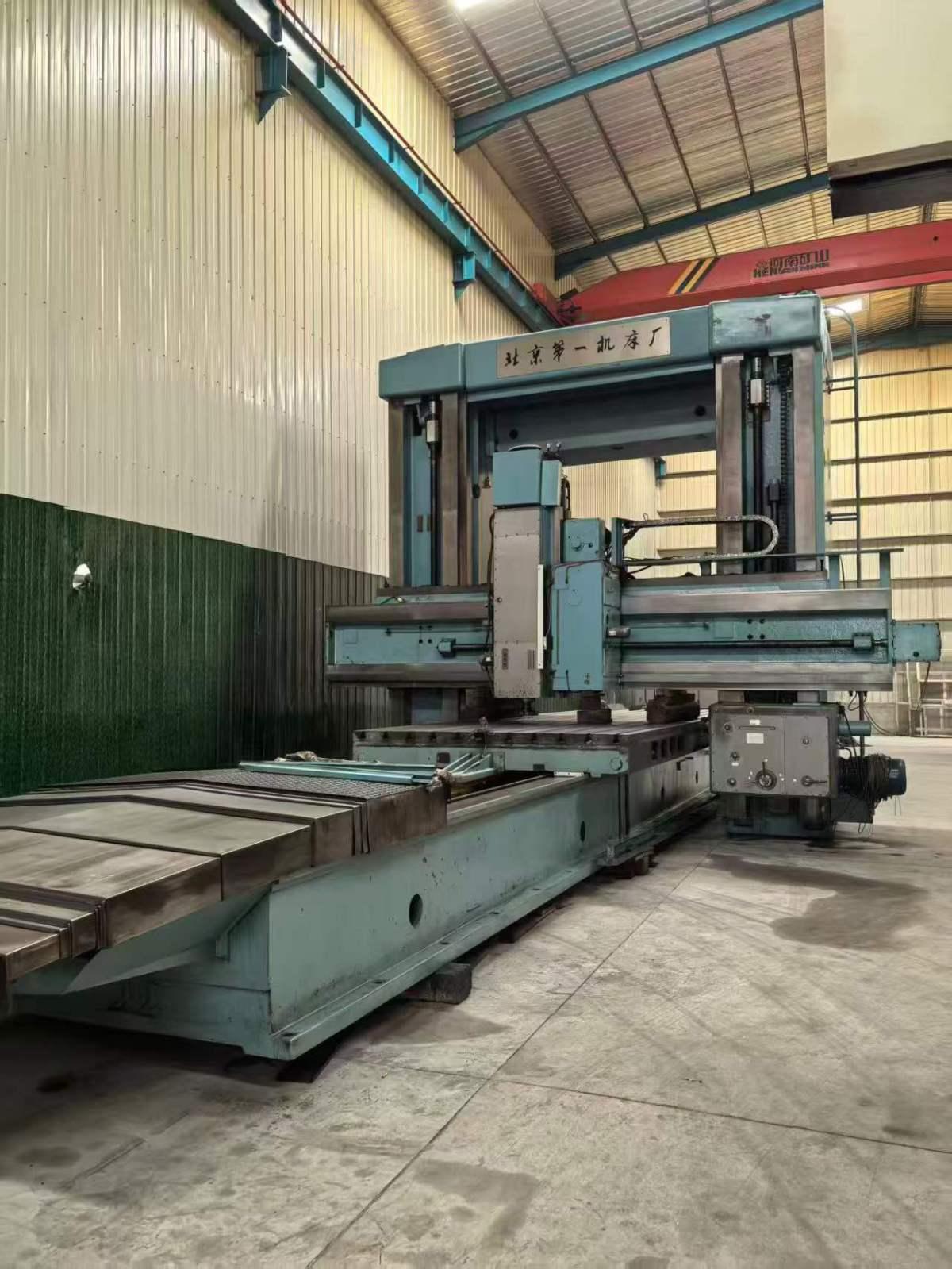

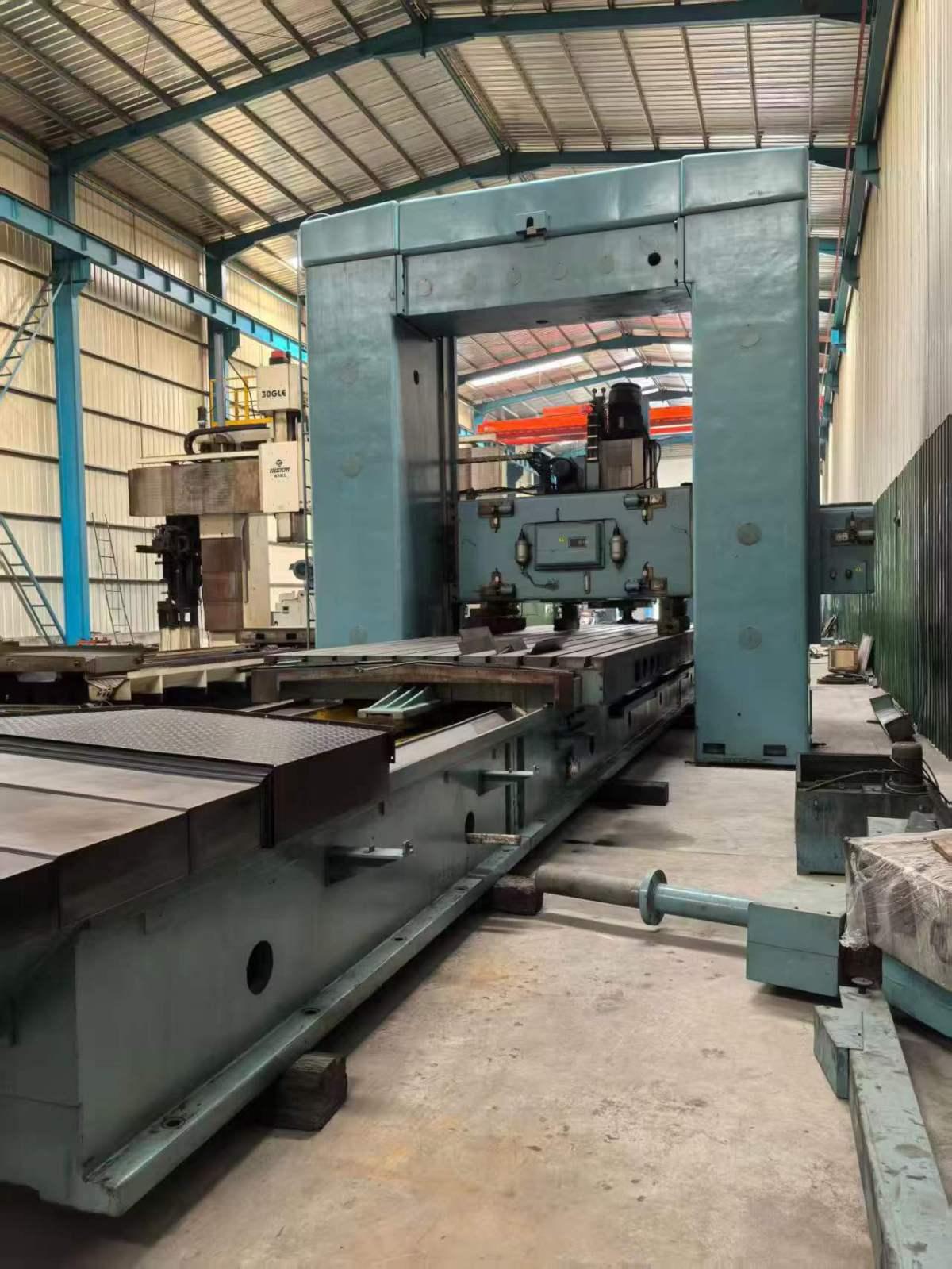

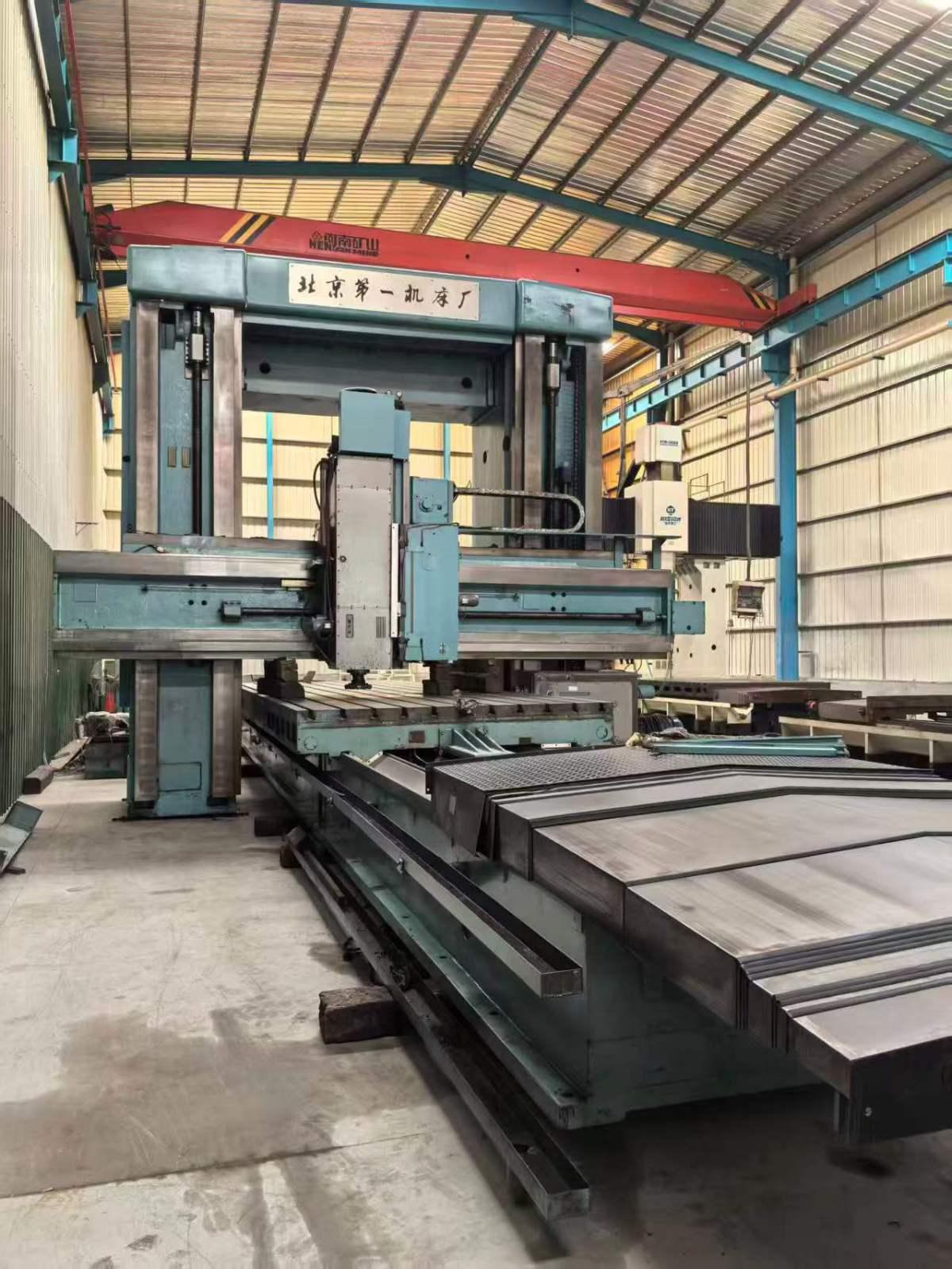

Beijing No.1 Machine Tool Factory X2025x80A Gantry milling machine

Three-axis travel (X/Y/Z): 8860 × 3400 × 650 mm
Maximum machining size (W × H): 2500 × 2500 mm
Maximum machining part weight: 40,000 kg
Distance between the two columns of the gantry frame: 2900 mm
Distance from the spindle nose of the vertical milling head to the worktable surface: 150–2550 mm
Distance from the axis to the worktable surface: -180–2230 mm

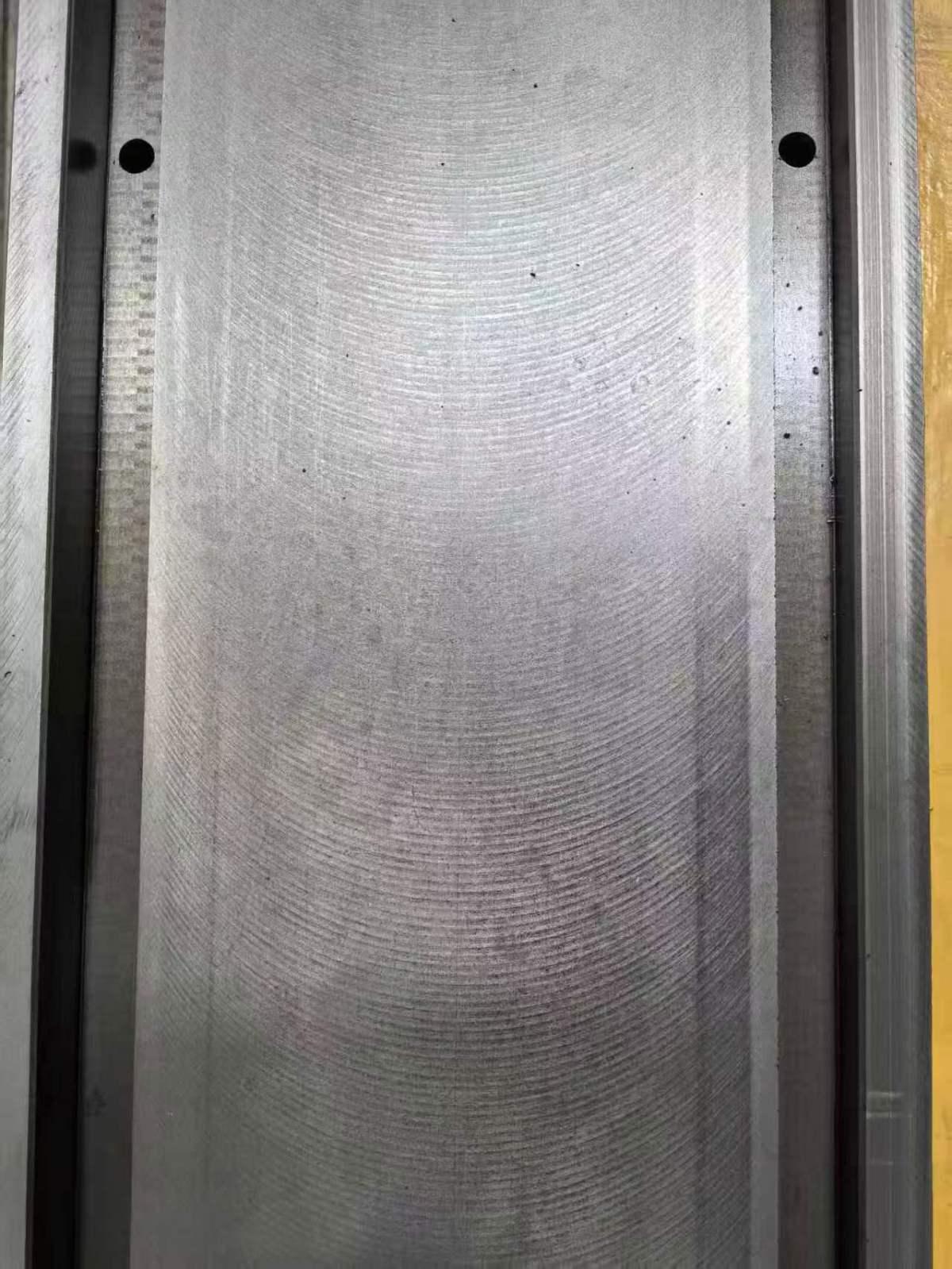

Worktable size (W × L): 8000 × 2500 mm

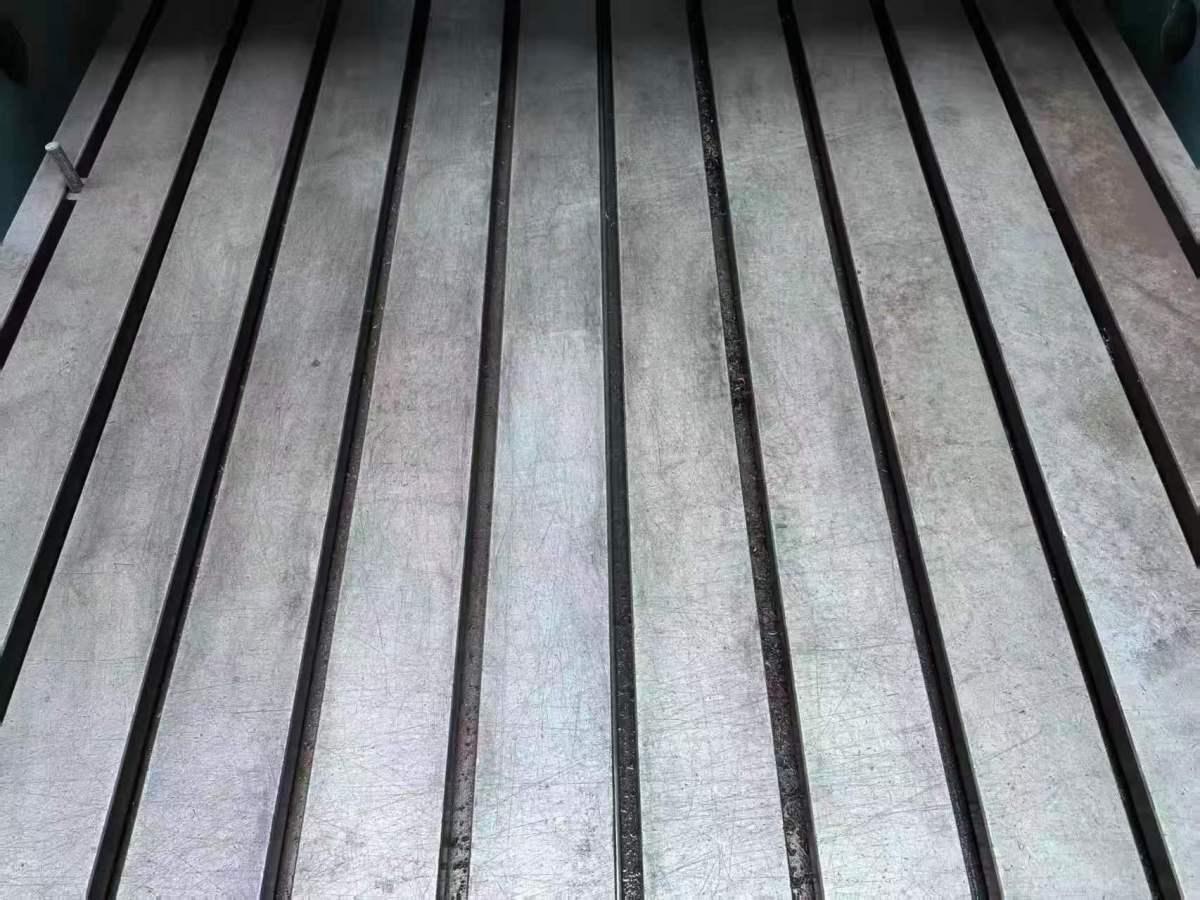

T-slot width of worktable: 230 mm
Vertical travel of the horizontal sleeve-type milling head: 2410 mm
Worktable feed range: 10–1000 mm/min
Worktable feed stages: 6 stages
Rapid movement speed of worktable: 6000 mm/min
Worktable micro-movement speed: ≤10 mm/min
Feed range of the slide pillow-type milling head: 10–600 mm/min
Feed stages of the slide pillow-type milling head: 6 stages
Rapid movement speed of the slide pillow-type milling head: 1200 mm/min
Micro-movement speed of the slide pillow-type milling head: ≤10 mm/min
Feed range of the chute: 10–1000 mm/min
Overall dimensions of machine tool (L × W × H): 19450 × 6822 × 6785 mm
Accessories: 1 right-angle milling head

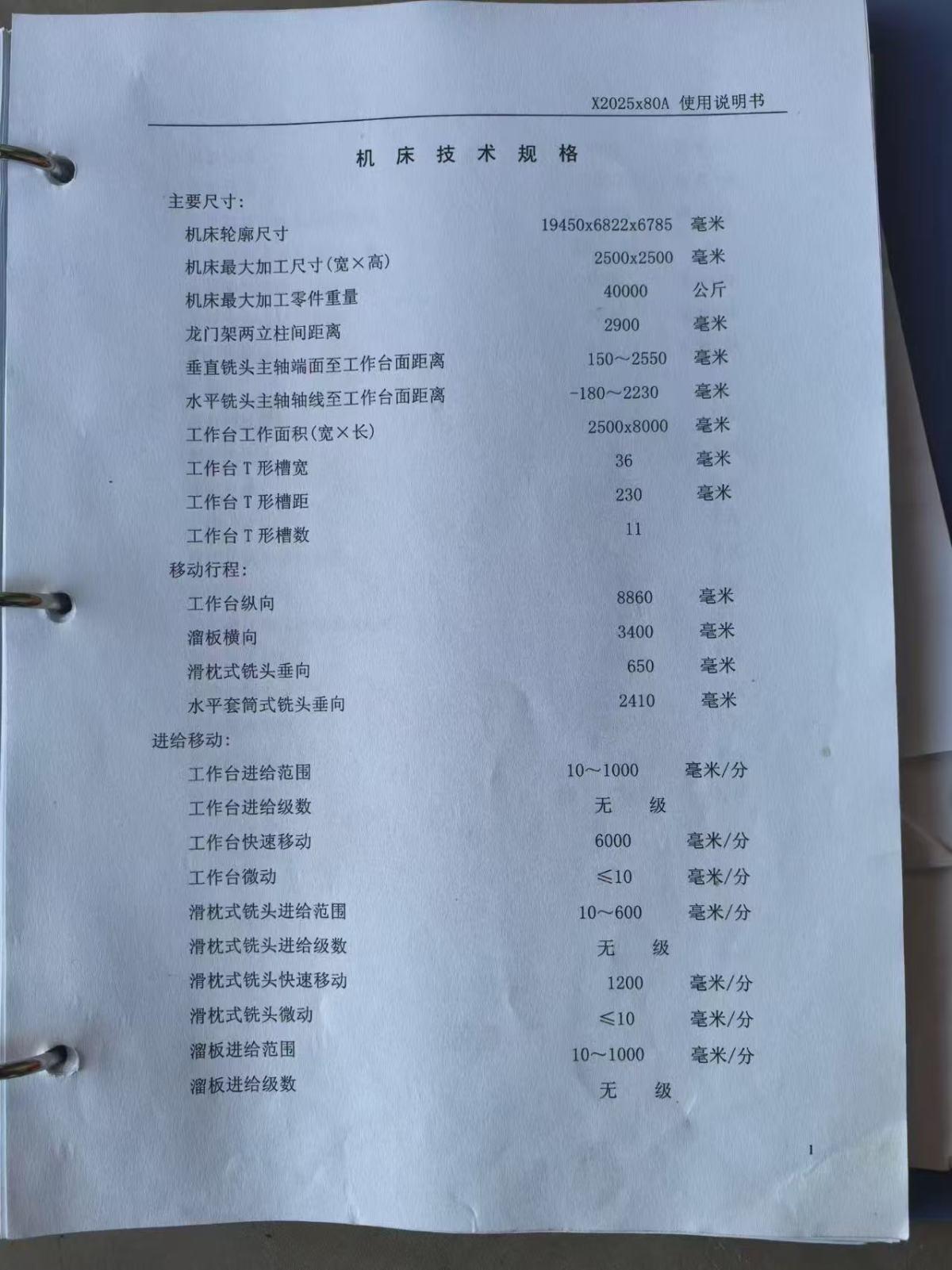

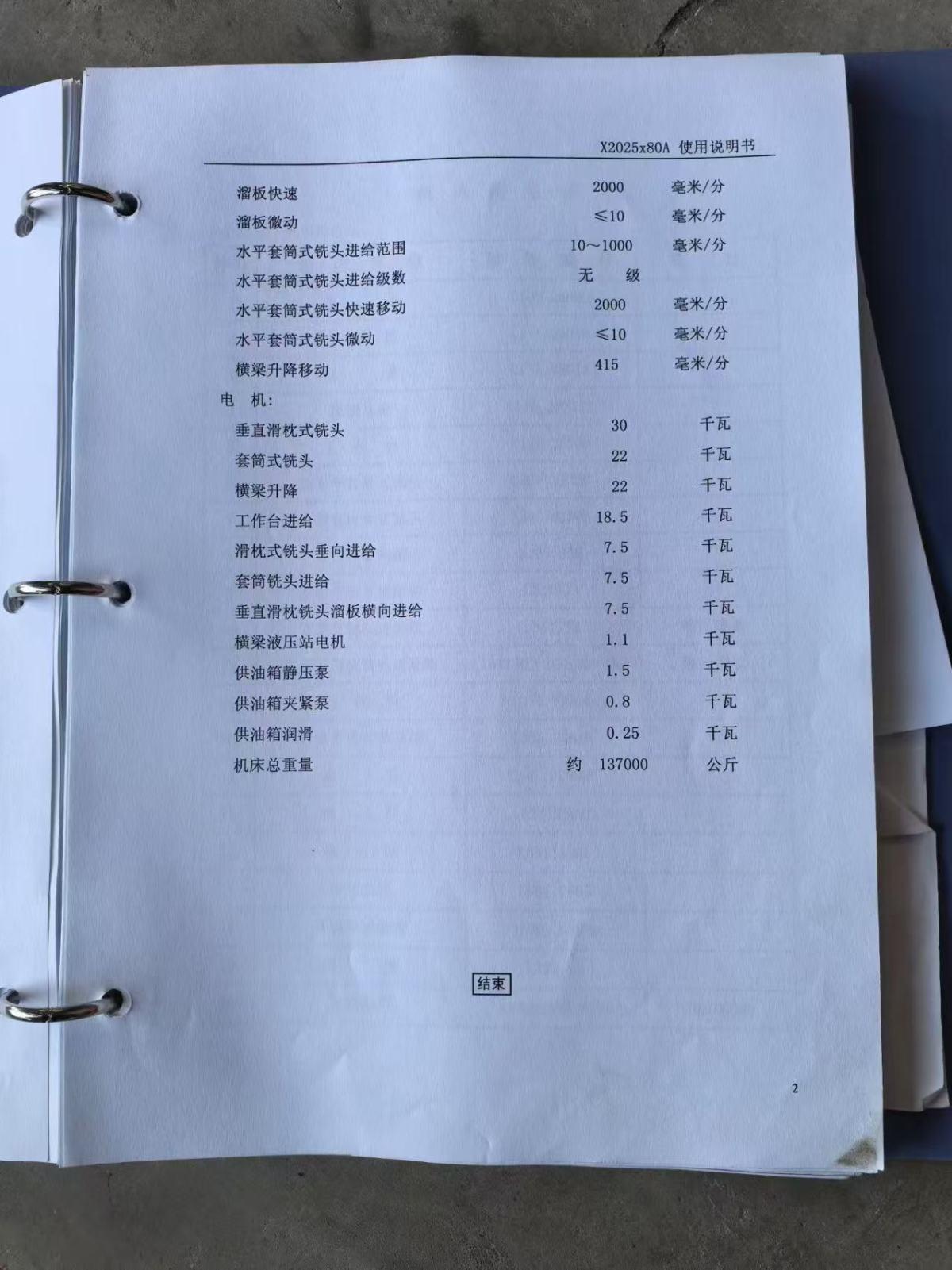

Materials: Complete instruction manual available
