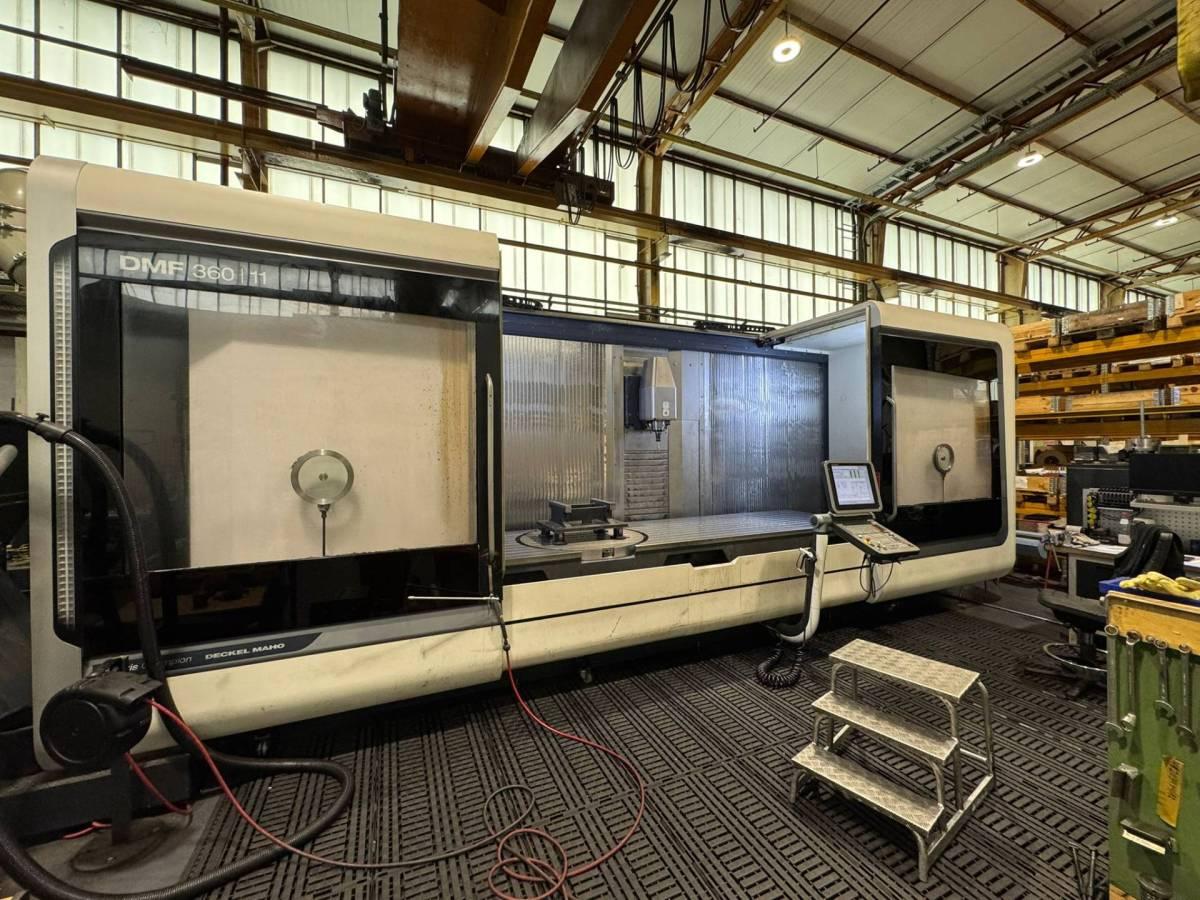

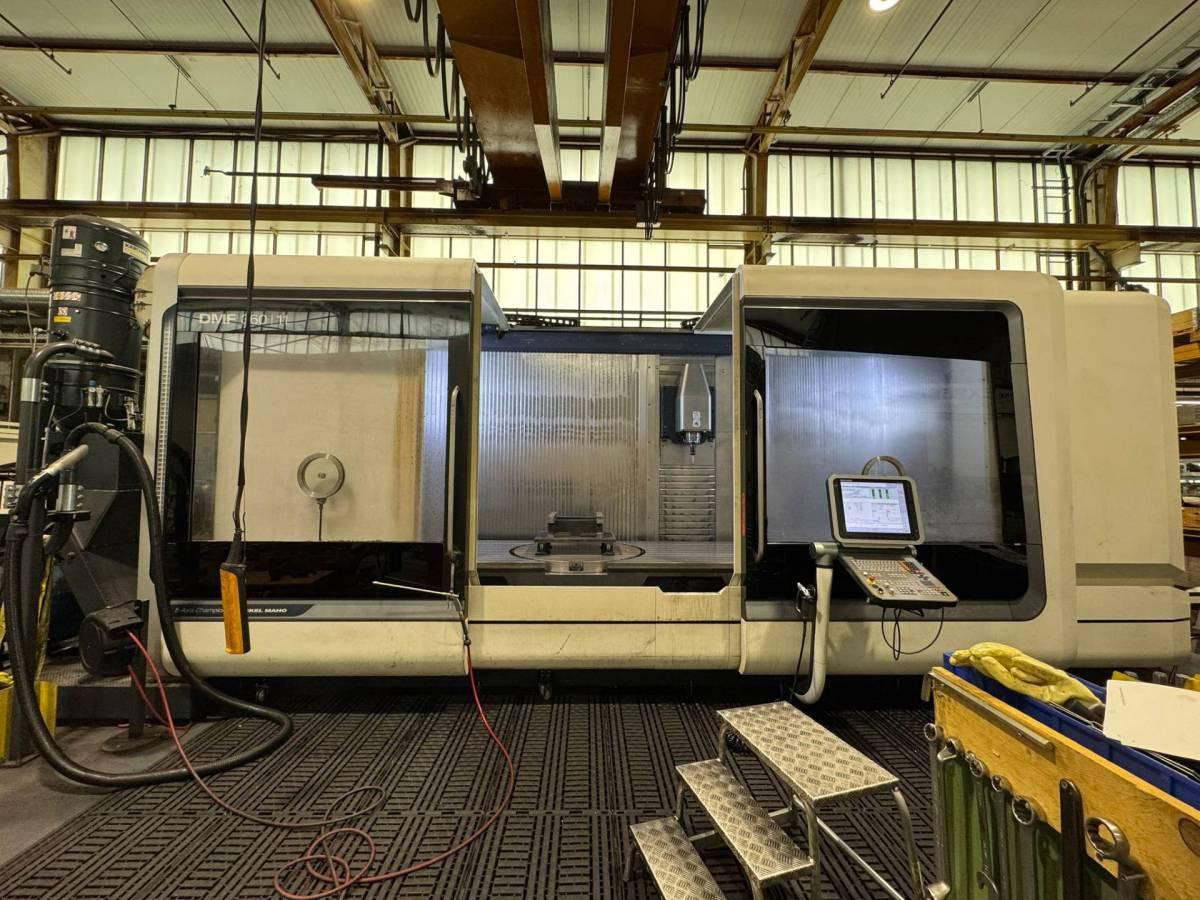

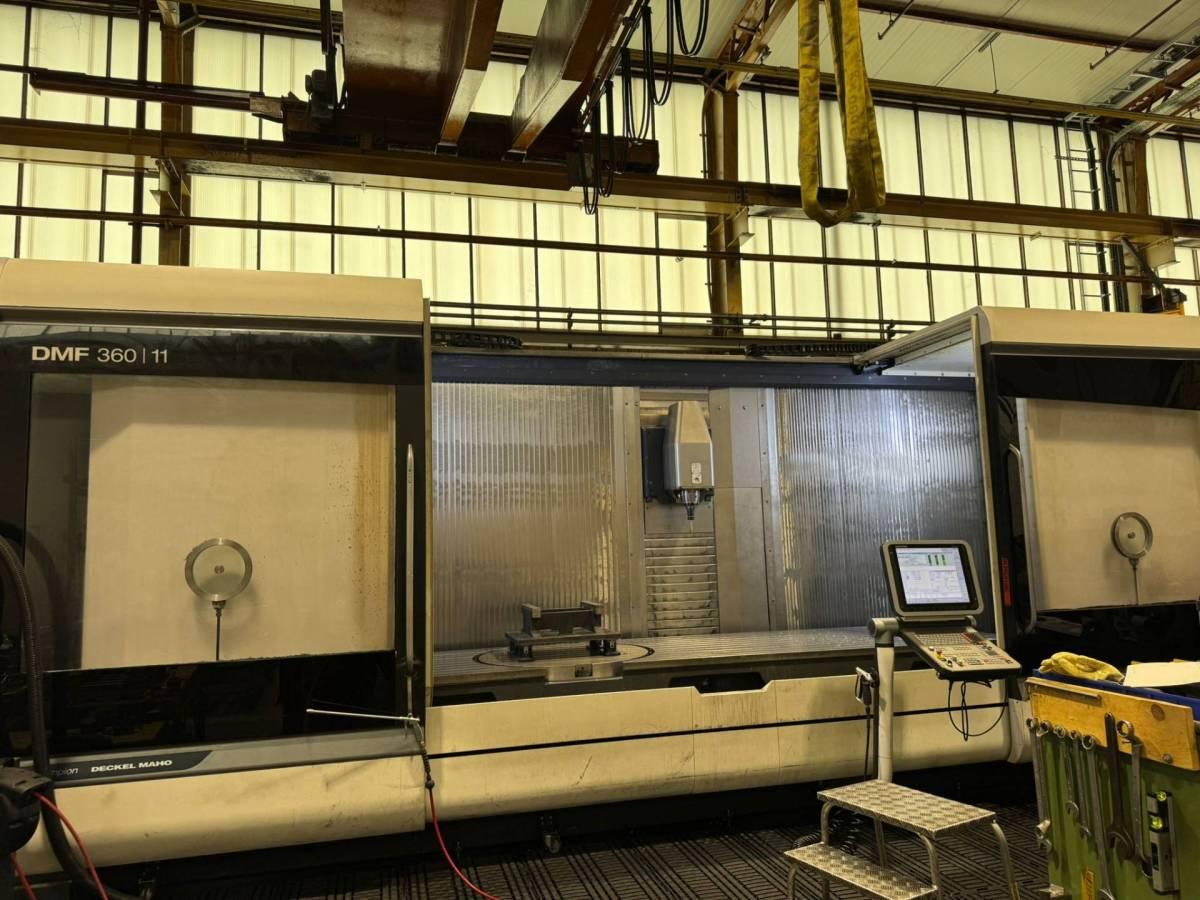

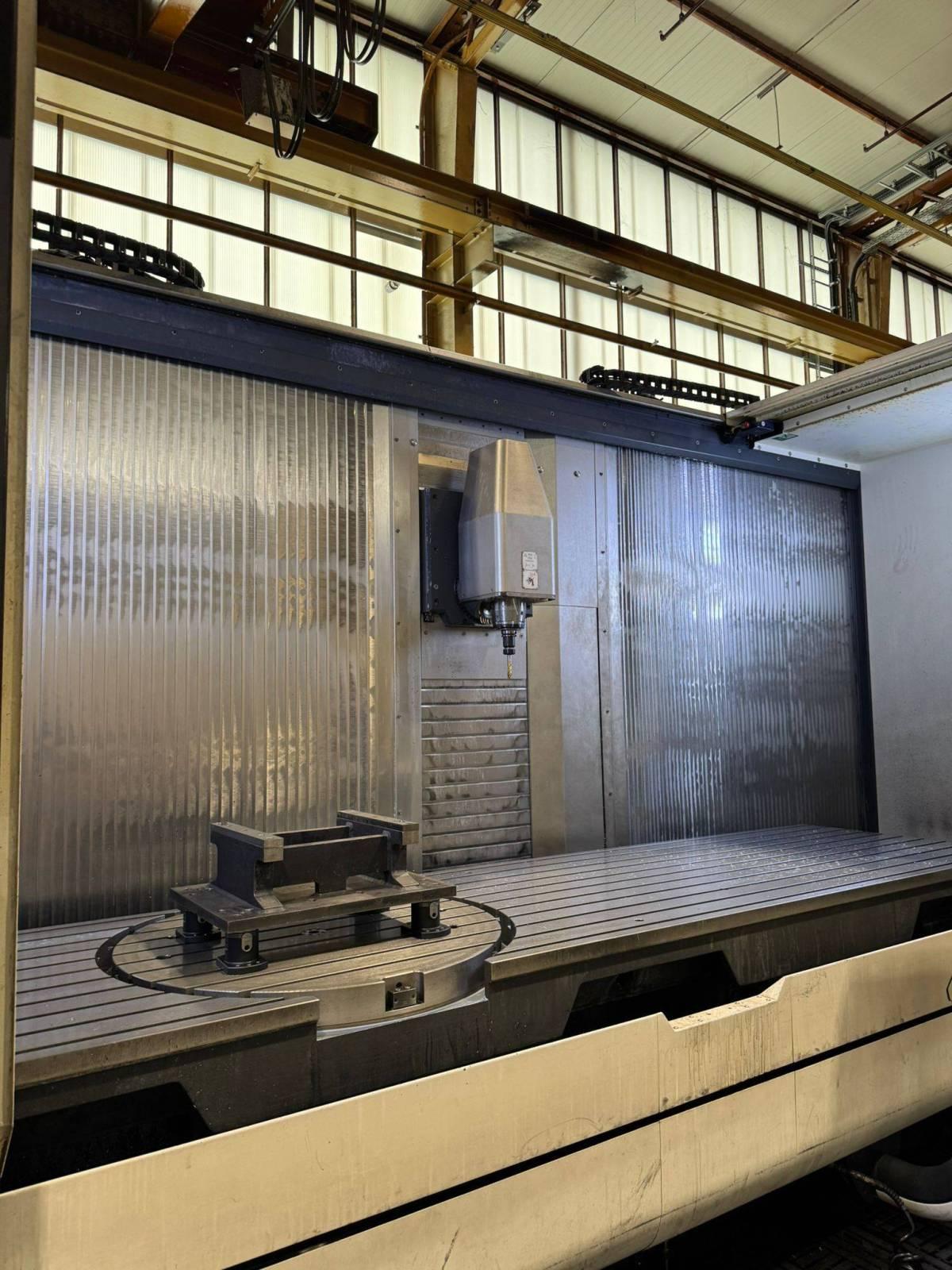

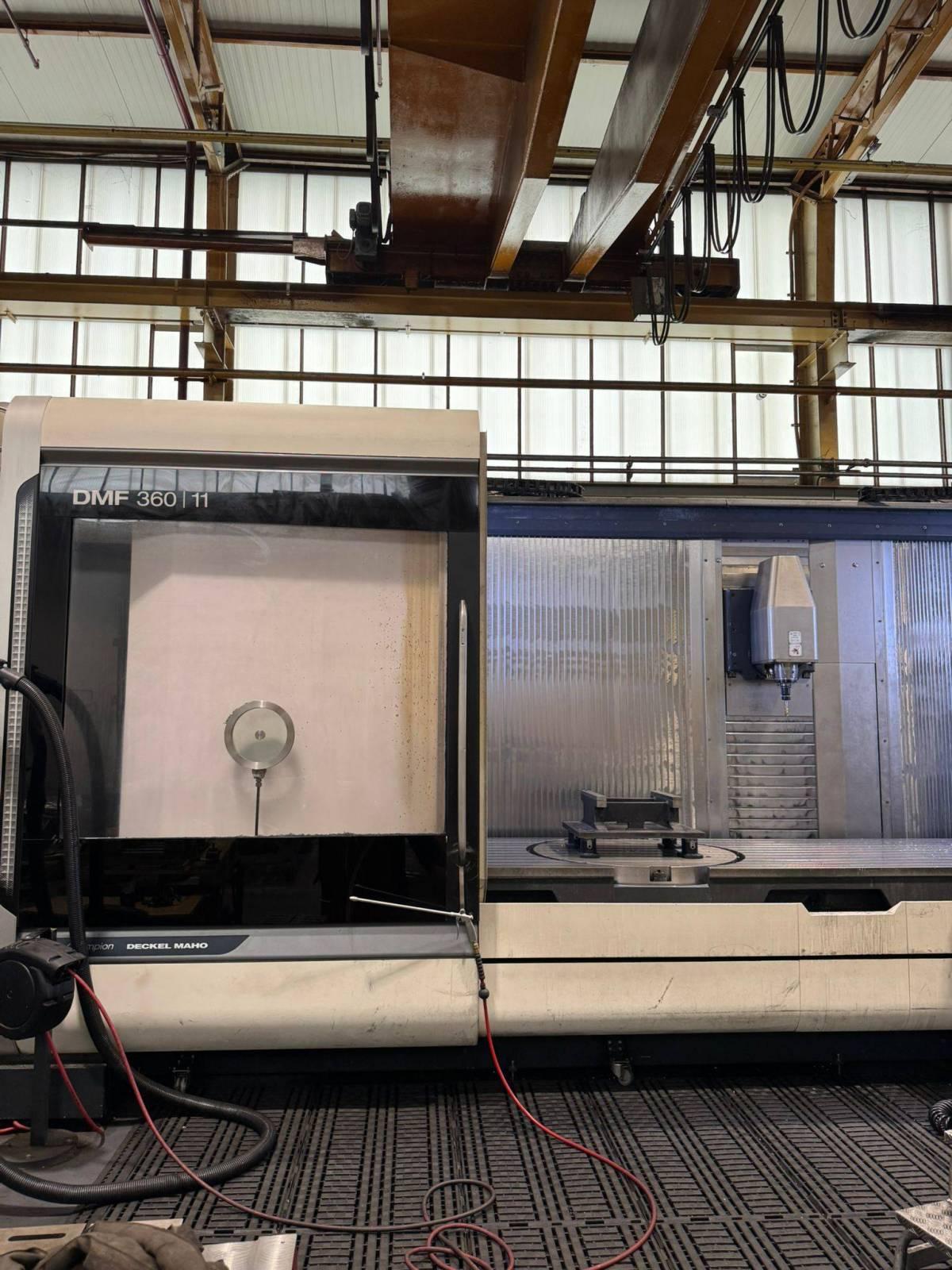

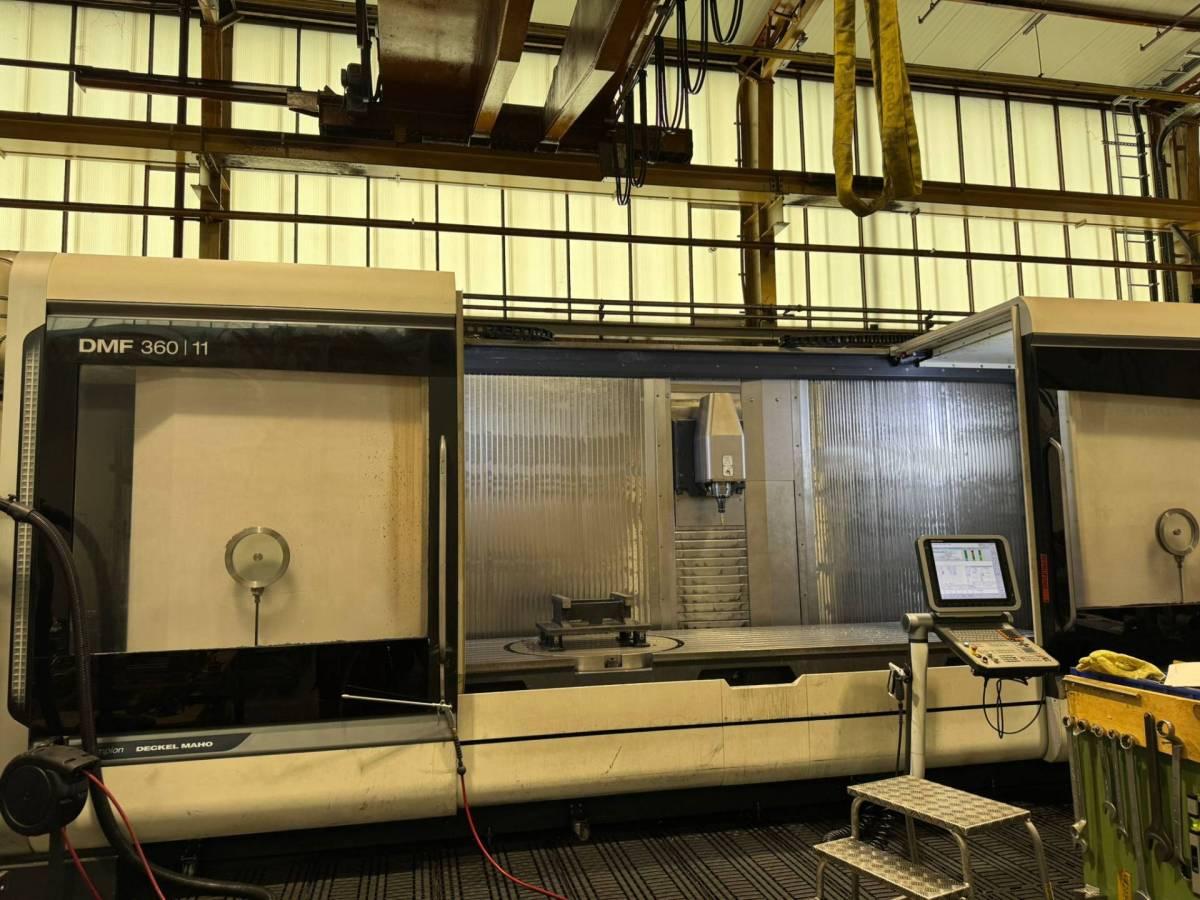

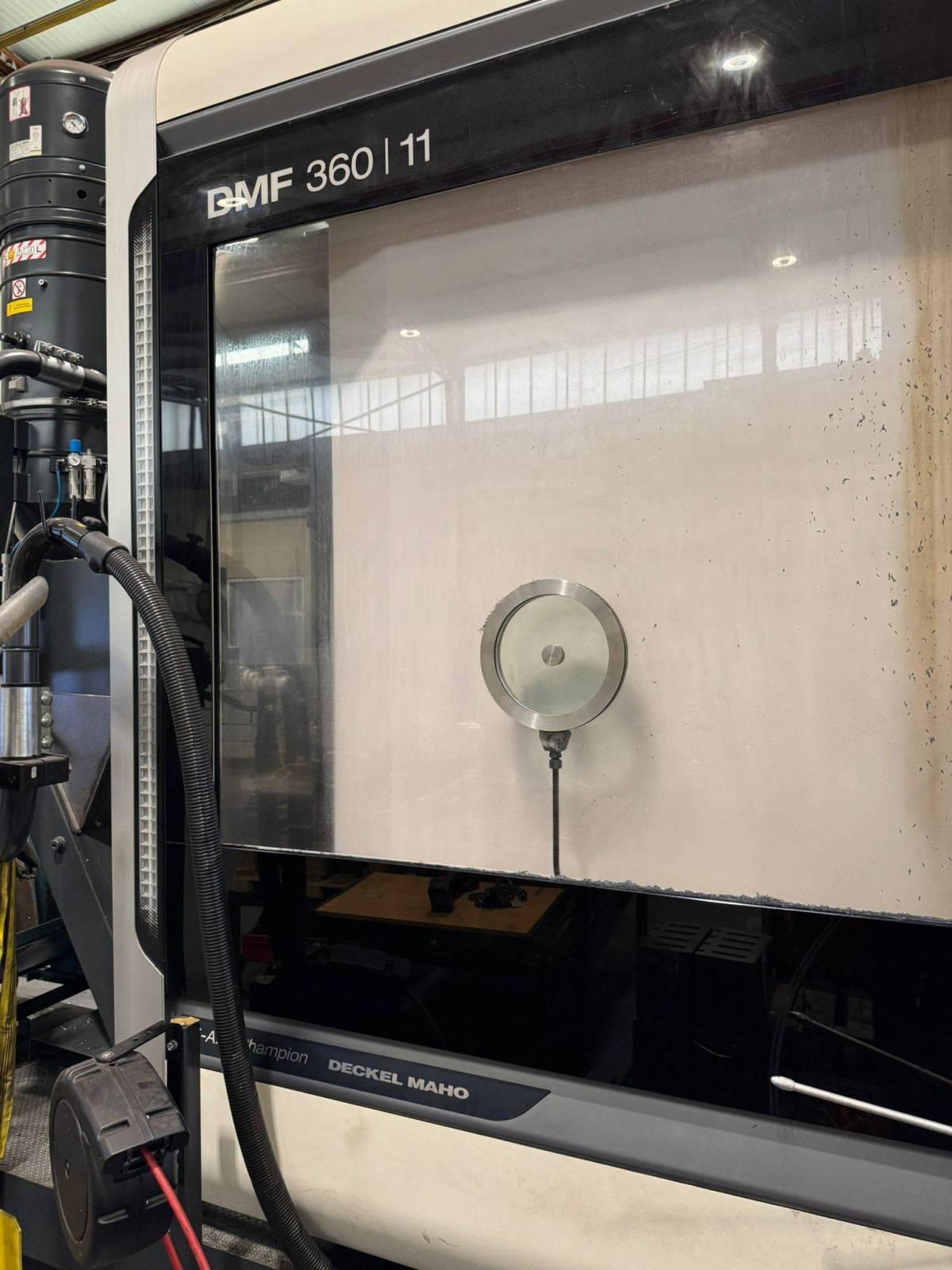

DMG DMF 360-11 5 axis machining centre

Three-axis travel (X / Y / Z): 3600 × 1100 × 900 mm
B-axis swing range: approximately ±120°

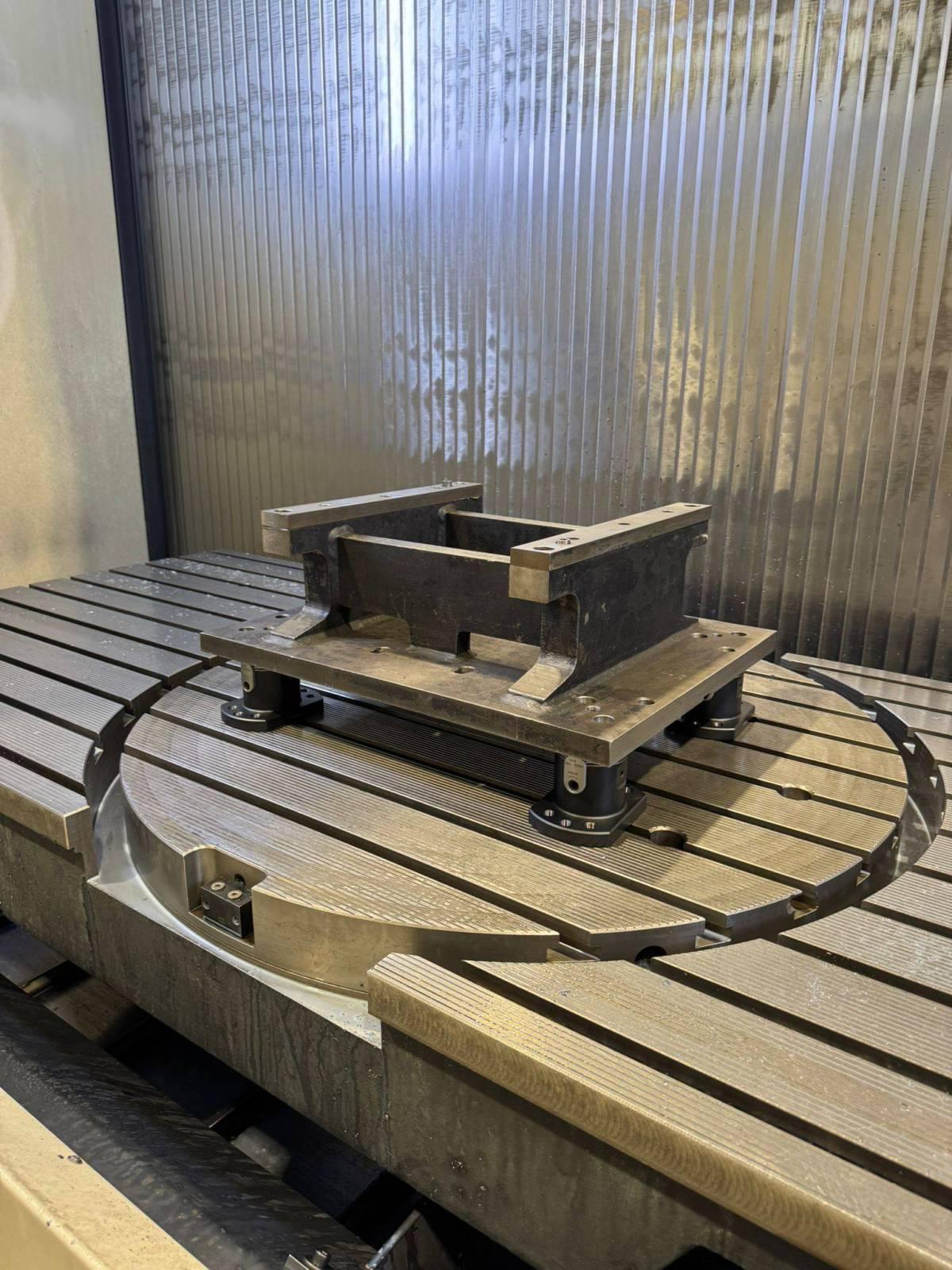

C-axis rotation: 360° continuous
Max. workpiece weight: 8000 kg
Workpiece diameter (double vacant condition): 130 mm

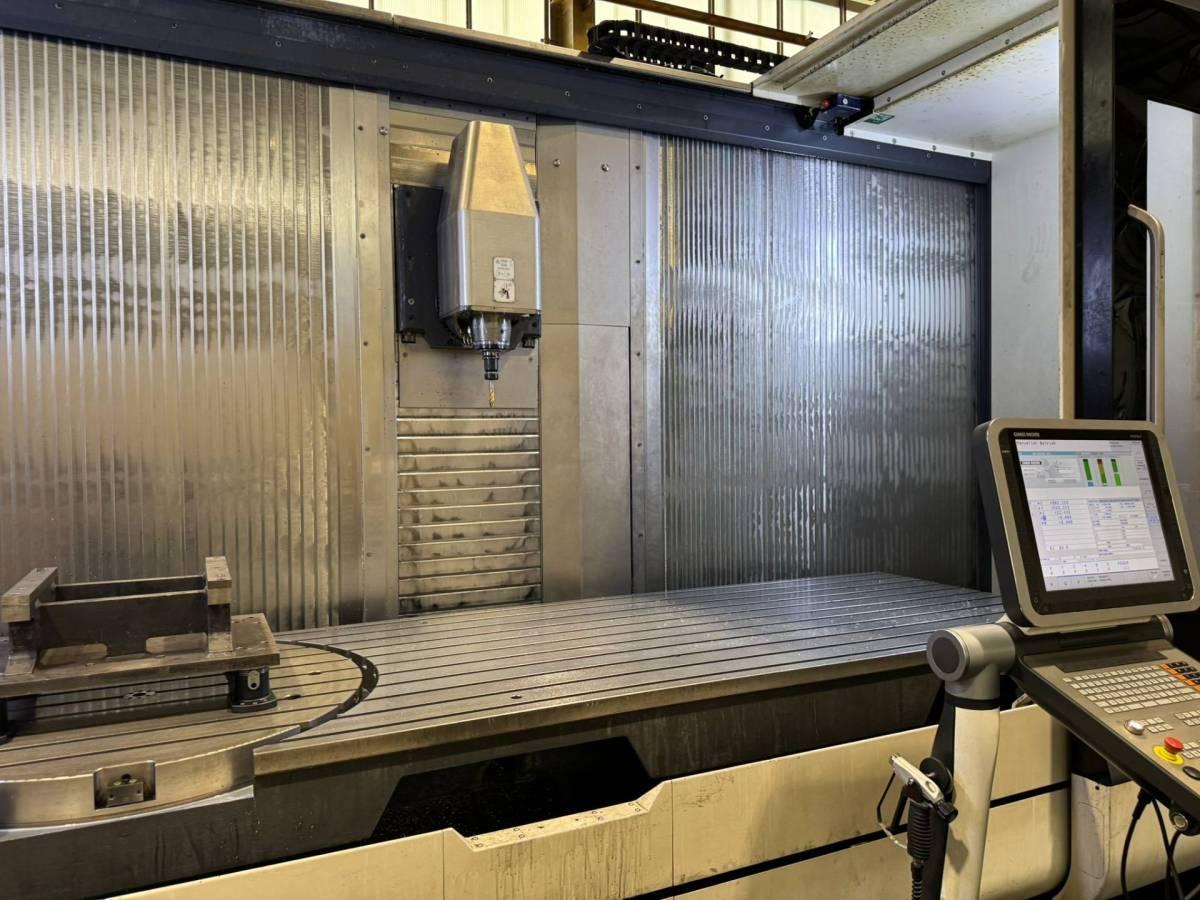

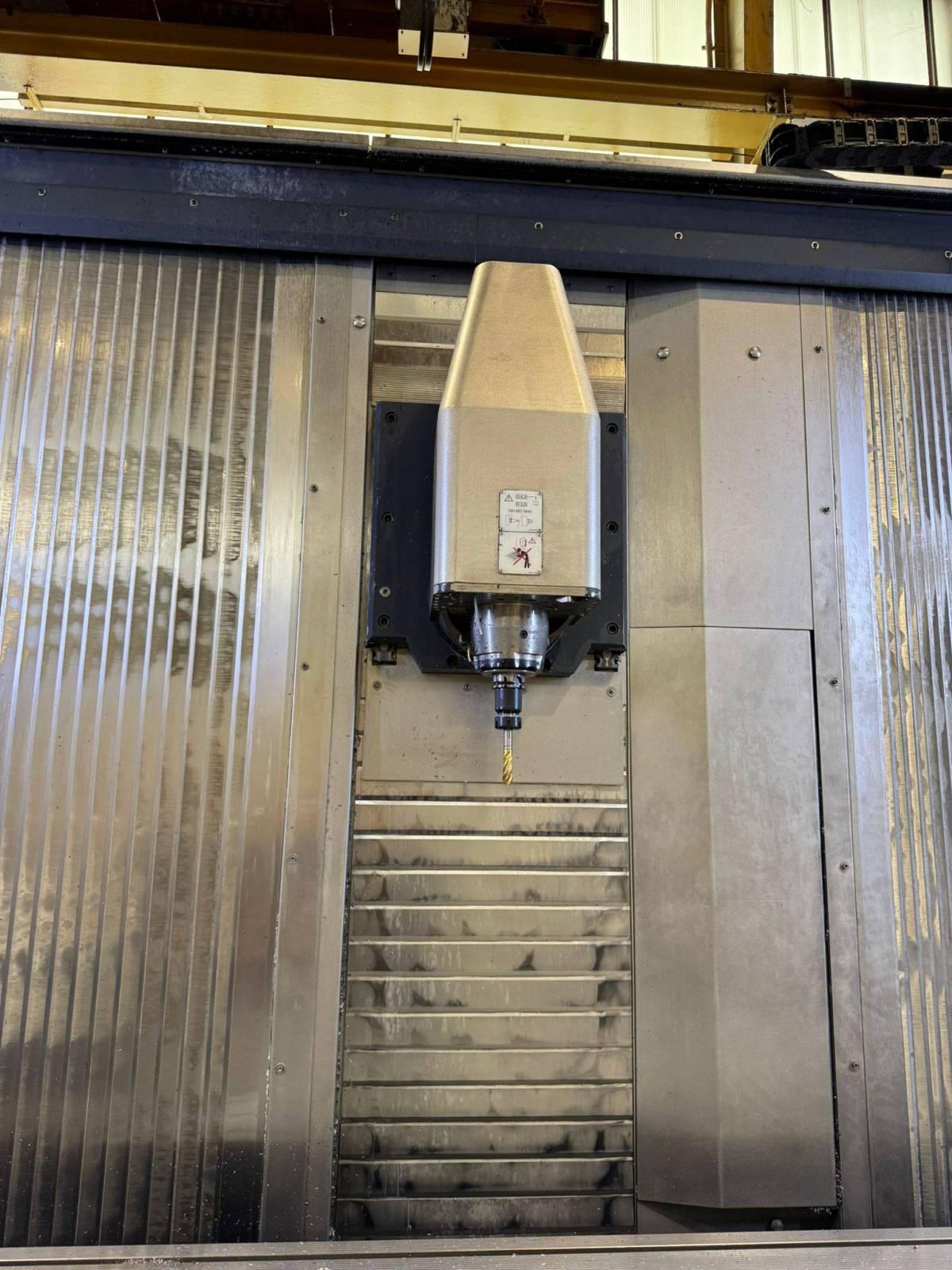

Spindle & Tool System
Spindle speed: 20,000 rpm
Tool interface: HSK 63
Maximum torque: 288 / 187 Nm
Spindle power: 35 / 25 kW
Max. tool weight: 5 kg
Max. tool length (from spindle nose): 300 mm

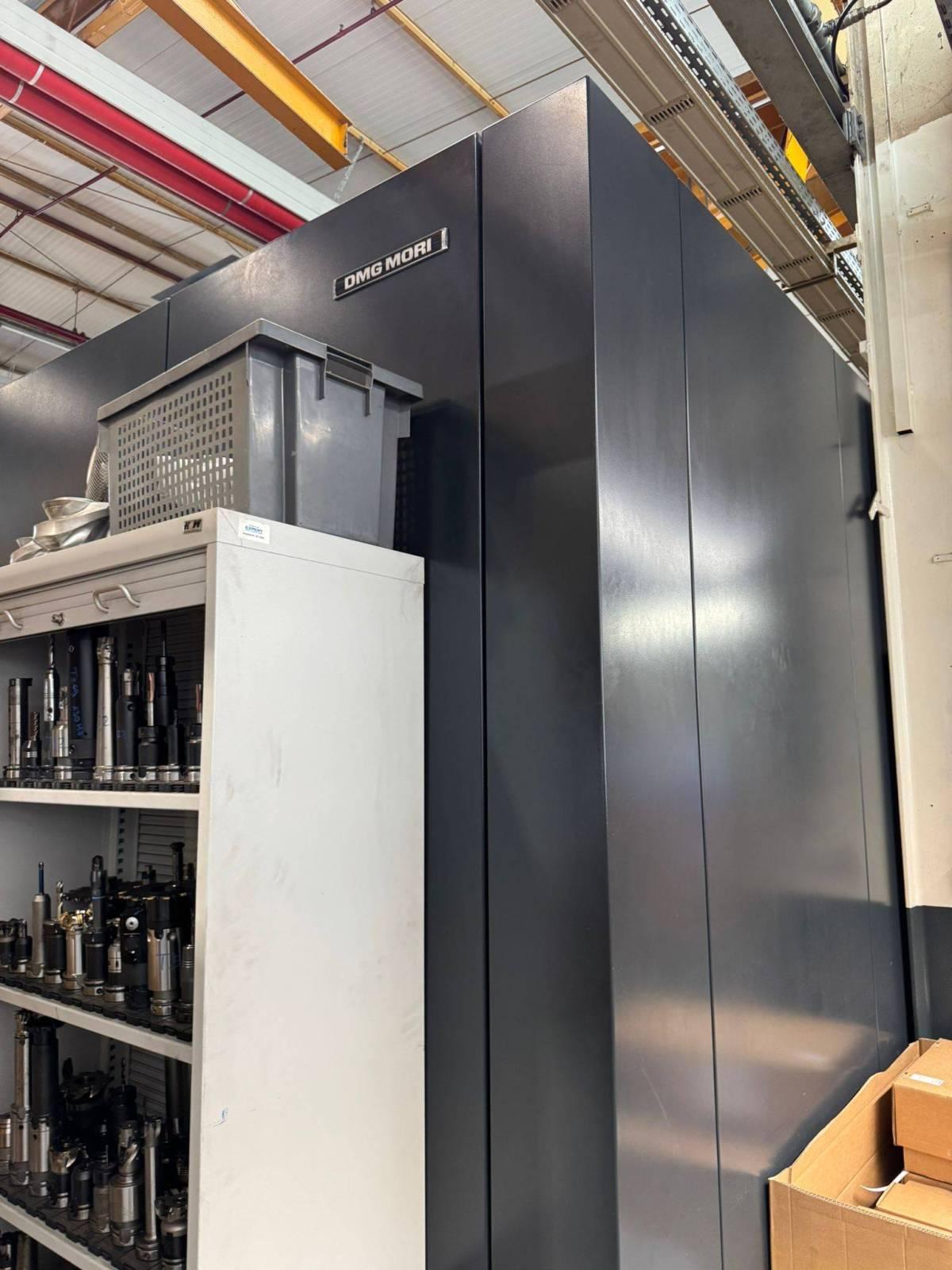

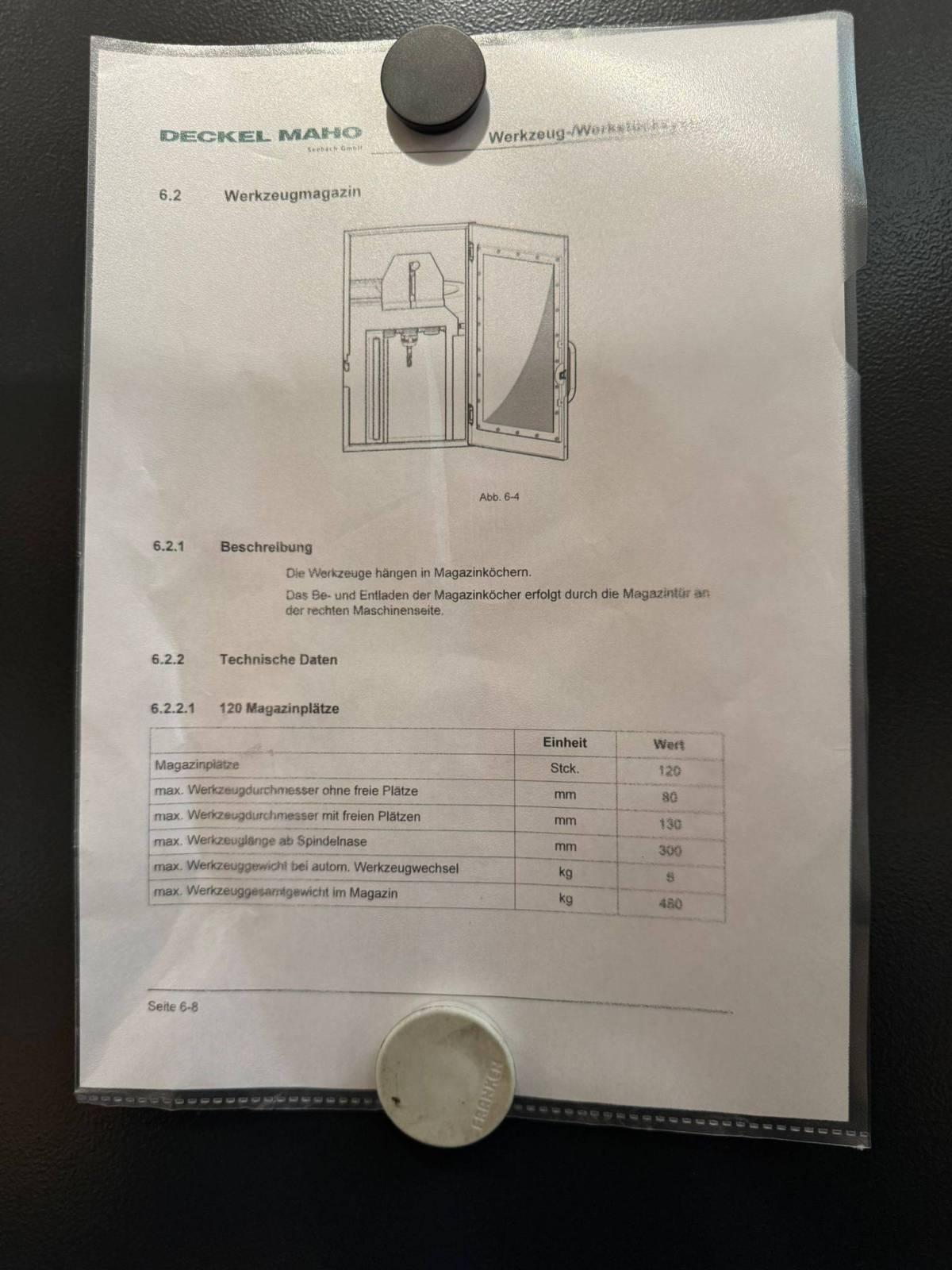

ToolS magazine capacity: 120
Tool changer: 60-position automatic tool changer (ATC)
Feed System
Rapid traverse (X / Y / Z): 80 / 60 / 60 m/min
Cooling System
Internal coolant pressure: 40 bar
Coolant tank capacity: 600 L
