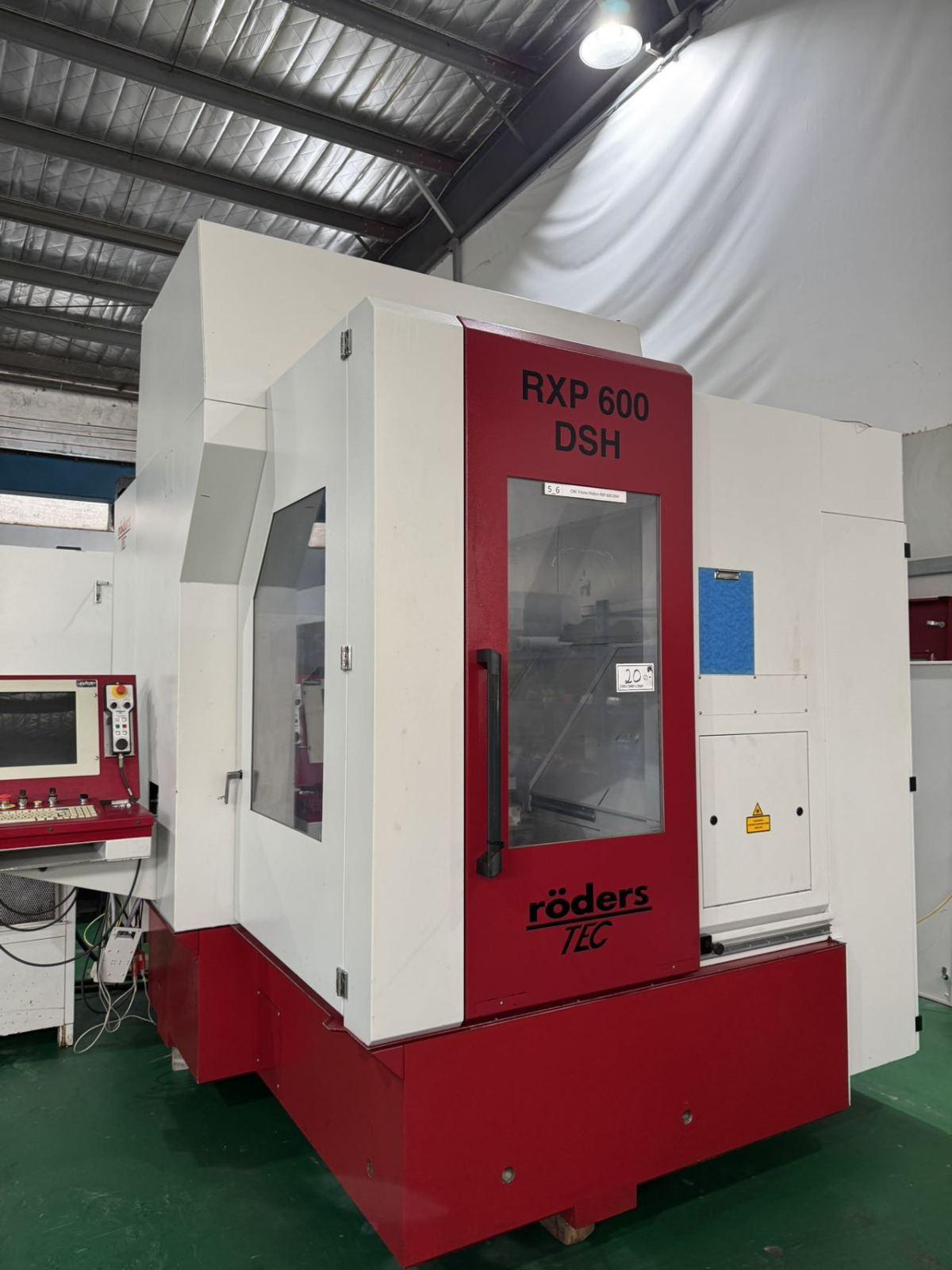

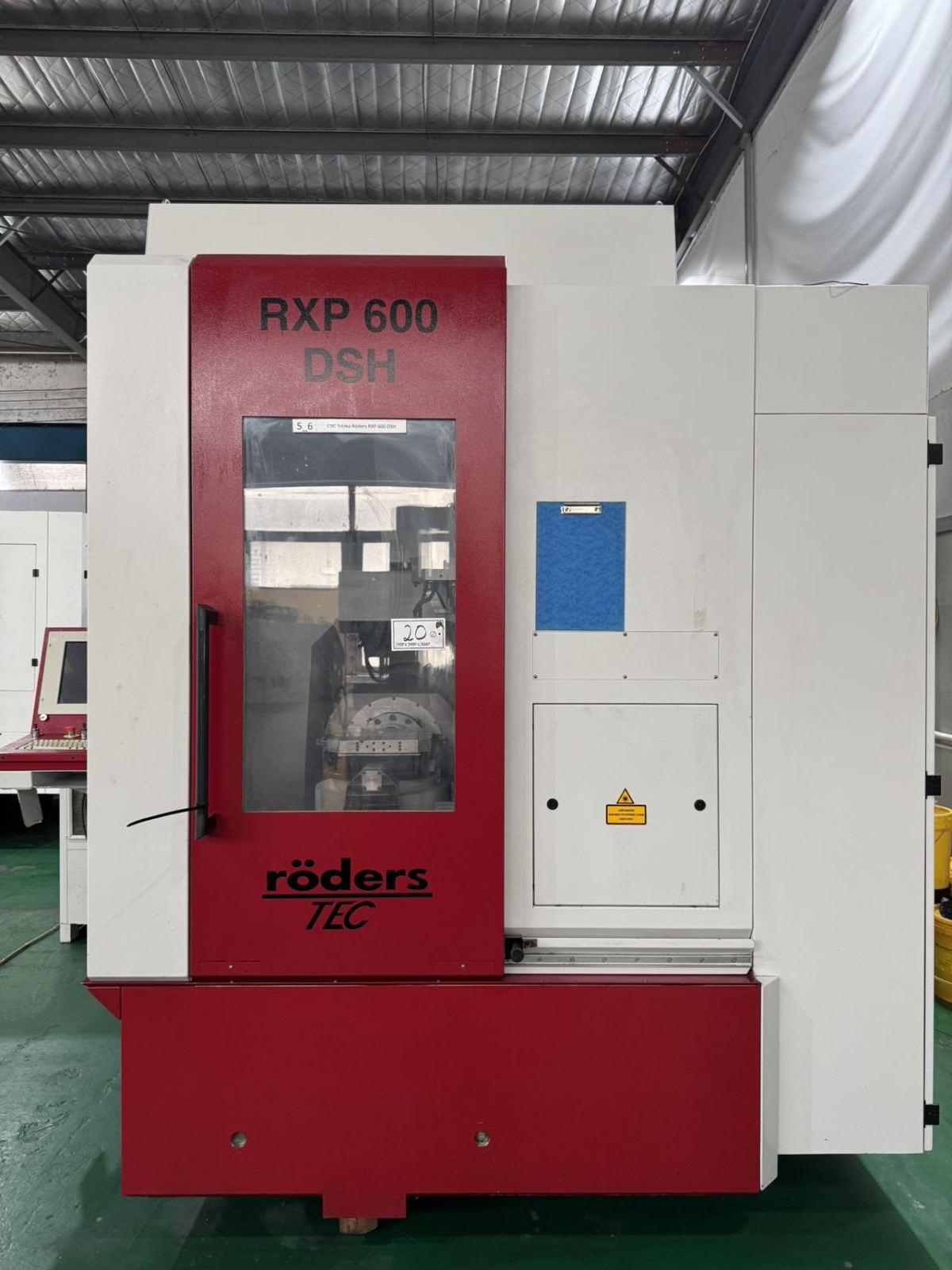

RODERS RXP600 DSH 5 axis machining centre

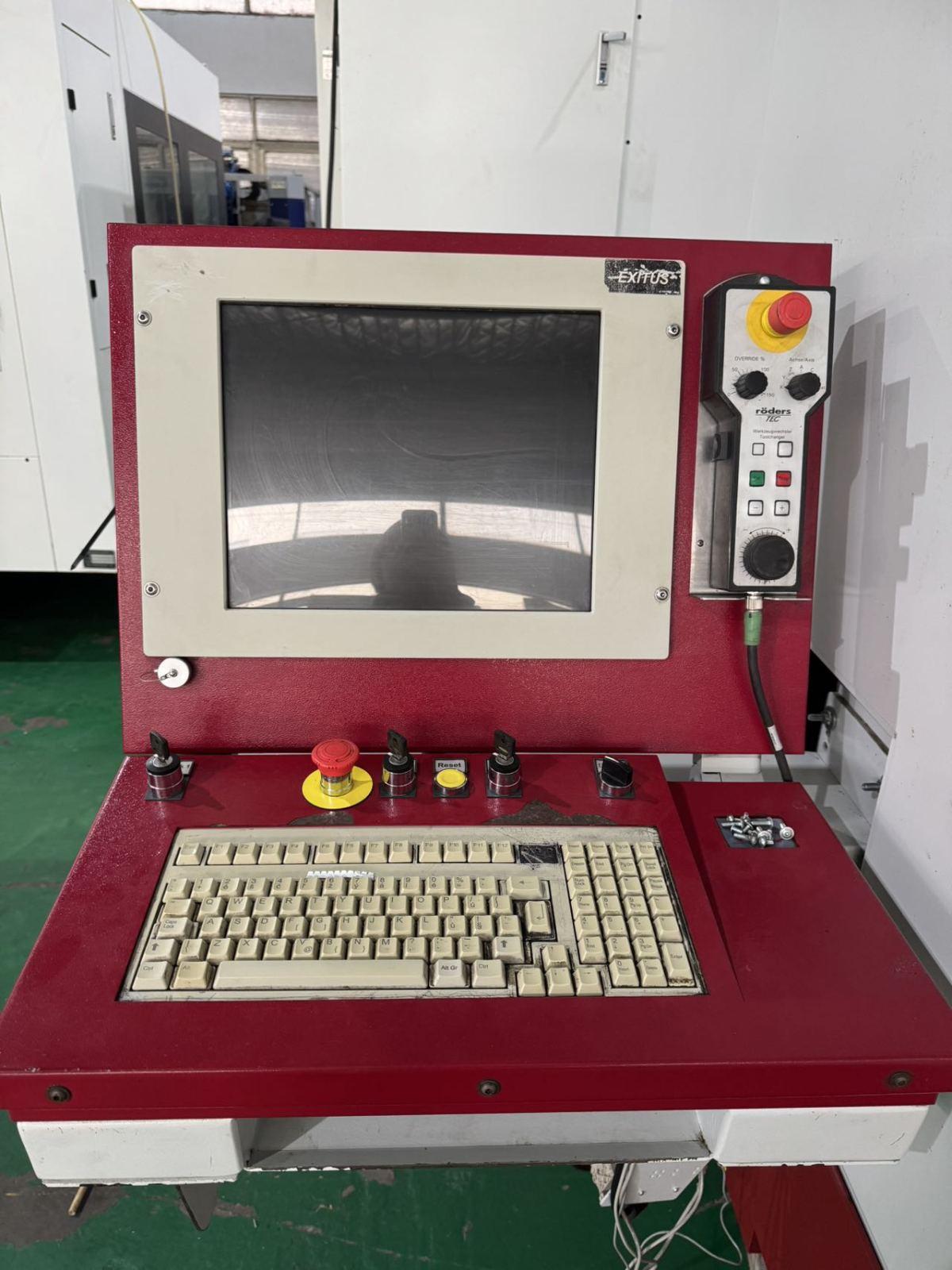

CNC System: Röders RMS6
Three-axis travel (X/Y/Z): 500 × 650 × 400 mm
Swing range of A-axis: ±115°
Rotation range of C-axis: 360°

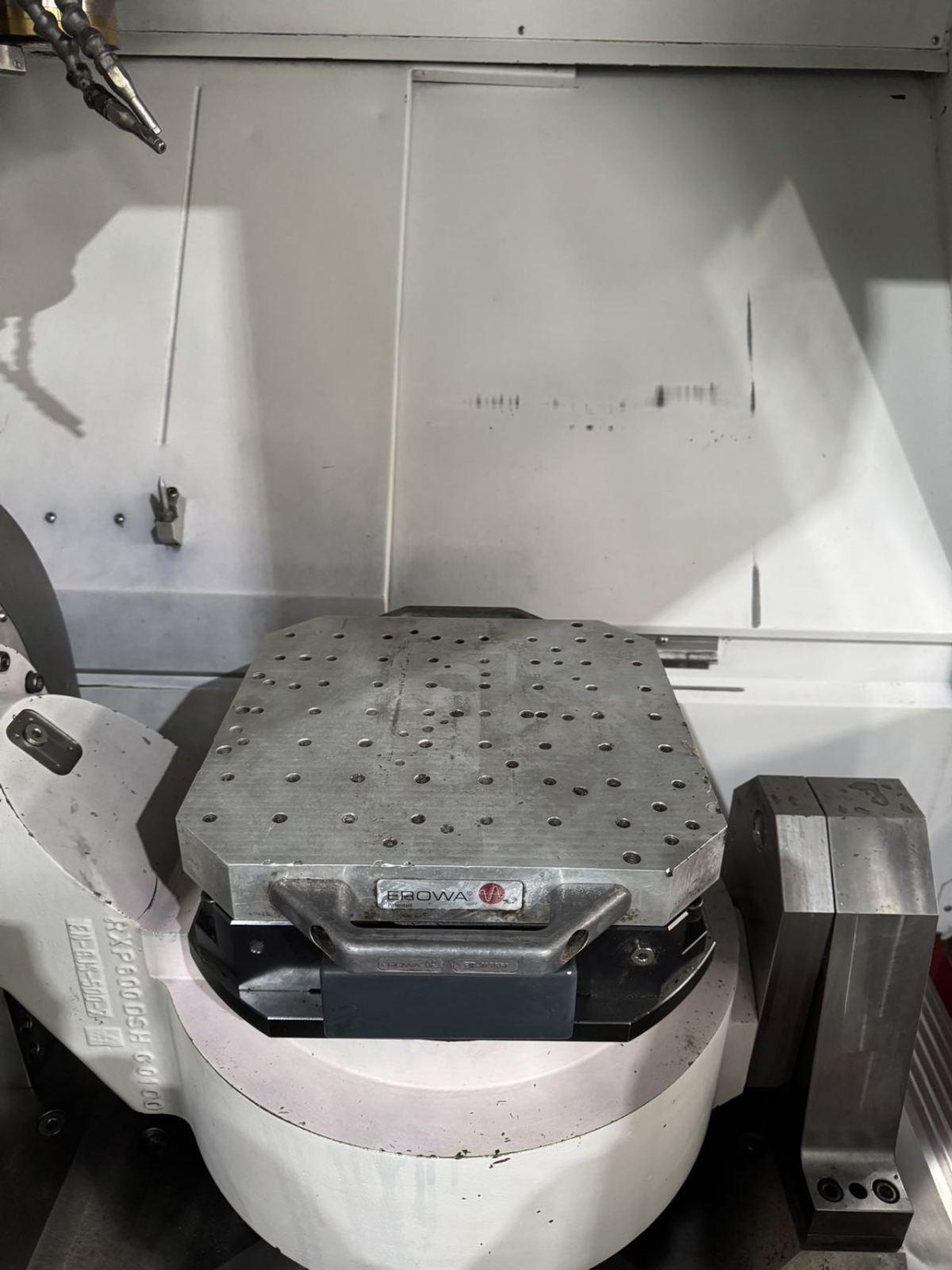

Worktable size: 340 × 340 mm

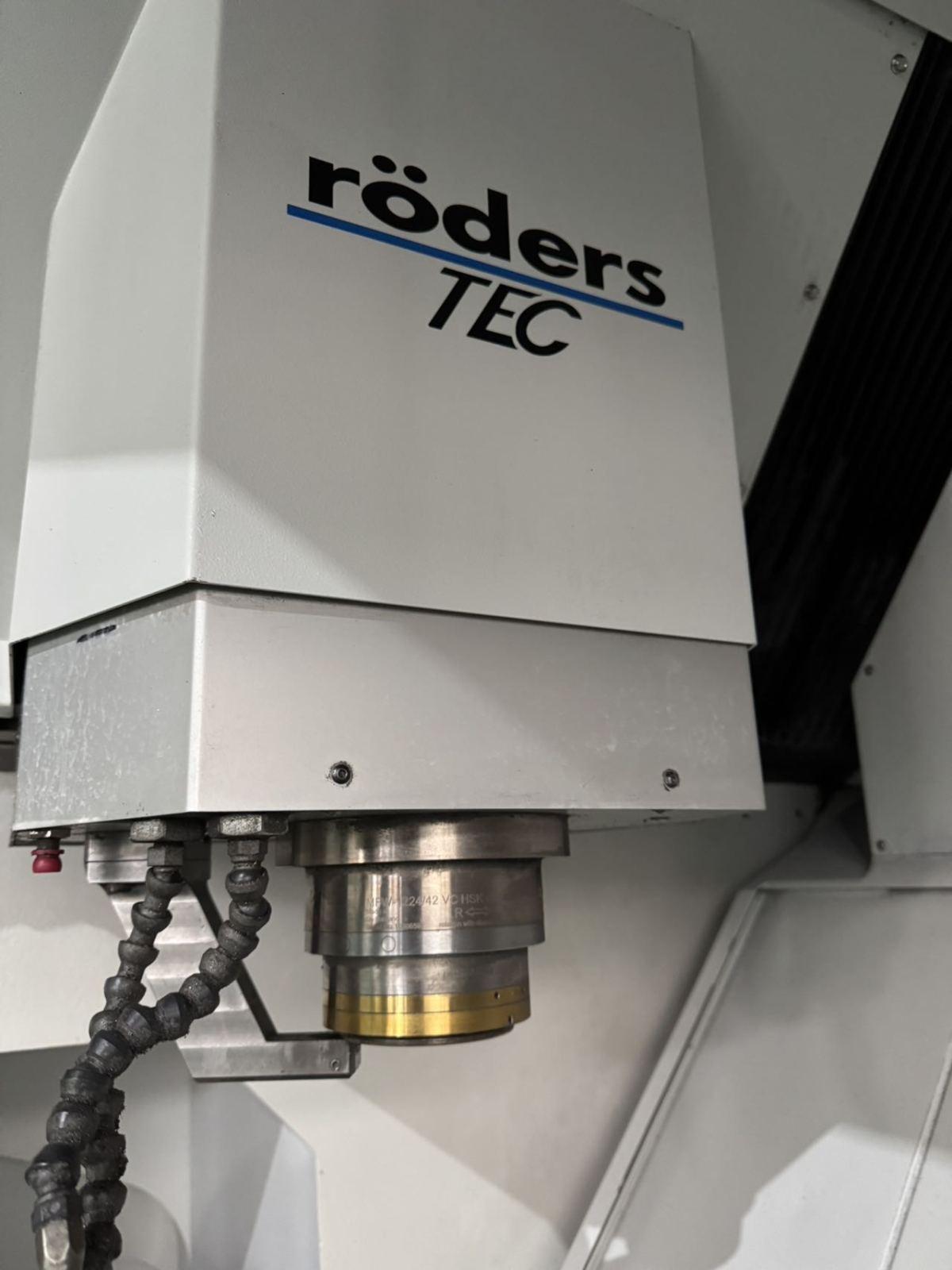

Spindle interface: HSK-E50
Spindle speed: 42,000 rpm
Drive mode:
XYZ axes: Full-axis linear motor drive
AC axes: Torque motor drive
Positioning accuracy: < 3 μm
Repeat positioning accuracy: < 1 μm
Temperature control: Coolant temperature control ±0.1 ℃
Tool magazine capacity: 24 tools
Tool setting system: BLUM Laser Tool Setter
Workpiece measurement: 3D probe
