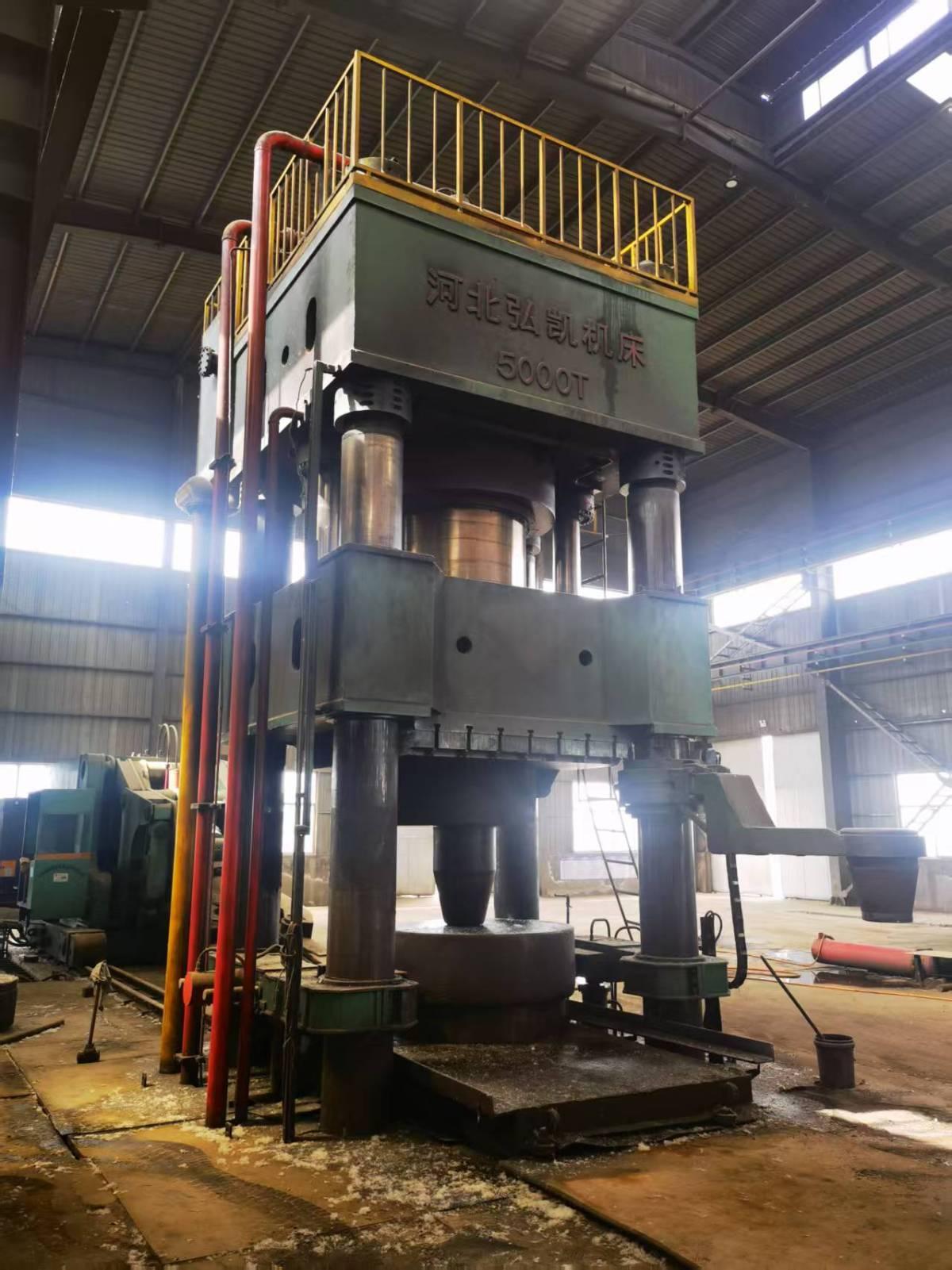

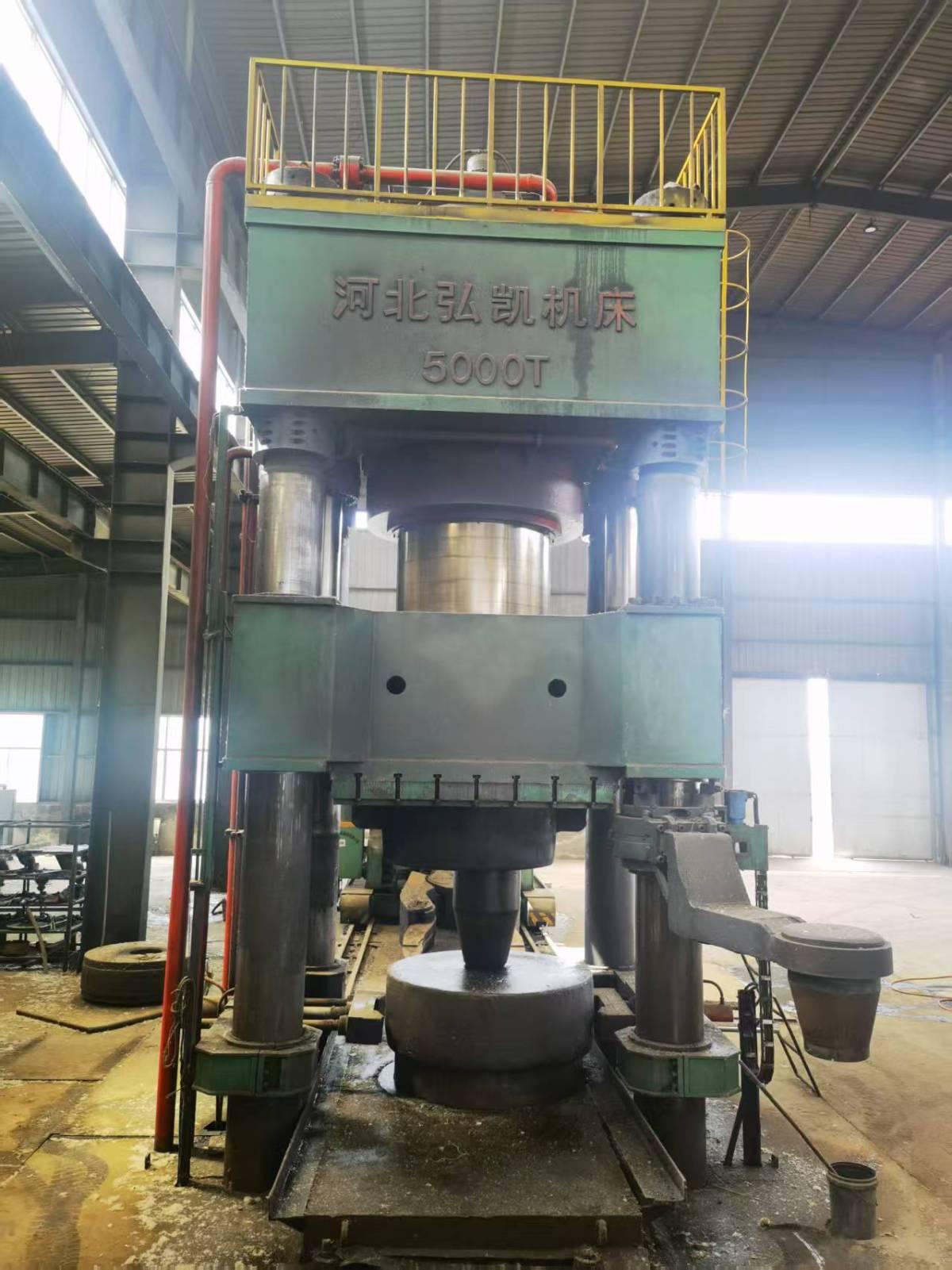

HONGKAI 5000T Automatic lathe

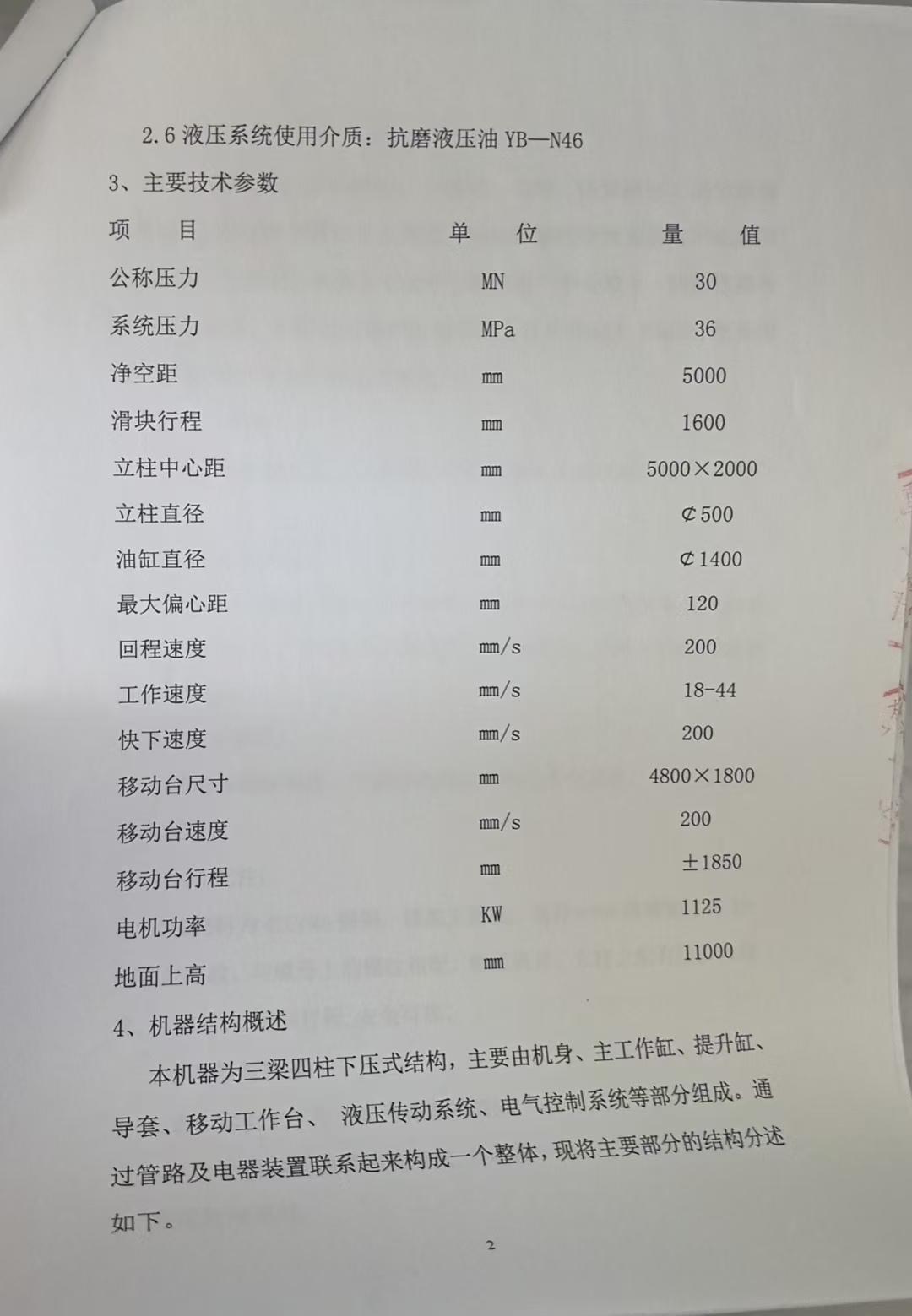

Pressing force: approximately 4,948 tons
Nominal Pressure: 30 MN
Hydraulic System Pressure: 36 MPa
Clear Opening: 5000 mm
Slider Stroke: 1600 mm
Distance Between Columns: 5000 × 2000 mm
Column Diameter: Φ500 mm
Main Cylinder Diameter: Φ1400 mm
Maximum Eccentric Load: 120 mm
Return Speed: 200 mm/s
Working Speed: 18–44 mm/s
Fast Approach Speed: 200 mm/s
Moving Worktable Size: 4800 × 1800 mm
Moving Worktable Speed: 200 mm/s
Moving Worktable Stroke: ±1850 mm
Motor Power: 1125 kW
Above Ground Height: 11,000 mm
Hydraulic System: CNC-controlled hydraulic system
Hydraulic Medium: Anti-wear hydraulic oil YB-N46
Structural Description
Three-beam and four-column downward pressing structure
Main Components
Main Frame
Main Working Cylinder
Return/Lifting Cylinder
Guide Sleeve
Moving Worktable

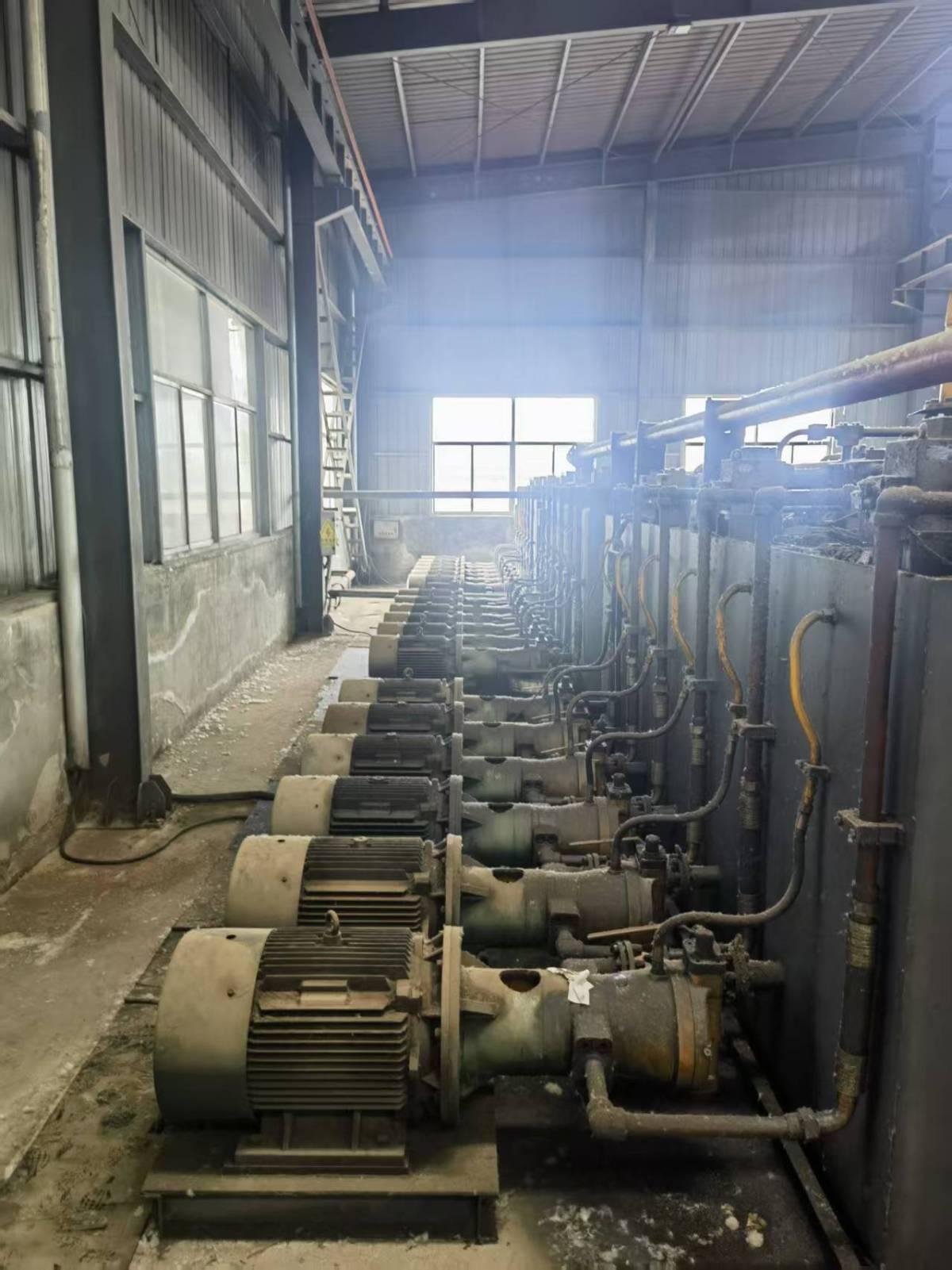

Hydraulic CNC Control System
Electrical CNC Control System
Movable worktable: Equipped with a movable worktable for convenient die replacement and workpiece movement
Hydraulic station ambient temperature: 5–40℃
Oil cooling system: Cooling water tower to be provided by the buyer
Power supply: Three-phase four-wire system, 380V
Voltage fluctuation range: ±10% (280V±10%)
Total machine power: 1125 kW
Configuration:

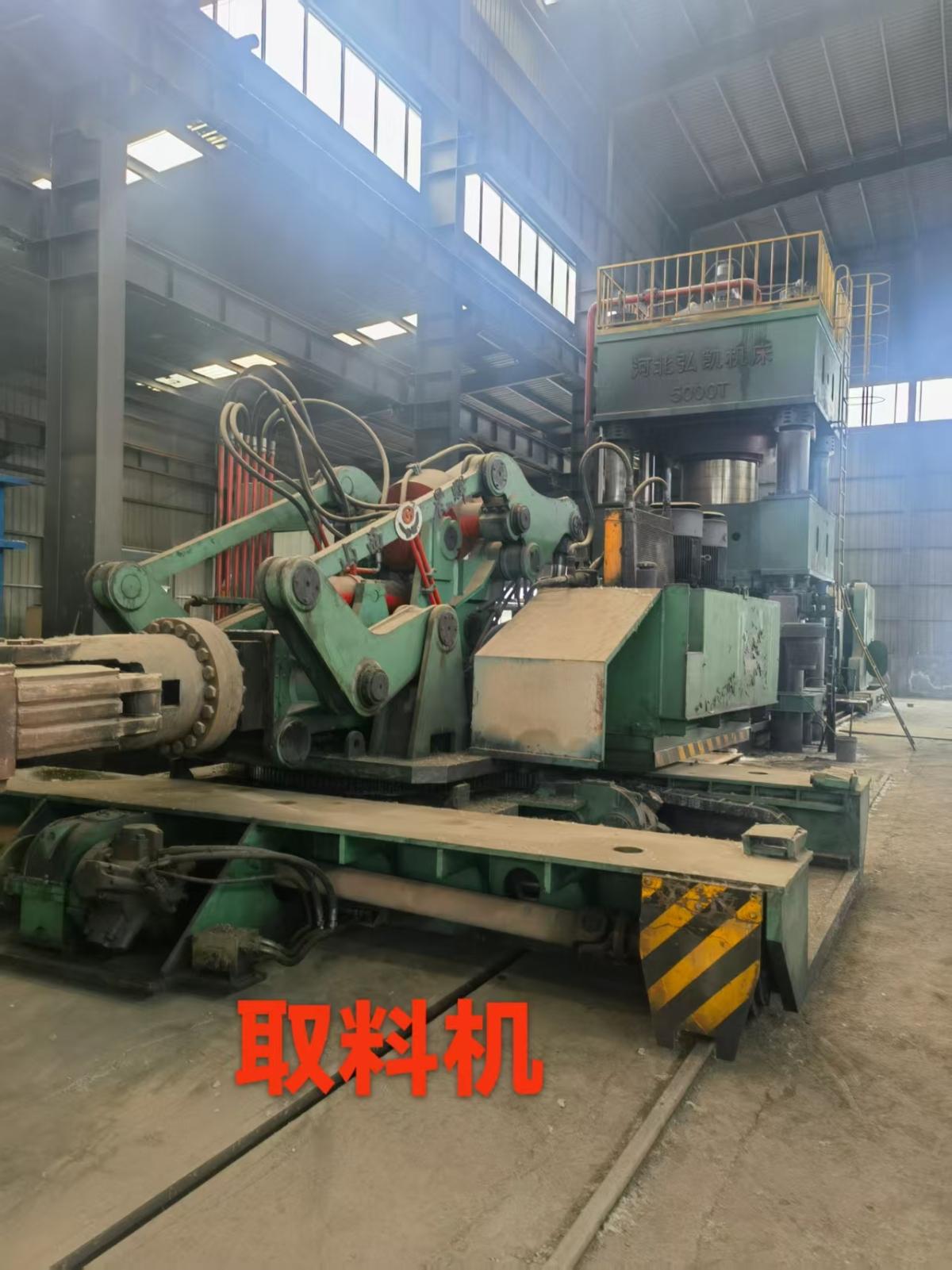

One Chenhui material handling machine

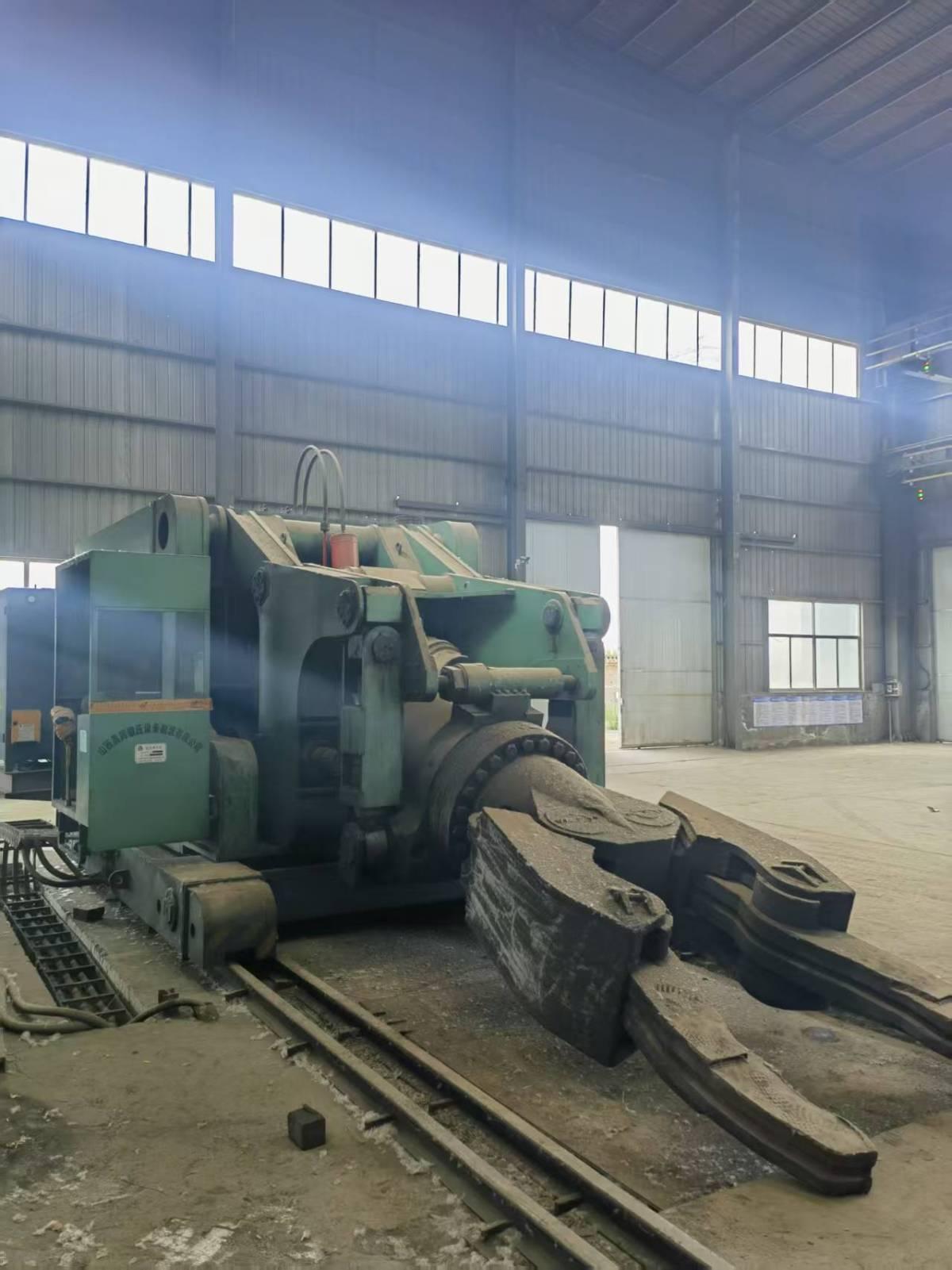

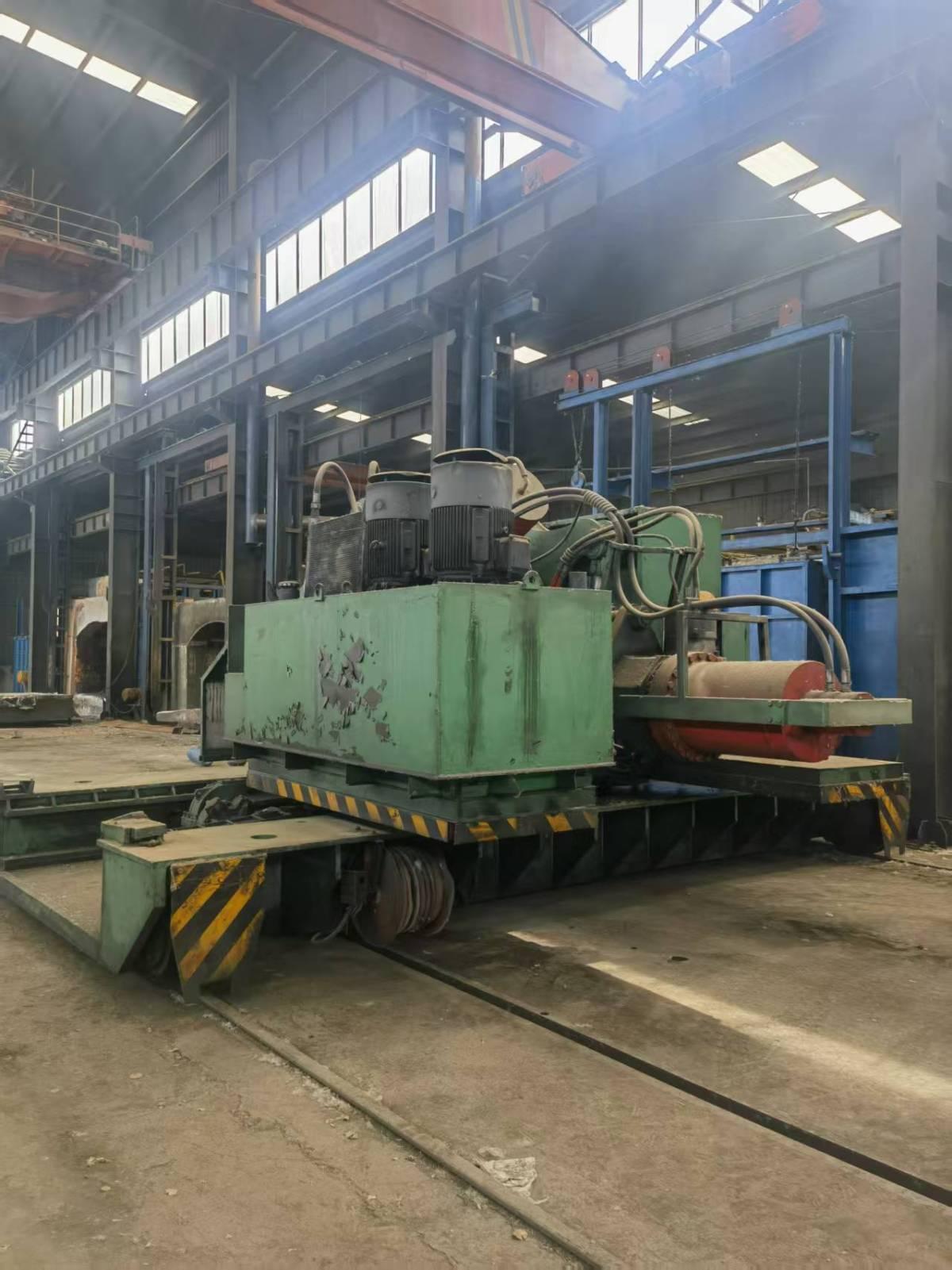

One Chenhui manipulator (operation machine)
