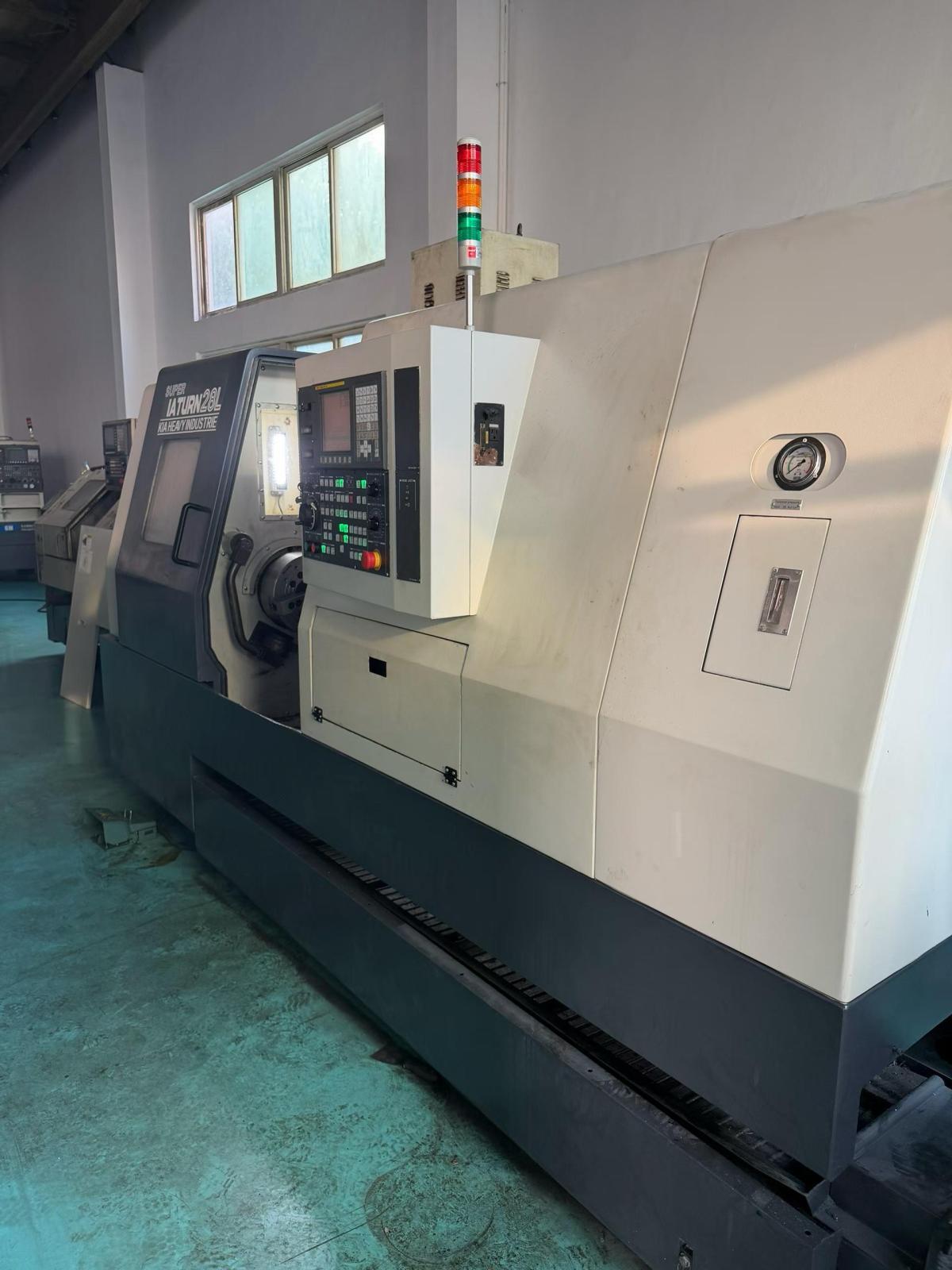

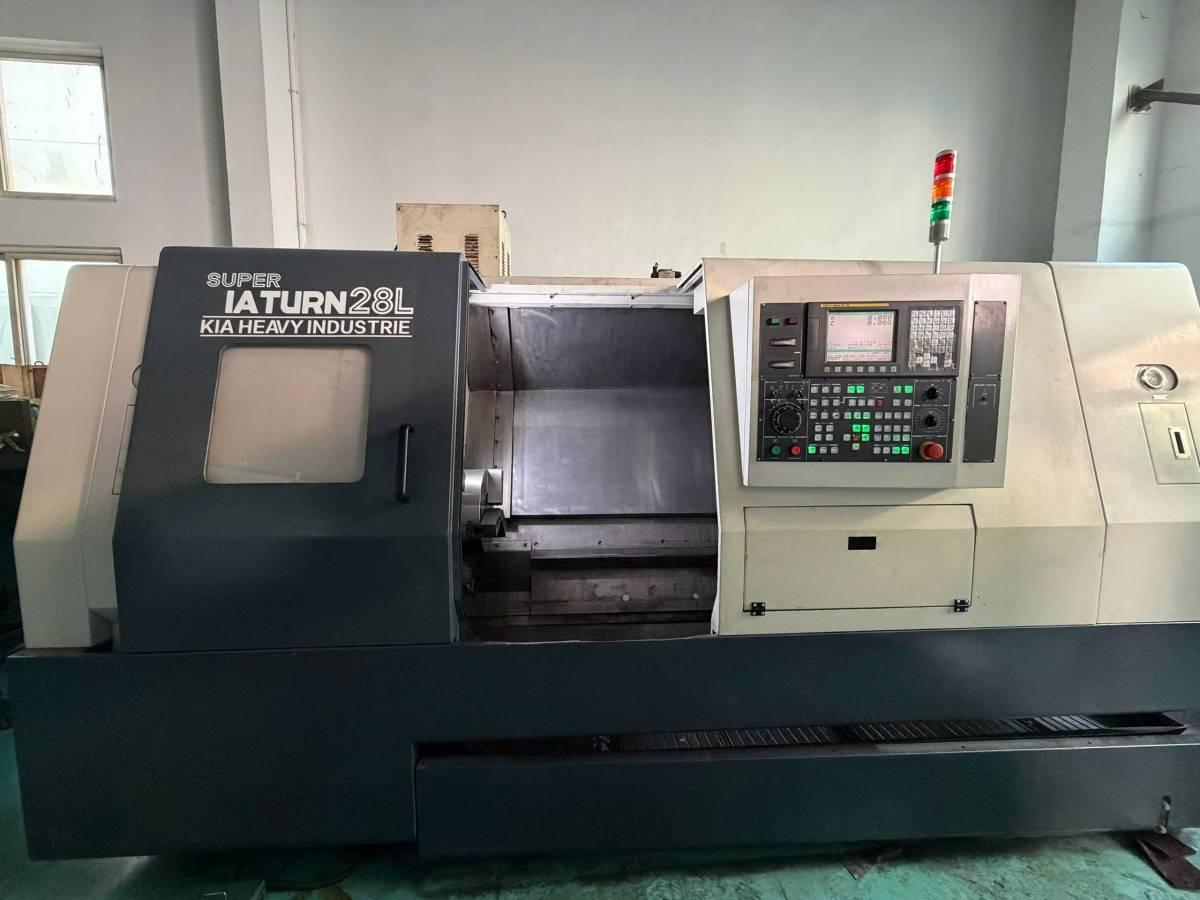

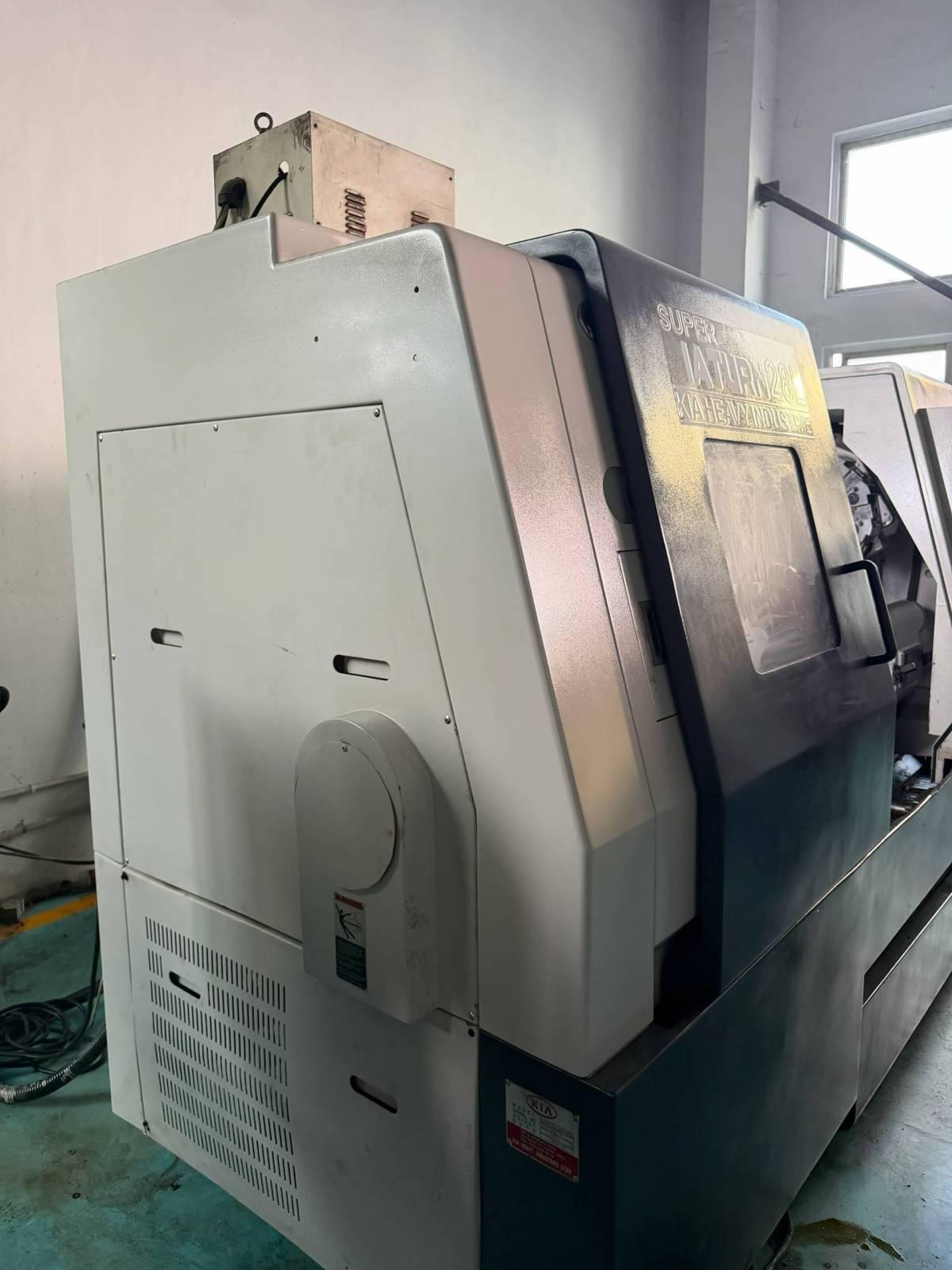

KIA SUPER KIA TURN28L CNC turning lathe

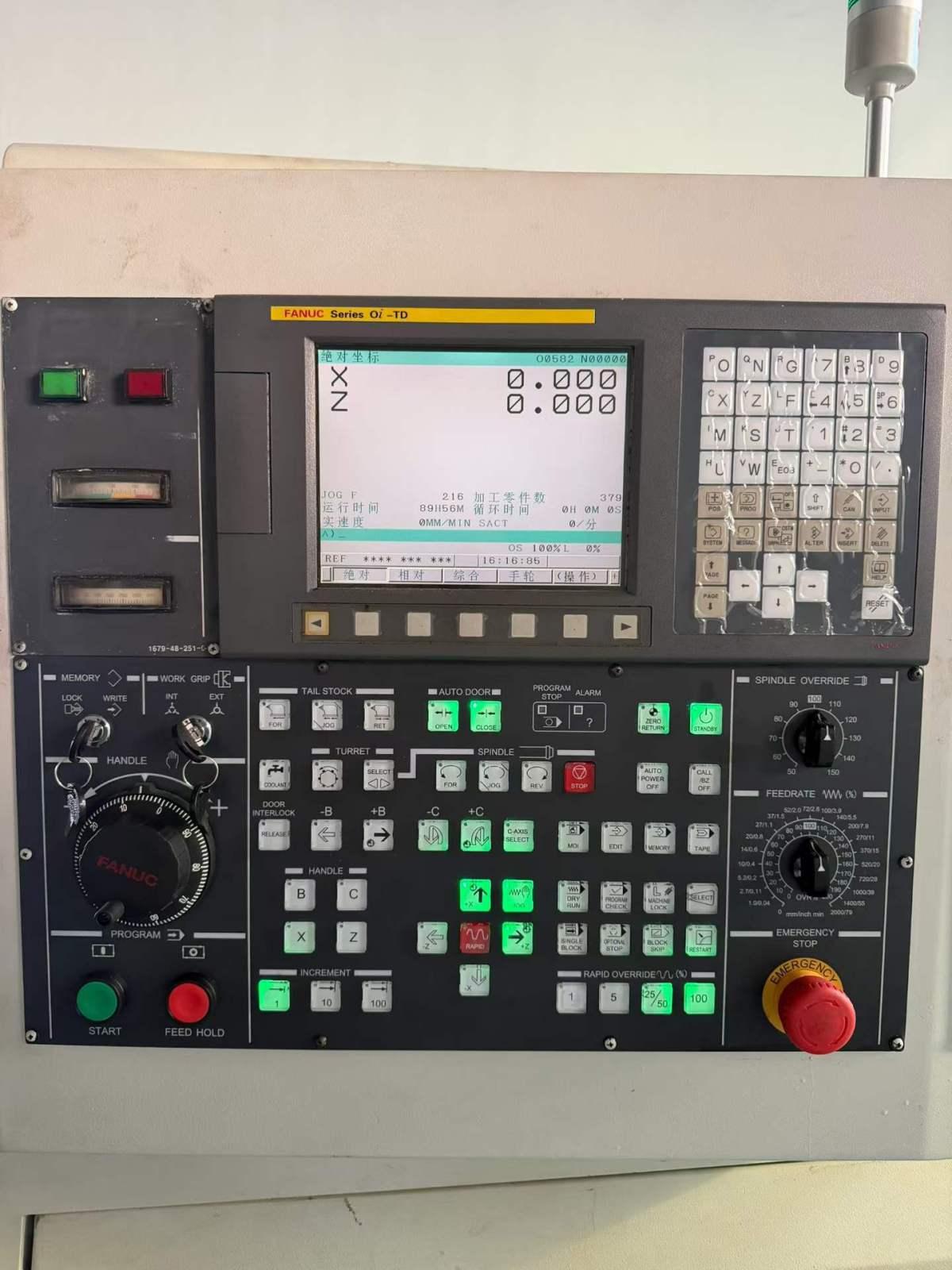

CNC System: FANUC Oi-TD

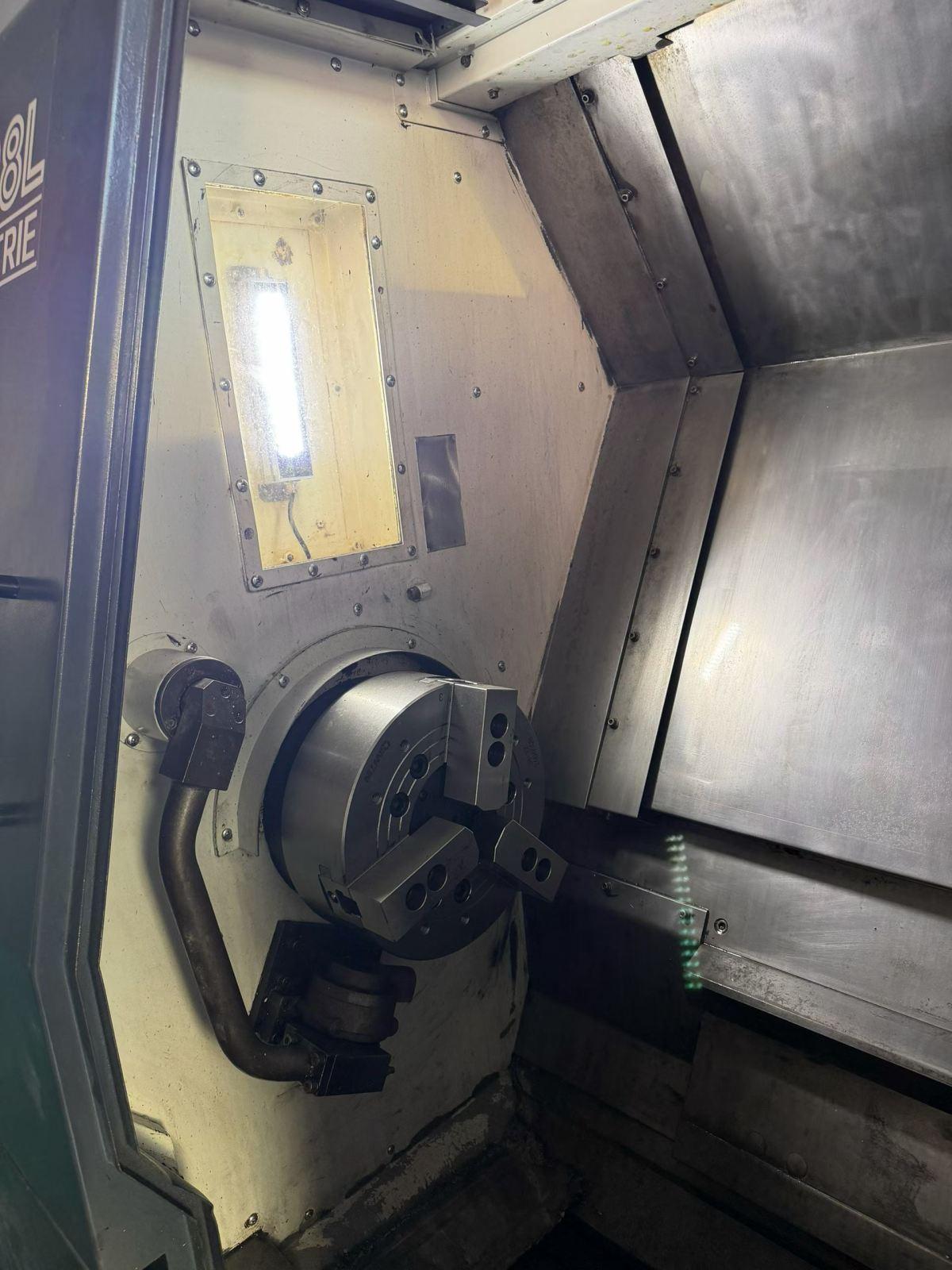

Chuck size: 12 inches
Maximum turning diameter: Ø408.94 mm
Maximum turning length: 1100 mm
Maximum bar capacity: Ø80.01 mm
Maximum swing diameter over bed: Ø589.28 mm
Distance between centers: 1102.36 mm
X-axis travel: 220.98 mm
Z-axis travel: 1099.82 mm
X-axis rapid traverse rate: 787 IPM (approx. 20 m/min)
Z-axis rapid traverse rate: 945 IPM (approx. 24 m/min)
Spindle nose: A2-8
Spindle bore: Ø95 mm
Maximum spindle speed: 3000 rpm
Spindle motor power: 22.37 kW

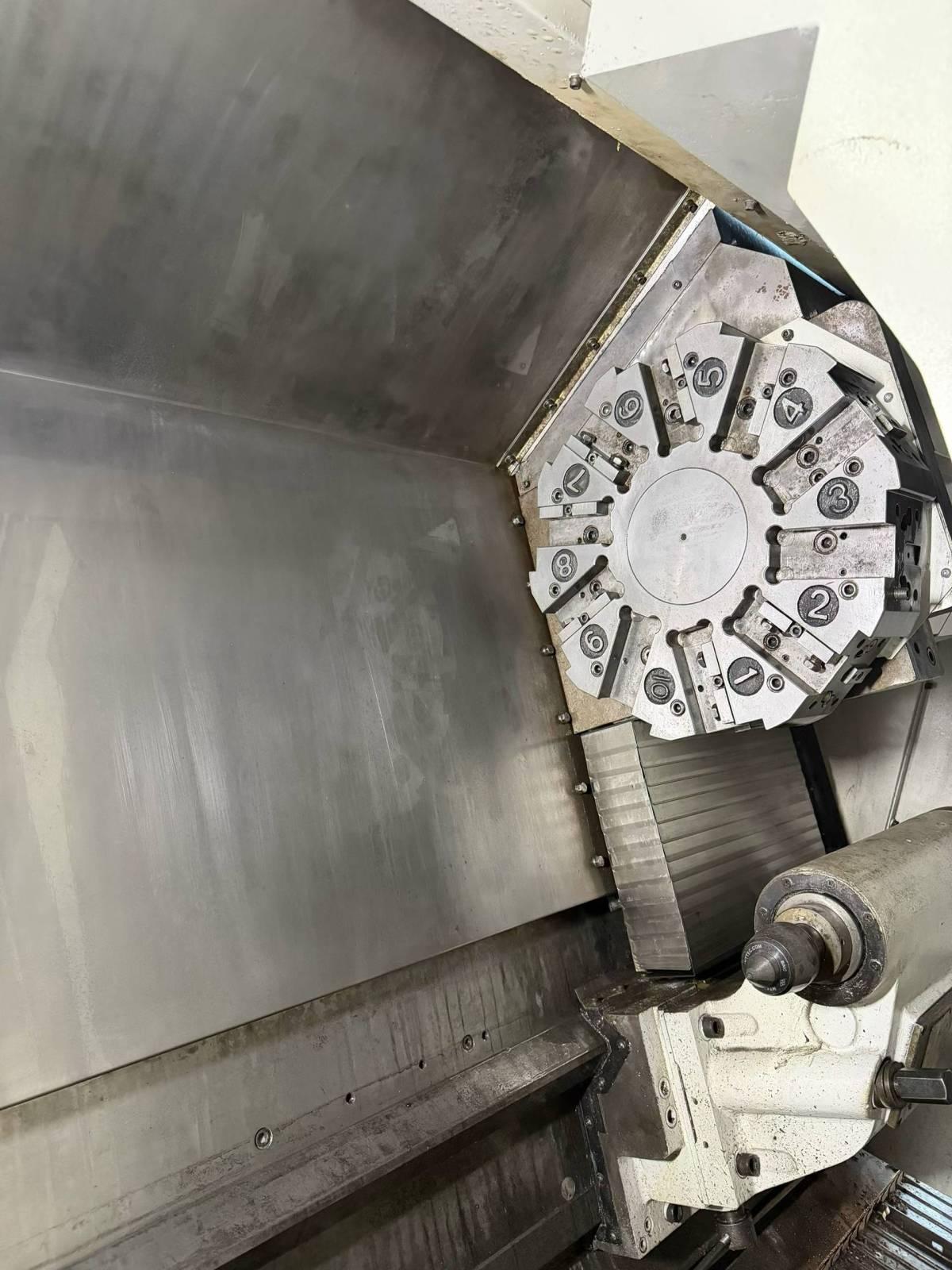

Turret capacity: 10 stations
Turret indexing time: 0.8 seconds
Tailstock travel: 919.48 mm
Tailstock quill diameter: Ø100.08 mm
Tailstock quill stroke: 119.89 mm
Tailstock taper: MT5
Power supply: AC 220V, Three Phase, 60 Hz
Machine dimensions: 4318 × 1828.8 × 2032 mm
Machine weight: Approx. 7937.86 kg
