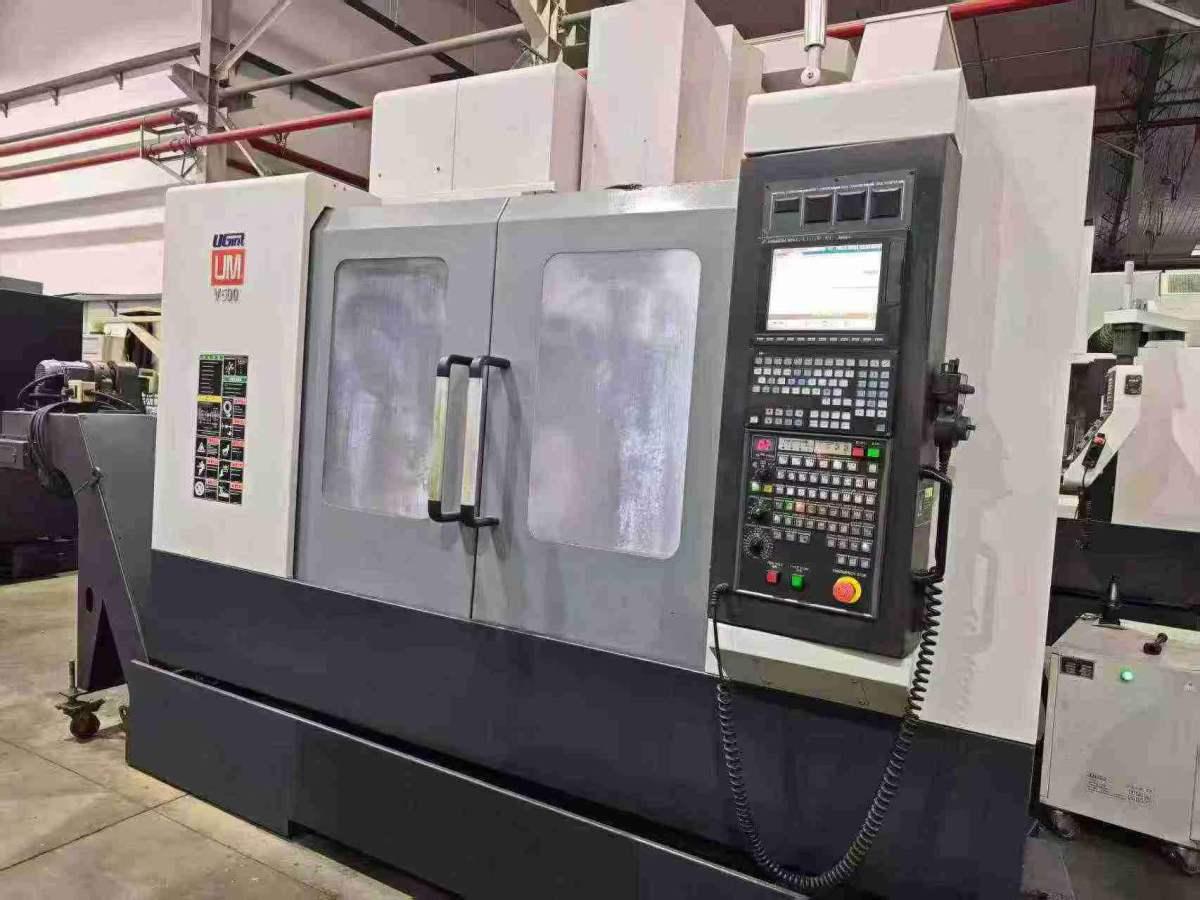

Xiangyu 850 Vertical Machining centre

Three axis stroke: 800 * 550 * 550mm

Distance from spindle nose to workbench: 120-670mm

Distance from spindle center to column: 585mm

Table size: 900 * 550mm

Spindle speed: 8000rpm

Bearing capacity: 500kg

Spindle horsepower: 7.5kw

Guide rail: two wires and one hard

Spindle: BT40

System: Mitsubishi M70 system

Weight: 5000kg

Overall dimension: 2520 * 2470 * 2600mm
