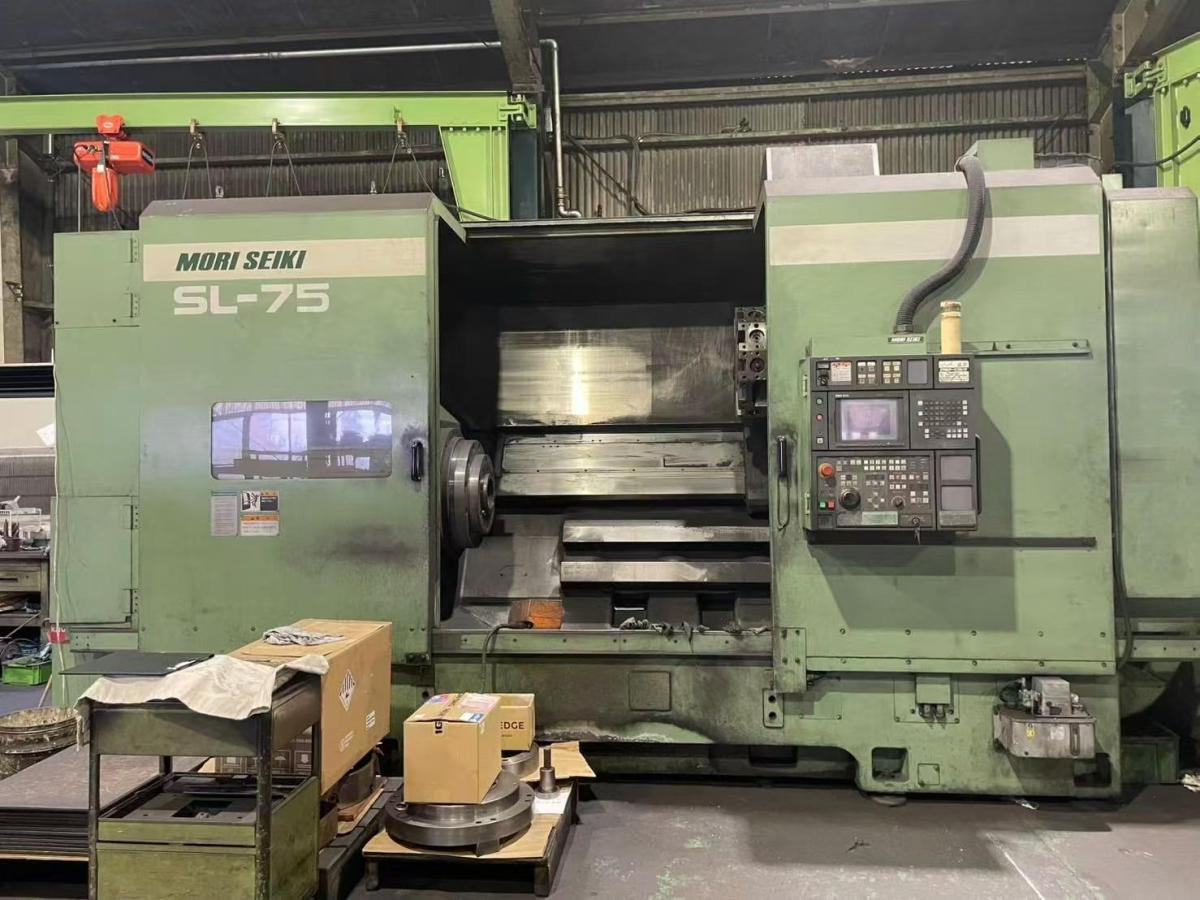

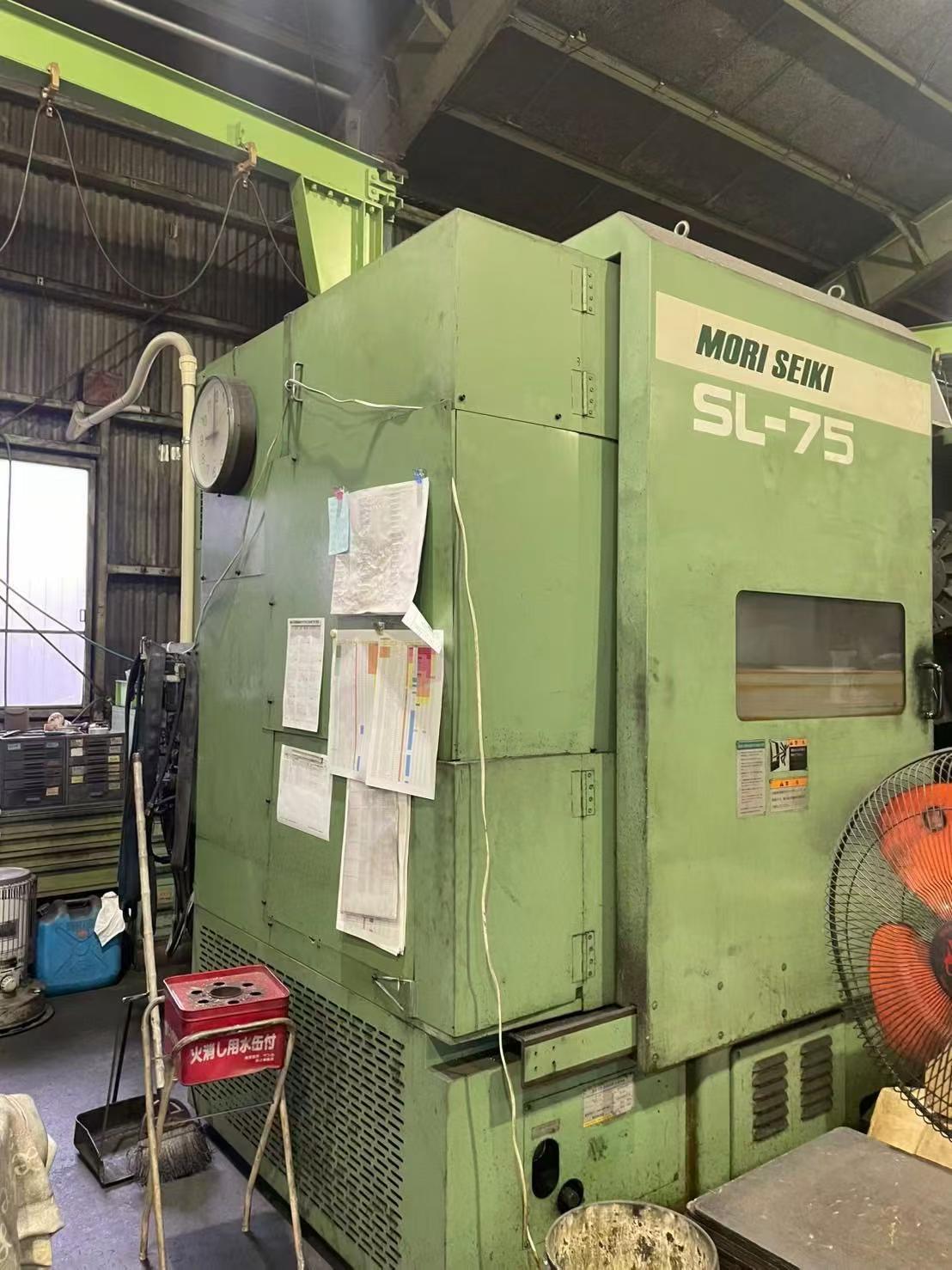

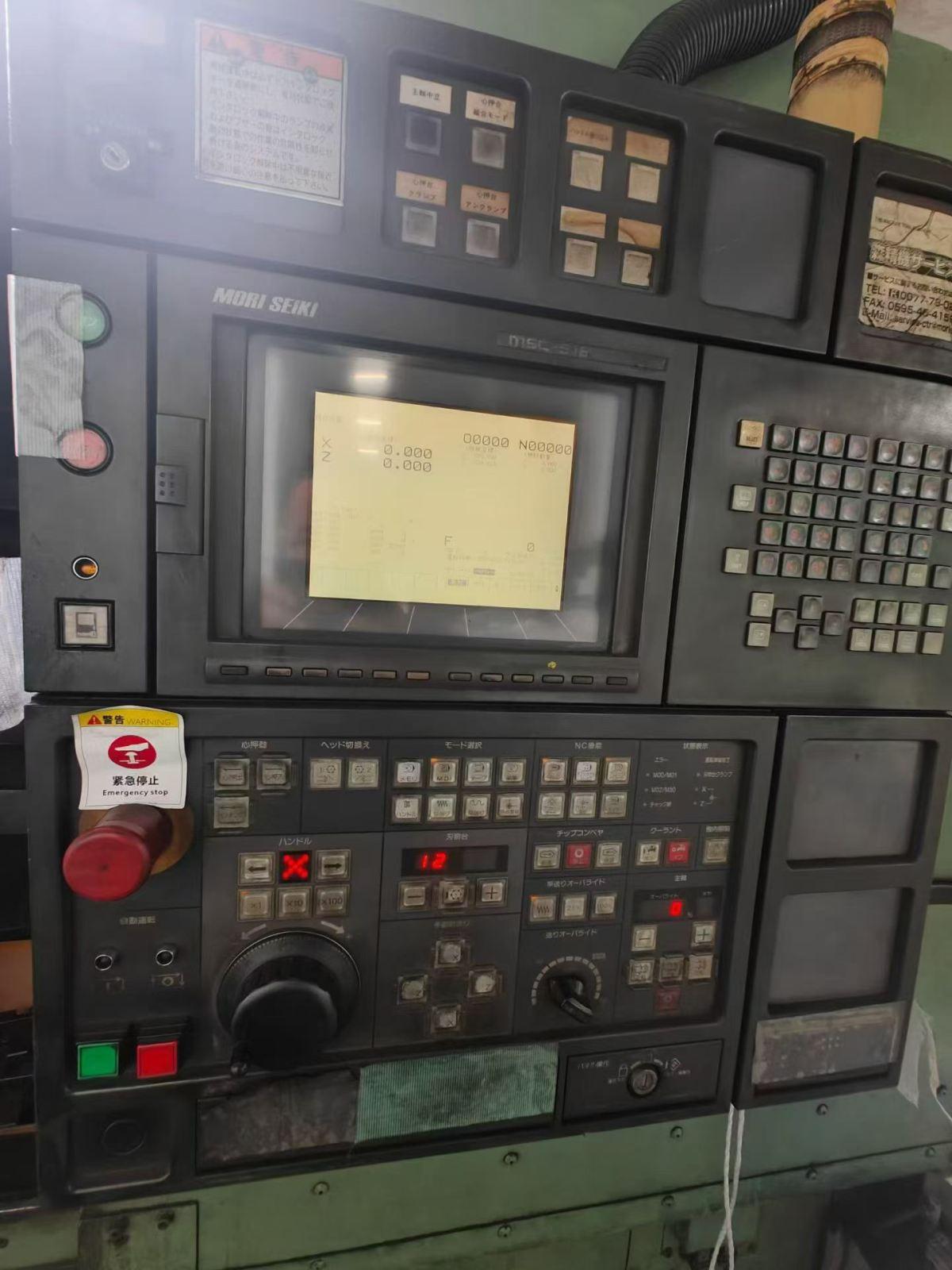

Mori Seiki SL75 CNC turning lathe

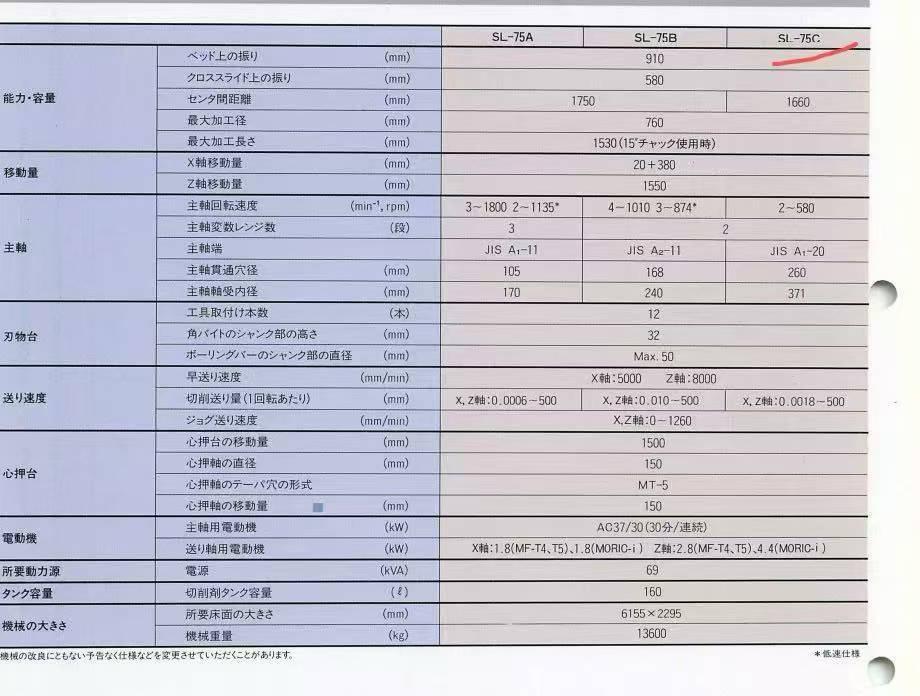

Maximum machining diameter: 760 mm
Maximum machining length: 1530 mm
X-axis travel: 20+380 mm
Z-axis travel: 1550 mm
Spindle speed: 2 to 580 rpm
Number of gear shifts: 2
Spindle nose specification: JISA-20
Through-hole diameter: 260 mm
Bearing inner diameter: 371 mm
Magazine capacity: 12
Corner height: 32 mm
Maximum tool diameter: 50 mm
Rapid traverse (X-axis): 5000 mm/min
Rapid traverse (Z-axis): 8000 mm/min
Cutting feed: 0.0018–500 mm/rev
Feed rate range: 0 to 1260 mm/min
Tailstock travel: 1500 mm
Tailstock shaft diameter: 150 mm
Tailstock center specification: MT-5
Tailstock quill travel: 150 mm
