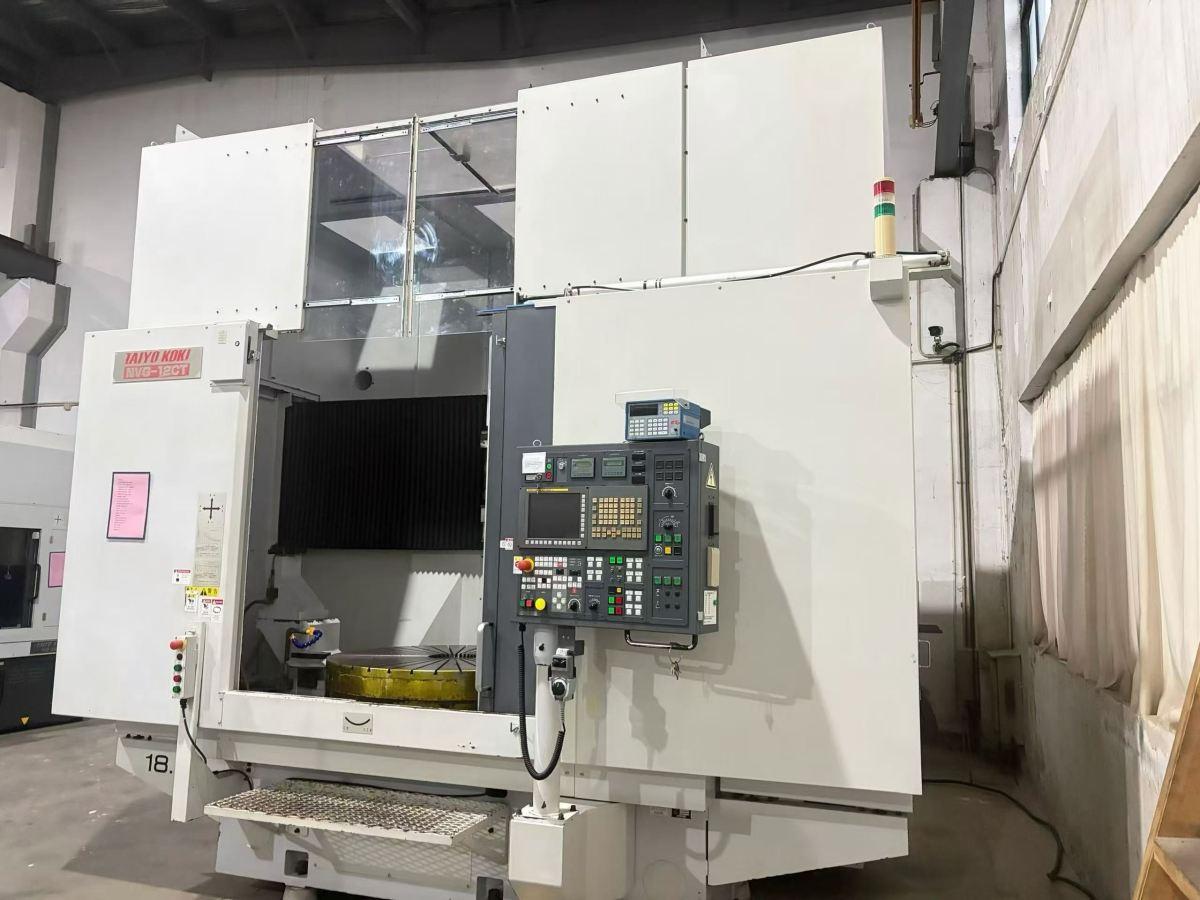

TAIYO KOKI NVG-12CT Grinding machines
[Product Information]:
- Inventory number：4812429
- Brand：TAIYO KOKI
- Model：NVG-12CT
- Origin："Japan
- Location：China
- Year：2008
- Create Time：2026-07-24
Specifications:

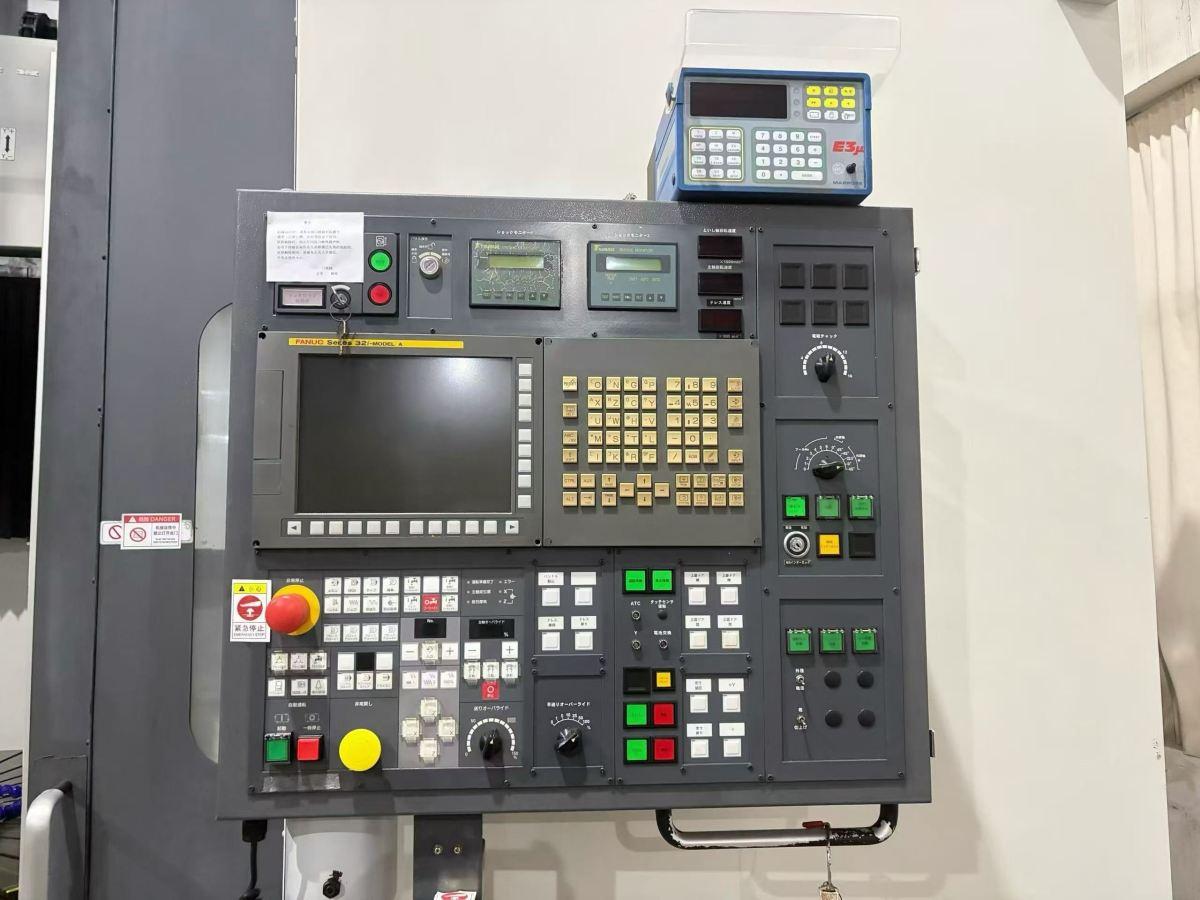

CNC CNC System: FANUC 32i-MODEL-A
Continuous indexing Positioning of B-axis: 0.0001°, with online measurement
Grindable hole diameter range: (45) to φ1200 mm
Grindable external diameter range: 1200mm
Maximum grindable length (external diameter) : 500mm
spindle diameter: φ 1250mm
Installable workpiece height: 600mm

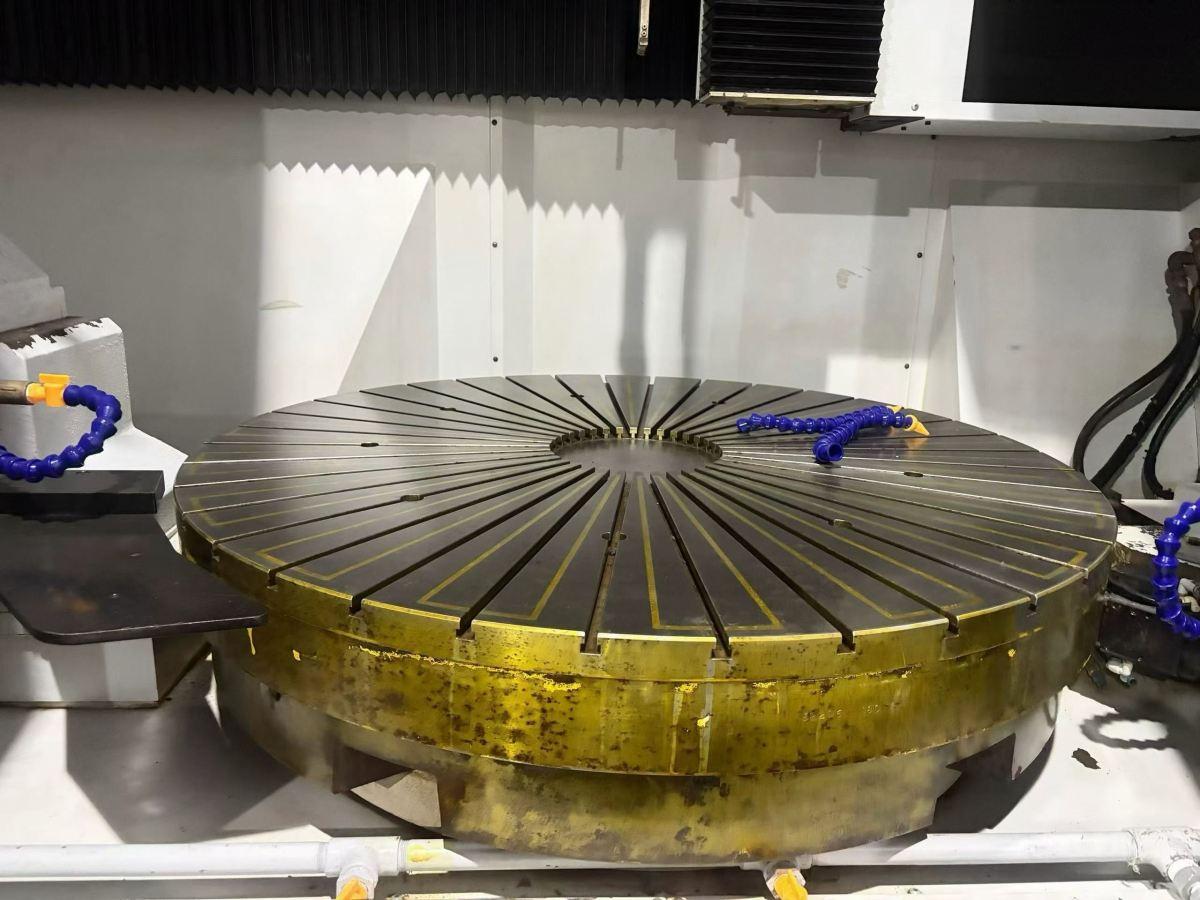

The load of spindle workWorktable is 2500 kg
Distance from the center of the grinding wheel shaft to the surface of workWorktable: 1050mm

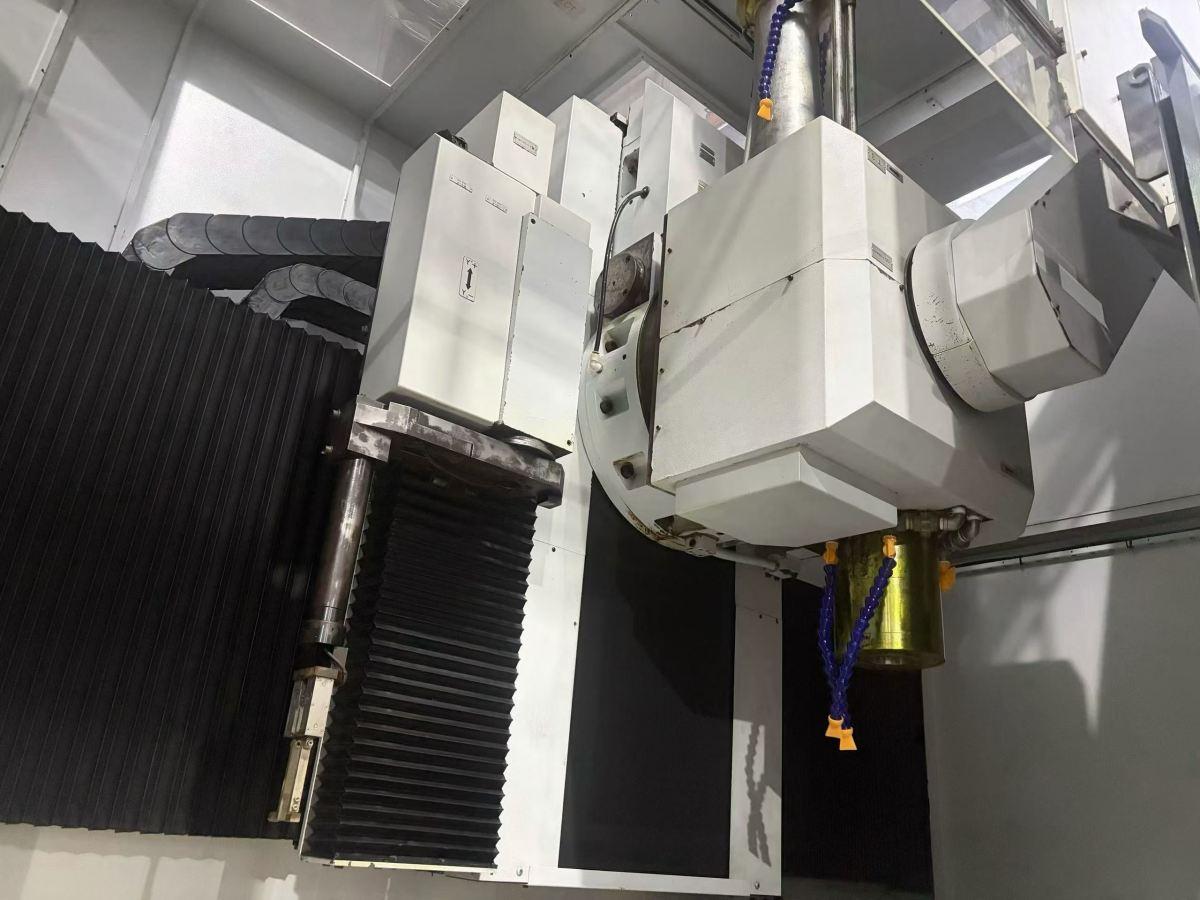

Inner sandblasted axle (with tools magazine: 6 tools)
Interface: BT50
Inner circle rotational speed: 2500-10000 min⁻¹
External frosted axle
grinding wheel specification: 355 × 38 × 127 mm
Outer circle rotational speed: 2400-3000 min⁻¹
moving rate: 0-24,000 mm/min
Voltage: Three-phase 200V
Total power: 45 kVA
Machine weight: 18,000 kg
