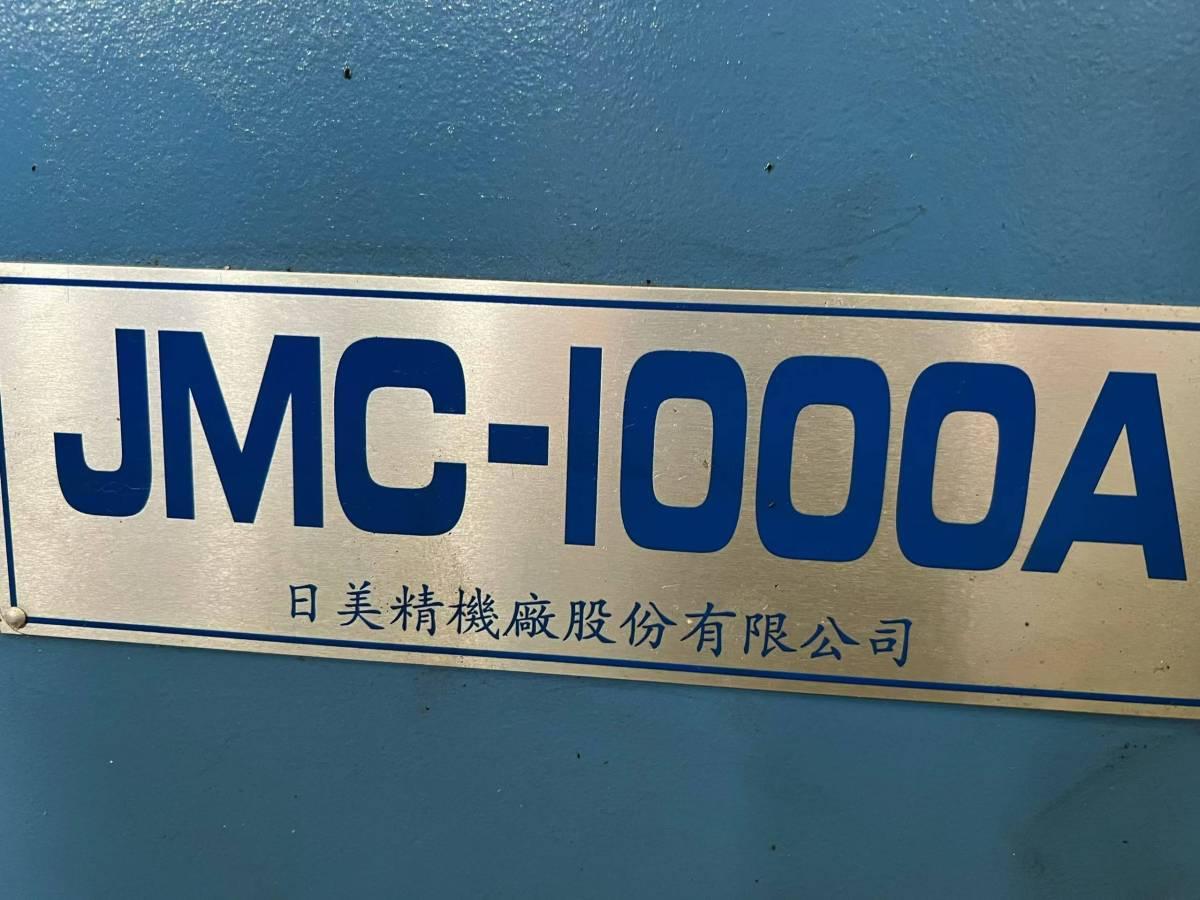

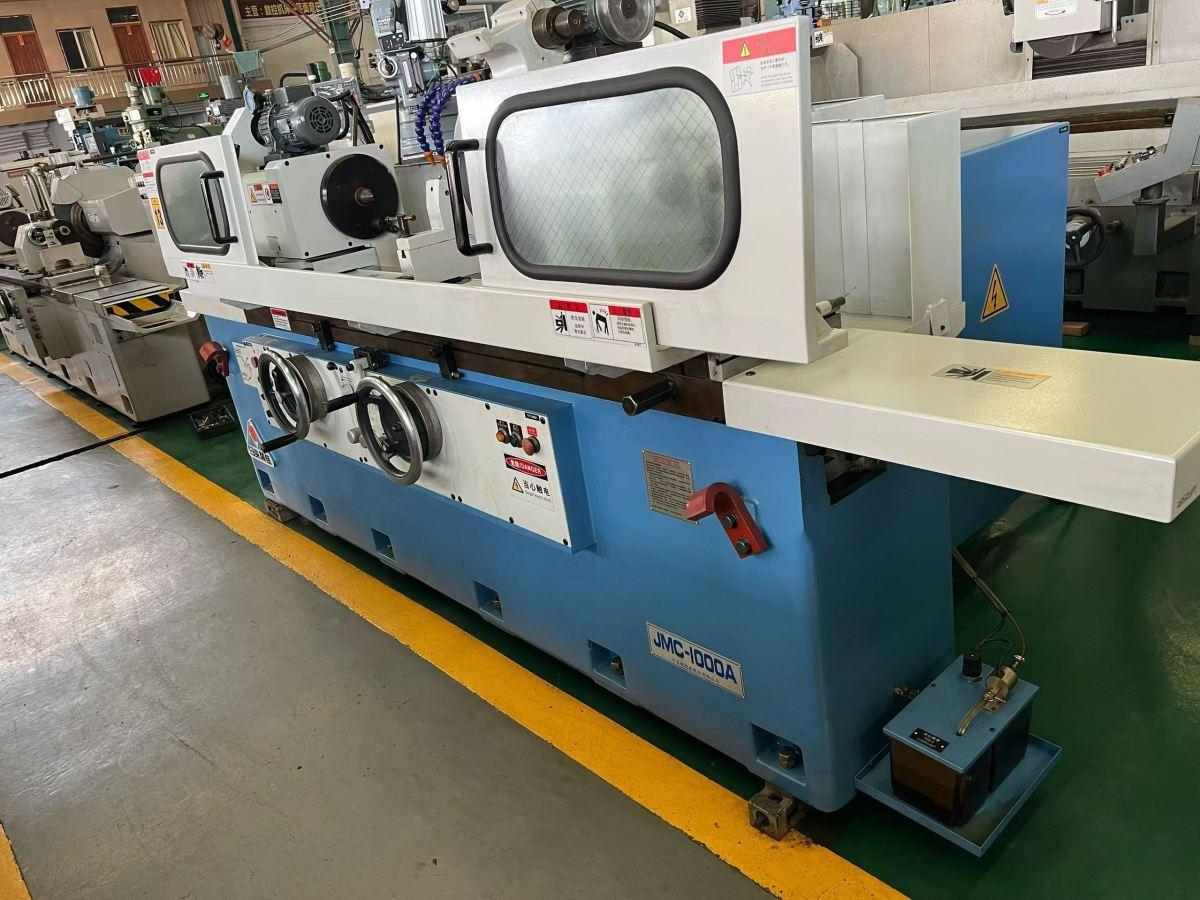

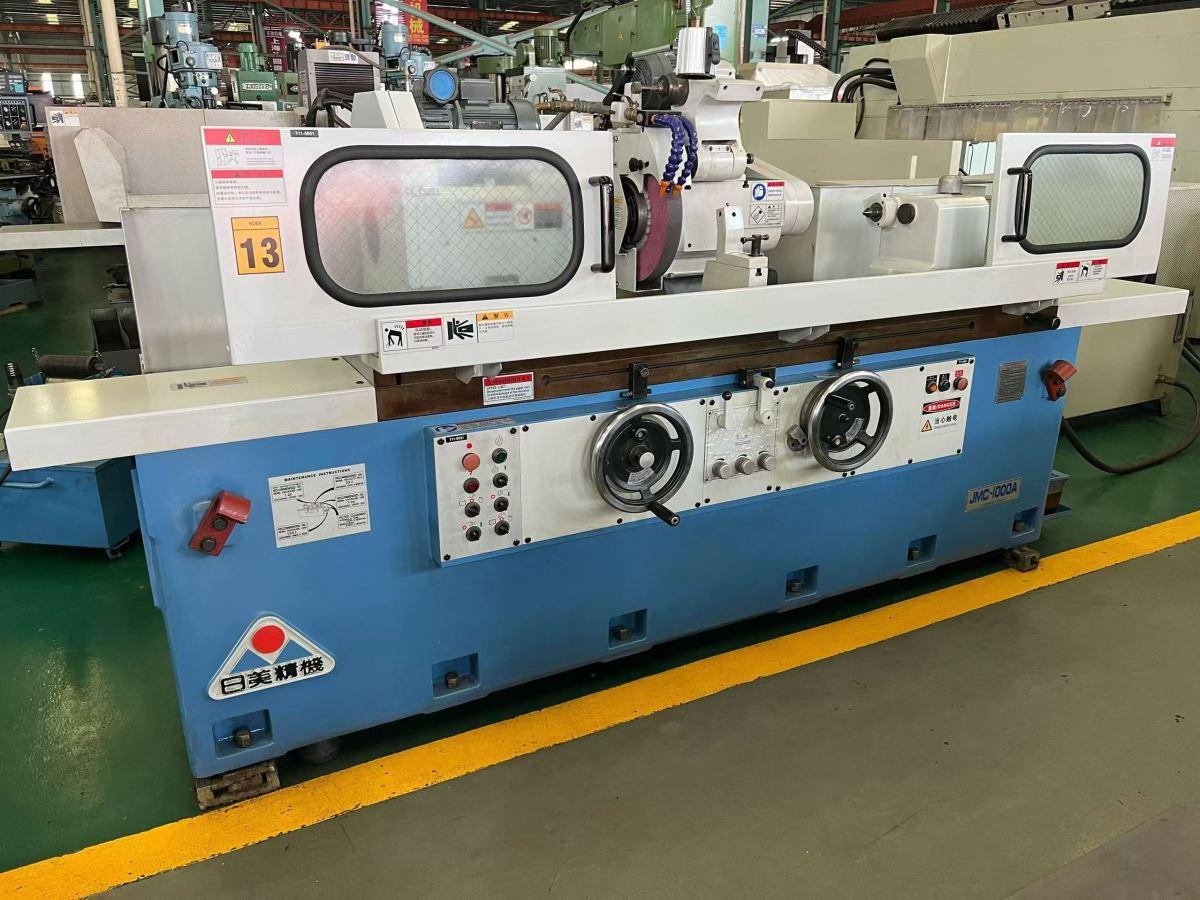

JMC JMC-I000A other

[Product Information]:

Inventory number：468188
Brand：JMC
Model：JMC-I000A
Origin：Taiwan, China
Location：China
Year：2013
Create Time：2026-07-22

Specifications:

The maximum rotation diameter on the bed is 410mm
machining length between the two centers: 1000mm
The weight of the workpiece between the two centers: 200kg
Maximum external grinding diameter: 350mm
Maximum internal grinding diameter: 250mm
Minimum internal grinding diameter: 10mm
Maximum internal grinding depth: 150mm
Headstock Spindle speed: 15 to 1500 RPM
The power of the headstock spindle is 5.5kW
Headstock spindle taper: Mohs No. 5
Headstock rotation Angle: 0° to 90°
Top model of tailstock: Mohs No. 4
tailstock quill shaft travel: 120mm
