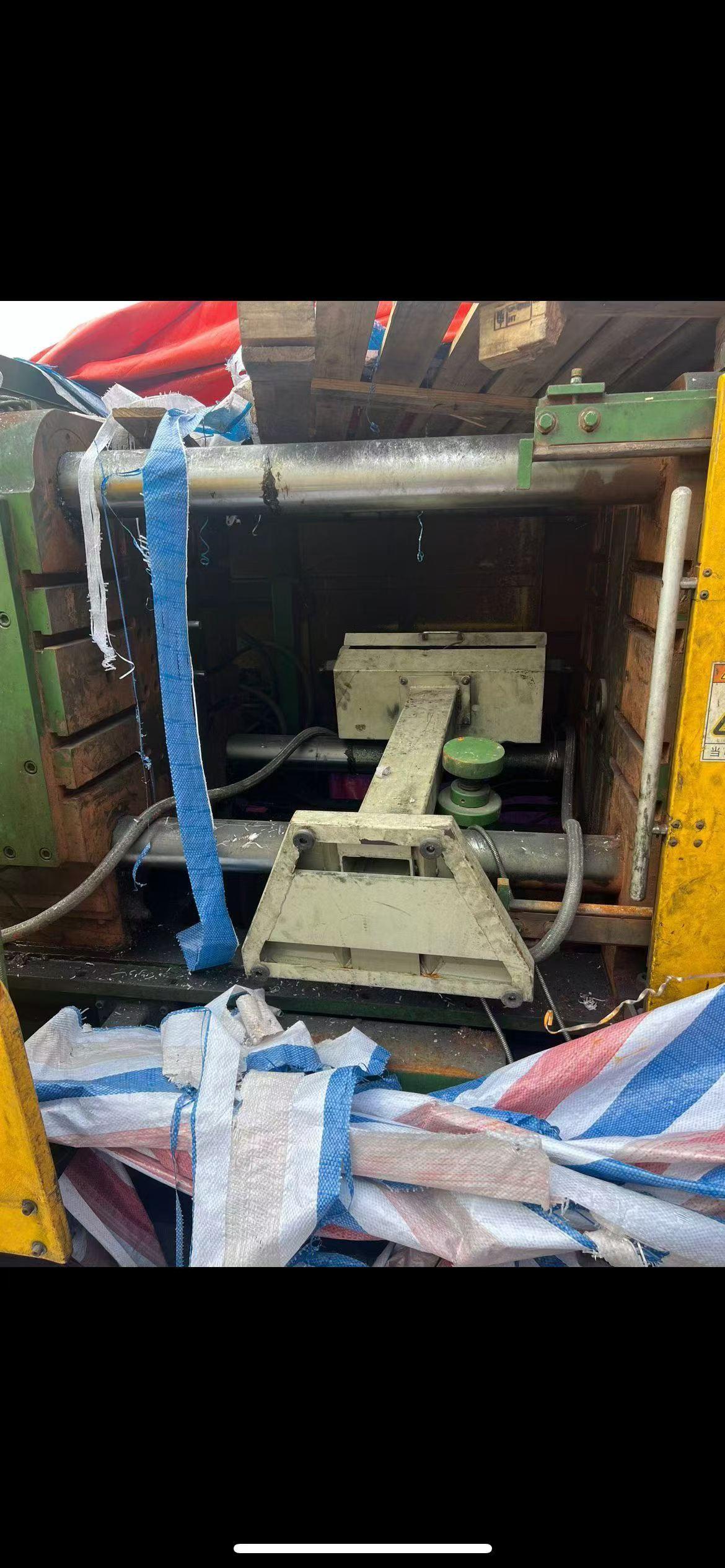

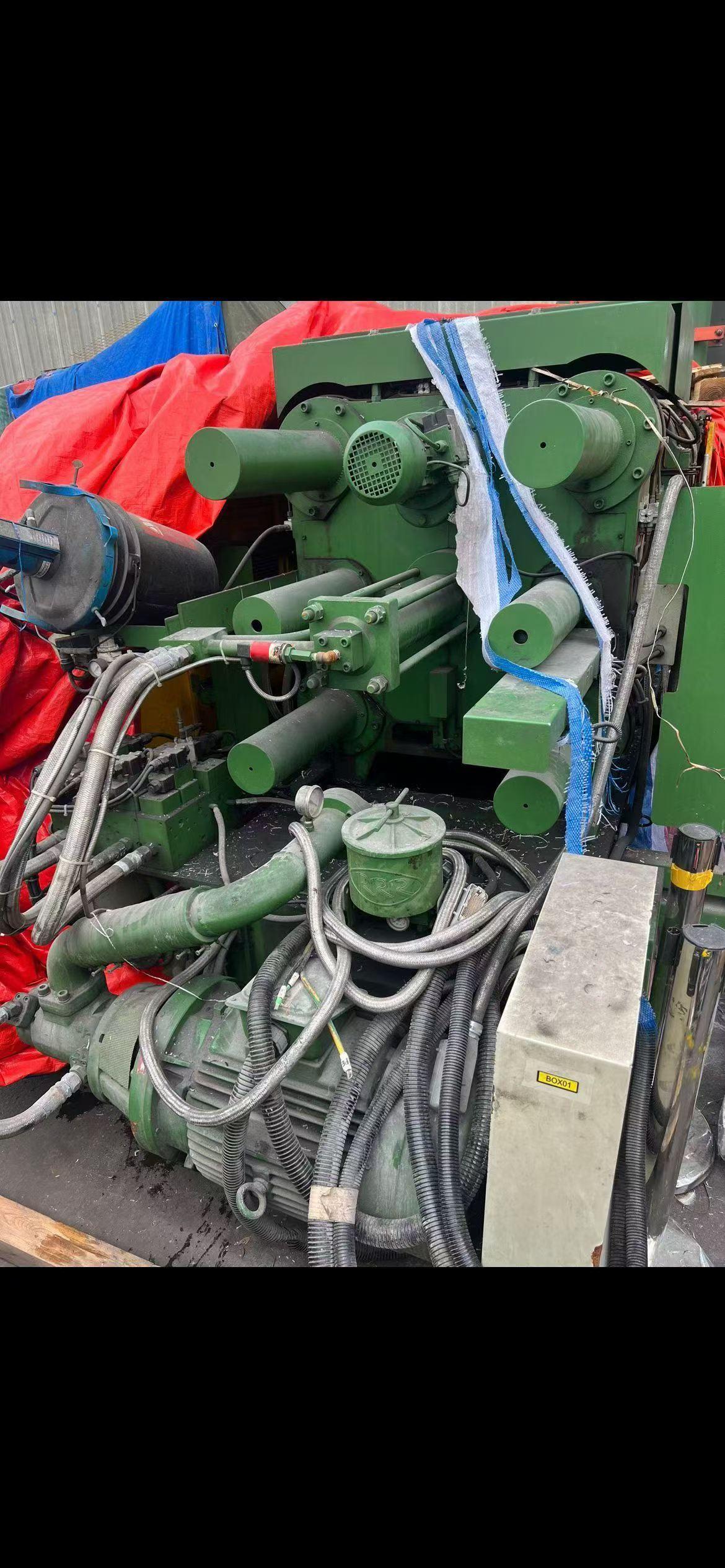

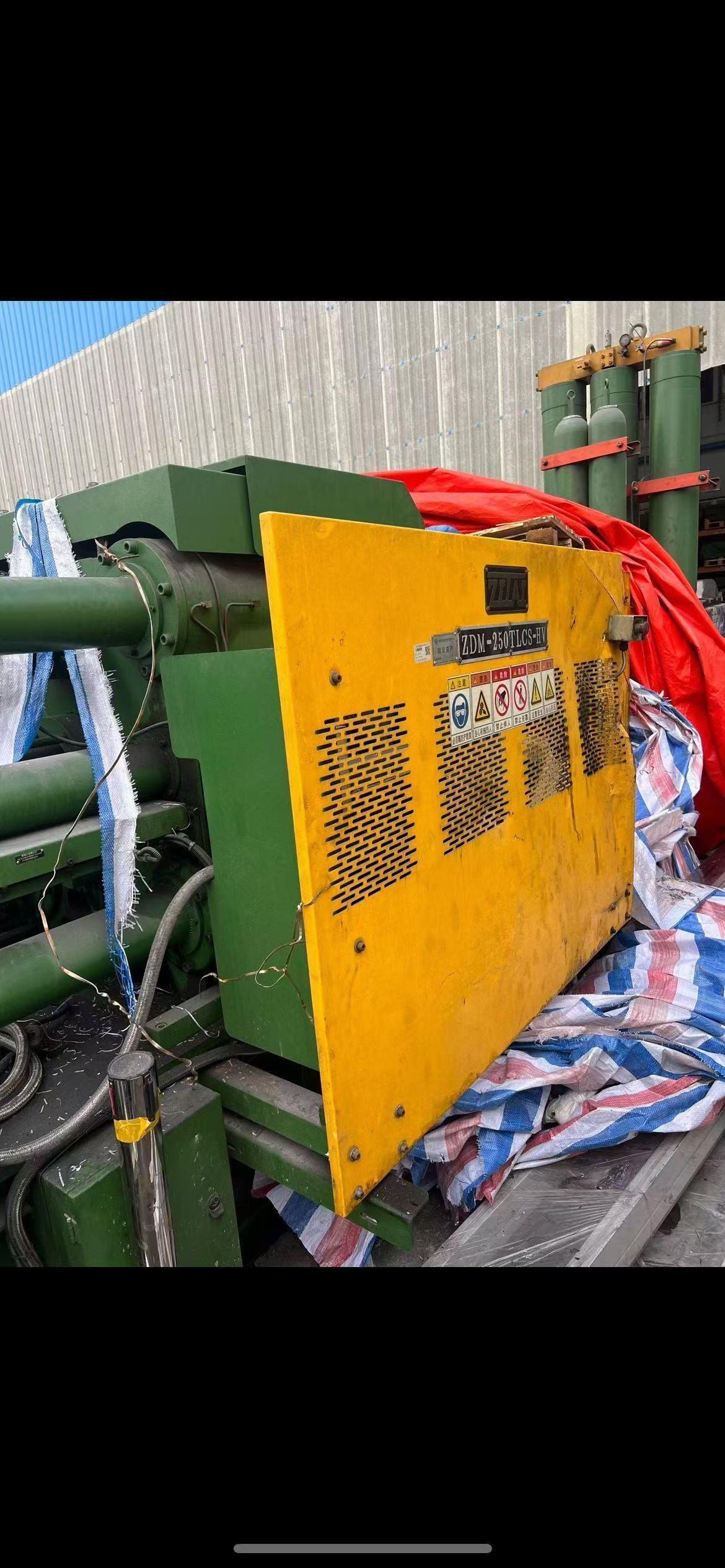

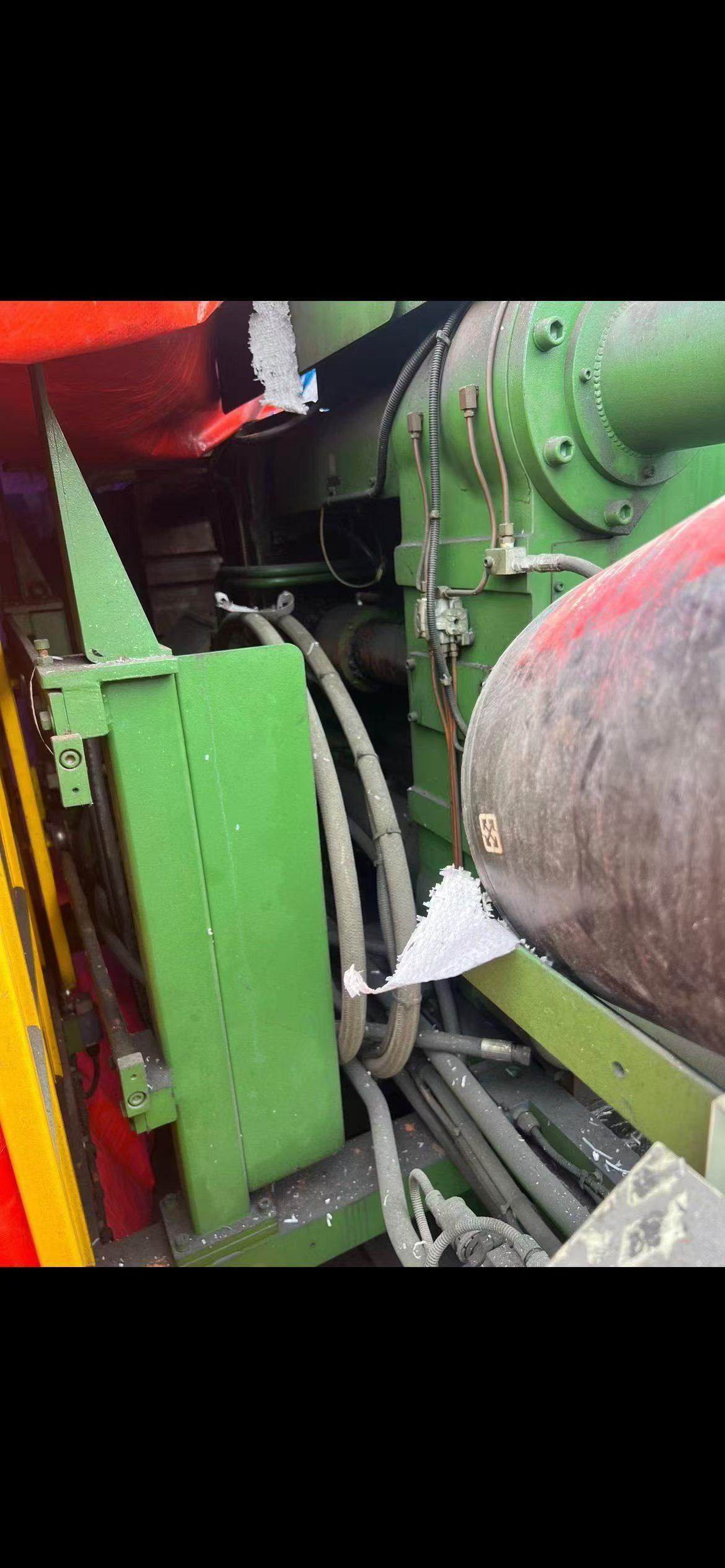

ZITAT ZDM-250TLCS-HV other

Rated clamping force: 2500 kN
Mold opening travel: 340 mm
Compatible mold thickness: 200-550 mm
Mold adjustment speed: approximately 110 mm/min
Top force: 105 kN
Ejection travel: 90mm
Final state injection force for pressurization: 280 kN
Total travel of injection: 300 mm
Slow injection speed: 0.1 to 1.2 m/s
Maximum speed of fast injection: ≥5.5 m/s
Boosting and pressure-building time: ≤20 ms
Standard specifications of the injection HERMLE head: φ50 / φ60 / φ 70mm
The maximum injection volume corresponding to the aluminum alloy is approximately 2.2kg / 3.2kg / 4.3kg
Rated working pressure of the CNC System: 14 MPa
